Epson L485 Wi-Fi Inktank Printer User Manual

1. Inngangur

This manual provides detailed instructions for setting up, operating, and maintaining your Epson L485 Wi-Fi Inktank Printer. Please read this manual thoroughly to ensure proper use and to maximize the performance and longevity of your device.

Vara lokiðview

The Epson L485 is a versatile all-in-one printer offering print, scan, and copy functionalities with the added convenience of Wi-Fi Direct. It features an innovative ink tank system designed for high-volume printing with impressive page yields and a high print resolution for quality output.

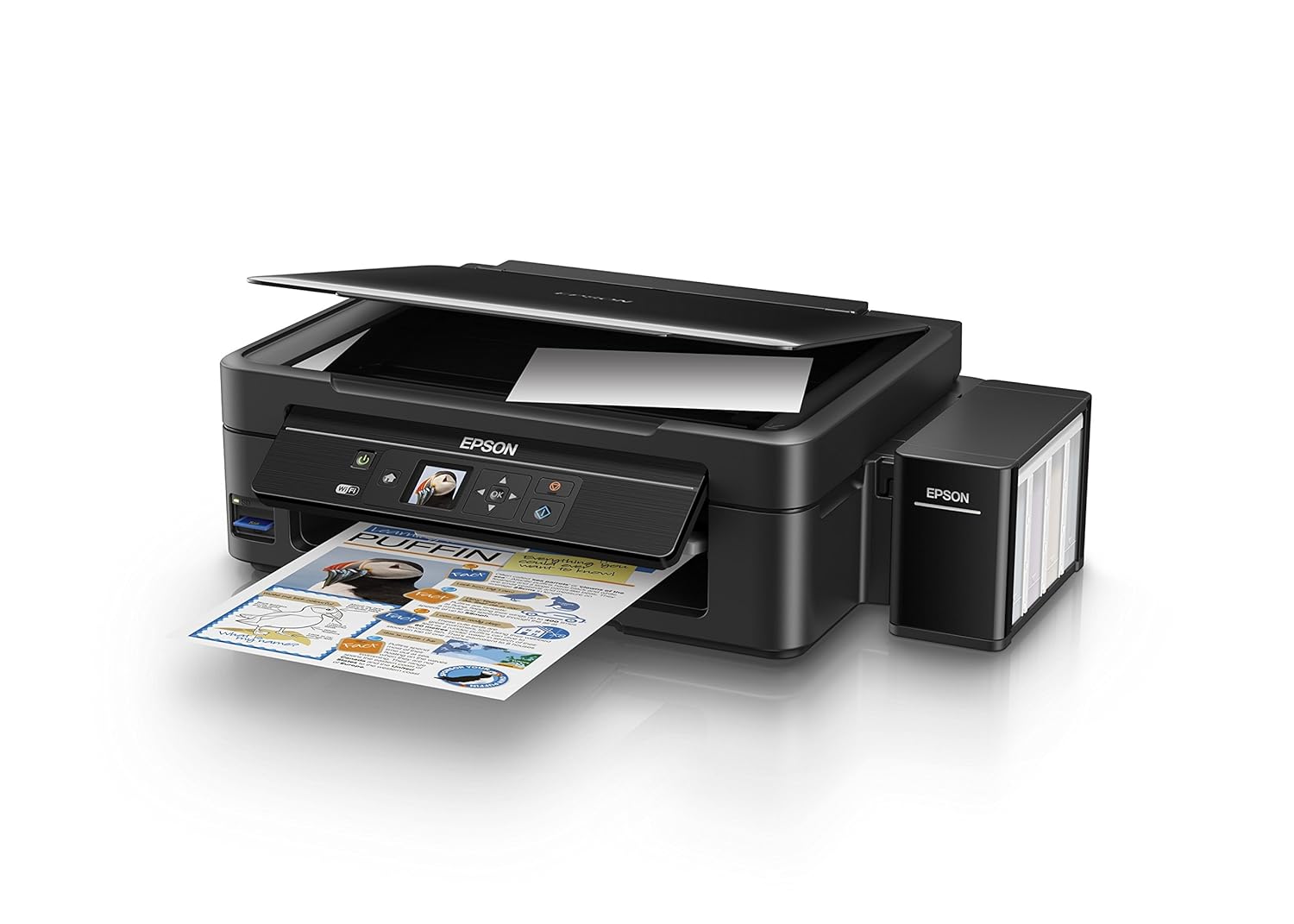

Mynd 1: Framan view of the Epson L485 Wi-Fi Inktank Printer.

Hvað er í kassanum

• Epson L485 Printer Unit
• Hugbúnaður geisladiskur
• Rafmagnssnúra
• Ábyrgðarkort
• Set of Original Epson Ink Bottles (Black, Cyan, Magenta, Yellow)

2. Uppsetningarleiðbeiningar

Follow these steps to set up your Epson L485 printer for the first time.

2.1 Initial Printer Preparation

1. Taktu prentarann ​​úr umbúðunum: Carefully remove the printer from its packaging. Remove all protective tapes and materials.
2. Check Valve Position: Locate the ink tank valve on the side of the printer. Ensure it is in the upright (printing) position.
3. Open Ink Tank Unit: Gently unhook the ink tank unit from the side of the printer and open its lid to access the ink tanks.

Figure 2: The ink tank unit unhooked and open, showing the ink reservoirs.

2.2 Að fylla blektankana

1. Prepare Ink Bottles: Snap off the tip of each ink bottle and remove the cap.
2. Fylla blektankana: Match the color of the ink bottle with the corresponding ink tank. Carefully pour the entire contents of each ink bottle into its respective tank. Do not overfill.
3. Secure Caps: Once all tanks are filled, replace the caps securely on the ink tanks.
4. Close Ink Tank Unit: Close the lid of the ink tank unit and re-hook it to the printer.

Figure 3: Demonstrating the process of filling an ink tank with a yellow ink bottle.

Figure 4: The four color ink bottles used for the Epson L485 printer.

2.3 Power On and Ink Charging

1. Tengdu rafmagn: Plug the power cable into the printer and then into a wall outlet.
2. Turn On Printer: Ýttu á rofann til að kveikja á prentaranum.
3. Initiate Ink Charge: Press and hold the 'Ink Charge' button (usually indicated by a droplet icon) for 3 seconds until the lights start blinking. The initial ink charging process takes approximately 20 minutes. Do not turn off or unplug the printer during this process.
4. Frágangur: The lights will stop blinking when ink charging is complete.

2.4 Bílstjóri uppsetning

1. Insert Software CD: Insert the provided Software CD into your computer's CD/DVD drive. If your computer does not have a CD drive, download the latest drivers from the official Epson support websíða.
2. Fylgdu leiðbeiningum á skjánum: Follow the prompts on your computer screen to install the printer drivers and utilities. Agree to the license agreement and select 'Start & Connection' for setup.
3. Connect USB Cable (if prompted): If setting up via USB, connect the USB cable between the printer and your computer when prompted by the installation software.

2.5 Connectivity Setup

The Epson L485 supports both USB and Wi-Fi connectivity.

USB tenging

Connect the USB cable from the printer to an available USB port on your computer. The printer should be recognized automatically after driver installation.

Wi-Fi uppsetning

The printer features an LCD screen for easy Wi-Fi setup without needing a PC.

1. Access Wi-Fi Setup: On the printer's control panel, navigate to the 'Wi-Fi Setup' option using the arrow keys and press 'OK'.
2. Veldu net: Choose your desired wireless network from the list and enter the password if required.
3. Staðfestu tengingu: Once connected, the Wi-Fi indicator light will be solid, and the LCD screen will confirm the setup is complete.

Figure 5: Demonstrating wireless printing from a smartphone to the Epson L485 printer.

3. Notkun prentarans

3.1 Prentun

The Epson L485 delivers high-quality prints with a resolution of 5760 dpi. It offers print speeds of up to 33 ppm for black and 15 ppm for color documents.

1. Hlaða pappír: Load paper into the rear paper feeder. Adjust the paper guides to fit the paper size.
2. Select Print Job: Veldu skjalið eða myndina sem þú vilt prenta úr tölvunni þinni eða snjalltækinu.
3. Stilla stillingar: Choose your print settings (e.g., paper size, print quality, color/black & white) in the print dialog box.
4. Prenta: Smelltu á „Prenta“ til að senda verkið til prentarans.

Figure 6: The Epson L485 printer in action, producing a vibrant print.

3.2 Skönnun

The printer features a sheetfed scanner with an optical resolution of 1200 dpi x 2400 dpi for clear and detailed scans.

1. Staða skjals: Lift the scanner lid and place your document face-down on the scanner glass, aligning it with the corner mark.
2. Hefja skönnun: Opnaðu Epson Scan hugbúnaðinn í tölvunni þinni eða notaðu skannaaðgerðina á stjórnborði prentarans.
3. Stilla stillingar: Veldu skannastillingar eins og upplausn, litastillingu og áfangamöppu.
4. Byrjaðu skönnun: Begin the scanning process.

Figure 7: The scanner bed of the Epson L485 printer with the lid open.

3.3 Afritun

Make copies directly from the printer's control panel.

1. Staða skjals: Place the document you wish to copy on the scanner glass.
2. Veldu afritunaraðgerð: On the printer's LCD screen, navigate to the 'Copy' option.
3. Stilla stillingar: Select the number of copies, color or black & white, and other copy settings.
4. Start Copy: Ýttu á 'Start' hnappinn til að hefja afritun.

3.4 Wi-Fi Direct

Wi-Fi Direct allows you to connect your mobile devices directly to the printer without a router, enabling convenient wireless printing.

1. Enable Wi-Fi Direct: On the printer's control panel, go to 'Wi-Fi Setup' and select 'Wi-Fi Direct'. Follow the on-screen instructions to enable it and view nafn netsins og lykilorðið.
2. Tengdu farsíma: On your mobile device, go to Wi-Fi settings, find the printer's Wi-Fi Direct network, and connect using the provided password.
3. Prenta: Use an Epson printing app (e.g., Epson iPrint) or your device's native print function to print directly to the printer.

4. Viðhald

4.1 Blekáfylling

When ink levels are low, refill the tanks using genuine Epson ink bottles. Refer to section 2.2 for detailed ink filling instructions. Always use the correct color ink for each tank.

4.2 Þrif

Regluleg þrif hjálpa til við að viðhalda prentgæðum og lengir líftíma prentarans.

• Þrif að utan: Þurrkaðu ytra byrði prentarans með mjúkum klút.amp klút. Forðist að nota slípiefni.
• Þrif á prenthaus: If print quality declines (e.g., missing lines, incorrect colors), perform a print head cleaning using the printer's utility software on your computer or through the printer's control panel menu.
• Stútathugun: Run a nozzle check pattern to diagnose print quality issues before performing a head cleaning.

5. Bilanagreining

Þessi kafli fjallar um algeng vandamál sem þú gætir lent í með Epson L485 prentaranum þínum.

5.1 Prentari svarar ekki

• Gakktu úr skugga um að prentarinn sé kveikt á og vel tengdur við rafmagn.
• Check the USB cable connection to both the printer and computer, or verify the Wi-Fi connection status.
• Endurræstu bæði prentarann ​​og tölvuna/snjalltækið.

5.2 Léleg prentgæði

• Perform a nozzle check to identify clogged nozzles. If necessary, run a print head cleaning cycle.
• Athugaðu blekmagn og fylltu á ef blekið er orðið tómt.
• Ensure you are using genuine Epson ink and appropriate paper types for your print job.

5.3 Pappírsstopp

• Turn off the printer and carefully remove any jammed paper from the paper tray, output tray, or inside the printer.
• Gakktu úr skugga um að pappírinn sé rétt settur í og ​​ekki krumpaður eða brotinn.urlútg.

6. Tæknilýsing

7. Ábyrgð og stuðningur

Your Epson L485 Wi-Fi Inktank Printer comes with a free installation service and an onsite warranty.

7.1 Free Installation and Onsite Warranty

To avail free installation for your printer, please contact Epson support after receiving your product. The onsite warranty covers manufacturing defects and ensures professional assistance at your location.

7.2 Hafðu samband við þjónustuver

For installation, support, or any technical assistance, please contact Epson customer service:

• Sími: 1860 3000 1600 (Timings: 9 am - 6 pm)
