1. Inngangur
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your EMKE Flat Panel Radiator. Please read these instructions carefully before installation and retain them for future reference.
The EMKE Flat Panel Radiator is designed for rapid and uniform heating of various rooms, including living rooms, bedrooms, and bathrooms. Its construction ensures efficient heat distribution and long-term reliability.
2. Öryggisupplýsingar
Fylgið alltaf eftirfarandi öryggisráðstöfunum til að koma í veg fyrir meiðsli eða skemmdir:
- Installation must be performed by a qualified professional in accordance with local building and plumbing regulations.
- Ensure the wall structure can support the weight of the radiator when filled with water.
- Do not cover the radiator with clothing or other materials, as this can impede heat dissipation and pose a fire hazard.
- Keep children and pets away from the hot surface of the radiator during operation.
- Before any maintenance or repair, ensure the heating system is turned off and the radiator has cooled down.
- This radiator operates with hot water and is designed for silent, radiation-free operation.
3. Innihald pakka
Verify that all components are present and undamaged before beginning installation. The package typically includes:
- EMKE Flat Panel Radiator
- Mounting Kit (Wall brackets, long screws, rubber rings, rubber pads)
- Notendahandbók (þetta skjal)
4. Uppsetning og uppsetning
The EMKE Flat Panel Radiator is designed for flexible and easy installation. It does not require complex tools or specialized skills, but professional installation is recommended.
4.1 Athuganir fyrir uppsetningu
- Ensure the wall dimensions are greater than the product dimensions.
- Verify that the wall's load-bearing capacity exceeds the product's weight.
- The product does not include valves; these must be acquired separately.
4.2 Tengingarmöguleikar

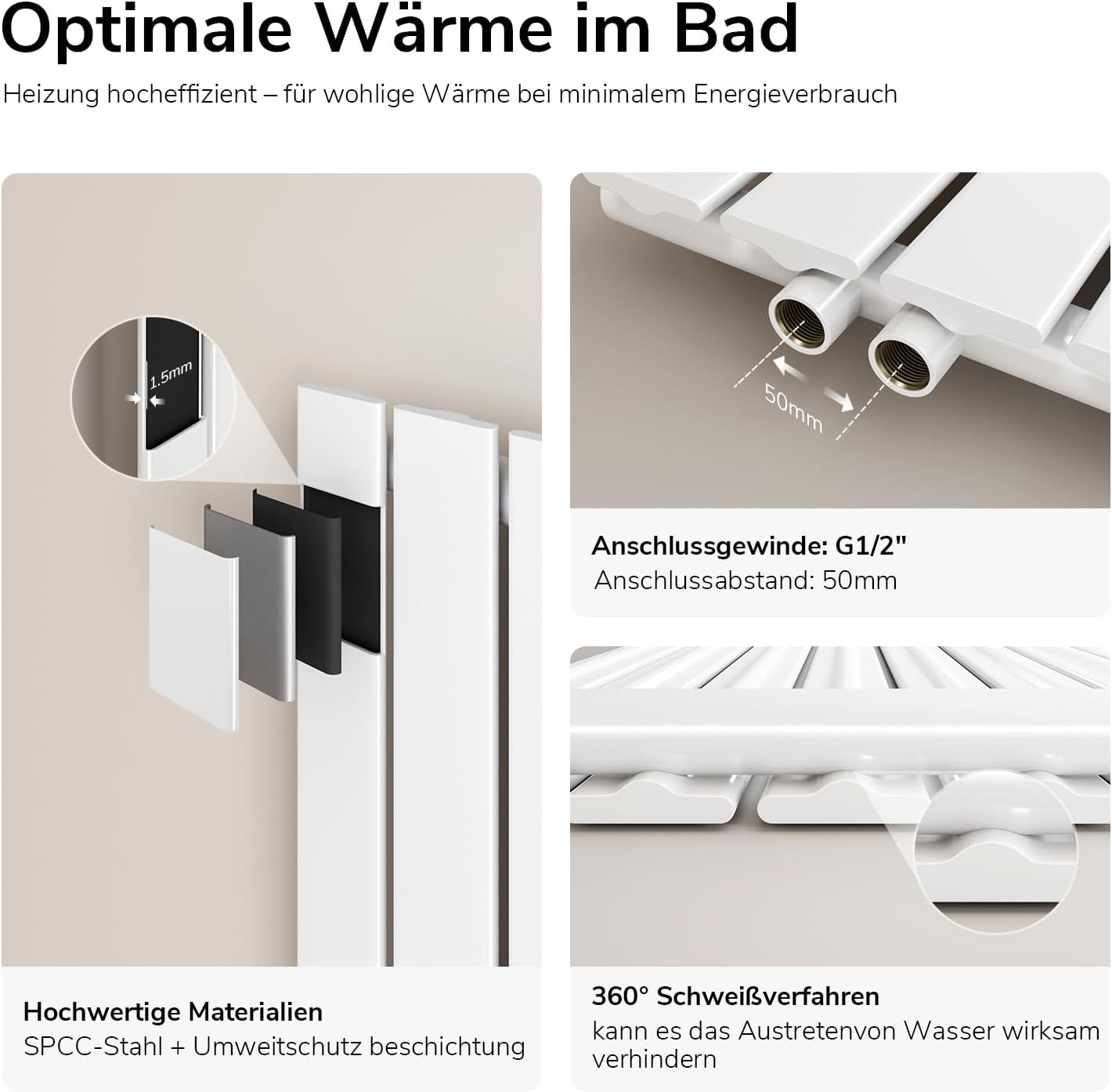

The radiator offers flexible connection options. The front and rear connectors can be positioned on three sides (excluding the left side). The connection thread is G1/2" with an axle distance of 50 mm.
For single-layer radiators, the mounting direction is fixed. Double-layer radiators can be mounted in either direction.
4.3 Mounting Steps (General)
- Mark the desired mounting points on the wall according to the radiator's dimensions and the provided mounting kit.
- Boraðu göt og settu veggtappa í.
- Secure the wall brackets using the long screws.
- Carefully hang the radiator onto the brackets.
- Connect the radiator to the heating system pipes using appropriate valves and fittings (G1/2" thread).
- Bleed the radiator to remove any trapped air after filling the system.
5. Notkunarleiðbeiningar
The EMKE Flat Panel Radiator operates as part of a hot water central heating system. Once installed and connected, its operation is typically controlled by your central heating system's thermostat and valves.
- Upphafleg gangsetning: After installation and filling the heating system, ensure all radiators are bled to remove air. This ensures efficient heating.
- Hitastýring: Adjust the room temperature using your central thermostat or by regulating the thermostatic radiator valves (TRVs) on individual radiators (if installed).
- Skilvirk upphitun: The high thermal conductivity steel ensures the radiator heats up quickly and distributes warmth evenly.
- Hljóðlát aðgerð: The hot water system operates silently, providing comfortable warmth without noise.
6. Viðhald
Regular maintenance ensures optimal performance and longevity of your EMKE radiator.
- Þrif: Wipe the radiator surface with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the environmentally friendly surface coating.
- Blæðingar: Periodically bleed the radiator to release any trapped air. Air in the system can reduce heating efficiency. This is typically done using a radiator key on the bleed valve.
- Skoðanir: Annually check for any signs of leaks or corrosion. The 360° seamless welding technology and protective coating are designed to prevent these issues, but regular checks are advisable.
- Kerfisskoðun: Ensure your overall central heating system is maintained according to manufacturer guidelines.
7. Bilanagreining
If you encounter issues with your radiator, consider the following common solutions:
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Radiator not heating up fully (cold at top) | Loft í læsingu | Bleed the radiator using a radiator key until water comes out. |
| Radiator not heating at all | Valve closed, system off, or system pressure low | Check if the thermostatic valve is open. Ensure central heating system is on and pressure is adequate. |
| Minor leaks from connections | Lausar festingar | Tighten connections carefully. If leak persists, consult a professional. |
If problems persist, contact a qualified heating engineer or EMKE customer support.
8. Tæknilýsing
Detailed technical specifications for the EMKE Flat Panel Radiator (Model FR6361W-DRVC):
| Eiginleiki | Smáatriði |
|---|---|
| Vörumerki | EMKE |
| Gerðarnúmer | FR6361W-DRVC |
| Litur | White - Single Layer |
| Vörumál (L x B x H) | 63 x 62 x 4.9 cm |
| Nettóþyngd | 10.7 kg |
| Upphitunarafköst | 438 W (for rooms up to approx. 4 m²) |
| Framkvæmdir | Horizontal, Single Layer, 8 Panels |
| Tengiþráður | G1/2" |
| Axle Distance | 50 mm |
| Veggfjarlægð | 85 mm |
| Efni | High thermal conductivity steel with environmentally friendly coating |
| Framleiðslustaðall | EN442, 360° seamless welding technology |
| Sjálfvirk lokunaraðgerð | Nei |
| Framboð á varahlutum | Upplýsingar ekki tiltækar |
| Dagsetning fyrst í boði | 24. apríl 2022 |
9. Ábyrgð og stuðningur
EMKE products are manufactured to high standards and undergo rigorous quality control. For specific warranty details, please refer to the documentation provided with your purchase or contact EMKE customer support.
If you require technical assistance, have questions about installation, or need to report a defect, please contact EMKE customer service. Have your model number (FR6361W-DRVC) and purchase date ready when contacting support.
Contact information can typically be found on the EMKE official websíðunni eða á kaupkvittuninni þinni.
