1. Inngangur
This manual provides essential information for the safe and efficient operation of your Haier HCC-230HC Convertible Freezer. Please read it thoroughly before installation and use, and retain it for future reference.
Öryggisupplýsingar
- Gakktu úr skugga um að tækið sé komið fyrir á stöðugu, sléttu yfirborði.
- Ekki loka fyrir loftræstingarop.
- Haldið eldfimum efnum frá heimilistækinu.
- Taktu tækið úr sambandi fyrir þrif eða viðhald.
- Þetta tæki er eingöngu hannað til heimilisnota.
2. Uppsetning og uppsetning
The Haier HCC-230HC is a freestanding unit designed for easy placement.
Að pakka niður
- Fjarlægið varlega öll umbúðaefni.
- Skoðið tækið til að athuga hvort það hafi skemmst við flutning. Tilkynnið um allar skemmdir tafarlaust til söluaðila.
- Ensure all included components are present: 1 Unit, 1 Manual.
Staðsetning
- Place the freezer in a well-ventilated area, away from direct sunlight or heat sources.
- Allow adequate space around the unit for proper air circulation.
- The appliance operates within a wide voltage range of 160-260V, reducing dependency on an external stabilizer.

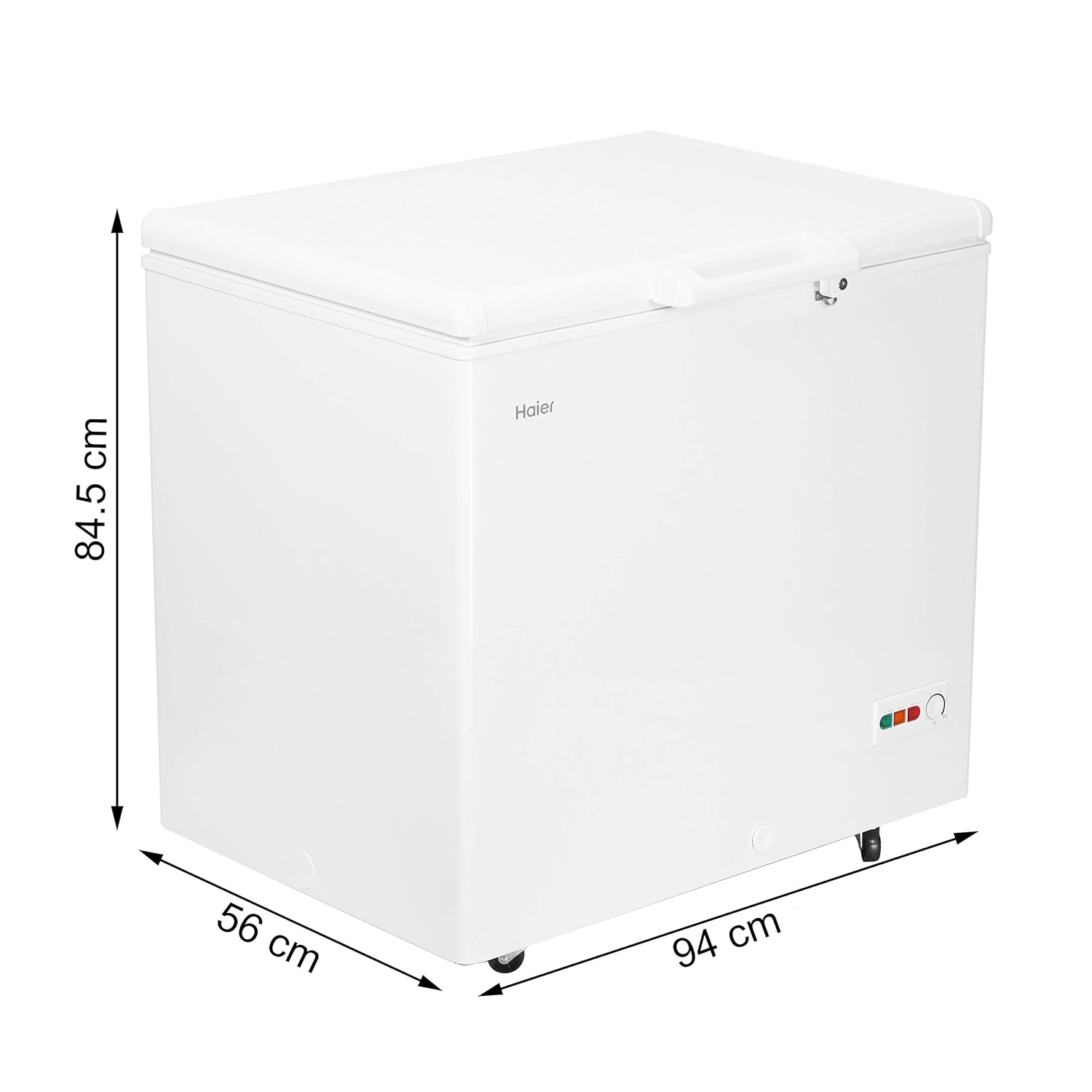

Mynd 2.1: Dimensions of the Haier HCC-230HC chest freezer. The unit measures 94 cm (Length) x 56 cm (Width) x 84.5 cm (Height).
Upphafleg ræsing
After placement, wait for at least 2-4 hours before plugging in the appliance to allow refrigerants to settle. Plug into a dedicated 220V power outlet.
3. Notkunarleiðbeiningar
The Haier HCC-230HC is a convertible model, allowing it to function as both a freezer and a refrigerator.
Hitastýring
The appliance features a temperature control dial, typically located on the front lower right side. This dial allows you to set the desired temperature within a range of +10°C to -18°C.
Mynd 3.1: Framan view showing the control panel and temperature dial.
- Frystistilling: Set the dial to colder settings (e.g., towards -18°C) for freezing food.
- Kæliskápstilling: Set the dial to warmer settings (e.g., towards +10°C) for refrigeration.
The three-layered trapezoid door design helps prevent cold air leakage, contributing to better cooling retention and energy efficiency. This model includes one basket for organized storage.

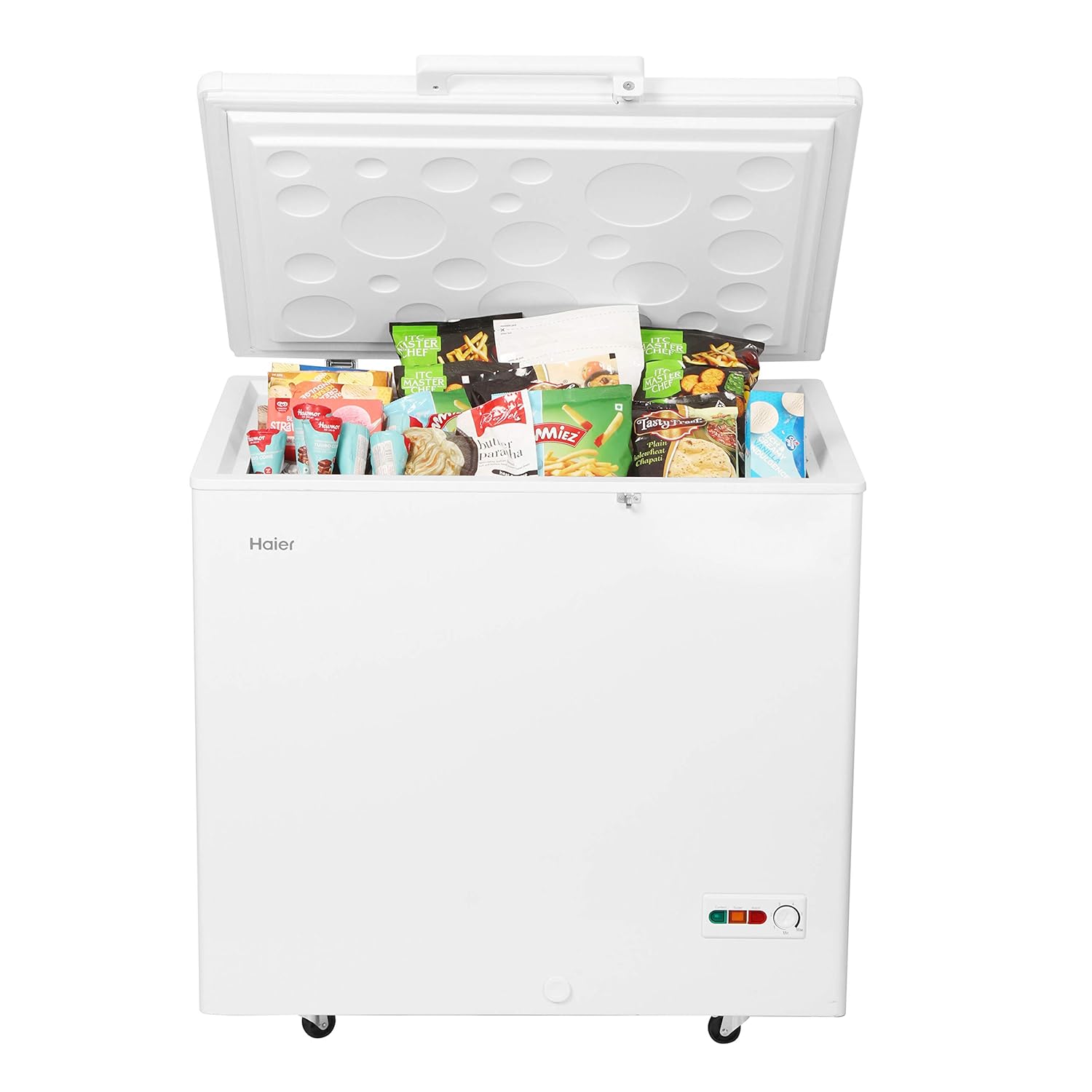

Mynd 3.2: Innrétting view of the chest freezer with the lid open, demonstrating storage capacity.
4. Viðhald
Þrif
- Taktu heimilistækið alltaf úr sambandi áður en þú þrífur.
- Þrífið innri og ytri fleti með mjúkum klút og mildu hreinsiefni.
- Ekki nota slípiefni eða beitta hluti.
- Regularly clean the condenser coils at the back of the unit to ensure efficient operation.
Afþíðing
Defrost the freezer when ice accumulation reaches approximately 0.5 cm (1/4 inch) thickness. Turn off the appliance, remove all contents, and allow the ice to melt naturally. Use a soft cloth to wipe away melted water. Do not use sharp objects to remove ice.
5. Bilanagreining
Áður en þú hefur samband við þjónustuverið skaltu athuga eftirfarandi algeng vandamál:
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Tæki kólnar ekki | Ekki tengt við rafmagn; slökkt á rafmagninutage; hitastilling of há; léleg loftræsting. | Check power connection; verify power supply; adjust temperature dial; ensure adequate space around unit. |
| Óhóflegur hávaði | Appliance not level; objects touching the back of the unit. | Adjust leveling feet; move objects away from the unit. |
| Of mikil ísmyndun | Hurðin er ekki vel þétt; hurðin er opnuð oft; mikill raki. | Check door gasket for damage; minimize door openings; defrost as needed. |
6. Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Vörumerki | Haier |
| Fyrirmynd | HCC-230HC |
| Rými (nettó) | 198 lítrar |
| Gerð uppsetningar | Frjálst |
| Sérstakir eiginleikar | Convertible (Freezer/Refrigerator), Energy Saving |
| Hitastig | +10°C til -18°C |
| Voltage | 220 Volts (Wide range 160-260V) |
| Hurðarstefna | Efst |
| Hurðarefni | Metal (Three-layered trapezoid design) |
| Number of Shelves/Baskets | 1 Karfa |
| Aðalefni | Pólýkarbónat |
| Stærðir hlutar (LxBxH) | 94 x 56 x 84.5 sentimetrar |
| Þyngd hlutar | 35 kg |
| Innifalið íhlutir | 1 Unit, 1 Manual |
7. Ábyrgð og stuðningur
Upplýsingar um ábyrgð
The Haier HCC-230HC comes with a 1 ára alhliða ábyrgð on the entire unit, and an additional 3 ára ábyrgð á þjöppunni. This warranty is valid across India.
Þjónustudeild
For service requests or inquiries, please contact Haier customer support:
- Ókeypis símanúmer: 1800-419-9999, 1800-102-9999
Please have your model number (HCC-230HC) and purchase details ready when contacting support.
