1. Vöru lokiðview
The MTM Walkie Talkies XF-638 are designed for reliable two-way communication, featuring 22 channels, hands-free VOX operation, and a clear LCD display. These radios are suitable for various outdoor activities, family events, and general communication needs.
Image: MTM Walkie Talkies XF-638 4-pack in orange color, ready for use.
Auðkenning íhluta

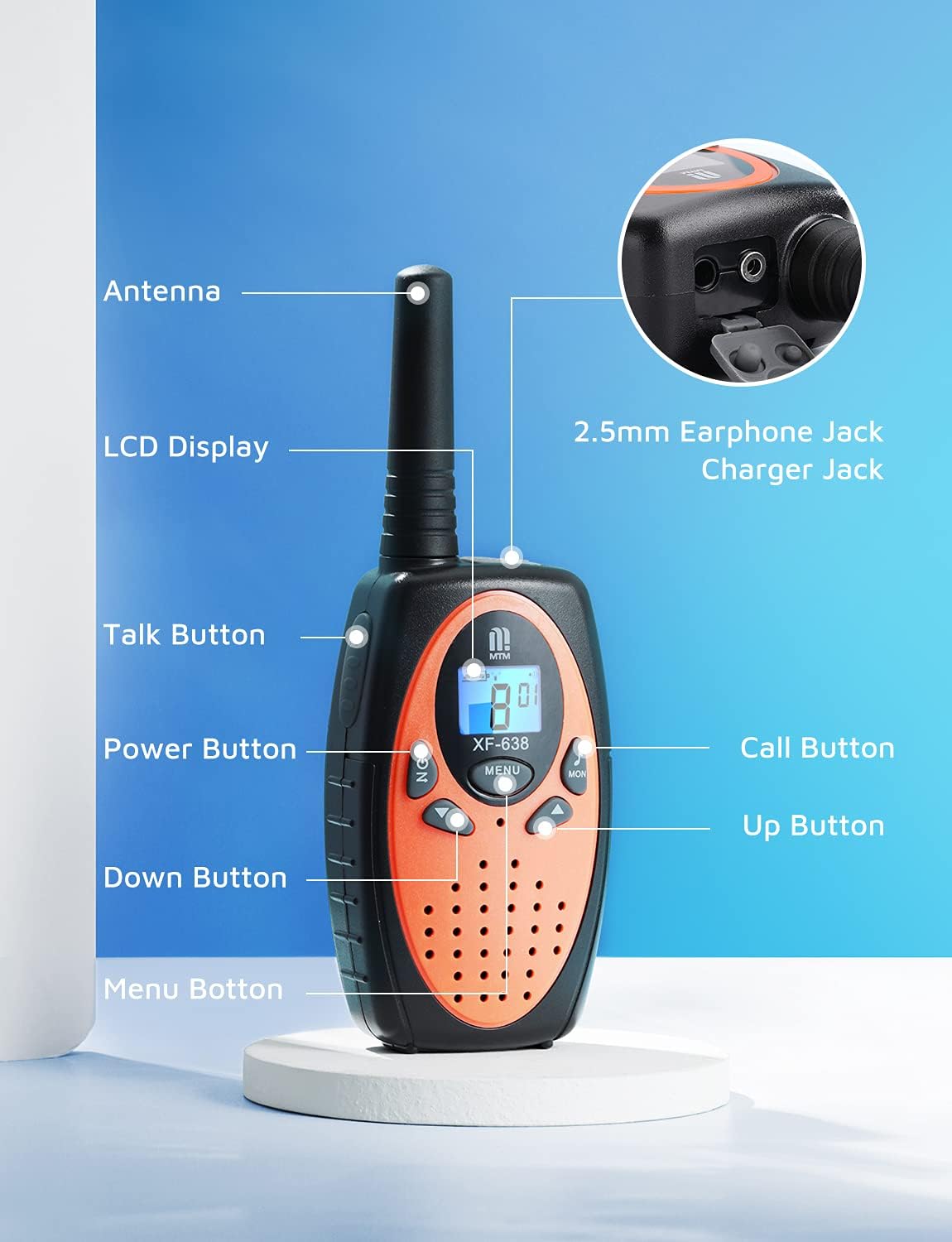

Image: Diagram illustrating the various parts and buttons of the MTM Walkie Talkie XF-638.
- Loftnet: Til að senda og taka á móti merkjum.
- LCD skjár: Shows channel, volume, battery status, and other indicators.
- Talhnappur (PTT): Ýttu á og haltu inni til að senda rödd þína.
- Rafmagnshnappur (KVEIKT/SLÖKKT): Long press to turn the unit on or off.
- Upp/niður hnappar: Adjust volume, change channels, and navigate menu options.
- Valmyndarhnappur: Access and confirm settings.
- Hringjahnappur: Sendir kalltón til annarra útvarpsstöðva á sömu rás.
- MON hnappur: Activates the monitor function to listen for weak signals.
- 2.5mm Earphone Jack/Charger Jack: For connecting an external earphone/microphone or charging (if using rechargeable batteries, not included).
2. Uppsetning
Uppsetning rafhlöðu
Each MTM Walkie Talkie requires 3 AAA batteries (not included). Ensure correct polarity when inserting batteries.
- Finndu rafhlöðulokið aftan á talstöðinni.
- Renndu eða losaðu lokið varlega til að opna hólfið.
- Settu í tvær AAA rafhlöður og láttu plús (+) og neikvæðu (-) tengipunktana passa saman eins og sýnt er inni í hólfinu.
- Settu lokið á rafhlöðuhólfið aftur og vertu viss um að það smelli vel á sinn stað.
Mynd: Aftan view of the walkie talkie with the battery compartment open, showing where to insert 3 AAA batteries.
Belt Clip Attachment
Attach the included belt clip for convenient carrying.
- Stilltu beltisfestingunni saman við tilgreindar raufar á bakhlið talstöðvarinnar.
- Rennið klemmunni niður þar til hún smellpassar.
Image: A hiker wearing an MTM Walkie Talkie XF-638 attached to their backpack strap with a belt clip.
3. Grunnaðgerð
Kveikt/slökkt
- Til að kveikja: Haltu inni ON/OFF hnappinn þar til LCD skjárinn lýsist upp.
- Til að slökkva: Haltu inni ON/OFF hnappinn þar til slökkt er á LCD skjánum.
Rásarval
The MTM Walkie Talkies feature 22 channels. All radios must be on the same channel to communicate.
- Ýttu á MENU button once. The channel number on the LCD will flash.
- Notaðu UP or NIÐUR hnappana til að velja rásina sem þú vilt (1-22).
- Ýttu á MENU hnappinn aftur til að staðfesta valið.
Image: Close-up of the walkie talkie's LCD screen showing the current channel and battery level.
Hljóðstyrksstilling
Adjust the listening volume to a comfortable level.
- Ýttu á UP hnappinn til að auka hljóðstyrkinn.
- Ýttu á NIÐUR hnappinn til að lækka hljóðstyrkinn.
Image: Close-up of the walkie talkie's speaker area, indicating adjustable volume levels.
Sending og móttaka
- Til að senda: Haltu inni Talk (PTT) button. Speak clearly into the microphone.
- Til að taka við: Slepptu Talk (PTT) hnappinn.
Hringdu í Tone
- To send a call tone: Briefly press the Hringdu button. This alerts other users on the same channel.
Skjár virkni
- Til að virkja: Ýttu á MÁN button. This allows you to listen for weak signals on the current channel.
- Til að slökkva á: Ýttu á MÁN hnappinn aftur.
4. Ítarlegir eiginleikar
VOX (raddstýrð skiptistöð)
VOX allows for hands-free communication. When activated, the radio automatically transmits when you speak and stops when you are silent.
- Ýttu á MENU button multiple times until the VOX icon appears on the LCD.
- Notaðu UP or NIÐUR buttons to select a VOX sensitivity level (e.g., 1-3, with 3 being most sensitive) or turn VOX off.
- Ýttu á MENU hnappinn til að staðfesta.
Image: A mother and child communicating using walkie talkies, demonstrating long-range and potentially hands-free use.
Takkalás
The keypad lock prevents accidental changes to your settings.
- Til að læsa: Haltu inni MENU button until a key icon appears on the LCD.
- Til að opna: Haltu inni MENU button again until the key icon disappears.
Aðrar aðgerðir
- Auto Squelch System: Automatically mutes weak signals or background noise for clearer communication.
- Auto Memory Function: Remembers your last used channel and settings.
- Auto Scan Function: Scans all channels for active transmissions.
- Sjálfvirk orkusparnaður: Extends battery life by entering a low-power mode during periods of inactivity.
- Viðvörun um lága rafhlöðu: An icon on the LCD display indicates when batteries are low and need replacement.
- Headset Option: Compatible with headsets via the 2.5mm earphone jack for private listening and hands-free talking.
Mynd: Efst view of the walkie talkie showing the 2.5mm earphone jack and charger port.
5. Range and Usage
The MTM Walkie Talkies XF-638 offer a communication range of up to 3 miles in open fields. The actual range can vary significantly based on terrain, weather conditions, and obstructions.
Image: Graphic illustrating the long-range capability of the MTM Walkie Talkies.
Factors Affecting Range:
- Landsvæði: Open areas provide maximum range. Hills, dense foliage, and urban environments with buildings can significantly reduce range.
- Hindranir: Metal structures, vehicles, and large buildings can block or weaken signals.
- Veður: Heavy rain or fog can interfere with signal transmission.
Recommended Usage Scenarios:
- Outdoor adventures like campgöngur, göngur og veiðar.
- Family events and activities where staying connected is important.
- Emergency preparedness.
Children playing outdoors with walkie talkies.
Adults using walkie talkies while kayaking.
Restaurant staff using walkie talkies for coordination.
6. Viðhald
- Þrif: Þurrkaðu útvarpið með mjúku, damp klút. Ekki nota sterk efni eða slípiefni.
- Umhirða rafhlöðu: Fjarlægið rafhlöður ef útvarpið verður ekki notað í langan tíma til að koma í veg fyrir leka.
- Geymsla: Geymið talstöðina á köldum, þurrum stað fjarri beinu sólarljósi og miklum hita.
7. Bilanagreining
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Enginn kraftur | Rafhlöður eru tómar eða rangt settar í. | Skiptu um rafhlöður eða gætið þess að pólarnir séu rétt pólaðir. |
| Poor reception/short range | Obstructions (buildings, hills), low battery, incorrect channel/privacy code. | Move to an open area, replace batteries, verify channel and privacy code settings. |
| Get ekki sent | Keypad locked, low battery, not on the same channel. | Unlock keypad, replace batteries, ensure both radios are on the same channel. |
| Truflun | Other radios on the same channel or nearby electronic devices. | Change to a different channel or use privacy codes. Move away from interfering devices. |
8. Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Vörumerki | MTM |
| Gerðarnúmer | XF-638 |
| Fjöldi rása | 22 |
| Tíðnisvið | 462 til 467 MHz |
| Talandi svið hámark | Up to 3 miles (in open fields) |
| Sérstakir eiginleikar | Keypad Lock, Long Range, VOX, Auto Squelch, LCD Display |
| Aflgjafi | 3 x AAA rafhlöður (fylgir ekki) |
| Vatnsþolsstig | Waterproof (as per specifications, but general care is advised) |
| FCC auðkenni | 2AN6WXF-638 |
9. Ábyrgð og stuðningur
MTM provides comprehensive support for your walkie talkies.
- Ábyrgð: Enjoy a 1-year quality warranty from the date of purchase.
- Tæknileg aðstoð: Lifetime email support is available for any questions or issues you may encounter.
- Tengiliður: If you are not satisfied with your MTM product or require assistance, please contact us. We aim to respond to customer inquiries within 24 hours.
For support, please refer to your order details to find contact information or visit the official MTM store page.
