Gikfun DIY SMD SMT Welding Practice Soldering Skill Training Board User Manual

1. Inngangur

The Gikfun DIY SMD SMT Welding Practice Soldering Skill Training Board is designed as an educational tool for individuals looking to develop or refine their surface-mount device (SMD) and surface-mount technology (SMT) soldering skills. This kit provides a practical platform for beginners and electronic learners to practice soldering various component sizes and types in a controlled environment. It requires basic electronic knowledge and hands-on ability for assembly and use.

2. Vöru lokiðview

This training board features a high-quality Printed Circuit Board (PCB) with clearly marked pads for a variety of electronic components. It includes different SMD package sizes, allowing users to practice soldering components ranging from larger 1206 and 0805 packages down to smaller 0603 and 0402 sizes. The board is designed to help users understand component orientation, proper soldering techniques, and fault identification.

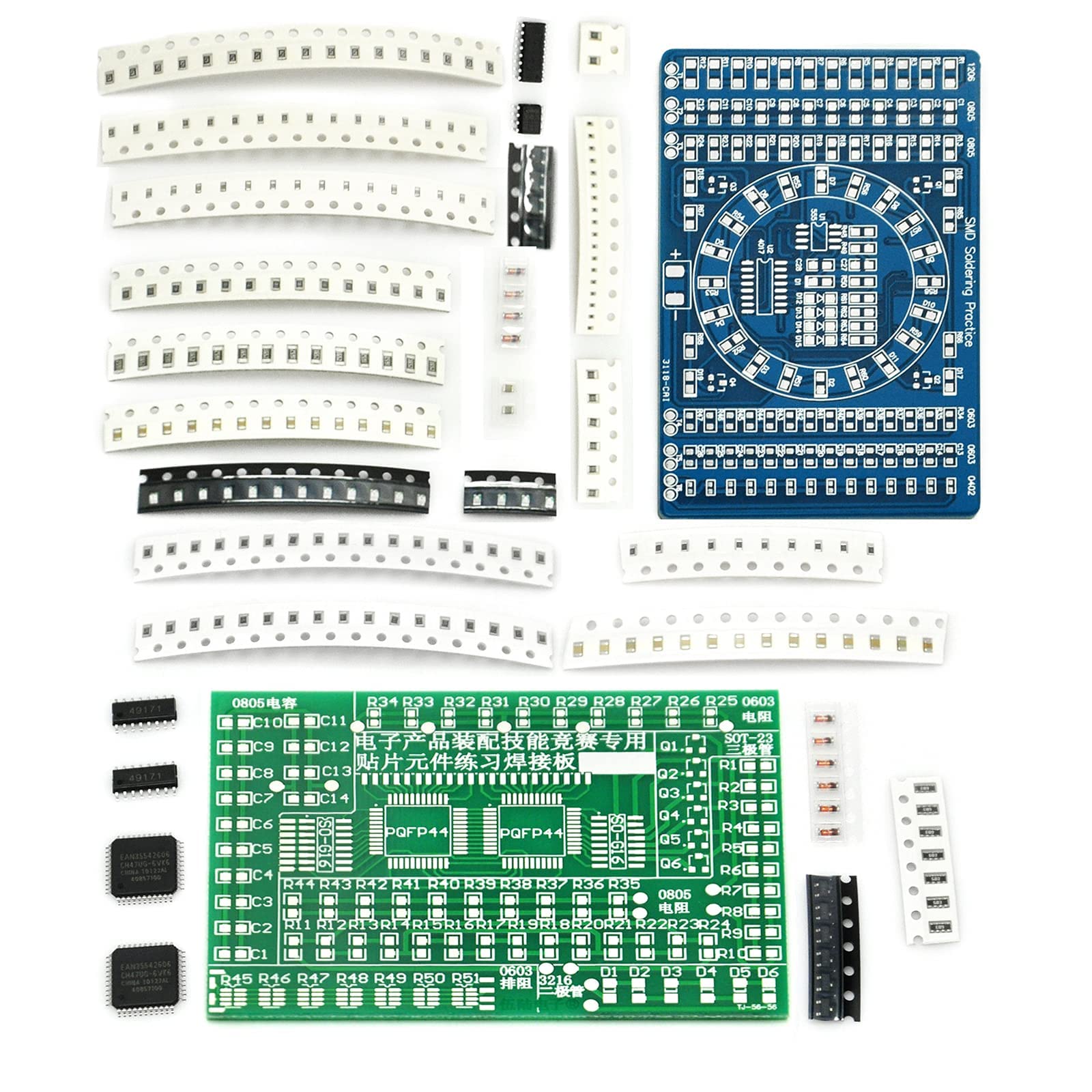

Image 2.1: The Gikfun SMD SMT Soldering Practice Board fully assembled, demonstrating various component pads and functional LEDs.

The kit also includes a separate measurement board, which can be used to identify and verify the dimensions of various SMD components and footprints, aiding in correct component selection and placement during practice.

Image 2.2: The included measurement board, useful for identifying SMD component sizes and verifying footprints.

3. Uppsetning og samsetning

The Gikfun Soldering Practice Board is a DIY kit that requires assembly. Follow these general steps for successful construction:

1. Auðkenning íhluta: Carefully identify all included components. The PCB has clear markings for each component's location and value (e.g., R1, C1, D1, U1).
2. Staðsetning íhluta: Place each component onto its designated pad on the PCB. Pay close attention to polarity for diodes (D), integrated circuits (IC - U), and some capacitors (C) if applicable. Ensure components are oriented correctly.
3. Lóðun: Solder each component securely to its pads. It is recommended to start with larger components (e.g., 1206, 0805 resistors/capacitors) and progress to smaller ones (e.g., 0603, 0402) as your skill improves. Ensure sufficient solder is used to create a strong electrical and mechanical connection without creating solder bridges.
4. Skoðun: After soldering each section or component type, visually inspect your work for common soldering faults such as cold joints, solder bridges, or incorrect component placement.

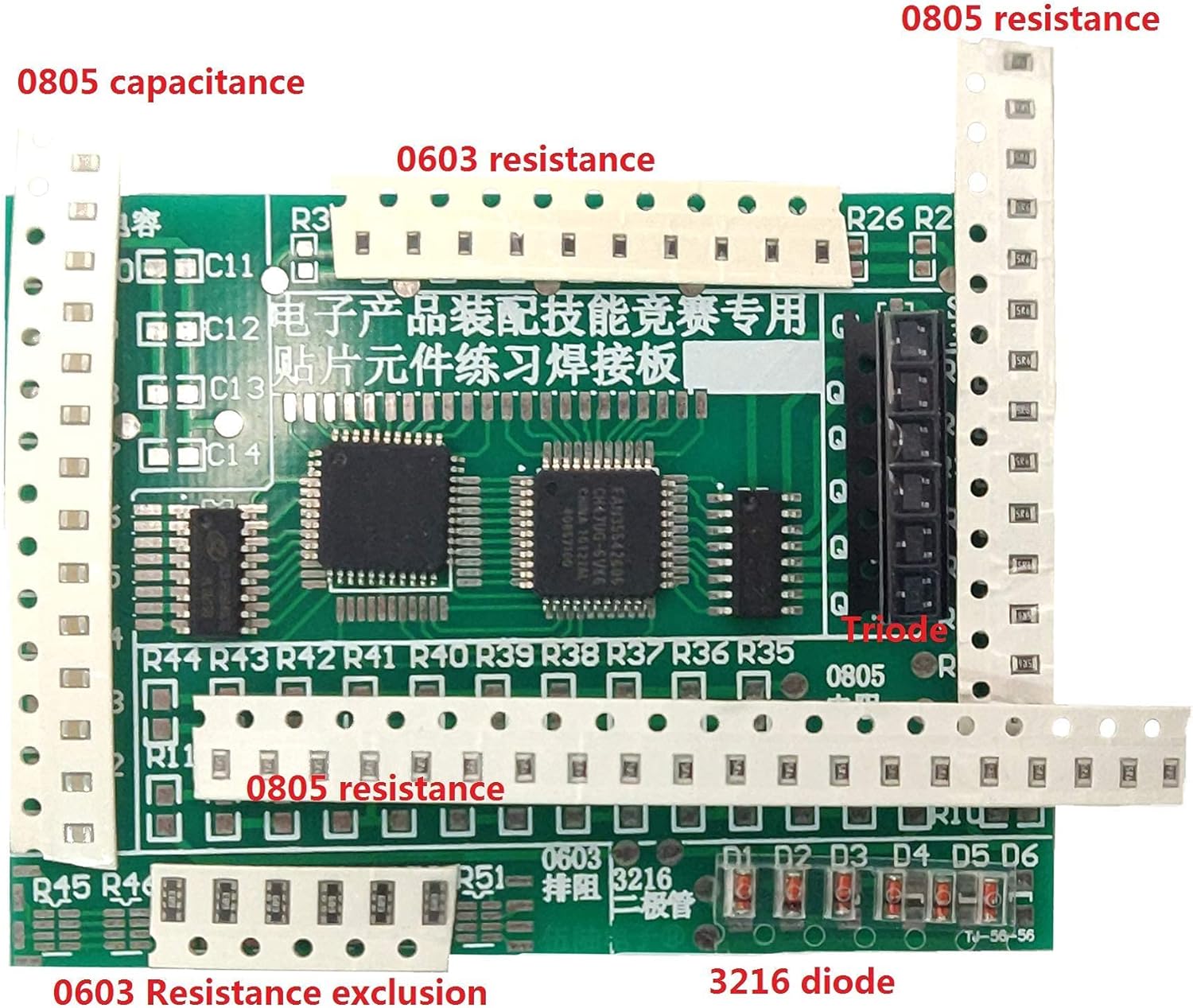

Image 3.1: The green PCB with various SMD components, such as resistors, capacitors, and ICs, ready for soldering.

Image 3.2: Illustrates the small size of some SMD components, emphasizing the precision required for soldering.

4. Notkunarleiðbeiningar

Once assembled, the board serves as a functional circuit for practicing soldering. The primary operation involves applying power to the board (typically 3-5V DC, indicated by '+' and '-' terminals) to verify the functionality of the soldered components, especially the LEDs. This allows for immediate feedback on soldering quality.

• Rafmagnstenging: Connect a suitable DC power supply (e.g., 3-5V) to the designated power input terminals on the board. Observe polarity.
• Athugun á virkni: If all components are correctly soldered, the LEDs on the board should illuminate, indicating successful connections.
• Practice Repetition: The board is designed for repeated practice. You can desolder components, clean the pads, and resolder them to improve your technique.

5. Viðhald

Proper maintenance ensures the longevity and reusability of your soldering practice board:

• Þrif: After soldering, use isopropyl alcohol and a soft brush or cotton swab to clean any flux residue from the PCB. This prevents corrosion and improves visual inspection.
• Geymsla: Store the board in a dry, dust-free environment, preferably in an anti-static bag, to protect it from environmental damage and static discharge.
• Component Management: Keep any unused or spare components organized and labeled to prevent loss or mix-up.

6. Bilanagreining

Encountering issues during or after soldering is part of the learning process. Here are common problems and troubleshooting tips:

• LED ljósin lýsa ekki upp:
  • Check power supply connection and polarity.
  • Skoða fyrir cold joints (dull, lumpy solder connections) or solder bridges (solder connecting two adjacent pads).
  • Verify correct component placement and orientation, especially for diodes and ICs.
  • Ensure all components are present and correctly soldered.
• Components Not Adhering:
  • Gakktu úr skugga um að lóðjárnsoddurinn sé hreinn og rétt tinnaður.
  • Apply adequate heat to both the pad and the component lead simultaneously before introducing solder.
  • Use appropriate solder for SMD work (e.g., thin gauge, flux-cored).
• Damaged Pads/Traces:
  • Avoid excessive heat or prolonged contact with the soldering iron, which can lift pads.
  • Use appropriate desoldering techniques (e.g., solder wick, desoldering pump) carefully.

7. Tæknilýsing

8. Ábyrgð og stuðningur

This product is intended as a DIY educational kit. For technical support or if you require a PDF manual, please contact Gikfun directly through their official channels or the retailer where the product was purchased. Please ensure all components are placed in the correct direction and location, and check for pseudo and float welding, as this is crucial for successful practice and testing.
