Leiðbeiningarhandbók fyrir Movian skrifstofustól, gerð 60023

1. Vöru lokiðview

The Movian Office Chair Model 60023 is designed for comfortable and functional use in a home office environment. It features a soft regenerated leather seating surface and thick, high-density layered padding for enhanced comfort. The chair includes height-adjustable armrests, pneumatic seat height adjustment, and tilt tension control for personalized ergonomic support. Constructed with a durable nylon base and dual swivel casters, it ensures stability and mobility. This chair is BIFMA certified and complies with the EN 1021-1 fire safety standard.

Image 1.1: The Movian Office Chair Model 60023, showcasinhönnun þess og eiginleika.

2. Öryggisupplýsingar

Please read and adhere to the following safety guidelines to ensure safe operation and prevent injury or damage:

• Do not exceed the maximum weight capacity of the chair. Refer to the specifications section for details.
• Ensure the chair is stable and on a level surface before and during use.
• Exercise caution when adjusting the seat height or armrest height to avoid pinching fingers or other body parts.
• Haldið börnum og gæludýrum frá stólnum meðan hann er settur saman og stilltur.
• Regularly inspect all components for wear or damage. Discontinue use if any part is compromised.

3. Samsetningarleiðbeiningar

The Movian Office Chair Model 60023 requires assembly. A detailed instruction manual and all necessary hardware are included in the packaging. Please follow these general steps:

1. Taka upp íhluti: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify that all components and hardware listed in the included manual are present.
2. Festið hjólin við botninn: Insert the dual swivel casters into the holes at the end of each leg of the nylon base. Push firmly until they click into place.
3. Setjið inn gaslyftu: Settu gaslyftistútinn í miðjugatið á samsetta botninum.
4. Setja saman sæti og bakstoð: Attach the backrest to the seat mechanism using the provided screws and tools. Ensure all connections are secure.
5. Festu armpúða: Secure the height-adjustable armrests to the seat assembly using the designated screws.
6. Tengdu sæti við gaslyftu: Setjið samansetta sætið og bakstoðin varlega á gaslyftistútinn og gætið þess að það sé miðjuð og stöðugt.
7. Lokaskoðun: Once assembled, test all adjustment functions and ensure all screws are tightened.

For detailed, step-by-step instructions, refer to the assembly guide provided in your product packaging.

4. Að stjórna stólnum þínum

The Movian Office Chair offers several adjustment features to customize your seating experience:

4.1. Sætishæðarstilling

To adjust the seat height, locate the lever on the right side, underneath the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up and pull the lever up. Release the lever at the desired height to lock it in place.

4.2. Stilling á armpúðum

The armrests are height-adjustable. Locate the button or lever on the side of each armrest. Press the button or lift the lever and simultaneously raise or lower the armrest to your preferred height. Release the button/lever to lock the armrest in position.

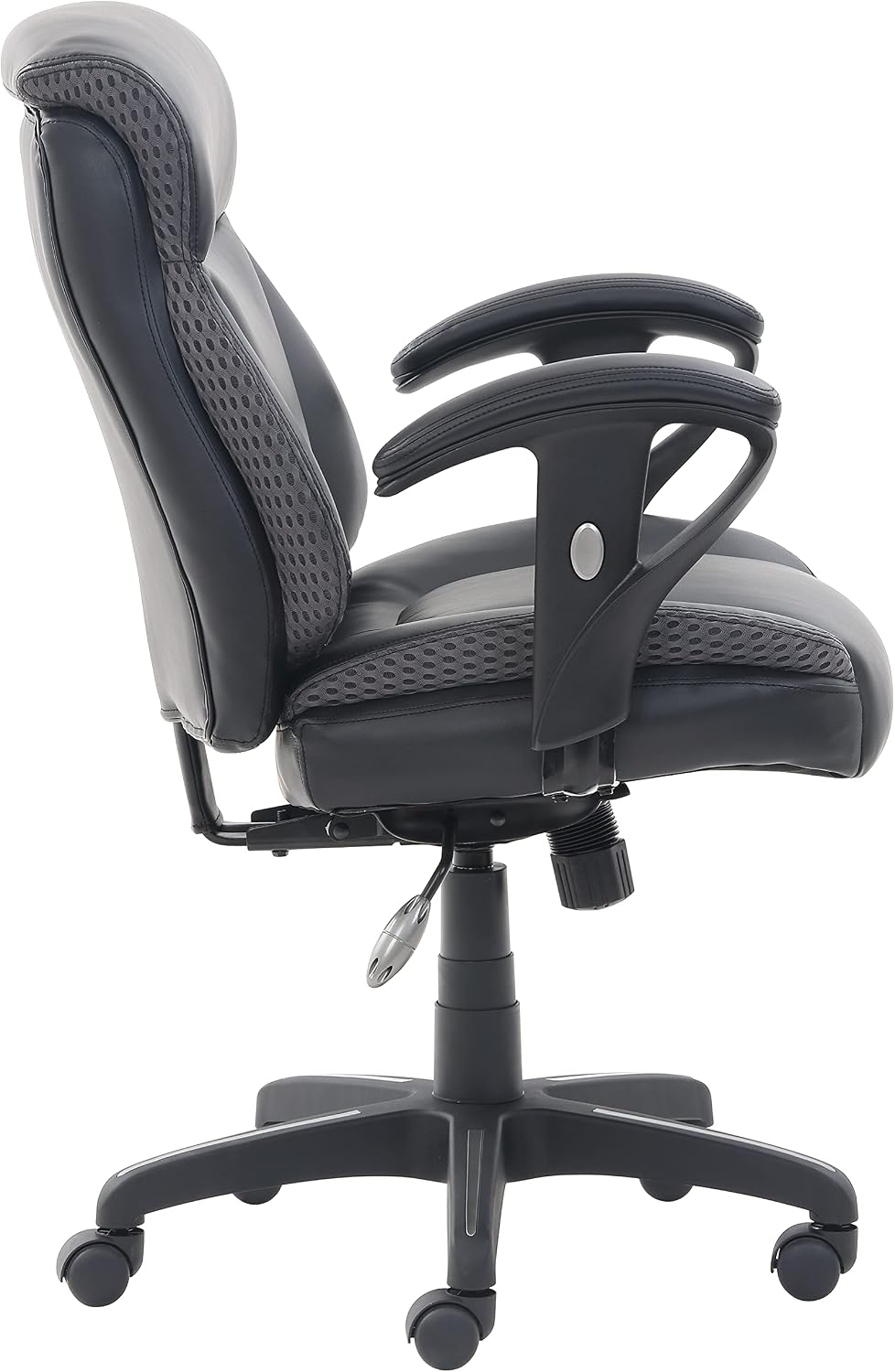

Mynd 4.1: Hlið view of the chair, highlighting the adjustable armrests.

4.3. Tilt and Tension Adjustment

The chair features a tilt mechanism and tension control. The tilt lock lever is typically located on the left side, underneath the seat. Pull the lever out to allow the chair to recline, and push it in to lock the chair in an upright position. The tilt tension knob, usually located at the front center underneath the seat, can be rotated to adjust the resistance of the recline. Turn clockwise to increase tension (making it harder to recline) and counter-clockwise to decrease tension (making it easier to recline).

5. Umhirða og viðhald

Proper care and maintenance will extend the life and appearance of your Movian Office Chair:

• Þrif á áklæði: For the regenerated leather surface, wipe with a soft, damp cloth. For tougher stains, use a mild soap solution and immediately wipe dry. Avoid harsh chemicals or abrasive cleaners.
• Cleaning the Base and Casters: Wipe the nylon base and casters with a damp cloth. Periodically remove any hair or debris from the casters to ensure smooth movement.
• Vélbúnaðarathugun: Athugið reglulega allar skrúfur og bolta til að tryggja að þær séu vel fastar. Herðið ef þörf krefur til að viðhalda stöðugleika.
• Forðastu beint sólarljós: Langvarandi útsetning fyrir beinu sólarljósi getur valdið því að áklæðið dofni eða springi. Staðsetjið stólinn fjarri beinu sólarljósi ef mögulegt er.
• Þyngdargeta: Adhere to the maximum weight capacity to prevent structural damage.

6. Bilanagreining

Hér eru lausnir á algengum vandamálum sem þú gætir lent í:

• Stóllinn sekkur eða mun ekki standa uppi: This usually indicates an issue with the gas lift cylinder. Ensure the height adjustment lever is fully disengaged when raising the chair. If the problem persists, the gas lift may need replacement.
• Stólskítur: Check all bolts and screws and tighten any that are loose. A small amount of silicone lubricant can be applied to moving parts or joints if squeaking continues.
• Casters Don't Roll Smoothly: Remove any hair, dust, or debris that may be caught in the caster wheels. Clean the wheels and their axles.
• Stóllinn finnst óstöðugur: Gakktu úr skugga um að allar samsetningarskrúfur séu vel hertar. Gakktu úr skugga um að stóllinn sé á sléttu og jöfnu yfirborði.

Ef þú lendir í vandamálum sem ekki eru talin upp hér eða þarft frekari aðstoð, vinsamlegast hafðu samband við þjónustuver viðskiptavina.

7. Vörulýsing

Image 7.1: Detailed dimensions of the Movian Office Chair.

8. Ábyrgð og stuðningur

For information regarding warranty coverage, please refer to the documentation included with your purchase or visit the official Movian website. If you require technical support, replacement parts, or have any questions about your Movian Office Chair Model 60023, please contact the retailer or manufacturer's customer service department.
