VARON Portable Pulse Oxygen Generator NT-3 User Manual

1. Inngangur

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your VARON Portable Pulse Oxygen Generator, Model NT-3. This device is designed to provide oxygen for health protection and to improve quality of life. It is not intended for medical treatment or life support.

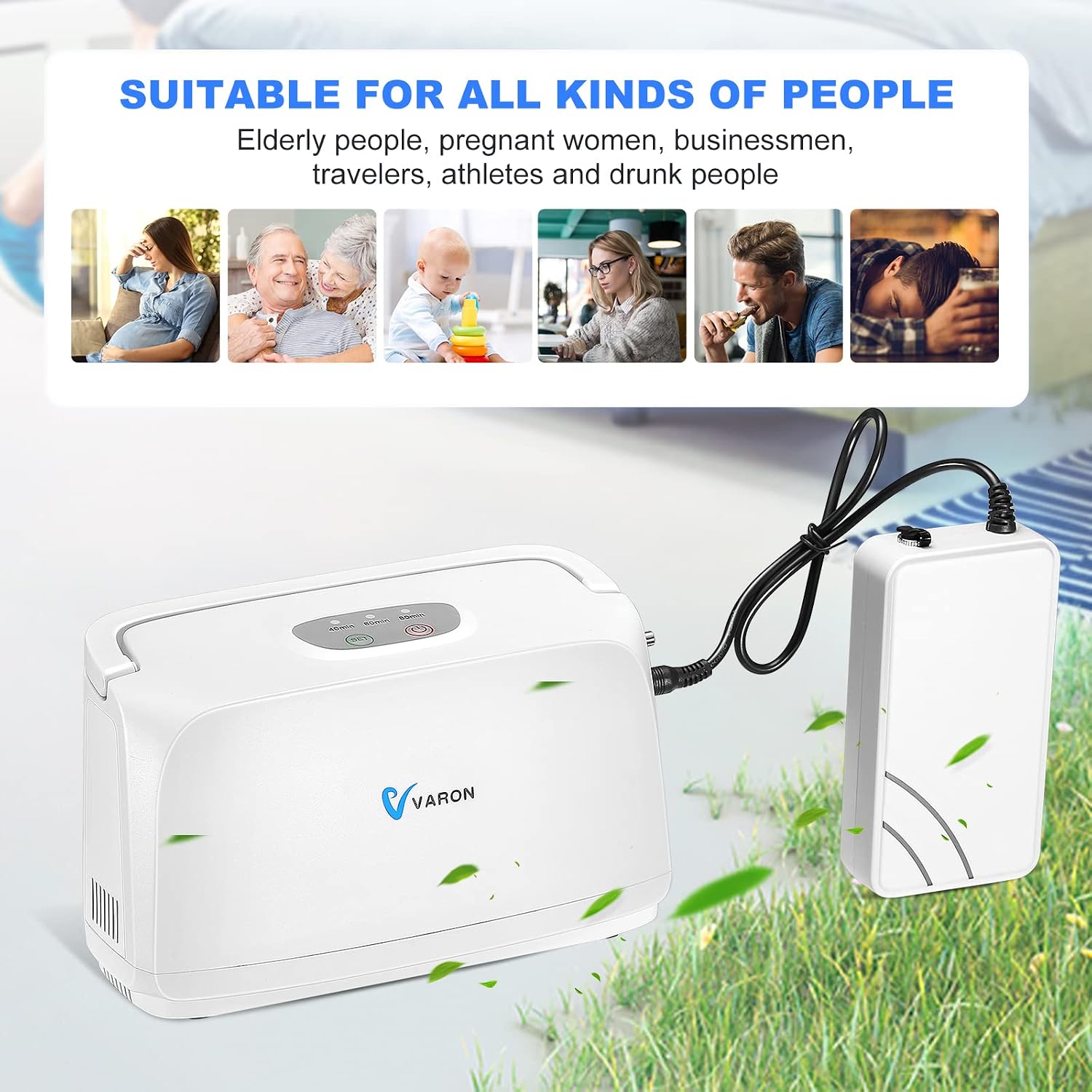

Image 1.1: VARON Portable Pulse Oxygen Generator NT-3 with its external battery unit.

2. Öryggisupplýsingar

Vinsamlegast lesið allar öryggisviðvaranir og leiðbeiningar vandlega áður en tækið er notað til að koma í veg fyrir meiðsli eða skemmdir. Geymið þessa handbók til síðari viðmiðunar.

• This device is for health and quality of life improvement only. It is not a medical device for treatment or life support. Consult a healthcare professional for medical conditions.
• Do not use the device near open flames or flammable materials. Oxygen can accelerate combustion.
• Tryggið góða loftræstingu í kringum tækið meðan það er í notkun.
• Haltu tækinu frá vatni og raka.
• Do not disassemble or attempt to repair the device yourself. Contact qualified service personnel for repairs.
• Geymið þar sem börn og gæludýr ná ekki til.
• Use only VARON-approved accessories and replacement parts.

3. Innihald pakka

Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum:

• VARON Portable Pulse Oxygen Generator (Main Unit)
• External Battery Pack (2500 mAh, 14.8V)
• Rafmagns millistykki
• Bíll hleðslutæki
• Oxygen Cannula (Nasal)
• Burðartaska
• Notendahandbók

Mynd 3.1: Lokiðview of the VARON Portable Pulse Oxygen Generator and its included accessories.

4. Vörueiginleikar

• PSA Oxygen Technology: Utilizes Pressure Swing Adsorption (PSA) method with a high-quality molecular sieve for efficient oxygen production.
• Eight-Layer Filtration System: Features an advanced eight-layer air input filtration system with a removable filter to ensure clean oxygen. Includes a cleaning reminder function.
• Oxygen Output: Provides a pulse oxygen flow of 3 L/min with an oxygen concentration of 32.5% ± 2.5% (v/v).
• Greind tímasetning: Offers four timing settings: 40 minutes, 60 minutes, 80 minutes, and 180 minutes.
• Færanleg hönnun: Lightweight at 1.4 kg (net weight), compact size (20.5 x 9.5 x 13 cm), and includes an external battery for portability.
• Fjölhæfur rafmagnsvalkostur: Can be powered by the included AC adapter or car charger.
• Hljóðlát aðgerð: Enhanced noise reduction structure for a quieter oxygen inhalation experience.
• Notendavænt: Einföld aðgerð með einum hnappi.

Image 4.1: Key features of the oxygen generator, including oxygen output and filtration system.

Image 4.2: The compact size of the device, emphasizing its portability.

5. Uppsetning

5.1 Hleðsla rafhlöðunnar

1. Connect the AC power adapter to the battery pack's charging port.
2. Stingdu straumbreytinum í venjulegan veggtengil.
3. Allow the battery to charge fully before first use. A full charge provides approximately 2.5 hours of continuous use.

5.2 Connecting the Battery to the Main Unit

1. Ensure both the main unit and battery are powered off.
2. Locate the battery connection port on the side of the main oxygen generator unit.
3. Connect the battery pack to the main unit using the provided cable. Ensure a secure connection.

Image 5.1: Detail of the battery connection to the main unit.

5.3 Connecting the Oxygen Cannula

1. Attach one end of the oxygen cannula to the oxygen outlet port on the main unit.
2. Place the nasal prongs of the cannula comfortably into your nostrils.

6. Notkunarleiðbeiningar

6.1 Kveikt/slökkt

• Til að kveikja á: Haltu inni Power takkanum (●) on the top panel until the indicator lights illuminate.
• Til að slökkva á: Haltu inni Power takkanum (●) again until the indicator lights turn off.

6.2 Stilling á tímamæli

The device offers four preset timing options:

• 40 mínútur
• 60 mínútur
• 80 mínútur
• 180 mínútur

To select a timing setting, press the Timer button (⏱) repeatedly until the desired time is indicated on the display. The device will automatically shut off after the set time expires.

Image 6.1: Top panel with control buttons and intelligent timing display.

6.3 Using in a Car

The device can be used in a car by connecting the car charger to the main unit's power input and plugging it into the vehicle's 12V power outlet.

Image 6.2: The device being used with a car charger and carried with a shoulder bag.

7. Viðhald

Regular maintenance ensures optimal performance and longevity of your oxygen generator.

7.1 Þrif á loftsíu

The device features a removable air filter. A cleaning reminder function will alert you when cleaning is required to prevent air inlet blockage and maintain oxygen production efficiency.

1. Slökktu á tækinu og taktu það úr sambandi.
2. Finndu og fjarlægðu loftsíuhlífina.
3. Fjarlægðu síueininguna varlega.
4. Clean the filter with a soft brush or vacuum cleaner. If heavily soiled, gently wash with mild soap and water, then rinse thoroughly.
5. Gakktu úr skugga um að sían sé alveg þurr áður en hún er sett aftur í.
6. Skiptu um síulokið.

7.2 Almenn þrif

• Þurrkaðu ytra byrði tækisins með mjúku, damp klút. Ekki nota slípiefni eða leysiefni.
• Gætið þess að vökvi komist ekki inn í op tækisins.

8. Bilanagreining

If you encounter issues with your VARON Portable Pulse Oxygen Generator, refer to the following table:

If the problem persists after attempting these solutions, please contact VARON customer support.

9. Tæknilýsing

10. Ábyrgð og stuðningur

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official VARON website. Please have your model number (NT-3) and purchase date available when contacting support.

Framleiðandi: VARON
