Sainlogic WiFi veðurstöð

Inngangur

The Sainlogic WiFi Weather Station provides comprehensive and accurate weather information for your home and garden. This compact system includes an 8.3-inch large display console and a wireless 7-in-1 outdoor sensor, designed to monitor various environmental parameters. It offers seamless connectivity to online weather services like Weather Underground and WeatherCloud, allowing you to view, save, and analyze data from anywhere.

Helstu eiginleikar eru:

• WiFi connectivity for online data sharing and remote monitoring via app.
• 8.3-inch easy-to-read LCD color display.
• 7-in-1 outdoor sensor for temperature, humidity, UV, wind speed, wind direction, and rain.
• Accurate weather data and forecast capabilities.

Uppsetningarleiðbeiningar

1. Upptaka og athuga íhluti

Áður en uppsetning hefst skal ganga úr skugga um að allir íhlutir séu til staðar:

• Sýna stjórnborð
• Outdoor Sensor Array (7-in-1)
• Rafmagns millistykki fyrir skjáborð
• Notendahandbók

2. Outdoor Sensor Assembly and Battery Installation

The outdoor sensor unit is designed for easy assembly. It integrates a rain funnel, solar panel, transmission module, wind vane, and high-speed anemometer. The main power source for the sensor is a solar panel, supplemented by 3 AAA batteries (not included) for backup. Install the batteries into the designated compartment on the outdoor sensor unit.

Figure 1: Components of the 7-in-1 Outdoor Sensor. This diagram highlights the rain collector, solar panel, UV and light sensor, wind cups, wind vane, and thermo-hygrometer radiation shielding.

3. Mounting the Outdoor Sensor

The outdoor sensor can be mounted in various locations to ensure accurate readings. Common installation methods include pole mounting or side mounting to a stable surface. Choose a location that is free from obstructions to wind, rain, and sunlight for optimal performance. The wireless sensors connect to the console up to 328 feet away, though practical range may be limited to 100 feet due to environmental interference.

Figure 2: Various Installation Options for the Outdoor Sensor. This image demonstrates top mounting, pole mounting, and side mounting configurations.

4. Display Console Power-Up

Connect the power adapter to the display console and plug it into an electrical outlet. The console will power on and begin searching for the outdoor sensor. Allow a few minutes for the console and sensor to synchronize.

Notkunarleiðbeiningar

1. Sýna stjórnborð yfirview

The 8.3-inch color display provides a clear and organized view of all relevant weather data. Information areas are separated for easy readability from various angles.

Mynd 3: Ítarleg View of the Display Console. This image labels various data points including outdoor temperature, humidity, rain rate, date, time, UV index, moon phase, wind direction, wind gust, wind speed, pressure, indoor temperature, and humidity.

2. Connecting to WiFi and Online Services

The weather station can connect to your home WiFi network (2.4GHz only) to upload data to online weather services such as Weather Underground (WU) and WeatherCloud. This allows for remote monitoring and access to historical data.

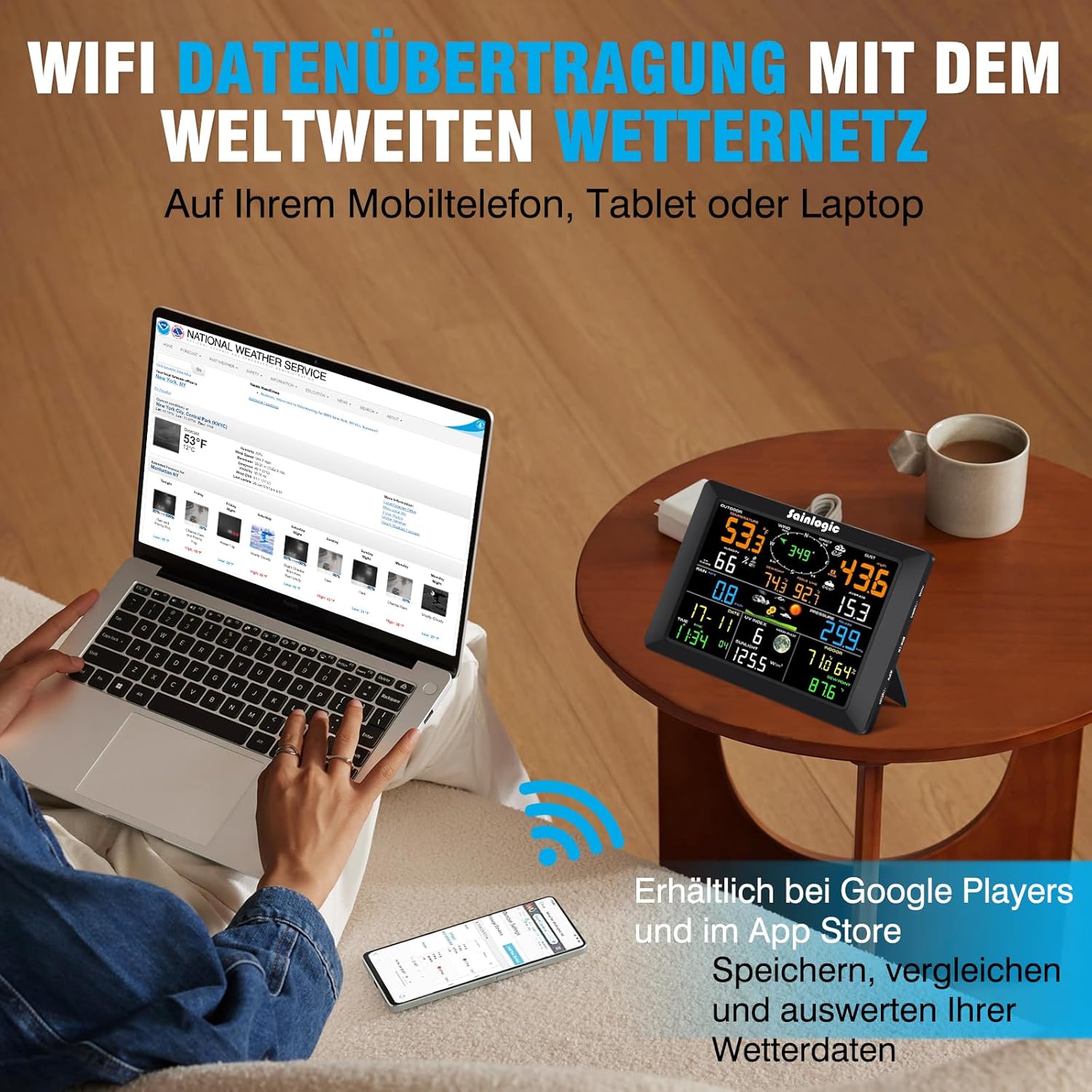

Figure 4: WiFi Data Transfer to Devices. This image shows the weather station display alongside a laptop and smartphone, illustrating how data is transmitted wirelessly.

3. Using the Sainlogic App

Download and install the "sainlogic" app on your mobile device. The app provides a convenient interface to track current weather conditions, view historical data through customizable charts and graphs, and receive alerts. You can monitor indoor/outdoor temperature, humidity, wind direction, wind speed, UV, and more.

Figure 5: Sainlogic Weather Station with Mobile App Interface. This image displays the complete weather station setup, including the outdoor sensor, indoor display, and a smartphone showing the Sainlogic app with weather data.

Viðhald

Regular maintenance ensures the longevity and accuracy of your weather station:

• Skipt um rafhlöðu: Replace the 3 AAA batteries in the outdoor sensor unit as needed to ensure continuous operation, especially during periods of low sunlight.
• Þrifskynjarar: Periodically inspect and clean the rain funnel, wind cups, and other sensor components to prevent debris buildup (e.g., leaves, spider webs) that could affect readings. Use a soft, damp klút til að þrífa.
• Sólarpanel: Keep the solar panel on the outdoor unit clean and free of obstructions to ensure efficient charging.

Úrræðaleit

If you encounter issues with your Sainlogic WiFi Weather Station, consider the following:

• No Data on Display/App: Ensure the outdoor sensor has fresh batteries and is within range of the display console. Check WiFi connectivity for online data.
• Ónákvæmar lestur: Verify that the outdoor sensor is mounted in an unobstructed location. Clean all sensor components. Ensure the unit is level for accurate rain and wind measurements.
• Online Broadcasting Issues: Some online platforms, like Weather Underground, may require specific data points (e.g., pressure) to be actively broadcasting from your station to join community networks. If you experience issues, check your station's settings within the Sainlogic app or the online platform's interface.

For further assistance, refer to the FAQ section within the Sainlogic app or contact customer support directly.

Tæknilýsing

Ábyrgð og stuðningur

For any product-related inquiries, technical support, or warranty claims, please contact Sainlogic customer service. Refer to the "Contact Us" section within the Sainlogic mobile application for the most up-to-date contact information.
