YAOHUIMI Replacement Remote Control for Fujitsu Air Conditioners

Inngangur

This manual provides instructions for the setup, operation, and maintenance of your YAOHUIMI replacement remote control for Fujitsu air conditioning units. This remote is designed to be compatible with a wide range of Fujitsu split type and wall-mounted inverter air conditioners, including models such as ASG18RBA-W, ABU22, AB14A, AB14R, AB18A, AB18R, AB24A, AB24R, and many others listed in the compatibility section.

Please read this manual carefully before using the remote control to ensure proper function and to maximize its lifespan.

Uppsetning

1. Uppsetning rafhlöðu

Fjarstýringin þarf tvær AAA rafhlöður (ekki innifaldar). Fylgdu þessum skrefum til að setja þær upp:

1. Finndu hlífina á rafhlöðuhólfinu aftan á fjarstýringunni.
2. Rennið hlífinni niður eða ýtið á lásinn og lyftið henni upp til að opna.
3. Insert two new AAA batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
4. Settu lokið á rafhlöðuhólfið aftur á sinn stað og renndu því aftur á sinn stað þar til það smellur örugglega.

Image: Back of the remote control with the battery compartment indicated.

Mynd: Framan og aftan views of the remote, showing how to open the battery cover.

2. Upphafleg notkun

This replacement remote control is pre-programmed and generally does not require pairing. Once batteries are installed, it should be ready for immediate use with compatible Fujitsu air conditioning units. Point the remote directly at the indoor unit's receiver.

Notkunarleiðbeiningar

Kynntu þér hnappana og virkni þeirra:

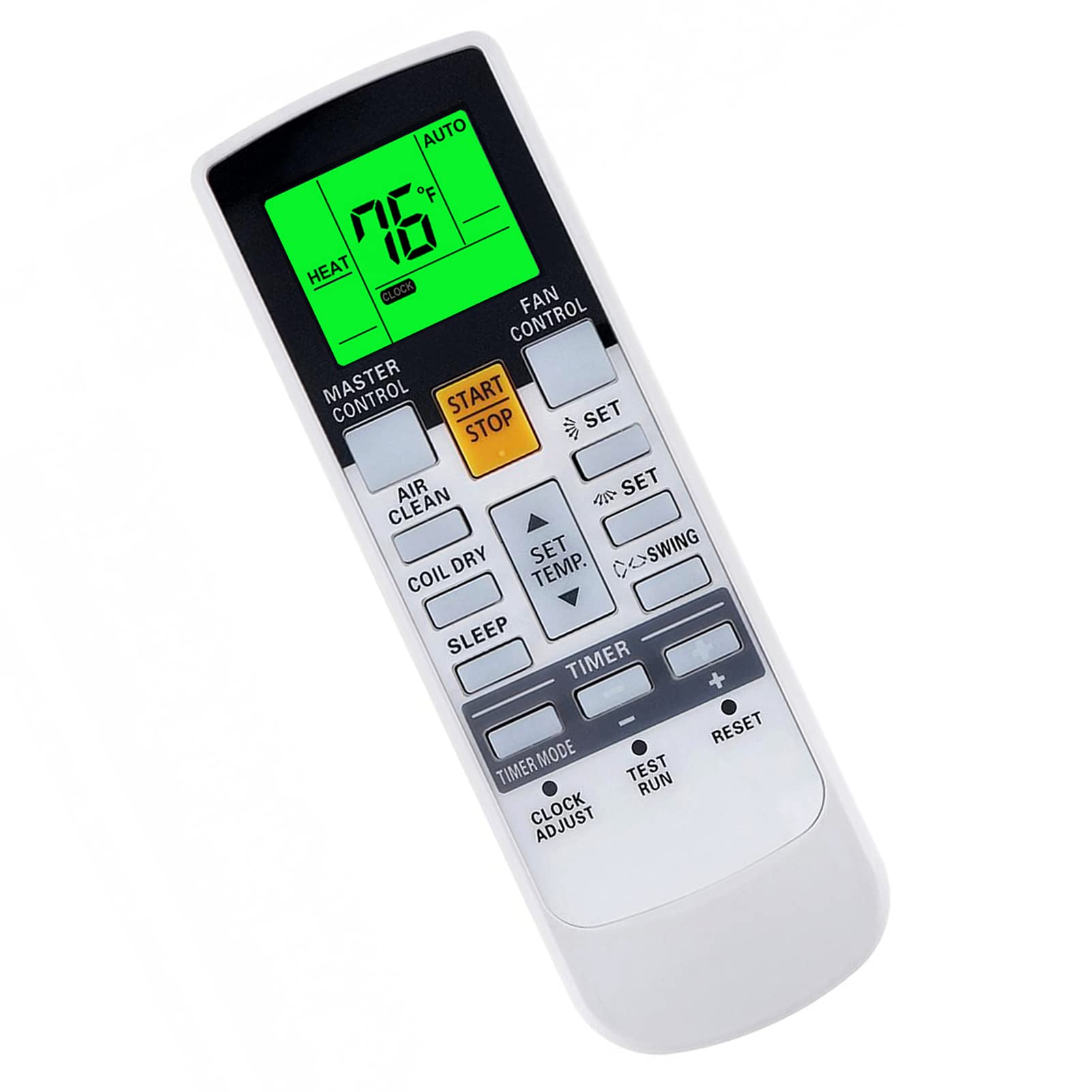

Mynd: Yfirview of the remote control's buttons and display.

• START/STOPP: Kveikir eða slokknar á loftkælingunni.
• MASTER CONTROL: Cycles through operating modes (e.g., Auto, Cool, Dry, Heat, Fan).
• VIFTASTJÓRN: Adjusts fan speed (e.g., Auto, Low, Medium, High).
• SET TEMP. (Up/Down Arrows): Stillir æskilegt hitastig.
• SVENDING: Stýrir sveifluvirkni loftlokunnar.
• LOFTHREIN: Activates or deactivates the air purification function (if available on your AC unit).
• ÞURRKAÐUR SPÓL: Ræsir þurrkunaraðgerð spólunnar til að koma í veg fyrir mygluvöxt.
• SVEFN: Activates the sleep mode for comfortable night operation.
• Tímastilling: Stillir eða hættir við tímastilliaðgerðir.
• Klukkustilling: Stillir núverandi tíma á skjá fjarstýringarinnar.
• PRÓFUN: Aðeins til þjónustunota.
• Endurstilla: Resets the remote control to factory default settings.

Sérstakir eiginleikar

• Fahrenheit and Celsius Display: The remote control can display temperature in both Fahrenheit (°F) and Celsius (°C). This is typically toggled by a specific button or a combination of buttons (refer to your AC unit's manual if unsure, or try pressing the 'SET' button while adjusting temperature).
• Grænt bakljós: The display features a green backlight for easy operation in low-light conditions. This backlight activates automatically when buttons are pressed.

Image: Remote display showing temperature in both Fahrenheit and Celsius, highlighting the green backlight.

Advanced Functions (If Applicable)

Some Fujitsu AC units support advanced heating or economy functions. These functions are only available if your original remote control had corresponding buttons. To activate these, press and hold the indicated button for approximately 4 seconds:

• 10°C HEAT: Maintains a minimum temperature of 10°C (50°F) to prevent freezing.
• 50°F HEAT: Same as 10°C HEAT.
• MINI.HEAT: A low-power heating mode.
• Efnahagslíf: Operates the unit in an energy-saving mode.

Image: Instructions for activating advanced heating and economy functions by holding a button.

Viðhald

Skipt um rafhlöðu

Replace batteries when the remote control's display becomes dim or when the remote no longer responds to button presses. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.

Þrif

Wipe the remote control with a soft, dry cloth. Do not use liquid cleaners, sprays, or abrasive materials, as these can damage the remote's surface or internal components.

Úrræðaleit

• Fjarstýring svarar ekki:
  • Athugaðu hvort rafhlöðurnar séu rétt settar í með réttri pólun.
  • Skiptu um gamlar rafhlöður fyrir nýjar.
  • Ensure there are no obstructions between the remote control and the air conditioner's indoor unit.
  • Make sure you are within the effective operating range (typically 8 meters or 26 feet).
• Skjárinn er dimmur eða tómur:
  • Þetta bendir venjulega til þess að rafhlaðan sé lítil. Skiptu um rafhlöður.
• Loftkæling virkar ekki eins og til er ætlast:
  • Verify that the air conditioner unit is powered on and not in standby mode.
  • Confirm that the selected mode (Cool, Heat, Fan, etc.) and temperature settings are appropriate.
  • Ensure the remote control is compatible with your specific Fujitsu AC model. While this remote is broadly compatible, some very old or very new models might have unique protocols.

Tæknilýsing

Upplýsingar um ábyrgð

Please refer to the seller's return policy and any specific warranty information provided at the time of purchase. Typically, replacement remote controls come with a limited warranty against manufacturing defects. Keep your proof of purchase for any warranty claims.

Þjónustudeild

If you encounter any issues that cannot be resolved using the troubleshooting guide, or if you have questions regarding compatibility or functionality, please contact the seller or manufacturer directly through the platform where the purchase was made. Provide your order number and the model number of your remote control (A420220331-BEIGUANG-99) for faster assistance.
