GIMILI Commercial Kitchen Faucet with Pull Down Sprayer

Inngangur

Thank you for choosing the GIMILI Commercial Kitchen Faucet. This manual provides essential information for the safe installation, operation, and maintenance of your new faucet. Please read these instructions thoroughly before installation and retain them for future reference.

Mikilvægar öryggisupplýsingar

• Lokaðu alltaf fyrir aðalvatnsveituna áður en uppsetning eða viðhald hefst.
• Notið viðeigandi persónuhlífar, svo sem öryggisgleraugu, við uppsetningu.
• Gakktu úr skugga um að allar tengingar séu öruggar til að koma í veg fyrir leka. Ekki herða of mikið.
• Ef þú ert óviss um einhvern hluta uppsetningarferlisins skaltu ráðfæra þig við hæfan pípulagningamann.
• This faucet is designed for kitchen use only.

Innihald pakka

Gakktu úr skugga um að allir íhlutir séu til staðar áður en uppsetning hefst:

• GIMILI Commercial Kitchen Faucet Assembly
• Pull-down Sprayer Head
• Pot Filler Spout
• Single Handle Lever
• Sápuskammtari
• Mounting Hardware (nuts, washers, gaskets)
• Heit- og kaltvatnsveitulínur
• Leiðbeiningar (þetta skjal)

Tæknilýsing

The faucet is constructed from high-quality SUS 304 stainless steel, ensuring durability and resistance to rust, scratches, and fingerprints.

Image: Lead-Free and NSF/DOE certification documents for the GIMILI faucet.

Uppsetningarkröfur

• Stærð festingargats: 1.3" – 1.5" (33mm – 38mm)
• Hámarks þykkt borðplötu: 2.1" (53 mm)
• Lóðrétt úthreinsun: Ensure at least 23 inches of vertical space between the countertop and upper cabinets for proper faucet installation and operation.

Image: Detailed dimensions of the GIMILI Commercial Kitchen Faucet, including overall height, spout reach, and installation requirements for mounting hole size, maximum countertop thickness, and necessary vertical clearance.

Uppsetningarleiðbeiningar

Fylgdu þessum skrefum fyrir árangursríka uppsetningu:

1. Undirbúðu vasksvæðið: Turn off the main water supply. Clear the area under the sink and remove any old faucet components.
2. Install the Faucet Base: Place the main faucet body through the mounting hole on your sink or countertop. If your sink has multiple holes, use the included deck plate to cover unused holes. Ensure the black rubber gasket is seated flush on the bottom of the faucet base.
3. Tengja vatnsleiðslur: From underneath the sink, thread the hot and cold water supply lines onto the corresponding connections on the faucet. The faucet typically has color indicators (red for hot, blue for cold). Hand-tighten, then use a wrench for a quarter turn. Avoid overtightening to prevent damage.
4. Festið kranann: Place the white rubber washer, then the metal washer, and finally the large mounting nut onto the threaded shank from underneath the sink. Hand-tighten the nut until it is snug, then loosen it by 2-5 turns. This creates space for the side screws.
5. Tighten Side Screws: Use a long-handled Phillips head screwdriver to tighten the two side screws on the mounting nut. Alternate tightening each screw evenly until the faucet is stable and does not wobble. Do not use a wrench on these screws.
6. Install the Soap Dispenser: Insert the soap dispenser body into its designated hole. From underneath, secure it with the provided rubber washers and nut. Fill the dispenser from the top by pulling out the pump mechanism.
7. Flush the Lines: Before attaching the sprayer head, turn on the main water supply and allow water to run through the faucet for a few minutes to flush out any debris. Turn off the water.
8. Festið úðahausinn: Connect the pull-down sprayer head to the flexible hose. Ensure a secure connection.
9. Athugaðu fyrir leka: Turn the water supply back on and carefully check all connections for any leaks. Tighten gently if necessary.

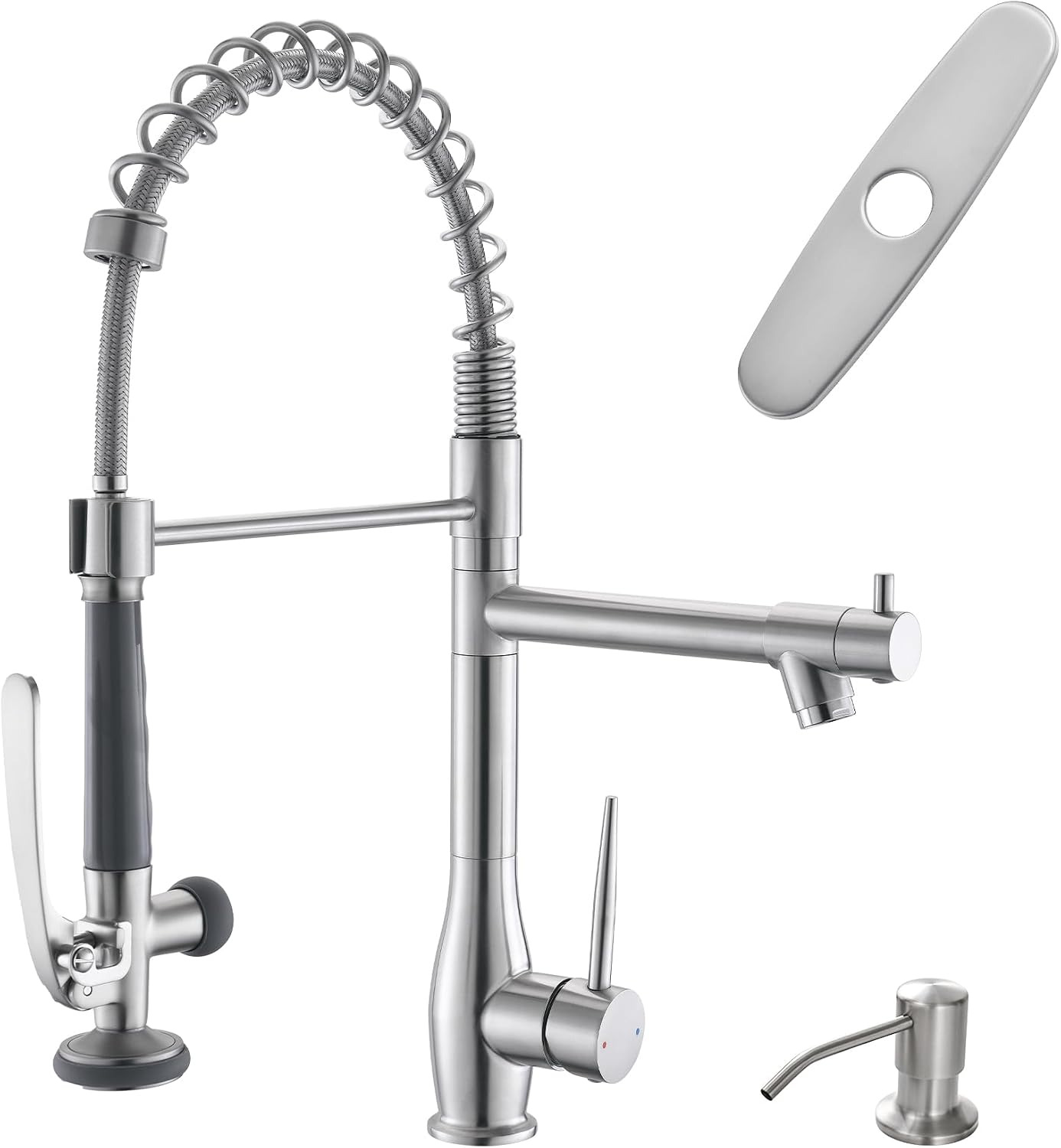

Image: The GIMILI Commercial Kitchen Faucet with its pull-down sprayer and integrated soap dispenser, showcasinburstaða nikkeláferð þess.

Image: A hand operating the integrated kitchen sink soap dispenser, demonstrating its easy-to-use design.

Notkunarleiðbeiningar

Your GIMILI Commercial Kitchen Faucet features a single handle for temperature and flow control, along with two independent nozzles for versatile use.

• Aðalhandfang: Lift the handle to turn on the water and control flow volume. Move the handle left for hot water and right for cold water.
• Útdraganlegur úði: The sprayer offers two modes:
  • Úðahamur: Provides a high-pressure water flow, ideal for rinsing food debris from dishes and cleaning the sink.
  • Straumhamur: Delivers a gentle water output, suitable for filling pots quickly and conserving water.
  The sprayer features a bayonet locking design, allowing you to activate both nozzles simultaneously for specific tasks. The high arc design and 360° rotation ensure comprehensive cleaning without dead angles.
• Pot Filler: The separate pot filler spout provides a steady stream of water for filling large containers.

Image: A visual comparison of the high-pressure spray mode for cleaning and the soft stream mode for filling, demonstrating the dual nozzle functionality.

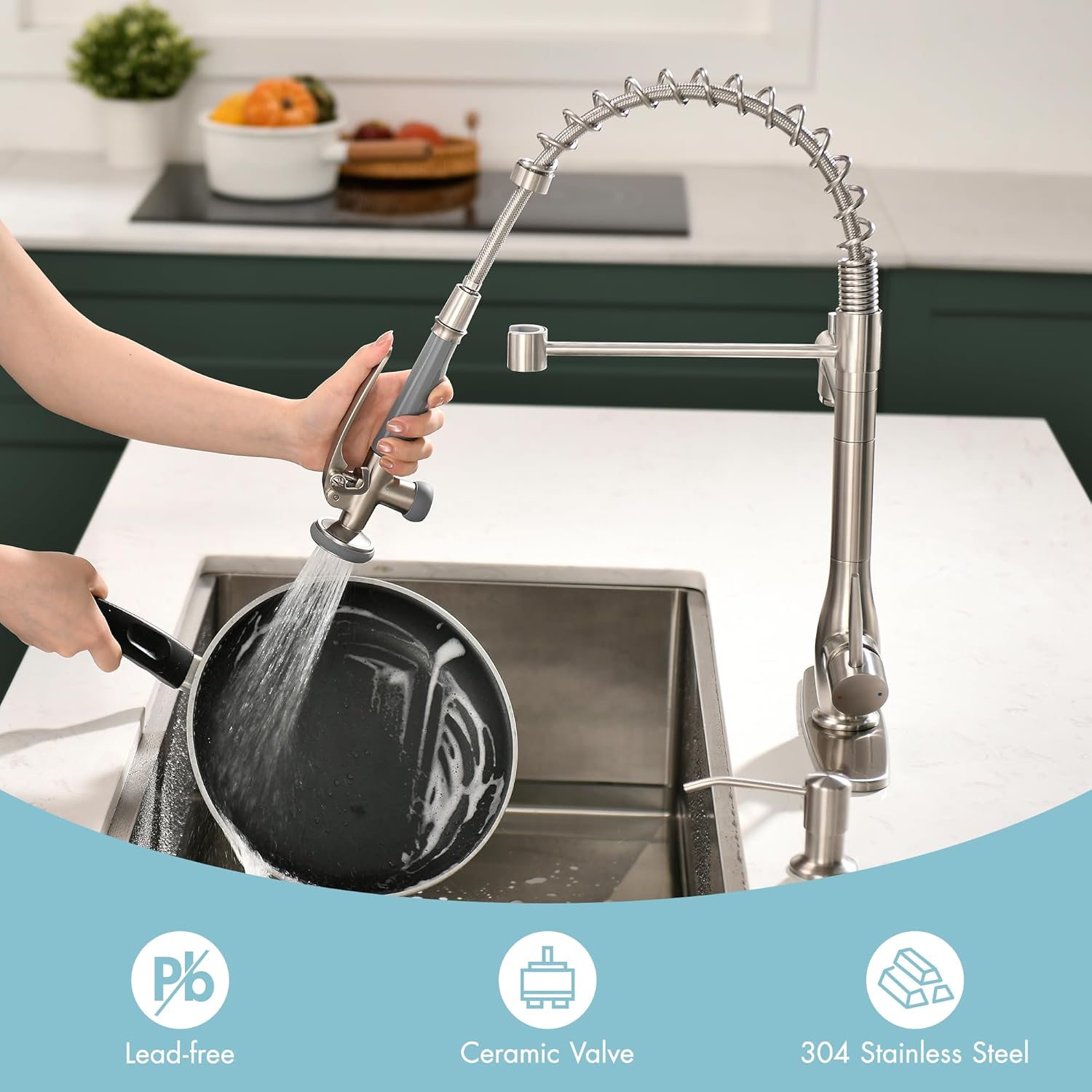

Image: The pull-down sprayer in action, effectively rinsing a pan in a kitchen sink.

Image: The pot filler spout efficiently filling a pitcher with water, highlighting its convenience.

Viðhald

To ensure the longevity and pristine appearance of your GIMILI kitchen faucet, follow these maintenance guidelines:

• Regluleg þrif: Þrífið blöndunartækið reglulega með mjúkum klút og mildri sápu. Forðist slípiefni, sterk efni eða skúringarsvampa, þar sem þau geta skemmt burstaða nikkeláferðina.
• Komdu í veg fyrir vatnsbletti: Þurrkið kranann eftir hverja notkun til að koma í veg fyrir vatnsbletti og uppsöfnun steinefna.
• Athugaðu fyrir leka: Periodically inspect all connections for any signs of leaks. Tighten connections gently if necessary.
• Þrif á loftara: If water flow decreases, the aerator on the sprayer head may be clogged. Unscrew the aerator, clean any debris, and reattach.
• Ceramic Valve Care: The ceramic precision valve cores are designed for long-term, leak-free use. No specific user maintenance is required for the internal valve.

Úrræðaleit

Ef þú lendir í vandræðum með blöndunartækið þitt skaltu skoða eftirfarandi algeng vandamál og lausnir:

• Lágur vatnsþrýstingur:
  • Check if the main water supply valves are fully open.
  • Clean the aerator on the sprayer head for any mineral buildup or debris.
  • Ensure water supply lines are not kinked or obstructed.
• Lekar frá tengingum:
  • Slökktu á vatnsveitunni.
  • Gently tighten any leaking connections with a wrench. Do not overtighten.
  • Ensure all gaskets and washers are correctly seated.
• Faucet Wobbles:
  • Ensure the large mounting nut underneath the sink is properly tightened. Remember to loosen it slightly after initial hand-tightening to allow the side screws to secure the faucet effectively.
  • Tighten the two side screws on the mounting nut evenly until the faucet is stable.
• Difficulty Switching Between Spray/Stream:
  • Ensure there is no debris obstructing the button mechanism on the sprayer head.
  • Check water pressure; very low pressure can sometimes affect the switch mechanism.
• Soap Dispenser Clogged:
  • Remove the pump mechanism and clean it thoroughly with warm water.
  • Ensure the soap used is not too thick or contains particles that could cause clogging.

Upplýsingar um ábyrgð

The GIMILI Commercial Kitchen Faucet comes with a takmörkuð ábyrgð. This warranty covers manufacturing defects and ensures the product is free from material and workmanship flaws under normal use. For specific terms, conditions, and duration of your warranty, please refer to the warranty card included with your purchase or contact GIMILI customer support.

Note: The warranty typically does not cover damage resulting from improper installation, misuse, abuse, accident, or normal wear and tear.

Þjónustudeild

If you have any questions, require assistance with installation, or need to report a warranty claim, please contact GIMILI customer support through the following channels:

• Á netinu: Visit the official GIMILI websíða fyrir stuðningsúrræði og tengiliðseyðublöð.
• Netfang: Refer to your product packaging or warranty card for the customer service email address.

Please have your model number (GML80192N-LED) and purchase date available when contacting support to expedite assistance.
