Ymiko YM-AF001

Ymiko Automatic Cat Feeder Instruction Manual

Model: YM-AF001

Inngangur

Thank you for choosing the Ymiko Automatic Cat Feeder. This device is designed to provide convenient and consistent feeding for your cat, ensuring they receive their meals on schedule, even when you are away. With programmable meal times, portion control, and a voice recording feature, this feeder helps maintain a healthy and regular diet for your beloved pet.

Ymiko Automatic Cat Feeder main unit with food in hopper and bowl

Image: The Ymiko Automatic Cat Feeder, a black unit with a translucent food hopper filled with kibble, and a black food bowl attached at the bottom.

Eiginleikar vöru

  • Stór afkastageta: 3L (approximately 12.7 cups) food storage, suitable for multiple days of feeding.
  • Forritanleg fóðrun: Schedule up to 4 meals per day with customizable portion sizes.
  • Raddupptökutæki: Record a personalized 10-second message to call your pet at meal times.
  • Tvöföld aflgjafi: Operates via AC power adapter or 3 D-cell batteries (not included) for backup during power outages.
  • Hönnun gegn stíflu: Engineered to prevent food blockages, ensuring smooth dispensing.
  • Secure Locking Lid: Designed to keep pets from accessing food outside of scheduled feeding times.
  • Visible Frosted Hopper: Gerir kleift að fylgjast auðveldlega með fæðumagni.
Diagram showing anti-clogging structure, sliding locking lid, and visible frosted hopper

Image: A diagram highlighting the anti-clogging structure within the feeder, the sliding locking lid mechanism, and the visible frosted design of the food hopper.

Innihald pakka

  • Ymiko Automatic Cat Feeder Main Unit
  • Matarskál
  • Rafmagns millistykki
  • Notendahandbók (þetta skjal)

Uppsetning

  1. Staðsetning: Place the feeder on a flat, stable surface away from direct sunlight or heat sources.
  2. Rafmagnstenging:
    • Tengdu rafmagnsmillistykkið við straumbreytinn og stingdu honum í samband.
    • For battery backup, insert 3 D-cell batteries (not included) into the battery compartment at the bottom of the feeder.
  3. Assemble Food Bowl: Attach the food bowl securely to the main unit.
  4. Fyllið matarílátið: Open the top lid and fill the hopper with dry pet kibble. Ensure the kibble size is between 2-12mm to prevent clogging. Close the lid securely.

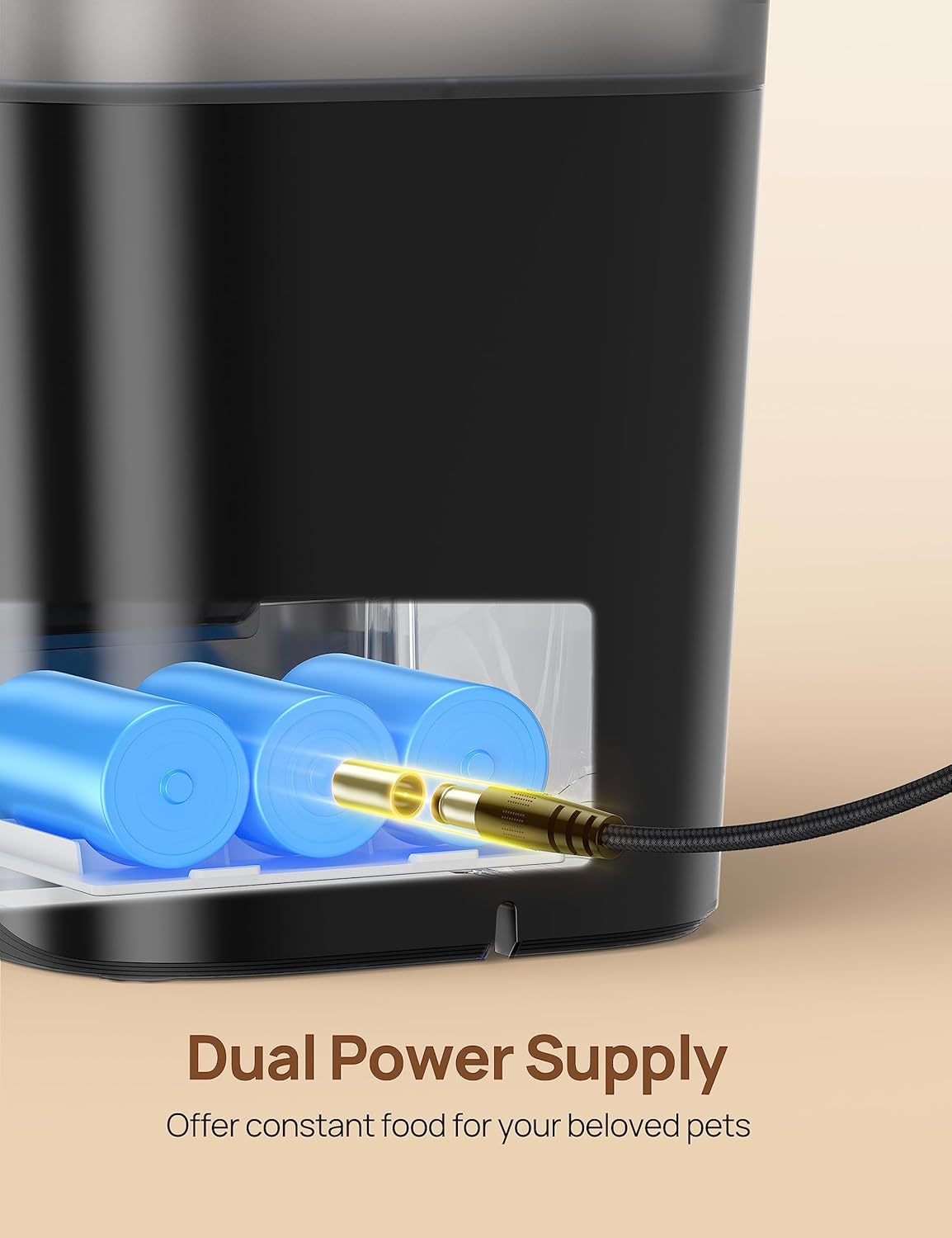

Image showing the dual power supply connection for the feeder

Image: A close-up of the Ymiko feeder's base, illustrating the connection point for the power adapter and the battery compartment for D-cell batteries, highlighting its dual power supply capability.

Diagram showing recommended kibble size range

Image: A visual guide illustrating the recommended kibble size range (2-12mm) for optimal performance and to prevent clogging, showing examples of dry kibbles, freeze-dried food, and air-dried kibbles.

Notkunarleiðbeiningar

1. Stilling núverandi tíma

  • Press and hold the "SET" button until the clock icon flashes.
  • Use the "UP" and "DOWN" arrows to adjust the hour, then press "SET" to confirm.
  • Endurtakið í nokkrar mínútur.

2. Forritun fóðrunaráætlana

  • Press "SET" to cycle through Meal 1, Meal 2, Meal 3, and Meal 4 settings.
  • For each meal, use "UP" and "DOWN" arrows to set the feeding time (hour and minute) and the number of portions (1-9 portions).
  • Press "SET" to confirm each setting and move to the next.
  • To disable a meal, set its portion to 0.

3. Recording Voice Message

  • Press and hold the "REC" button. The microphone icon will appear.
  • Speak your 10-second message clearly into the microphone.
  • Release the "REC" button to save the message.
  • To play back the message, press the "PLAY" button. The recorded message will play during scheduled feeding times.
Cat approaching feeder with a speech bubble saying 'Time to eat!'

Image: Two cats approaching the Ymiko Automatic Cat Feeder, with a speech bubble indicating a personalized meal call, demonstrating the voice recording feature.

4. Handvirk fóðrun

  • Press the "MANUAL" button once to dispense one portion of food immediately.

Viðhald

  • Þrif: The food bowl and hopper can be detached for cleaning. Wash them by hand with mild soap and water. Ensure all parts are completely dry before reassembling. Do not immerse the main unit in water.
  • Food Refill: Regularly check the food level in the transparent hopper and refill as needed to ensure continuous feeding.
  • Skipt um rafhlöðu: If using battery backup, replace D-cell batteries when the low battery indicator appears on the display.

Úrræðaleit

VandamálMöguleg orsök og lausn
Fóðrari gefur ekki út fóður.
  • Food Clog: Check the food outlet for blockages. Ensure kibble size is within 2-12mm.
  • Tómur Hopper: Fyllið matarílátið aftur.
  • Incorrect Settings: Verify meal times and portion sizes are correctly programmed.
Clock loses time or settings reset.
  • Rafmagnstruflun: Gakktu úr skugga um að straumbreytirinn sé tryggilega tengdur.
  • Lítið rafhlaða: Replace D-cell batteries if using battery backup.
Voice recording is unclear or not playing.
  • Recording Issue: Re-record the message, speaking clearly and close to the microphone.
  • Rúmmál: Ensure the volume is set appropriately (if adjustable, though not specified in data).
Pet is accessing food outside of feeding times.
  • Lid Not Secure: Ensure the top lid is properly closed and locked.

Tæknilýsing

  • Gerð: YM-AF001
  • Stærð: 3 lítrar / 12.7 bollar
  • Efni: Plast
  • Stærðir (LxBxH): 7.08 x 7.08 x 11.02 tommur
  • Þyngd hlutar: 3.39 pund
  • Ráðlögð kubbastærð: 2-12 mm
  • Aflgjafi: AC Adapter (included), 3 x D-cell batteries (not included)
  • Meals Per Day: Allt að 4
  • Portions Per Meal: Customizable (e.g., 1-9 portions)
  • Raddupptaka: 10 sekúndur
  • Umönnunarleiðbeiningar: Handþvottur eingöngu (fyrir færanlega hluti)

Ábyrgð og stuðningur

For warranty information, technical support, or any inquiries regarding your Ymiko Automatic Cat Feeder, please refer to the contact details provided on the product packaging or visit the official Ymiko websíða. Vinsamlegast geymið kaupkvittunina vegna ábyrgðarkröfu.
