1. Inngangur
Thank you for choosing the EXTRALINK Smart Life HomeEye Indoor Surveillance Camera. This camera is designed to provide reliable indoor monitoring with advanced features such as 4MP 2.5K resolution, 360° pan and tilt capabilities, two-way audio, motion detection, and night vision. This manual will guide you through the setup, operation, and maintenance of your device to ensure optimal performance and security.
Image 1.1: EXTRALINK Smart Life HomeEye Camera overview.
2. Öryggisupplýsingar
- Gakktu úr skugga um að myndavélin sé sett upp á stöðugum stað til að koma í veg fyrir að hún detti.
- Notaðu aðeins meðfylgjandi rafmagnssnúru og millistykki.
- Ekki láta myndavélina verða fyrir miklum hita, raka eða beinu sólarljósi.
- Haltu tækinu frá vatni eða öðrum vökva.
- Ekki reyna að taka myndavélina í sundur eða gera við hana sjálfur. Hafðu samband við þjónustuver viðskiptavina til að fá aðstoð.
- Þessi myndavél er eingöngu hönnuð til notkunar innandyra.
3. Innihald pakka
Vinsamlegast athugið hvort eftirfarandi atriði séu í pakkanum:
- EXTRALINK Smart Life HomeEye Camera (1 unit)
- USB Power Cable (1 unit)
- Notendahandbók (Þetta skjal)
- Mounting Accessories (Screws, wall plugs, mounting bracket)
4. Vöru lokiðview
The HomeEye camera features a high-resolution lens, infrared LEDs for night vision, a microphone, a speaker for two-way audio, and a microSD card slot for local storage. It offers a 360° panoramic view with pan and tilt functions.
Image 4.1: Key features of the Extralink Smart Life HomeEye camera, including 2.5K resolution, F1.4 aperture, two-way talk, motion detection, 360° view, baby cry detection, 10m night vision, and automatic Wi-Fi reconnection.
5. Uppsetning
5.1 Líkamleg uppsetning
The camera offers flexible installation options. You can place it on a flat surface, mount it on a wall, or attach it to the ceiling. Choose a location that provides the best viewing angle for your monitoring needs.
Image 5.1: The camera can be installed on a wall, ceiling, or placed on a flat surface.
- Kveikt á: Tengdu myndavélina við aflgjafa með meðfylgjandi USB snúru og straumbreyti. Myndavélin mun kveikja á sér og hefja ræsingarröðina.
- Gaumljós: Wait for the indicator light to flash, indicating it's ready for pairing.
5.2 Uppsetning og pörun appa
The EXTRALINK Smart Life HomeEye camera uses the Tuya Smart Life app for control and monitoring.
- Sækja forrit: Download the "Smart Life" app from your smartphone's app store (iOS App Store or Google Play Store).
- Skráning/Innskráning: Opnaðu appið og stofnaðu nýjan aðgang eða skráðu þig inn ef þú ert nú þegar með einn.
- Bæta við tæki: Tap the "+" icon in the top right corner of the app to add a new device. Select "Security & Video Surveillance" and then "Smart Camera (Wi-Fi)".
- Netstillingar: Follow the on-screen instructions to connect the camera to your Wi-Fi network. Ensure your Wi-Fi is 2.4GHz.
- Skannaðu QR kóða: The app will display a QR code. Hold your camera towards the QR code on your phone screen until you hear a prompt.
- Tenging lokið: Once connected, the camera will be added to your app. You can then rename the device and start monitoring.
6. Notkunarleiðbeiningar
6.1 Í beinni View og snúnings-/hallastýring
Open the Smart Life app and select your camera to access the live view. Use the on-screen controls to pan (355° horizontal) and tilt (90° vertical) the camera lens to adjust your viewing horn.

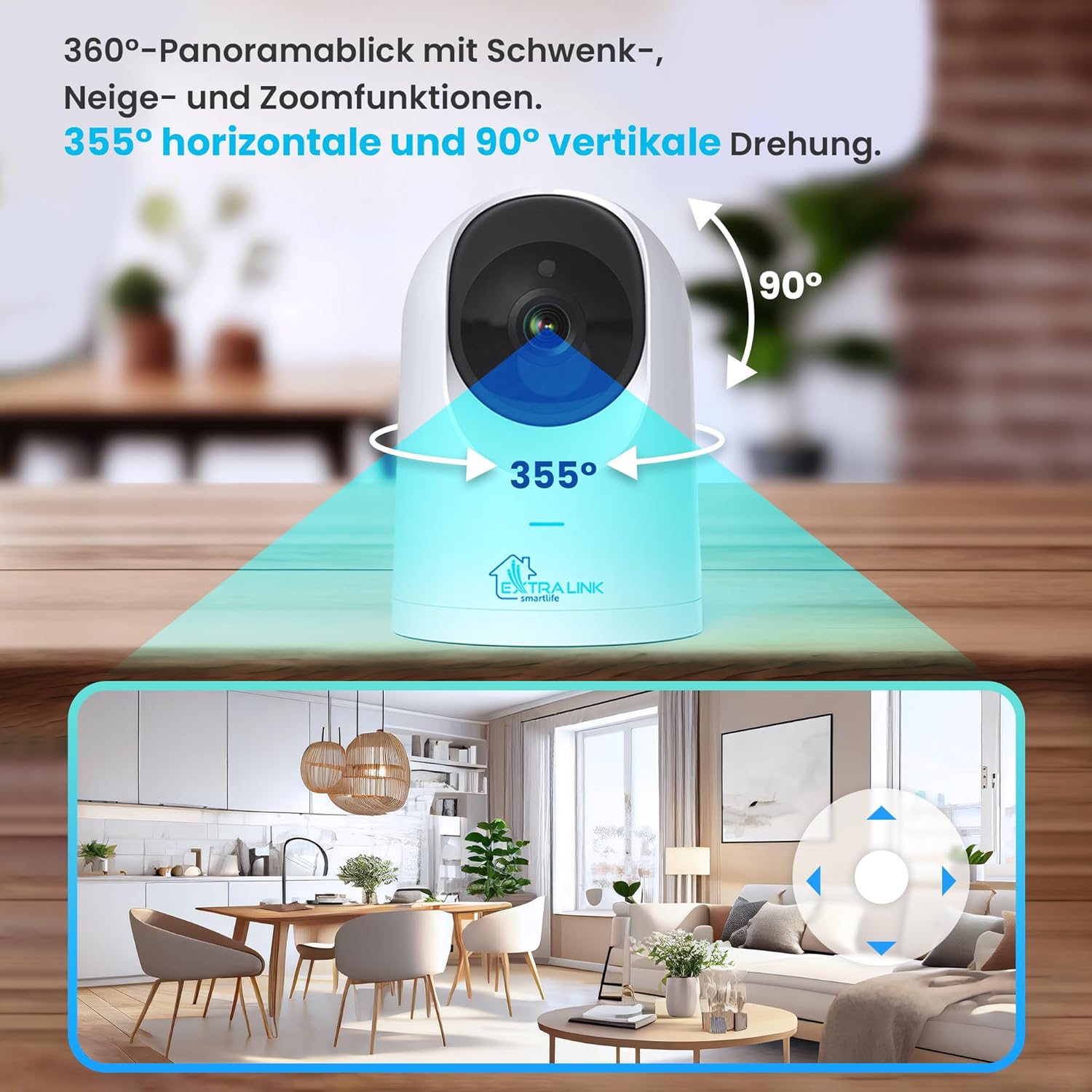

Image 6.1: The camera offers 355° horizontal and 90° vertical rotation for a comprehensive 360° panoramic view.
6.2 Tvíhliða hljóð
Ýttu á hljóðnematáknið í beinni útsendingu appsins view to enable two-way audio. You can speak through your phone, and your voice will be heard through the camera's speaker. Similarly, you can hear audio from the camera's environment through your phone.
Image 6.2: Real-time two-way voice communication allows interaction through the camera.
6.3 Hreyfiskynjun og rakning
The camera features advanced motion detection and tracking. When motion is detected, the camera can automatically track the moving object and send notifications to your smartphone.
Image 6.3: The camera detects and tracks movement, sending instant alerts to your smartphone.
6.4 Baby Cry Detection
The HomeEye camera includes a baby cry detection feature, which can alert you when a baby's cry is detected, making it suitable for use as a baby monitor.
6.5 Nætursjón
Equipped with infrared LEDs, the camera provides clear black-and-white video even in low-light conditions, with a night vision range of up to 10 meters.
6.6 Upptaka og geymsla
The camera supports local storage via a microSD card (up to 128GB, not included). You can also opt for cloud storage services through the Tuya app (service available at an additional cost).
Image 6.4: The camera supports Micro-SD cards up to 128 GB for local storage and offers secure cloud storage via the Tuya app (subscription required).
7. Viðhald
- Þrif: Þurrkið varlega af myndavélarlinsunni og myndavélarhúsinu með mjúkum, þurrum klút. Notið ekki sterk efni eða slípiefni.
- Geymsla: If not in use for an extended period, store the camera in a cool, dry place away from direct sunlight.
- Uppfærsla vélbúnaðar: Regularly check the Smart Life app for firmware updates to ensure optimal performance and security.
8. Bilanagreining
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Myndavélin tengist ekki við Wi-Fi. | Rangt Wi-Fi lykilorð; 5GHz Wi-Fi net; myndavél of langt frá leiðara. | Gakktu úr skugga um að 2.4 GHz Wi-Fi lykilorðið sé rétt. Færðu myndavélina nær leiðinni. Endurræstu leiðina og myndavélina. |
| No image in live view. | Camera offline; poor network connection. | Check camera power and Wi-Fi connection. Restart camera. Check internet connection. |
| Hreyfiskynjunarviðvaranir bárust ekki. | Notifications disabled in app or phone settings; motion detection sensitivity too low. | Enable notifications in the Smart Life app and your phone settings. Adjust motion detection sensitivity in app. |
| MicroSD kort tekur ekki upp. | Card full or corrupted; incorrect format; card not inserted properly. | Format the microSD card in the app. Ensure card is inserted correctly. Replace card if corrupted. |
9. Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Vörumerki | EXTRALINK |
| Nafn líkans | EX.32992 |
| Árangursrík myndbandsupplausn | 4 MP (2592x1520px) |
| Upplausn myndbandsupptöku | 1080p (for general recording, 2.5K for effective resolution) |
| Tengitækni | Þráðlaust (Wi-Fi) |
| Pant/halla snúningur | 355° Lárétt, 90° Lóðrétt |
| Viewí horn | 90 gráður |
| Nætursjónarsvið | 10 metrar |
| Sérstakir eiginleikar | Two-way talk, Motion detection & tracking, Baby cry detection, Remote monitoring via app, Data encryption |
| Stuðningur við geymslu | microSD card up to 128 GB, Cloud storage (optional) |
| Aflgjafi | Electric Cable (USB powered, 5 Volts, 8 Watts) |
| Efni | Málmur |
| Mál (L x B x H) | 9.5 x 9.5 x 14.5 cm |
| Þyngd | 350 grömm |
| Notkunarumhverfi | Innandyra |
10. Ábyrgð og stuðningur
10.1 Upplýsingar um ábyrgð
The EXTRALINK Smart Life HomeEye camera comes with a 36 mánaða ábyrgð from the date of purchase, ensuring product quality and reliability.
10.2 Þjónustuver
For any technical issues, questions, or support needs, please refer to the help section within the Smart Life application. You can also visit the official EXTRALINK websíðuna til að fá frekari aðstoð og upplýsingar um tengiliði.
Tilföng á netinu: For the latest FAQs and troubleshooting guides, please check the support section of the Smart Life app or the EXTRALINK official websíða.
