BULIST UD01S Smart Lock User Manual

Inngangur

This manual provides comprehensive instructions for the installation, operation, and maintenance of your BULIST UD01S Smart Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

Mikilvægar öryggisupplýsingar

• Ekki reyna að taka í sundur eða gera við lásinn sjálfur. Hafðu samband við þjónustuver viðskiptavina til að fá aðstoð.
• Use only the specified battery type (4 AA Alkaline batteries). Do not mix old and new batteries or different types of batteries.
• Ensure the lock is installed correctly and securely to prevent unauthorized access.
• Regularly check battery levels and replace batteries promptly when the low voltage reminder activates.
• Keep your master code and fingerprints secure and do not share them with unauthorized individuals.

Innihald pakka

Vinsamlegast gangið úr skugga um að allir íhlutir séu til staðar áður en uppsetning hefst.

Mynd: Yfirview of the BULIST UD01S Smart Lock package contents, showing the exterior keypad, interior lock unit, a set of AA batteries, the Wi-Fi gateway, and branding.

• Ytri lyklaborðssamsetning
• Interior Lock Unit
• Festingarplata
• Deadbolt Lach
• Verkfallsplata
• Skrúfur og festingar
• 4 x AA alkaline rafhlöður
• Wi-Fi hlið
• Neyðarlyklar (2)
• Notendahandbók (þetta skjal)

Vara lokiðview og Eiginleikar

The BULIST UD01S Smart Lock offers multiple convenient and secure entry methods for your home or office.

• Margar opnunarstillingar: Fingerprint, Passcode, Tuya App, and Physical Key.
• Fingrafaragreining: Fast 0.3-second recognition with 99.9% accuracy. Stores up to 50 fingerprints.
• Baklýst takkaborð: Ensures visibility and ease of use in low-light conditions. Stores up to 50 passcodes.
• Tuya app stjórnun: Remote unlock/lock, temporary code generation, member management, and activity logs via Wi-Fi gateway.
• Neyðarafl: USB Type-C port for emergency power supply if batteries are depleted.
• Langur rafhlöðuending: Approximately 10-12 months of battery life with a low voltage áminning.
• Varanlegur smíði: Tested for keypad life, intensity, temperature resistance, and impact.

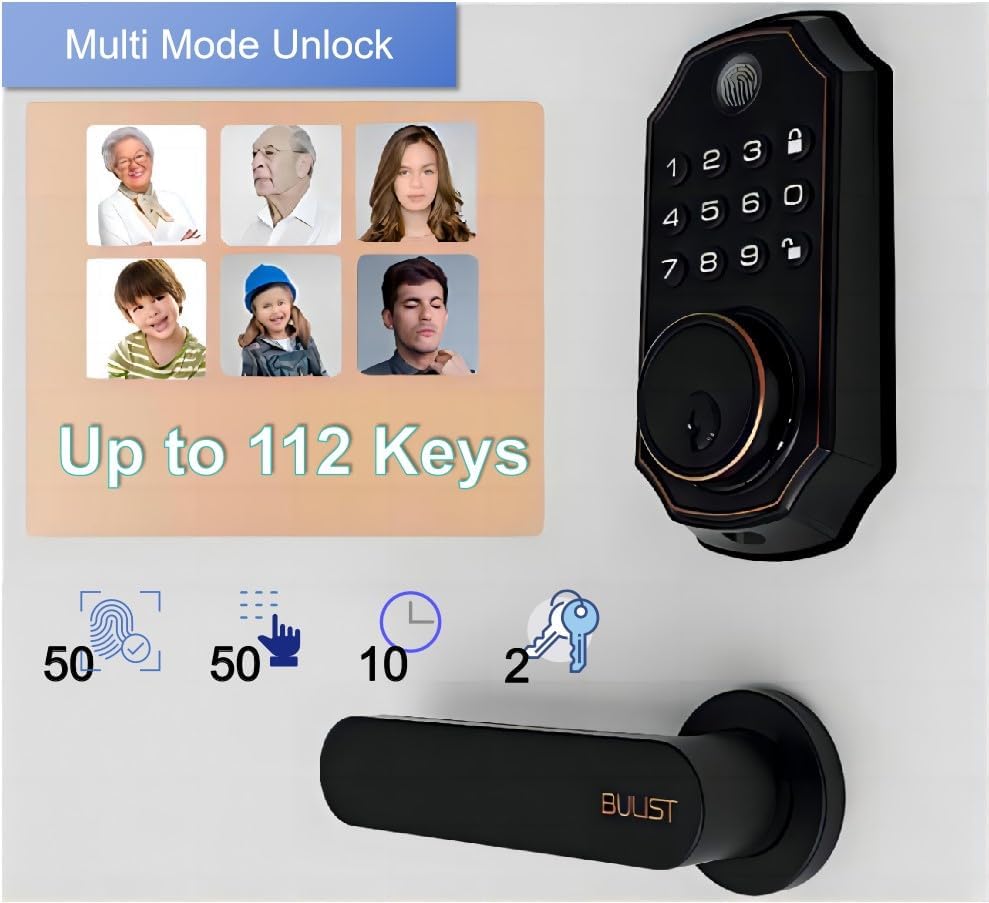

Image: The BULIST UD01S Smart Lock highlighting its multi-mode unlock capabilities, including fingerprint, keypad codes, and traditional keys. It indicates support for up to 50 fingerprints, 50 passcodes, and 2 physical keys.

Image: A child using the fingerprint sensor on the BULIST UD01S Smart Lock, illustrating the ease and speed of fingerprint recognition. Text overlays indicate a 0.3-second recognition time and 99.9% accuracy.

Mynd: Nærmynd view of the BULIST UD01S Smart Lock's backlit keypad, demonstrating its visibility and usability in low-light conditions. A finger is shown interacting with the keypad.

Uppsetning og uppsetning

Installation of the BULIST UD01S Smart Lock is designed to be straightforward. A single screwdriver is typically sufficient for the process.

Verkfæri sem þarf:

• Phillips höfuð skrúfjárn

Uppsetningarskref:

1. Undirbúðu hurðina: Ensure your door is properly prepped for a standard deadbolt installation. Remove any existing deadbolt hardware.
2. Setjið upp lásinn: Insert the deadbolt latch into the door edge. Ensure the "UP" arrow on the latch is facing upwards. Secure with screws.
3. Setjið upp ytra lyklaborðssamstæðuna: Feed the cable from the exterior keypad through the door hole and under the deadbolt latch. Position the exterior keypad flush against the door.
4. Settu upp festingarplötuna: Route the cable through the mounting plate. Secure the mounting plate to the door using screws, ensuring it aligns with the exterior keypad.
5. Tengdu snúrurnar: Connect the cable from the exterior keypad to the corresponding port on the interior lock unit.
6. Install the Interior Lock Unit: Align the interior lock unit with the mounting plate and the deadbolt tailpiece. Secure it with screws.
7. Settu rafhlöður upp: Open the battery cover on the interior unit and insert the 4 AA alkaline batteries, observing polarity.
8. Prófaðu lásinn: Manually operate the deadbolt to ensure smooth movement. Test with the physical key.

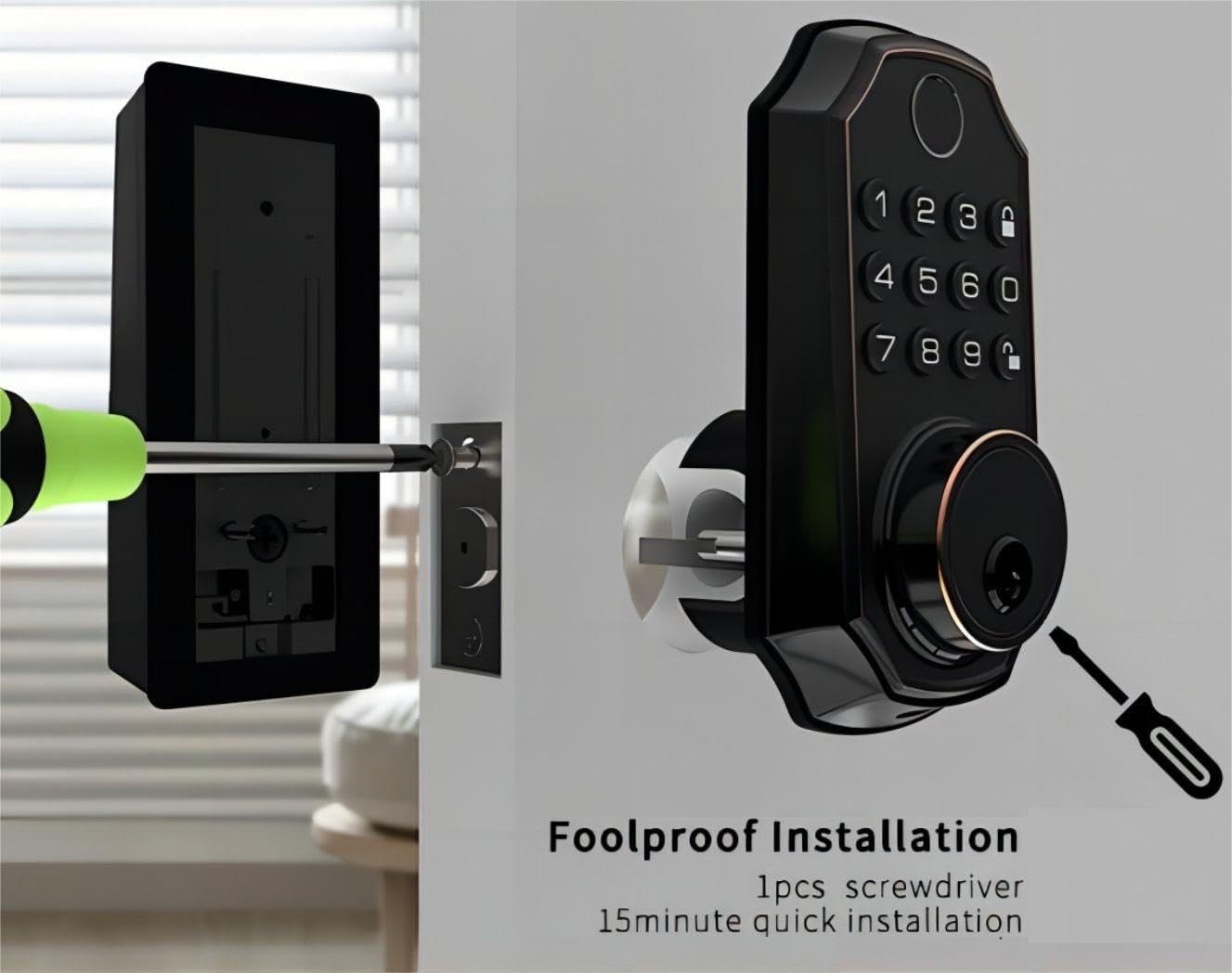

Image: An illustration of the BULIST UD01S Smart Lock installation, depicting a screwdriver being used to secure the exterior keypad assembly to the door. This highlights the "foolproof installation" claim.

Notkunarleiðbeiningar

Initial Setup and Master Code Programming:

Upon first power-up, the lock uses a default master code. It is crucial to change this immediately.

1. Farðu í forritunarham:
   • Enter the default code: 123456
   • Ýttu á Opnaðu button (keypad icon).
   • Ýttu á númerið 1.
   • Ýttu á Opnaðu button again. The lock should indicate it is in "add user mode" or similar.
2. Set New Master Code:
   • Sláðu inn nýja aðalkóðann sem þú vilt (6-8 tölustafir).
   • Ýttu á Opnaðu hnappinn.
   • Sláðu inn nýja aðalkóðann þinn aftur.
   • Ýttu á Opnaðu button. The lock will confirm the new master code.

Mikilvægt: Remember your new master code. It is required for all subsequent programming.

Adding User Passcodes:

You can add up to 50 user passcodes.

1. Sláðu inn þinn Master Code.
2. Ýttu á Opnaðu hnappinn.
3. Ýttu á númerið 1.
4. Ýttu á Opnaðu button. The lock will indicate "add user mode".
5. Enter the new user passcode (6-8 digits).
6. Ýttu á Opnaðu hnappinn.
7. Re-enter the new user passcode.
8. Ýttu á Opnaðu button. The lock will confirm the addition.

Adding User Fingerprints:

You can add up to 50 user fingerprints. This can also be done via the app (see App Integration).

1. Sláðu inn þinn Master Code.
2. Ýttu á Opnaðu hnappinn.
3. Ýttu á númerið 2.
4. Ýttu á Opnaðu button. The lock will prompt for fingerprint scanning.
5. Place your finger on the fingerprint sensor. Lift and repeat 5 times, rotating your finger slightly each time for better recognition.
6. The lock will confirm successful fingerprint registration.

Að opna hurðina:

• Með fingrafari: Place your registered finger on the sensor. The lock will unlock if recognized.
• Með lykilorði: Enter your 6-8 digit passcode, then press the Opnaðu hnappinn.
• By Physical Key: Insert the emergency key into the keyhole and turn to unlock.
• Via Tuya App: Use the app's remote unlock function (requires Wi-Fi gateway).

Að læsa hurðinni:

• Sjálfvirk læsing: Lásinn virkjast sjálfkrafa eftir ákveðinn tíma (hægt að stilla í appinu).
• Handvirk læsing: Ýttu á og haltu inni Læsa button (padlock icon) on the keypad for 2 seconds.
• Via Tuya App: Use the app's remote lock function.

Tuya App Integration

The BULIST UD01S Smart Lock integrates with the Tuya Smart app for enhanced control and monitoring. A Wi-Fi gateway is required for remote functionality.

1. Install the Tuya Smart App:

• Download "Tuya Smart" from your smartphone's app store (iOS or Android).
• Skráðu þig fyrir aðgang eða skráðu þig inn ef þú ert nú þegar með einn.

2. Set up the Wi-Fi Gateway:

The gateway acts as a bridge between your lock (Bluetooth) and your home Wi-Fi network.

1. Plug in the Wi-Fi gateway within 20 feet (approximately 6 meters) of your smart lock.
2. In the Tuya Smart app, tap "+" to add a new device.
3. Select "Gateway" or "Bridge" from the device list and follow the in-app instructions to connect it to your 2.4GHz Wi-Fi network.

3. Pair the Smart Lock with the Gateway:

1. On the smart lock keypad, enter your Master Code.
2. Ýttu á Opnaðu hnappinn.
3. Ýttu á númerið 3.
4. Ýttu á Opnaðu button. The lock will enter Bluetooth pairing mode (e.g., "distributing network").
5. In the Tuya Smart app, navigate to your connected gateway. Select "Add Device" or "Leitaðu að Sub-devices".
6. The app should discover your UD01S Smart Lock. Follow the prompts to complete pairing.

Image: A person approaching a door equipped with the BULIST UD01S Smart Lock, while a smartphone screen displays the Tuya app interface, illustrating the "App Full Control" feature for remote management.

4. App Functions:

• Fjarstýrð opnun/læsing: Stjórnaðu hurðinni þinni hvar sem er.
• Tímabundnir kóðar: Generate one-time or time-limited passcodes for guests or service providers. These codes are automatically deleted after use.
• Félagsstjórn: Add, edit, or delete user passcodes and fingerprints. You can also grant remote access to other users.
• Virkniskrár: View a history of lock/unlock events.
• Stillingar: Configure auto-lock duration, enable/disable remote unlock, and other preferences.

Image: A woman with groceries looking at her smartphone, which displays the Tuya app interface showing a temporary passcode "159357" for the BULIST UD01S Smart Lock. This illustrates the temporary code sharing feature.

Viðhald

Skipt um rafhlöðu:

The lock will provide a low voltage reminder when batteries are running low. Replace all four AA batteries promptly to ensure continuous operation.

1. Fjarlægðu rafhlöðuhlífina af innri læsingareiningunni.
2. Fjarlægðu gömlu rafhlöðurnar.
3. Settu í 4 nýjar AA alkalískar rafhlöður og gætið þess að pólunin (+/-) sé rétt.
4. Skiptu um rafhlöðulokið.

Athugið: If batteries are completely depleted, you can use a USB Type-C power bank to temporarily power the lock via the emergency power port on the exterior unit.

Image: The BULIST UD01S Smart Lock illustrating its battery features, including 10-12 months of battery life, a low voltage reminder, and the emergency power supply option via a USB Type-C port.

Þrif:

Wipe the lock's surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, which can damage the finish or electronic components.

Úrræðaleit

Tæknilýsing

Image: The BULIST UD01S Smart Lock with text indicating various durability tests it has undergone, such as 200,000 keypad life test, 4400N intensity test, -30°F to 151°F temperature test, and 100J impact test.

Ábyrgð og stuðningur

For warranty information and technical support, please refer to the warranty card included with your product or contact BULIST customer service directly. Contact details can typically be found on the manufacturer's official websíðunni eða á kaupkvittuninni þinni.
