Skar Audio SK-BATT65AH 12V AGM High Performance Car Audio Battery User Manual

1. Inngangur

This manual provides essential information for the safe and effective use of your Skar Audio SK-BATT65AH 12V AGM High Performance Car Audio Battery. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product. This battery is designed to provide reliable power for automotive, truck, and marine audio applications.

2. Öryggisupplýsingar

VIÐVÖRUN: Batteries contain sulfuric acid and produce explosive gases. Improper handling can lead to severe injury or death. Always follow these safety guidelines:

• Notið viðeigandi persónuhlífar, þar á meðal augnhlífar og hanska, þegar rafhlöður eru meðhöndlaðar.
• Ensure adequate ventilation when charging or working near batteries to prevent the accumulation of explosive gases.
• Haldið neistum, loga og reykingarefnum frá rafhlöðunni.
• Avoid short-circuiting the battery terminals. This can cause severe burns and damage to the battery.
• Do not exceed 14.4 volts while charging the battery. Overcharging can damage the battery and pose a safety risk.
• In case of contact with battery acid, flush eyes immediately with water for at least 15 minutes and seek medical help. Wash skin thoroughly with soap and water.
• Geymið rafhlöður þar sem börn ná ekki til.

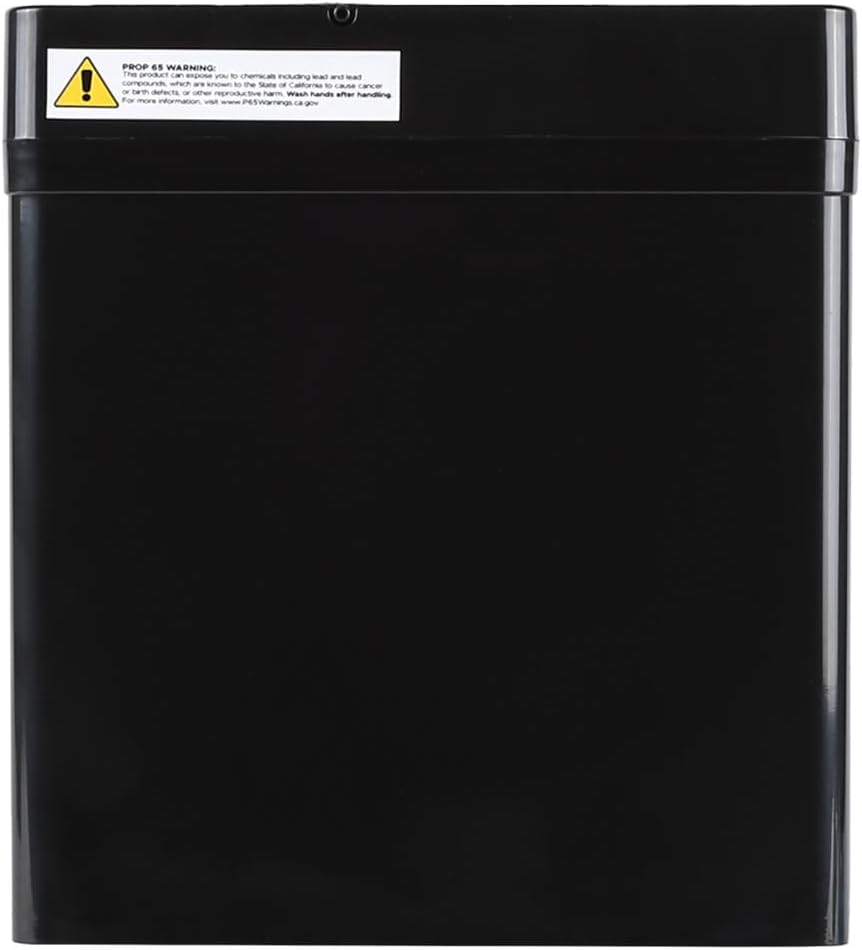

Mynd: Hlið view of the SK-BATT65AH battery, showing the Prop 65 warning label. This label indicates that the product contains chemicals known to cause cancer and reproductive harm.

Tillaga 65 í Kaliforníu viðvörun: This product contains chemicals, including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

3. Vöru lokiðview

The Skar Audio SK-BATT65AH is a 12V Absorbed Glass Mat (AGM) high-performance battery designed for demanding car audio systems. It offers a robust power supply with a high discharge rate and reserve capacity.

Mynd: Ofan frá og niður view of the Skar Audio SK-BATT65AH battery, showcasinhönnun þess og vörumerki.

Helstu eiginleikar:

• AGM tækni: Provides superior performance, vibration resistance, and a longer lifespan compared to traditional lead-acid batteries.
• Hár orkuframleiðsla: Skilar 975 amps maximum output and 668 cold cranking amps (CCA) for reliable starting and sustained power.
• 65 Amp-Klukkutímafjöldi: Tryggir ample power storage for extended use.
• Top Post Terminals: Designed for straightforward and secure connections.
• Vélbúnaður innifalinn: Comes with necessary terminal hardware for installation.

Hvað er í kassanum:

• Skar Audio SK-BATT65AH 12V AGM Battery
• Terminal Hardware (bolts, washers, and brass adapters)

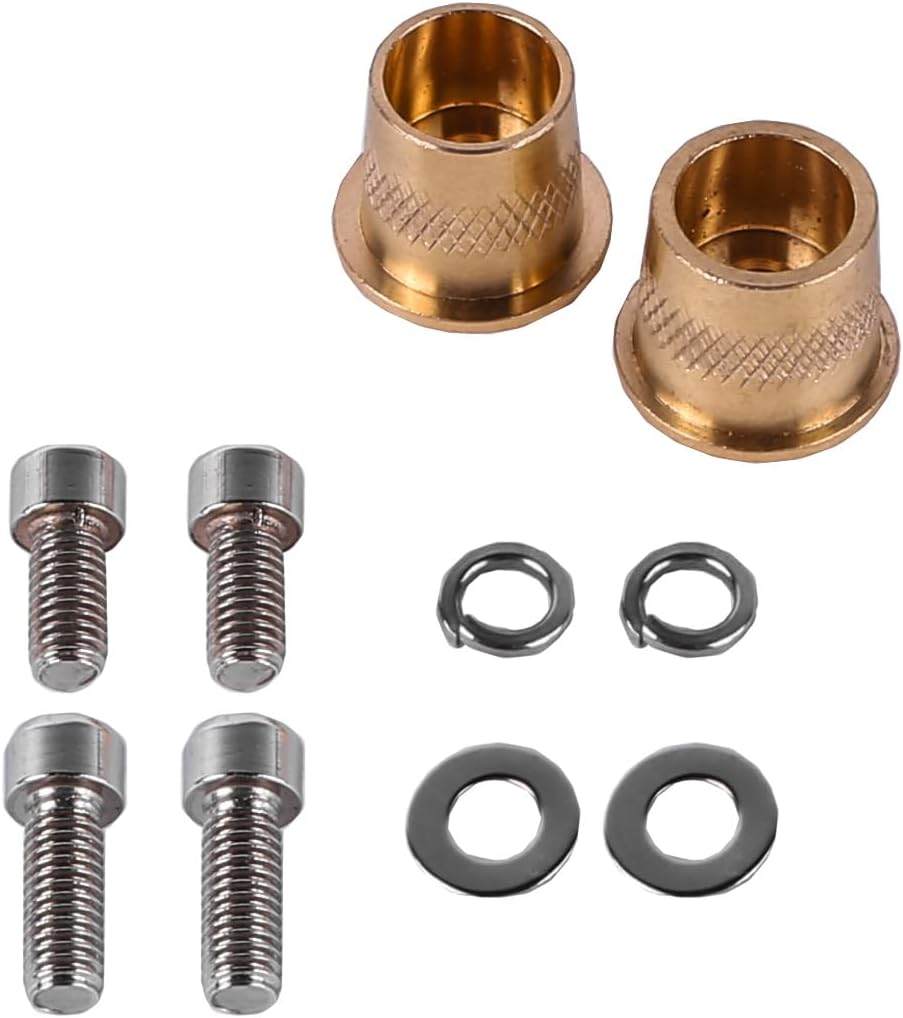

Image: The terminal hardware included with the SK-BATT65AH battery, consisting of bolts, washers, and brass adapters for secure connections.

4. Uppsetning og uppsetning

Proper installation is crucial for the performance and safety of your battery. If you are unsure about any steps, consult a qualified professional.

Uppsetningarskref:

1. Öryggi fyrst: Ensure the vehicle's ignition is off and all accessories are disconnected. Wear safety glasses and gloves.
2. Fjarlægðu gömlu rafhlöðuna (ef við á): Disconnect the negative (-) terminal first, then the positive (+) terminal. Carefully remove the old battery from its tray.
3. Skoðið rafhlöðubakkann og kapla: Clean the battery tray and ensure it is free of corrosion. Inspect battery cables for damage or corrosion. Replace if necessary.
4. Staðsetning nýrrar rafhlöðu: Place the Skar Audio SK-BATT65AH battery securely in the battery tray. Ensure it is stable and cannot move during vehicle operation.
5. Tengdu tengiklemmurnar:
   • Connect the positive (+) cable to the positive (+) terminal of the new battery first. Use the provided terminal hardware to ensure a tight and secure connection.
   • Connect the negative (-) cable to the negative (-) terminal of the new battery. Secure tightly with the provided hardware.
6. Staðfestu tengingar: Double-check that both positive and negative connections are secure and free from any movement. Loose connections can cause arcing and damage.
7. Upphaflegt binditage Athugaðu: After installation, it is recommended to check the battery voltage with a multimeter to ensure it is within the normal operating range (typically 12.6V to 12.8V for a fully charged 12V battery).

Image: The SK-BATT65AH battery shown with its top post terminals and the included hardware, emphasizing ease of installation.

5. Notkunarleiðbeiningar

The Skar Audio SK-BATT65AH battery is designed to operate as a primary or auxiliary power source for your vehicle's electrical system, particularly for high-demand car audio applications.

• Venjulegur rekstur: Once installed, the battery will integrate with your vehicle's charging system. The alternator will recharge the battery during vehicle operation.
• Deep Cycle Use: While this is an AGM battery capable of handling deep discharges, frequent deep cycling without proper recharging can reduce its lifespan.
• Eftirlit: For optimal performance, periodically monitor the battery's voltage, especially if running a high-power audio system. A voltage display can help ensure the battery remains adequately charged.

Image: The SK-BATT65AH battery, highlighting its design for consistent and reliable power supply to audio systems.

6. Viðhald

Regular maintenance helps extend the life and performance of your AGM battery.

• Haltu skautunum hreinum: Periodically inspect battery terminals for corrosion. Clean them with a wire brush and a mixture of baking soda and water if necessary. Rinse with clean water and dry thoroughly.
• Athugaðu tengingar: Ensure all terminal connections remain tight and secure.
• Maintain Charge: If the vehicle is stored for extended periods or used infrequently, use a smart charger designed for AGM batteries to maintain a full charge. Avoid letting the battery sit in a discharged state.
• Forðastu mikla hitastig: While AGM batteries perform well in various temperatures, extreme heat or cold can affect their lifespan. Store in a cool, dry place if removed from the vehicle.
• Rétt hleðsla: When charging with an external charger, ensure it is compatible with AGM batteries and does not exceed 14.4 volts.

7. Bilanagreining

If you experience issues with your Skar Audio SK-BATT65AH battery, consider the following common troubleshooting steps:

If these steps do not resolve the issue, contact Skar Audio customer support or a qualified automotive technician.

8. Tæknilýsing

Detailed technical specifications for the Skar Audio SK-BATT65AH battery:

Image: Infographic summarizing key performance metrics: 975 Amps Max Discharge Current, 668 Cold Cranking Amps (CCA), 65 Amp Hours, and 90 Minute Reserve Capacity.

9. Upplýsingar um ábyrgð

The Skar Audio SK-BATT65AH battery is covered by a 2 árs ábyrgð framleiðanda from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, abuse, neglect, overcharging, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

10. Stuðningur

For technical assistance, warranty claims, or any questions regarding your Skar Audio SK-BATT65AH battery, please contact Skar Audio customer support. Refer to the official Skar Audio websíðu fyrir nýjustu tengiliðaupplýsingar.

Tilföng á netinu: Visit the Skar Audio webvefsíða fyrir algengar spurningar, frekari upplýsingar um vörur og stuðningsúrræði.
