AirOrig 14000 BTU Portable Air Conditioner User Manual

1. Inngangur

Thank you for choosing the AirOrig 14000 BTU Portable Air Conditioner. This versatile 4-in-1 unit is designed to provide optimal comfort in your home or office, offering Cooling, Fan, Dehumidifier, and Sleep modes. With its powerful cooling capacity, digital display, remote control, and convenient 24-hour timer, this appliance is engineered for ease of use and efficient performance.

Image: The AirOrig portable air conditioner unit shown with its included accessories, including the exhaust hose, window vent kit, and remote control.

2. Öryggisupplýsingar

Vinsamlegast lesið allar öryggisleiðbeiningar vandlega áður en tækið er notað til að koma í veg fyrir meiðsli eða skemmdir. Geymið þessa handbók til síðari viðmiðunar.

• Gakktu úr skugga um að tækið sé komið fyrir á stöðugu, sléttu yfirborði.
• Ekki loka fyrir loftinntak eða úttak.
• Ekki nota tækið með skemmda snúru eða kló.
• Haldið börnum og gæludýrum frá tækinu meðan það er í notkun.
• Taktu tækið úr sambandi fyrir þrif eða viðhald.

3. Vöruhlutir

The AirOrig Portable Air Conditioner package includes the following items:

• AirOrig Portable Air Conditioner Unit
• Útblástursslanga
• Window Vent Kit (adjustable for various window types)
• Fjarstýring
• Notendahandbók

4. Uppsetning

4.1 Staðsetning

Position the air conditioner on a flat, stable surface in the room you wish to cool. Ensure there is at least 20 cm (8 inches) of space around the unit for proper airflow. The unit is ideal for living rooms, bedrooms, bathrooms, and offices.

Image: The AirOrig portable air conditioner is shown in different room environments, including a living room, bedroom, bathroom, and laundry room, illustrating its versatility.

4.2 Uppsetning gluggasetts

The included window vent kit allows for easy installation without drilling. It is compatible with both single/double-hung windows and sliding windows.

1. Festið útblástursslönguna við loftúttakið aftan á tækinu.
2. Connect the other end of the exhaust hose to the window adapter.
3. Adjust the window seal plate to fit your window opening.
4. Secure the window adapter into the fitted window seal plate.
5. Gakktu úr skugga um að allar tengingar séu öruggar til að koma í veg fyrir loftleka.

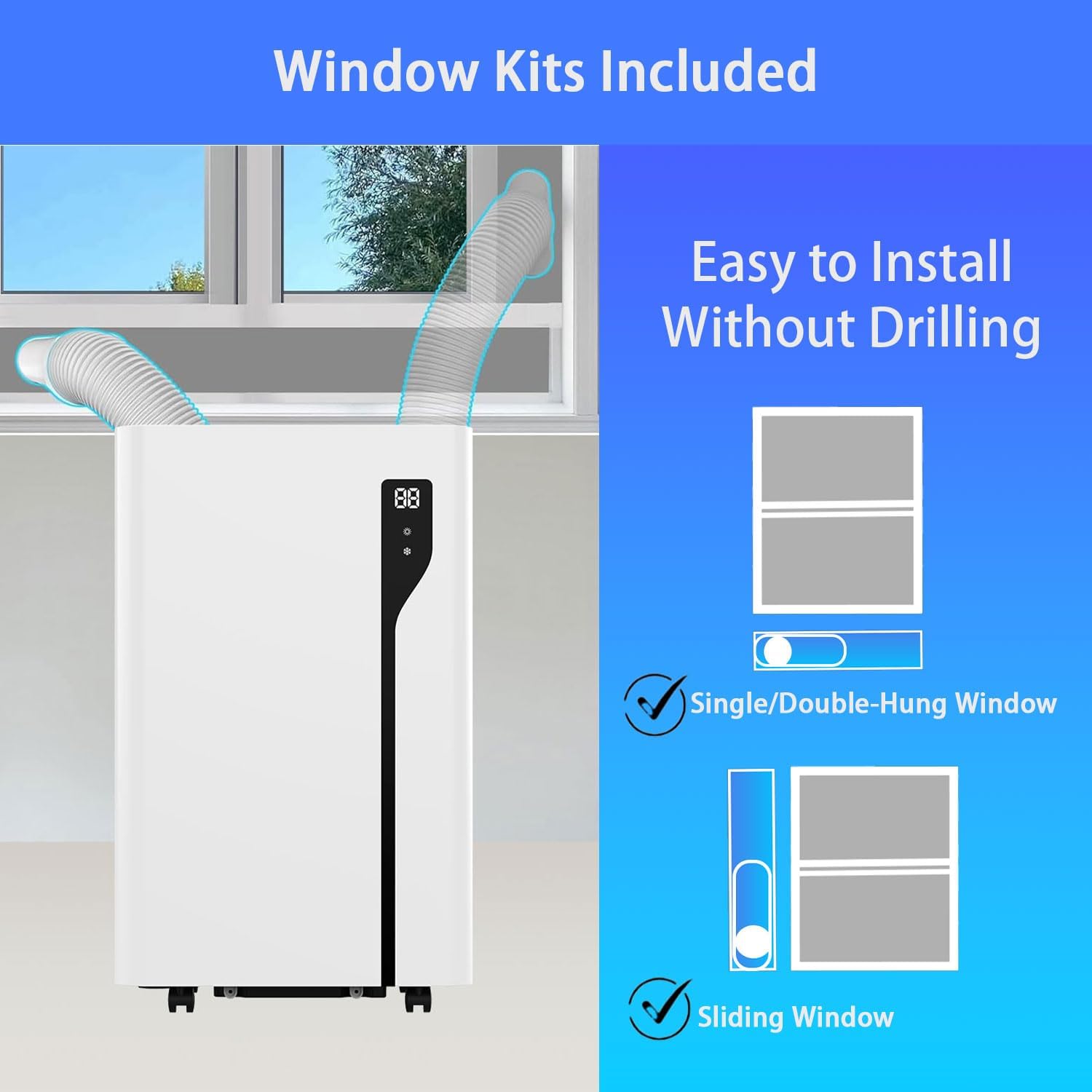

Image: A visual guide demonstrating how to install the window kit for the portable air conditioner, showing compatibility with both single/double-hung and sliding windows.

5. Notkunarleiðbeiningar

5.1 Stjórnborð og fjarstýring

The unit features a digital touch button control panel and comes with a remote control for convenient operation. Both allow control over power, mode, timer, temperature, and fan speed settings.

Mynd: Nærmynd view of the AirOrig portable air conditioner's top panel, highlighting the LED digital display and the included remote control with its various function buttons.

5.2 Rekstrarstillingar

The AirOrig unit offers four distinct operating modes:

• Kælistilling: Provides powerful cooling with a range of 16°C to 32°C. Features a 14,000 BTU capacity and 390 m³/h air circulation, ideal for quickly cooling large rooms up to 450 sq.ft.
• Aðdáandi háttur: Circulates air with three adjustable fan speeds without cooling, perfect for ventilation.
• Rakahreinsistilling: Effectively removes moisture from the air, with a capacity of up to 40 liters per day, improving indoor air quality and comfort.
• Svefnhamur: Operates quietly (noise level ≤ 65 dB) for undisturbed rest, gradually adjusting temperature for optimal sleep comfort.

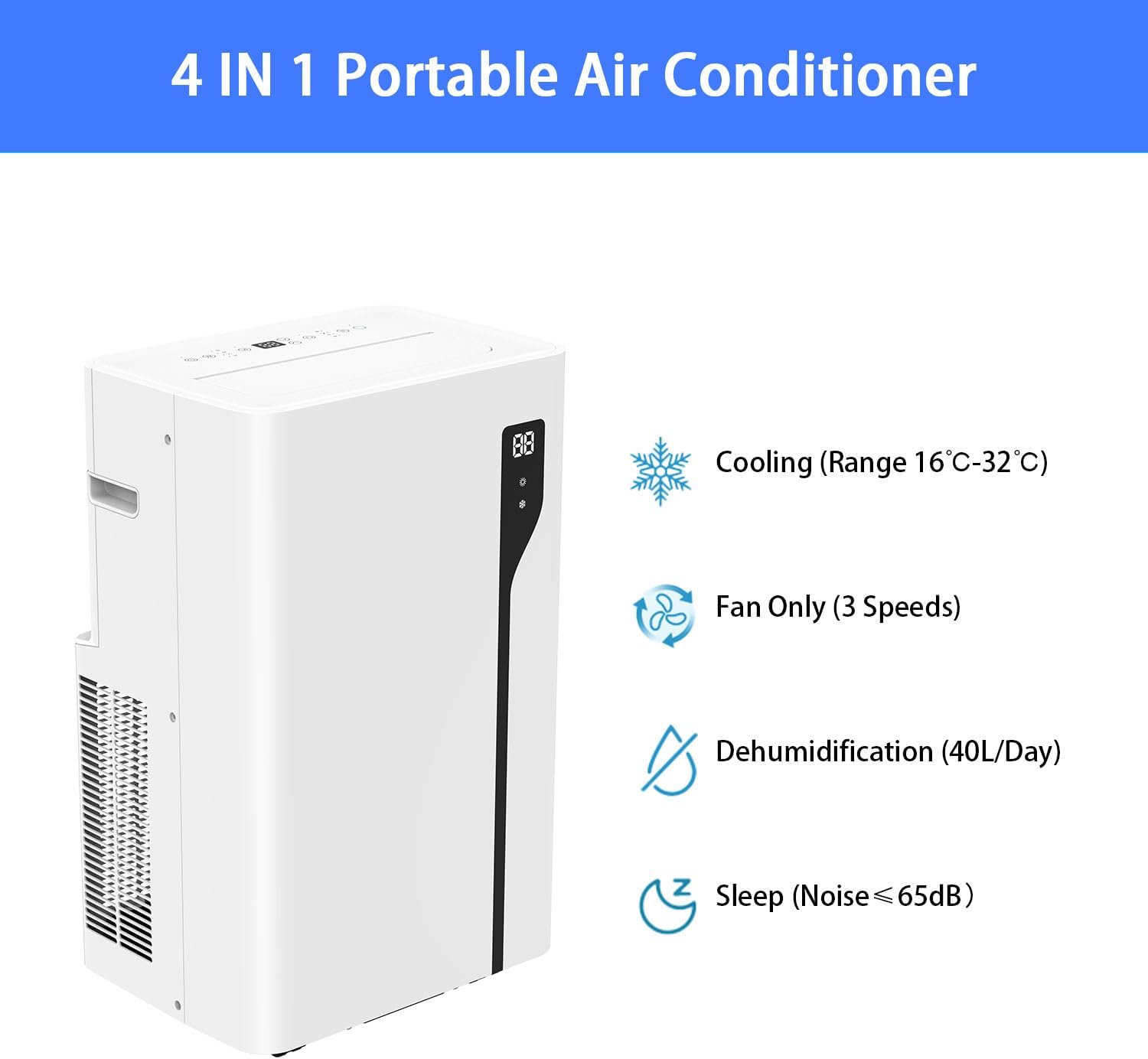

Image: An infographic illustrating the four main functions of the AirOrig portable air conditioner: Cooling (16°C-32°C), Fan Only (3 Speeds), Dehumidification (40L/Day), and Sleep Mode (Noise ≤ 65dB).

Image: A collage showing the AirOrig portable air conditioner in use during different seasons, highlighting its Cooling Mode for summer, Dehumidifier Mode for winter, and Fan Mode for spring and autumn.

5.3 Tímamæliraðgerð

The 24-hour timer allows you to schedule the unit to turn on or off automatically. This feature helps conserve energy and ensures comfort when you need it.

Image: An illustration detailing the 24-hour timer and sleep mode functions, showing how users can schedule operation and enjoy quiet cooling during sleep.

6. Viðhald

6.1 Síuhreinsun

The portable AC unit features a removable and washable double-layer filter. Regular cleaning is essential for optimal performance and air quality.

• It is highly recommended to clean the air filter every two weeks of operation.
• To clean, remove the filter, rinse it under running water, and allow it to air dry completely before reinserting.

6.2 Stjórnun vatnstanks

The unit has an auto shut-off feature when the internal water tank is full, preventing overflow. Regularly check and empty the water tank as needed, especially when operating in Dehumidifier mode.

6.3 Almenn þrif

Þurrkaðu ytra byrði einingarinnar með mjúku, damp klút. Ekki nota sterk efni eða slípiefni.

7. Bilanagreining

If you encounter issues with your AirOrig Portable Air Conditioner, please refer to the following common problems and solutions:

• Eining kviknar ekki á: Check if the power cord is securely plugged into a working outlet. Ensure the water tank is not full.
• Tækið kælir ekki á réttan hátt: Verify that the exhaust hose is properly installed and sealed. Clean the air filter if it is dirty. Ensure windows and doors are closed in the room.
• Óvenjulegur hávaði: Check for any obstructions in the air inlets or outlets. Ensure the unit is on a level surface.
• Vatnsleki: Ensure the unit is level and the drain plug is securely closed (if applicable). Empty the water tank if full.

The unit features an automatic restart function in the event of a power outage, resuming its previous settings once power is restored.

8. Tæknilýsing

9. Ábyrgð og stuðningur

The AirOrig Portable Air Conditioner comes with a 2 árs ábyrgð. This warranty covers manufacturing defects and technical issues under normal use.

For product support, technical assistance, or any issues regarding the use of your appliance, please contact AirOrig customer support. You can typically find contact information through the platform where you purchased the product (e.g., Amazon Message).

Please have your model number (A015D) and purchase details ready when contacting support to ensure faster service.
