Generic M11 Global PTT 4G Walkie Talkie User Manual

1. Vöru lokiðview

The Generic M11 is a 4G Push-to-Talk (PTT) walkie talkie designed for global communication with unlimited range, leveraging 4G network technology. It features a robust design, clear audio, and a built-in flashlight, suitable for various professional and outdoor environments.

Mynd 1: Generic M11 Walkie Talkie Components. This image displays the front and top view of the walkie talkie, highlighting key components such as the antenna, screen, PTT button, power button, speaker, flashlight, indicator light, earphone port, and Type-C charging port.

Innihald pakka:

• Walkie Talkie Unit
• Notendahandbók
• Hleðslutæki
• Battery Pack / Back Clip
• Hleðslusnúra (Type-C)
• SIM Card (2 pieces, if included in package)

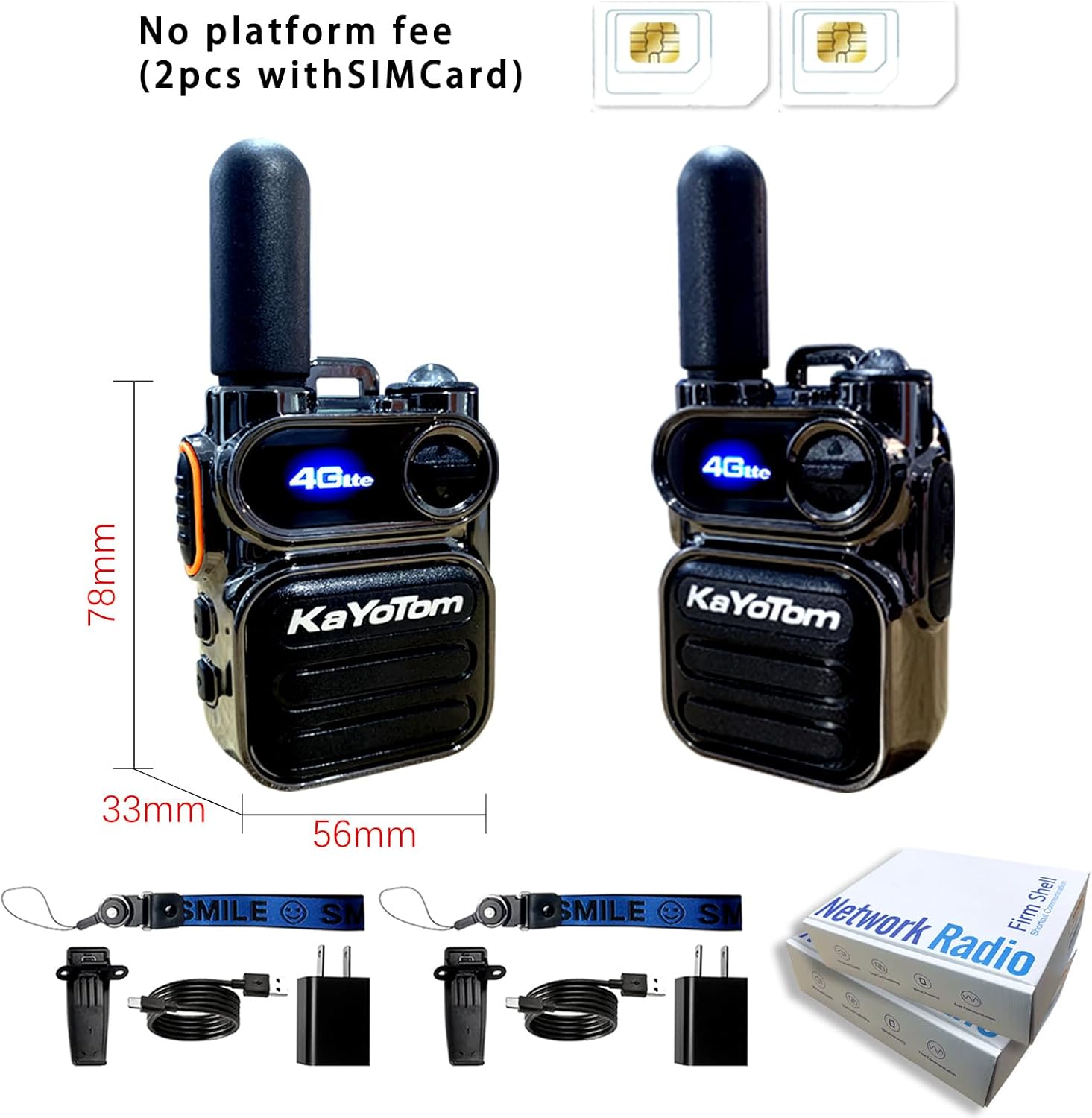

Mynd 2: Included Accessories. This image illustrates the two walkie talkie units, two SIM cards, and the standard accessories provided in the package, including the charger, charging cable, and back clip.

2. Uppsetning og uppsetning

2.1. Uppsetning SIM-korts

1. Gakktu úr skugga um að slökkt sé á talstöðinni.
2. Locate the SIM card slot, typically under the battery cover or on the side of the device.
3. Insert a valid 4G SIM card into the designated slot. Ensure correct orientation as indicated on the device.
4. Lokaðu lokinu á SIM-kortaraufinni vel.

Note: A valid SIM card is required for the 4G PTT functionality and unlimited range communication.

2.2. Uppsetning rafhlöðu og hleðsla

1. If the battery is not pre-installed, open the battery compartment cover on the back of the device.
2. Insert the 2500mAh battery pack, ensuring the contacts align correctly.
3. Settu hlífina yfir rafhlöðuhólfið aftur.
4. Connect the Type-C charging cable to the charging port on the walkie talkie and plug the charger into a power outlet.
5. The indicator light will show charging status. Charge the device fully before first use.

The device supports fast charging via its Type-C port. A full charge provides approximately 7 days of standby time.

2.3. Attaching the Back Clip and Antenna

1. Attach the back clip to the designated slot on the rear of the walkie talkie for convenient carrying.
2. Screw the antenna clockwise onto the antenna connector at the top of the device until it is finger-tight. Do not overtighten.

3. Notkunarleiðbeiningar

3.1. Kveikt/slökkt

• Til að kveikja á: Press and hold the Power button (refer to Figure 1) until the screen illuminates.
• Til að slökkva á: Ýttu á og haltu inni aflrofann þar til tækið slokknar.

3.2. Basic Communication (PTT)

1. Ensure the device is powered on and connected to the 4G network (indicated on the screen).
2. Select the desired contact or group using the Menu/OK button and navigation controls.
3. To transmit, press and hold the PTT (Push-to-Talk) button on the side of the device. Speak clearly into the microphone.
4. Slepptu PTT hnappinum til að hlusta eftir svari.

Mynd 3: Single and Group Call Functionality. This image illustrates the device's capability for both individual and group communications over the network.

The M11 supports both single calls and group calls, providing flexible communication options.

3.3. Notkun vasaljóssins

• To turn on the flashlight, locate the flashlight button (refer to Figure 1) and press it.
• Ýttu aftur á hnappinn til að slökkva á vasaljósinu.

Mynd 4: Powerful LED Flashlight. This image demonstrates the integrated LED flashlight, providing illumination in low-light conditions.

3.4. Audio Quality and Noise Reduction

The M11 is equipped with a bright three-dimensional anti-vibration diaphragm for noise reduction, ensuring clear and loud sound quality even in noisy environments.

Mynd 5: Clear Sound Technology. This diagram highlights the internal design features that contribute to the device's clear audio output and noise reduction capabilities.

4. Viðhald og umönnun

4.1. Umhirða rafhlöðu

• Til að lengja líftíma rafhlöðunnar skal forðast að tæma hana alveg oft.
• Charge the battery using only the provided charger and Type-C cable.
• Geymið tækið á köldum, þurrum stað þegar það er ekki í notkun í langan tíma.

4.2. Þrif

• Þurrkaðu tækið með mjúku, damp klút. Ekki nota sterk efni eða slípiefni.
• Gakktu úr skugga um að allar tengi séu þurrar áður en þú hleður.

4.3. Umhverfissjónarmið

• The M11 walkie talkie is ekki vatnsheldurForðist snertingu við vatn eða mikinn raka.
• The device is designed with zinc alloy material for durability, offering earthquake resistance, anti-drop protection, and dustproof properties.

5. Bilanagreining

5.1. Tækið kveikir ekki á sér

• Gakktu úr skugga um að rafhlaðan sé rétt uppsett og fullhlaðin.
• Gakktu úr skugga um að hleðslusnúran og millistykkið virki rétt.
• Try pressing and holding the Power button for a longer duration (5-10 seconds).

5.2. No Network Connectivity / Cannot Communicate

• Athugaðu hvort SIM-kortið sé rétt sett í og ​​virkjað.
• Gakktu úr skugga um að þú sért á svæði með 4G netþjónustu.
• Restart the device to re-establish network connection.
• Verify that your subscription for airtime is active.

5.3. Léleg hljóðgæði

• Gakktu úr skugga um að hljóðneminn og hátalarinn séu ekki hindraðir.
• Athugaðu hljóðstyrksstillingarnar.
• Move to an area with better network signal strength.

5.4. Flashlight Not Working

• Gakktu úr skugga um að tækið hafi næga hleðslu á rafhlöðunni.
• Press the flashlight button firmly.

6. Tæknilýsing

7. Upplýsingar um ábyrgð

This Generic M11 Global PTT Walkie Talkie comes with a Eins árs ábyrgð frá kaupdegi. Þessi ábyrgð nær yfir framleiðslugalla og bilanir við eðlilega notkun. Hún nær ekki til tjóns sem orsakast af misnotkun, slysum, óheimilum breytingum eða snertingu við vatn.

Vinsamlegast geymdu sönnunina þína fyrir kaupum fyrir ábyrgðarkröfur.

8. Þjónustudeild

If you encounter any issues or have questions regarding your Generic M11 Global PTT Walkie Talkie that are not addressed in this manual, please contact our customer support team.

Refer to the contact information provided with your purchase or on the product packaging for assistance.

We are committed to resolving your troubles and ensuring your satisfaction.
