EnjoyCool Portable Air Conditioner AC01EN02 User Manual

1. Inngangur

Þakka þér fyrir kaupinasing the EnjoyCool Portable Air Conditioner AC01EN02. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

2. Öryggisleiðbeiningar

Til að koma í veg fyrir meiðsli á notanda eða öðrum og eignatjón verður að fylgja eftirfarandi leiðbeiningum. Röng notkun vegna þess að leiðbeiningum er ekki fylgt getur valdið skaða eða skemmdum.

• Always connect the drain pipe and ensure it faces downwards for proper condensation discharge.
• Ensure the power supply method is appropriate for the unit (household, power station, or add-on battery).
• Ekki loka fyrir loftinntak eða úttak.
• Haltu tækinu í burtu frá vatni og raka.
• Reynið ekki að gera við eða breyta tækinu sjálf/ur. Hafið samband við hæft þjónustufólk.
• Hafið eftirlit með börnum til að tryggja að þau leiki sér ekki með heimilistækið.
• Taktu tækið úr sambandi fyrir þrif eða viðhald.

3. Innihald pakka

Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum:

• EnjoyCool Portable Air Conditioner Unit
• Fjarstýring
• Frárennslisrör
• Power Adapter (for household use)
• Notendahandbók

4. Vöru lokiðview

The EnjoyCool Portable Air Conditioner AC01EN02 is designed for cooling small spaces in outdoor environments such as tents, RVs, cars, and during camping. It features multiple operating modes and can be powered by various sources.

Mynd 4.1: Framan view of the EnjoyCool Portable Air Conditioner unit, showcasing its compact design and yellow casing with black accents.

Image 4.2: Diagram illustrating the four operating modes (Cooling Mode, Strong Mode, Sleep Mode, Fan Mode) and three fan speeds (Low, Medium, High) available on the EnjoyCool Portable Air Conditioner.

Mynd 4.3: Innra view of the air conditioner highlighting its cooling components, with specifications for cooling capacity (2380 BTU), cooling area (43 sq. ft.), and cooling temperature range (60.8-89.6°F), labeled as 'Efficient Cooling'.

5. Uppsetning og uppsetning

5.1 Valkostir aflgjafa

The EnjoyCool Portable Air Conditioner supports three power supply methods:

1. Household Power Supply: Connect the unit to a standard wall outlet using the provided power adapter.
2. Power Station Supply: Connect to a compatible portable power station.
3. Add-on Battery Supply: Utilize an optional add-on battery pack (sold separately) for extended portable use.

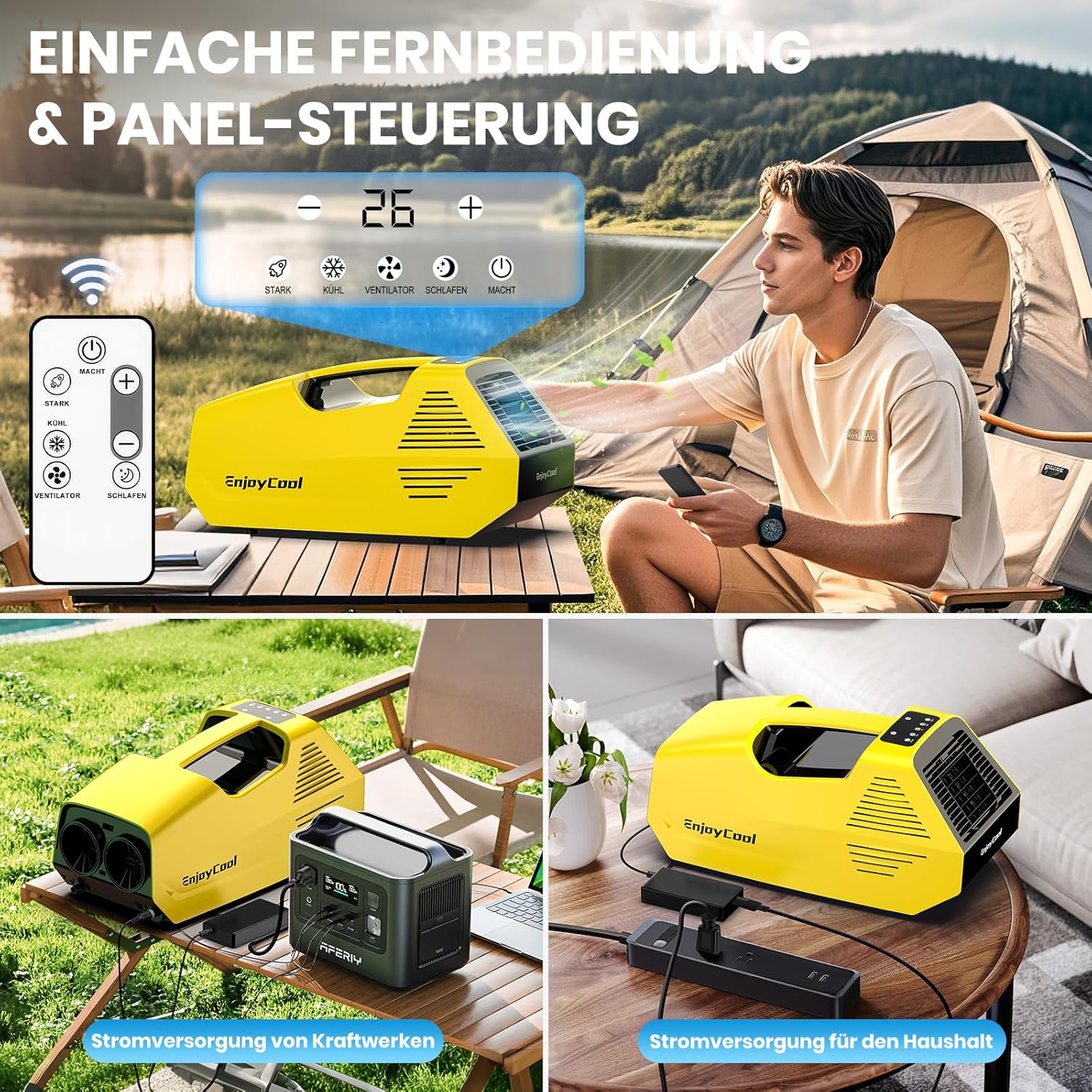

Image 5.1: The portable air conditioner connected to a portable power station and a household power supply, demonstrating versatile power options labeled 'Power supply from power stations' and 'Power supply for household'.

5.2 Tenging við frárennslisrör

For proper operation and condensation discharge, the drain pipe must be connected and positioned correctly.

1. Locate the drain outlet on the unit.
2. Securely attach one end of the drain pipe to the outlet.
3. Ensure the other end of the drain pipe is facing downwards to allow condensed water to drain freely.

Mynd 5.2: Nærmynd view showing the correct connection of the drain pipe to the unit, emphasizing the need for proper alignment and downward positioning for drainage.

Image 5.3: Illustration of the power cable connection point, showing how to align the bumps for a secure fit.

6. Notkunarleiðbeiningar

6.1 Stjórnborð og fjarstýring

The unit can be operated using the integrated touch control panel or the provided remote control.

Image 6.1: Display of the unit's touch control panel and the remote control, showing various function buttons such as Power, Cool, Fan, Sleep, and Strong modes, along with temperature adjustment.

6.2 Rekstrarstillingar

The air conditioner offers four distinct operating modes:

• Flott stilling: Provides active cooling to lower the ambient temperature.
• Aðdáandi háttur: Circulates air without cooling, functioning as a fan.
• Svefnhamur: Operates at a lower fan speed and reduced noise level for comfortable overnight use.
• Sterk stilling: Delivers maximum cooling power for rapid temperature reduction.

Image 6.2: Visual representation of the customizable comfort settings, including Cool, Sleep, Fan, Strong, and Power functions, indicating the unit's versatility.

6.3 Temperature Unit Switching (Fahrenheit/Celsius)

To switch between Fahrenheit (°F) and Celsius (°C) temperature displays:

• Ýttu samtímis á + og - buttons on the control panel or remote control.

6.4 Air Outlet Adjustment

The air outlet can be adjusted up to 120 degrees to direct airflow as needed.

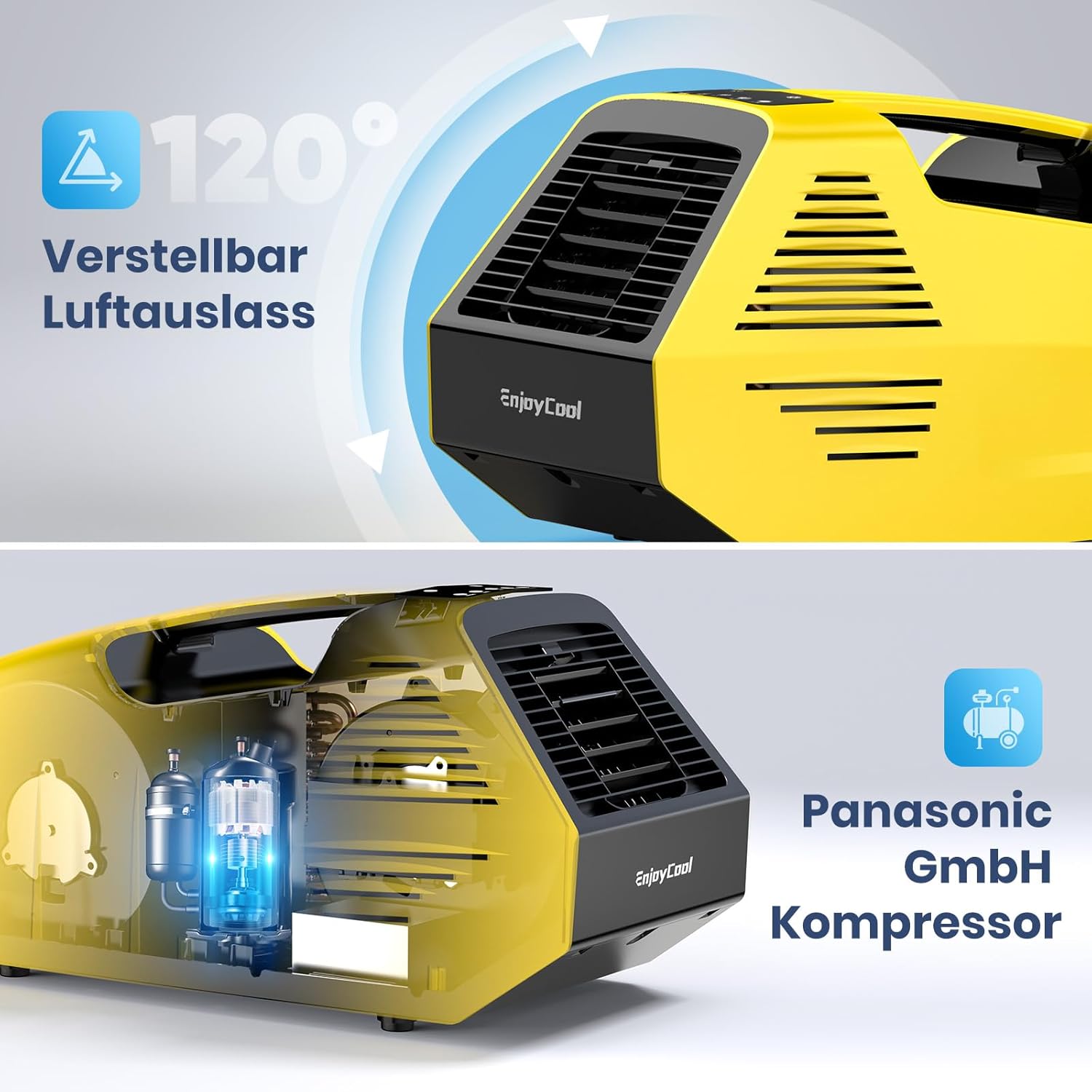

Image 6.3: Diagram showing the 120-degree adjustable air outlet, labeled 'Adjustable Air Outlet', allowing users to direct the airflow for optimal comfort.

7. Viðhald

Reglulegt viðhald tryggir bestu mögulegu afköst og endingu loftkælisins.

7.1 Þrif á loftsíu

• Taktu tækið úr sambandi við aflgjafann.
• Locate and remove the air filter.
• Clean the filter with a vacuum cleaner or wash it with warm, soapy water.
• Leyfðu síunni að þorna alveg áður en hún er sett aftur í.
• Clean the air filter every two weeks or more frequently depending on usage.

7.2 Þrif á ytra byrði tækisins

• Þurrkaðu ytra byrði einingarinnar með mjúku, damp klút.
• Notið ekki sterk efni, slípiefni eða leysiefni.

7.3 Geymsla

• Before storing, ensure the unit is completely dry, especially the internal components and drain pipe.
• Geymið tækið á köldum, þurrum stað, fjarri beinu sólarljósi og miklum hita.

8. Bilanagreining

Vísað er til eftirfarandi töflu fyrir algeng vandamál og lausnir á þeim. Ef vandamálið er viðvarandi skaltu hafa samband við þjónustuver.

9. Tæknilýsing

Mynd 9.1: Innra view highlighting the Panasonic GmbH Compressor, indicating a key component of the unit's cooling system.

10. Ábyrgð og stuðningur

The EnjoyCool Portable Air Conditioner AC01EN02 comes with a limited warranty. For warranty details, product support, or service inquiries, please refer to the warranty card included in your package or visit the official EnjoyCool websíða.

Samskiptaupplýsingar:

• Opinber Websíða: EnjoyCool Store on Amazon
• Customer Service: Refer to your product packaging or warranty documentation for specific contact details.
