MDHL Sonic Vibration Toothbrush DS-05 User Manual

1. Inngangur

Thank you for choosing the MDHL Sonic Vibration Toothbrush. This manual provides important information on how to set up, operate, and maintain your new toothbrush. Please read it thoroughly before first use and keep it for future reference.

This sonic toothbrush is designed for effective oral cleaning, featuring a super soft brush head and carefully adjusted vibration frequency and amplitude. It is suitable for individuals with sensitive teeth, weak enamel, or easily bleeding gums, and can also be used for children during tooth replacement.

2. Innihald pakka

Vinsamlegast athugið innihald pakkans til að ganga úr skugga um að allir hlutir séu til staðar:

• 1 x MDHL Sonic Vibration Toothbrush Handle
• 3 x Super Soft Brush Heads
• 1 x hleðslutæki
• 1 x USB hleðslusnúra
• 1 x Notendahandbók (þetta skjal)

Image: All components included in the MDHL Sonic Vibration Toothbrush package.

3. Vörueiginleikar

• Super Soft Bristles: Equipped with MDHL ultra-fine soft bristles, each finely polished to ensure effective cleaning while preventing irritation or damage to teeth and gums.
• Tvær hreinsunarstillingar: Offers "Clean" mode for daily thorough cleaning and "Soft" mode for gentle cleaning, suitable for sensitive teeth.
• Greind tímasetning: Features a 2-minute smart timer, recommended by dentists, and a 30-second zone change reminder to ensure even cleaning of all four quadrants of your mouth.
• Langur rafhlöðuending: Provides approximately 50 days of use on a single 4-hour charge.
• IPX7 vatnsheldur: The toothbrush is fully washable and safe for use in the shower.

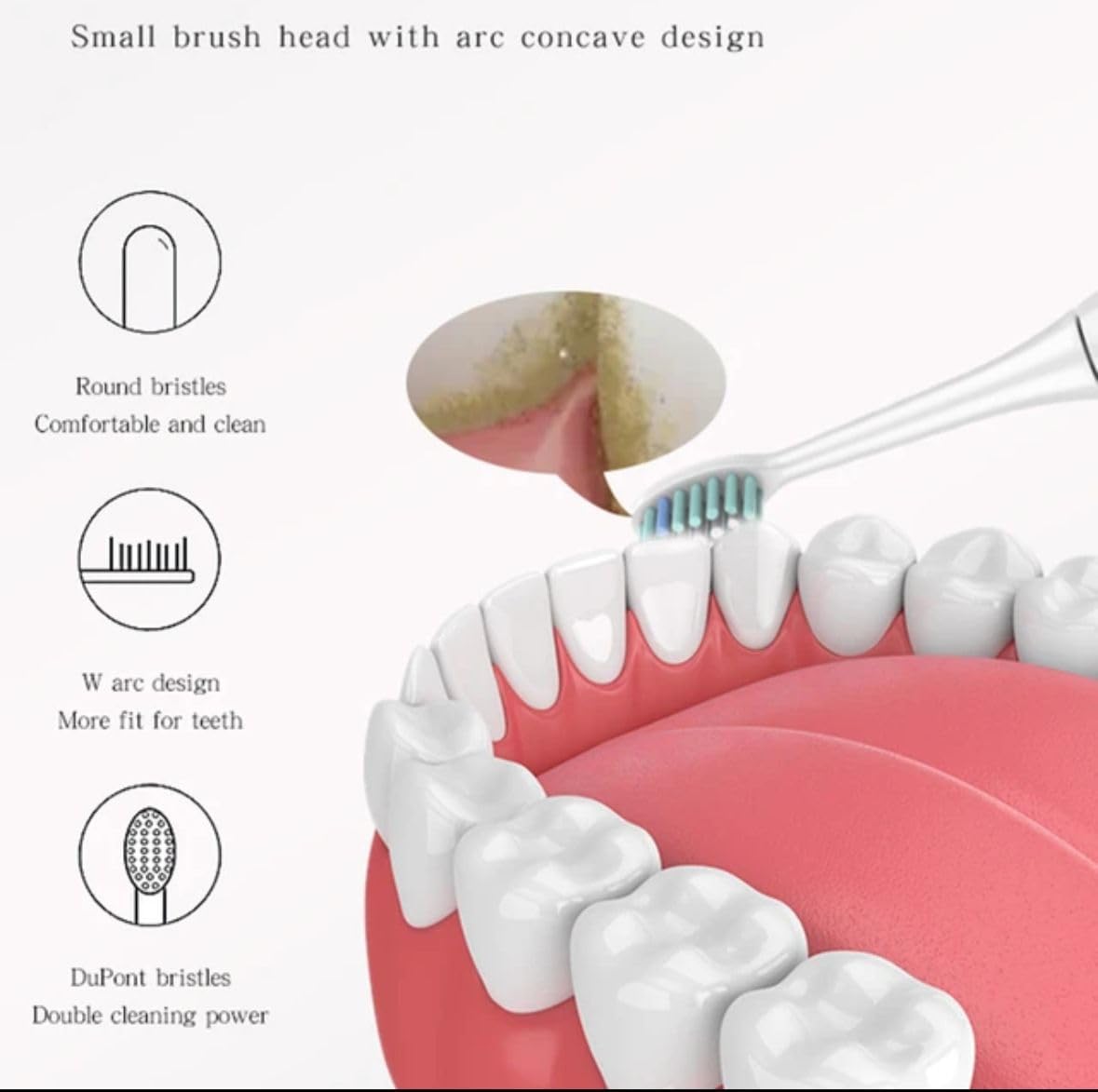

Mynd: Ítarleg view of the toothbrush head design, highlighting round bristles and W-arc for effective cleaning.

4. Uppsetning

1. Hlaðið tannburstann: Before first use, fully charge the toothbrush. Connect the USB charging cable to the charging base and plug it into a compatible USB power adapter (not included). Place the toothbrush handle onto the charging base. The indicator light will show charging status. A full charge takes approximately 4 hours.
2. Festið burstahaus: Stilltu burstahöfuðinu saman við málmskaftið á tannburstahandfanginu og ýttu því niður þar til það smellpassar. Gakktu úr skugga um að það sé vel fest.

Image: The MDHL Sonic Vibration Toothbrush handle placed on its charging base, with additional brush heads.

5. Notkunarleiðbeiningar

1. Bleyta burstahausinn: Bleytið burstunum og setjið lítið magn af tannkremi á.
2. Place in Mouth: Settu burstahausinn að tönnunum þínum í smá halla í átt að tannholdslínunni.
3. Kveikt á: Press the power button to turn on the toothbrush. It will start in the last used mode.
4. Veldu ham: Press the power button repeatedly to cycle through the "Clean" and "Soft" modes.
5. Bursti: Gently move the brush head slowly from tooth to tooth, allowing the sonic vibrations to clean. Do not scrub.
6. Quadrant Timer: The toothbrush will pause briefly every 30 seconds to remind you to move to the next quadrant of your mouth.
7. Sjálfvirk lokun: The toothbrush will automatically turn off after 2 minutes of brushing.
8. Power Off Manually: To turn off the toothbrush before the 2-minute cycle is complete, press and hold the power button for 2 seconds.
9. Skol: After brushing, rinse your mouth and the brush head thoroughly under running water.

6. Viðhald

6.1 Þrif á tannbursta

• Eftir hverja notkun skal skola burstahöfuðið og burstann vandlega undir rennandi vatni.
• Þurrkaðu tannburstahandfangið með auglýsinguamp cloth. Do not immerse the handle in water for extended periods, although it is IPX7 waterproof.
• Clean the charging base periodically with a dry cloth. Ensure the charging base is unplugged before cleaning.

6.2 Skipta um burstahaus

Dentists recommend replacing your toothbrush head every 3 months, or sooner if the bristles become frayed or worn. To replace:

1. Grip the brush head firmly and pull it straight off the handle.
2. Align the new brush head with the metal shaft and push it down until it clicks into place.

7. Hleðsla og rafhlöðuending

• The toothbrush uses a rechargeable battery.
• A full charge takes approximately 4 hours and provides up to 50 days of brushing (based on two 2-minute brushes per day).
• When the battery is low, the indicator light may flash or change color (refer to specific model indicator behavior if available).
• Always use the provided charging base and USB cable.

8. Bilanagreining

9. Tæknilýsing

• Gerð: DS-05
• Vörumerki: Generic (MDHL)
• Aflgjafi: Rafhlöðuknúin (endurhlaðanleg)
• Rafhlöðuending: Up to 50 days (based on 2x daily, 2-minute brushing)
• Hleðslutími: Um það bil 4 klst
• Vatnsheld einkunn: IPX7
• Burstaþéttleiki: Mjúkt
• Aldursbil: Fullorðinn
• Vörumál: 8 x 8 x 2 inches (approximate package dimensions); 1.21 Pounds (approximate package weight)
• Framleiðandi: Allt amerískt

10. Öryggisupplýsingar

• Ekki nota þessa vöru í neinum öðrum tilgangi en til að hreinsa munninn.
• Geymið þar sem börn ná ekki til nema undir eftirliti fullorðinna.
• If you have any oral health concerns, consult your dentist before using this product.
• Do not attempt to disassemble or repair the toothbrush. Contact customer support if issues arise.
• Do not place the charging base in water or use it in a wet environment.
• Ef varan er skemmd skal hætta notkun strax.

11. Ábyrgð og stuðningur

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer where the product was purchased.

For technical support or inquiries, please contact the manufacturer or retailer.
