KATO 3102-2 Ge4/4-II Glacier Express N Gauge Locomotive Instruction Manual

1. Inngangur

This instruction manual provides essential information for the safe and proper use, setup, operation, and maintenance of your KATO 3102-2 Ge4/4-II Glacier Express N Gauge Locomotive. Please read this manual thoroughly before operating the model to ensure optimal performance and longevity. Retain this manual for future reference.

2. Vöru lokiðview

The KATO 3102-2 Ge4/4-II Glacier Express is a highly detailed N-gauge model locomotive, replicating the iconic Swiss railway engine. This model is designed for enthusiasts and collectors, offering realistic operation on N-gauge layouts.

Mynd 2.1: Framan view of the KATO Ge4/4-II Glacier Express locomotive on N-gauge tracks, showcasing its detailed design and pantographs.

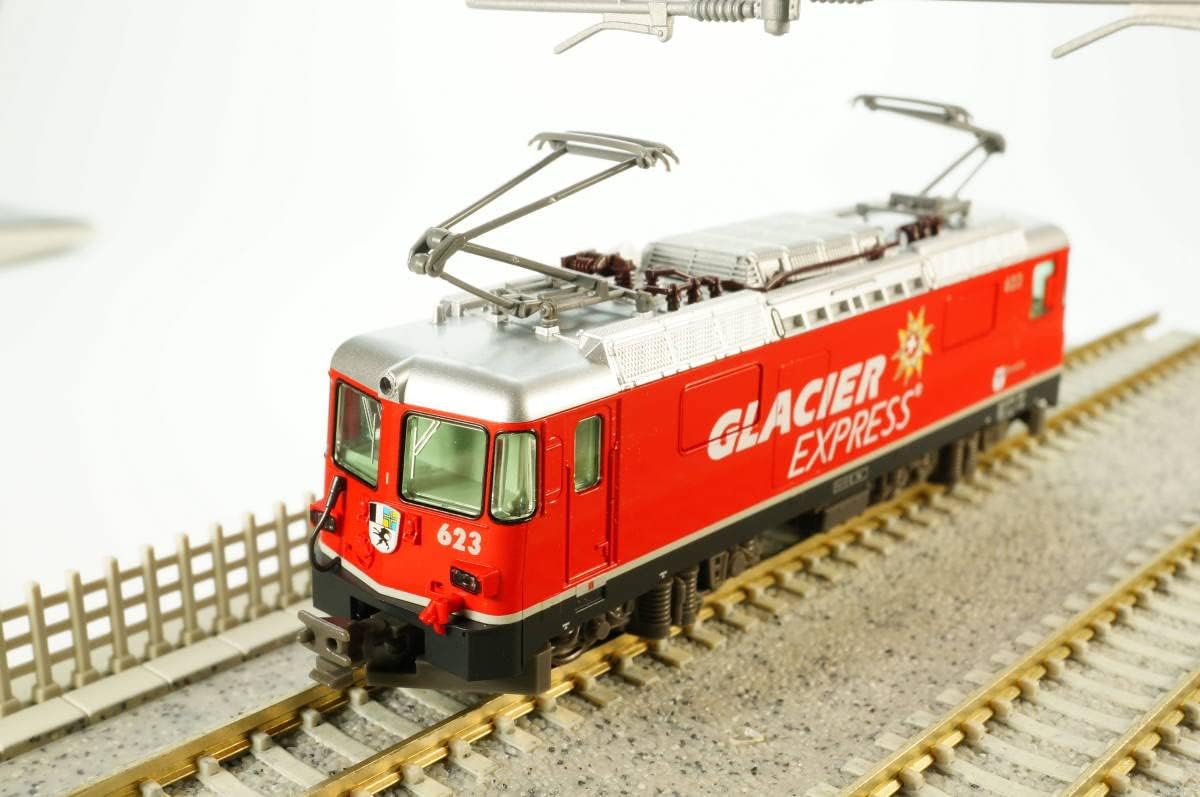

Mynd 2.2: Hlið view of the KATO Ge4/4-II Glacier Express locomotive on N-gauge tracks, highlighting the 'GLACIER EXPRESS' branding and intricate body details.

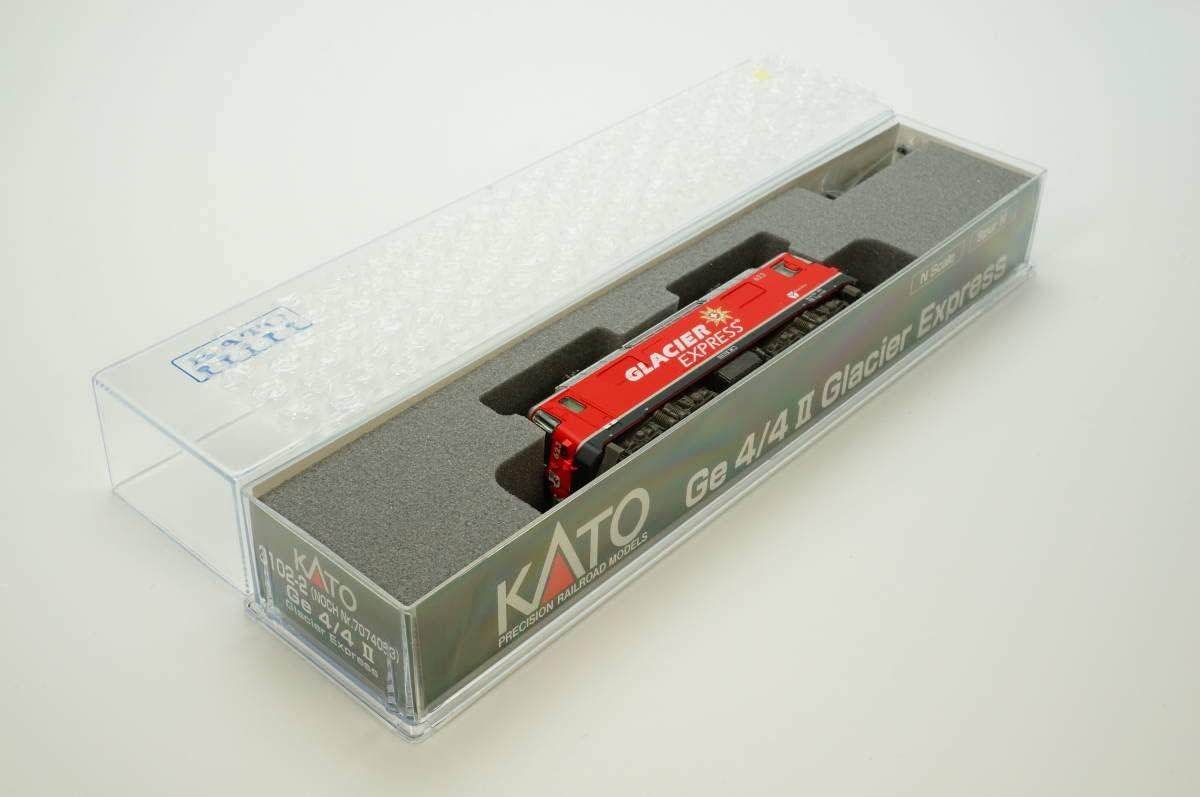

Figure 2.3: The KATO Ge4/4-II Glacier Express locomotive securely packaged in its clear plastic case, indicating careful storage and presentation.

3. Uppsetning

1. Unbox: Carefully remove the locomotive from its packaging. Retain the original packaging for storage or transport.
2. Track Placement: Gently place the locomotive on clean N-gauge tracks. Ensure all wheels are properly seated on the rails.
3. Rafmagnstenging: Connect your N-gauge power pack to the track. Ensure the power pack is set to the 'OFF' position before connecting.

4. Notkunarleiðbeiningar

1. Kveikt á: Turn on your N-gauge power pack. Slowly increase the throttle to begin movement.
2. Stefnustjórnun: Use the direction switch on your power pack to change the locomotive's travel direction.
3. Hraðastýring: Adjust the throttle gradually to control the speed. Avoid sudden changes in speed to prevent derailment or damage.
4. Stöðva: Slowly decrease the throttle to bring the locomotive to a smooth stop. Turn off the power pack when not in use.

5. Viðhald

• Hjólþrif: Periodically clean the locomotive's wheels with a soft, lint-free cloth and a small amount of model train track cleaner. Dirty wheels can impair electrical contact and performance.
• Lagaþrif: Ensure your N-gauge tracks are clean and free of dust and debris for consistent operation.
• Smurning: Refer to KATO's general N-gauge locomotive maintenance guidelines for specific lubrication points and recommended lubricants. Over-lubrication can attract dust and hinder performance.
• Geymsla: When not in use, store the locomotive in its original packaging or a protective case, away from dust, direct sunlight, and extreme temperatures.

6. Bilanagreining

• Locomotive does not move:
  • Check power pack connection to track and outlet.
  • Ensure wheels are clean and making good contact with the rails.
  • Verify power pack is turned 'ON' and throttle is increased.
• Erratic movement or flickering lights:
  • Clean wheels and track thoroughly.
  • Check for loose connections in the track or power system.
• Derailment:
  • Ensure tracks are properly assembled and level.
  • Check for obstructions on the track.
  • Reduce speed, especially on curves.

7. Tæknilýsing

8. Ábyrgð og stuðningur

For warranty information, technical support, or replacement parts, please contact KATO customer service or your authorized KATO dealer. Keep your purchase receipt as proof of purchase. Contact details can typically be found on the KATO official webstaður eða innifalinn í vöruumbúðum.
