1. Vöru lokiðview
This manual provides instructions for the EBOYU RC Car Replacement Body Shell, specifically the F22-LS013 variant. This body shell is designed as a direct replacement part for F21A, F21B, and F22 series 4WD High Speed RC Cars, ensuring a precise fit and restoring the aesthetic and protective qualities of your vehicle.
Image: EBOYU RC Car equipped with the F22-LS013 replacement body shell.
Mynd: Ítarleg view of the F22-LS013 replacement body shell, highlighting its design and contours.
2. Component Identification and Parts List
The following diagrams and tables illustrate various components and replacement parts compatible with or included in the F21A, F21B, and F22 RC car series. The F22-LS013 body shell is one such component.

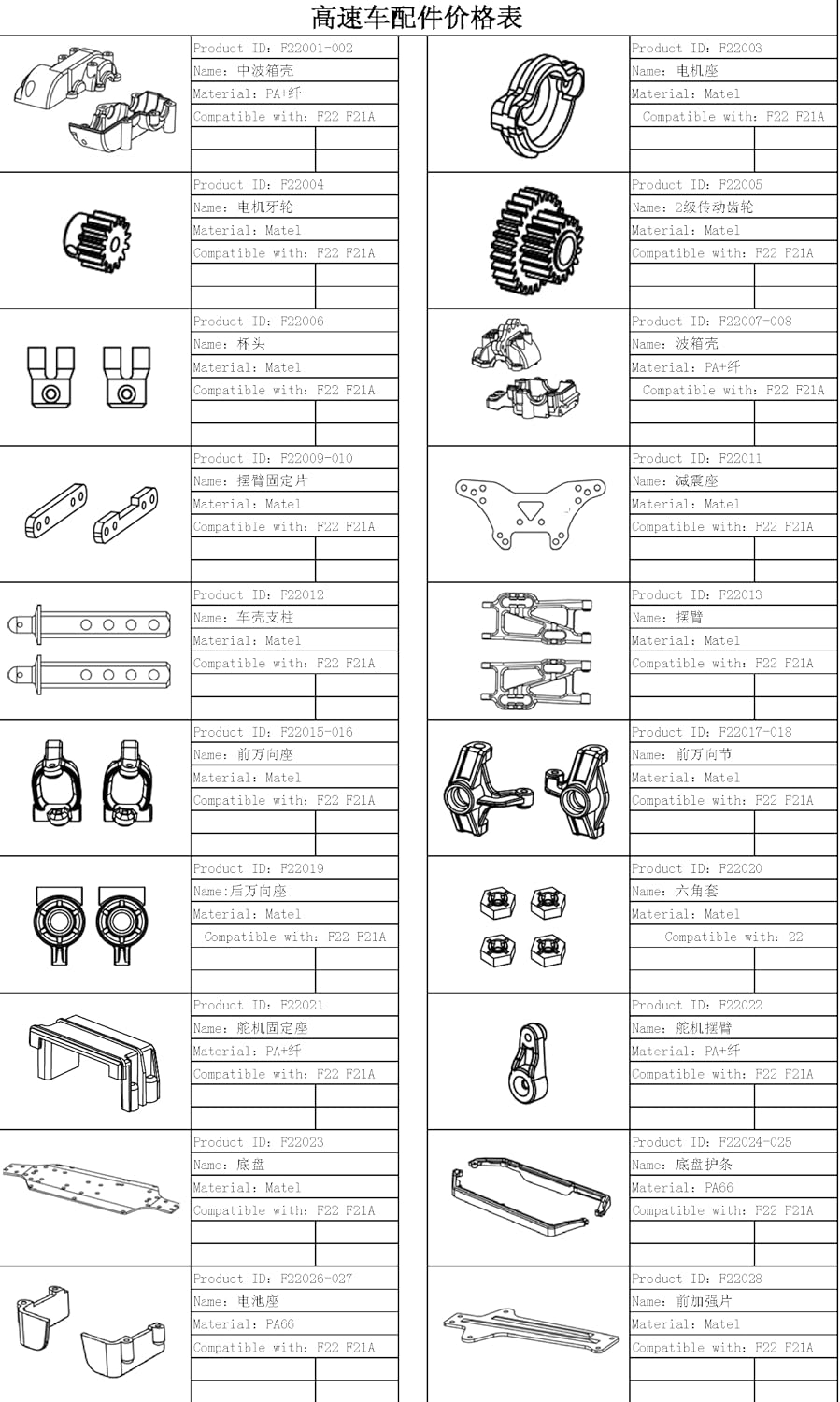

Image: Diagram showing various RC car components and their product IDs.
Image: Continuation of the RC car parts diagram, detailing more components.
Image: Further detailed diagram of RC car components, including various screws and small parts.
Image: Final section of the parts diagram, showing the F22-LS013 body shell and other components.
Key Components (Partial List):
| Auðkenni vöru | Nafn | Efni | Samhæfni |
|---|---|---|---|
| P22-LS013 | Body Shell (3.0x43 PM) | Málmur | F22, F21A |
| P22001-002 | Middle Wave Box Shell | PA+FF | F22, F21A |
| P22003 | Mótorfesting | Málmur | F22, F21A |
| P22004 | Vélbúnaður | Málmur | F22, F21A |
| P22005 | Mismunadrifsbúnaður | Málmur | F22, F21A |
| P22006 | Rokkararmur | Málmur | F22, F21A |
| P22007-008 | Gearbox Shell | PA+FF | F22, F21A |
| P22-CK01 | Front Differential / No. 1 Car Shell | Metal / PVC | F22, F21A |
| P22-BX | Gearbox Assembly / Middle Gearbox Assembly | Málmur | F22, F21A |
| M3650 | 3650 Mótor | Málmur | F22, F21A |
| P22-RX01 | Móttökutæki | Málmur | F22, F21A |
| P22-DJ01 | 5-wire Servo | Málmur | F22, F21A |
3. Uppsetning og uppsetning
This section outlines the general procedure for replacing the body shell on your compatible EBOYU RC car. Ensure the RC car is powered off and disconnected from its battery before beginning any installation or maintenance.
Verkfæri sem þarf:
- Lítill Phillips skrúfjárn
- Lítill flatur skrúfjárn (valfrjálst, til að ýta á)
- Hreint klút
Uppsetningarskref:
- Undirbúningur: Place the RC car on a clean, flat surface. Ensure all power is off and the battery is removed for safety.
- Remove Old Body Shell: Carefully locate and remove the body clips or screws that secure the existing body shell to the chassis. Gently lift the old body shell off the car.
- Skoðaðu undirvagninn: While the body shell is off, take the opportunity to inspect the chassis for any dirt, debris, or loose components. Clean as necessary.
- Position New Body Shell: Align the new F22-LS013 body shell with the mounting posts on the RC car chassis. Ensure all holes line up correctly.
- Secure Body Shell: Re-insert the body clips or screws to firmly attach the new body shell to the chassis. Ensure it is securely fastened to prevent rattling or detachment during operation.
- Lokaskoðun: Gently shake the car to ensure the body shell is stable. Verify that there are no obstructions to the wheels or suspension components.
4. Rekstraratriði
While the body shell itself does not have operational functions, its proper installation is crucial for the overall performance and protection of your RC car.
- Vörn: The body shell protects internal components from dirt, debris, and minor impacts during operation.
- Loftaflfræði: A properly fitted body shell contributes to the vehicle's aerodynamic stability, especially at high speeds.
- Visual Integrity: Maintains the intended appearance of your RC car.
5. Viðhald
Regular maintenance of your body shell will extend its lifespan and keep your RC car looking its best.
- Þrif: After each use, especially if driven in dirty or dusty conditions, wipe down the body shell with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by rinsing and thorough drying. Avoid harsh chemicals or abrasive cleaners.
- Skoðun: Periodically inspect the body shell for cracks, dents, or loose mounting points. Early detection of damage can prevent further issues.
- Geymsla: When not in use, store the RC car in a clean, dry place away from direct sunlight and extreme temperatures to prevent material degradation.
6. Bilanagreining
Common issues related to the body shell and their solutions:
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Body shell rattles during operation. | Loose mounting clips/screws. | Ensure all body clips or screws are securely fastened. |
| Body shell does not fit correctly. | Incorrect model/variant, misalignment during installation. | Verify the body shell is the correct part for your RC car model (F21A, F21B, F22). Re-align and re-install carefully. |
| Visible cracks or damage to the shell. | Impact during use, material fatigue. | Depending on severity, repair with appropriate plastic adhesive or replace the body shell. |
7. Tæknilýsing
- Vöruheiti: EBOYU RC Car Replacement Body Shell
- Model/Variant: F22-LS013
- Compatible RC Car Models: F21A, F21B, F22 4WD High Speed RC Cars
- Efni: Málmur
- Litur: F22-LS013
- Hlutanúmer: MLK-9ABBF03F7A5DF2072FD0CCC08548542D
- ASIN: B0DBQ1LSV6
8. Upplýsingar um ábyrgð
Specific warranty details for this product are provided by the seller, Malockos. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage, terms, and conditions.
9. Þjónustudeild
For any questions, technical assistance, or concerns regarding the EBOYU RC Car Replacement Body Shell, please contact the seller, Malockos, through the platform where the purchase was made. They will be able to provide the most accurate and timely support.
