1. Vöru lokiðview
The BoxWave PD miniSync 240W Retractable USB Type-C Cable is designed for efficient charging and data transfer. Its innovative retractable design helps keep the cable organized and tangle-free, making it ideal for portability. This cable supports up to 240 Watts of Power Delivery and high-speed data transfers.

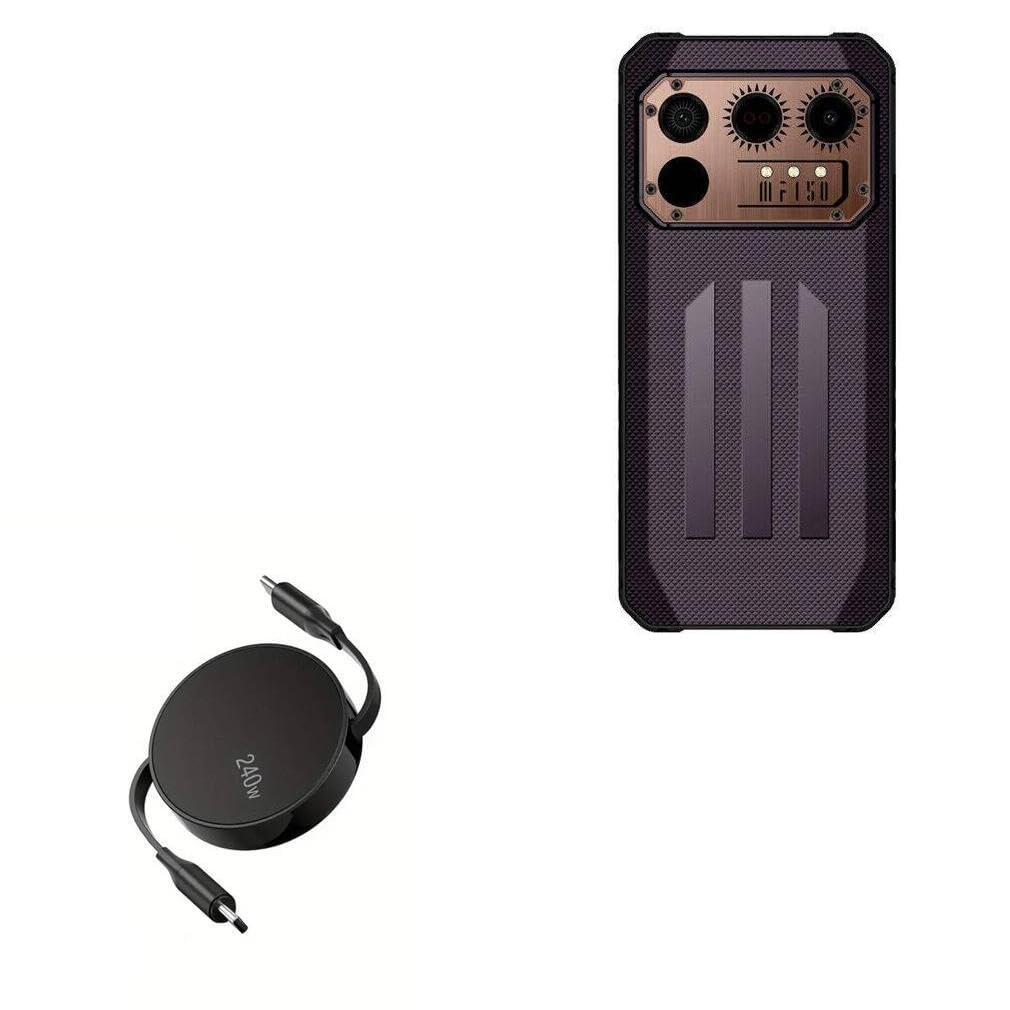

Image 1.1: The BoxWave PD miniSync 240W Retractable USB Type-C Cable in its compact, retracted state, showcasing its sleek Jet Black design and 240W power rating.
Image 1.2: A visual comparison highlighting the tangle-free design of the PD miniSync cable when retracted, contrasting it with a bundle of tangled conventional cables.
2. Uppsetning og fyrsta notkun
The PD miniSync cable features a retractable mechanism for easy storage and length adjustment.
2.1 Að lengja snúruna
- Grasp both USB Type-C connectors firmly.
- Gently pull both ends simultaneously away from the central housing.
- The cable will extend and lock into one of several pre-set lengths. Stop pulling when you reach your desired length.
Image 2.1: Two hands demonstrating how to gently pull both ends of the PD miniSync cable to extend it from its central housing.
2.2 Að draga snúruna til baka
- To retract the cable, gently pull both ends slightly further than the last locked position.
- Release the tension, and the cable will automatically retract into the central housing.
Athugið: Avoid pulling only one end, as this can damage the retraction mechanism. Always pull both ends evenly.
3. Notkunarleiðbeiningar
3.1 Hleðsla tækisins
- Extend the PD miniSync cable to your desired length.
- Connect one USB Type-C end to a compatible power adapter or power source (e.g., wall charger, power bank, laptop). Ensure the power source supports Power Delivery (PD) for optimal charging speeds.
- Connect the other USB Type-C end to your device's charging port.
- Your device should begin charging. The PD miniSync supports up to 240W, allowing for rapid charging with compatible devices and power sources.
Image 3.1: The PD miniSync cable connected to a laptop, demonstrating its use for Power Delivery charging.
3.2 Gagnaflutningur
The PD miniSync cable also supports high-speed data transfer.
- Extend the PD miniSync cable to your desired length.
- Connect one USB Type-C end to your computer or host device.
- Connect the other USB Type-C end to your peripheral device (e.g., smartphone, tablet, external hard drive).
- Your devices should recognize each other, allowing for data synchronization and file transfers at speeds up to 5Gbps.
Mynd 3.2: Nærmynd view of the USB-C connector, illustrating its capability for swift data syncing at speeds up to 10 Gbps (Note: Product specifications indicate 5Gbps).
3.3 Stillanlegar lengdir
The cable offers multiple pre-set lengths for convenience:
- 5 tommur (12 cm)
- 20 tommur (50 cm)
- 32 tommur (80 cm)
- 42 tommur (105 cm)
- 52 tommur (132 cm)
- 58 tommur (147 cm)
Image 3.3: A diagram illustrating the various adjustable lengths of the PD miniSync cable, ranging from 5 inches to 58 inches.
4. Viðhald og umönnun
Proper care will extend the life of your BoxWave PD miniSync cable.
- Þrif: Notið mjúkan, þurran klút til að þurrka snúruna og tengin. Forðist að nota sterk efni eða slípiefni.
- Geymsla: Always retract the cable fully when not in use to prevent tangling and protect the connectors. Store in a cool, dry place.
- Meðhöndlun: Avoid excessive force when extending or retracting the cable. Do not bend the cable sharply at the connectors or near the housing.
- Umhverfisskilyrði: Haldið snúrunni frá miklum hita, beinu sólarljósi og raka.
5. Bilanagreining
If you encounter issues with your PD miniSync cable, refer to the following common solutions:
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Tæki hleðst ekki | Loose connection, incompatible power source, faulty device port | Ensure both ends are securely connected. Try a different power adapter or device. Clean device's charging port. |
| Hægur hleðsluhraði | Power source does not support PD, device limitation, background apps | Use a power adapter that supports USB Power Delivery (PD) and matches the cable's 240W capability. Close unnecessary applications on your device. |
| Cable not retracting/extending smoothly | Uneven pulling, internal mechanism obstruction | Always pull both ends simultaneously and evenly. Avoid forcing the mechanism. If stuck, gently try to extend and retract again. |
| Vandamál með gagnaflutning | Loose connection, driver issues, incompatible device | Verify secure connections. Ensure your computer has the necessary drivers for the connected device. Test with another device or port. |
6. Tæknilýsing
- Gerð: PD miniSync (240W)
- Vörumerki: BoxWave
- Litur: Jet Black
- Gerð tengis: USB Type-C til USB Type-C
- Kraftafhending: Allt að 240W
- Gagnaflutningshraði: Up to 5Gbps (USB 3.1 Standard)
- Inndregin lengd: Um það bil 3 tommur
- Lengd lengd: Up to 58 inches (approx. 4.8 feet / 1.47 meters)
- Efni: Durable high-quality polycarbonate, heavy-duty ribbon-style cable
- Þyngd hlutar: 1.5 aura
7. Ábyrgð og stuðningur
For warranty information or technical support, please contact BoxWave Corporation directly. Refer to the product packaging or the official BoxWave websíðuna fyrir nýjustu upplýsingar um tengiliði og ábyrgðarskilmála.
Framleiðandi: BoxWave
