1. Inngangur
Þakka þér fyrir kaupinasing the Alpicool P8 8L Portable Refrigerator. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and keep it for future reference. This portable refrigerator is designed for versatile use, offering excellent cooling and freezing capabilities for both vehicle and home environments, making it ideal for outdoor activities, travel, and emergency situations.
2. Öryggisleiðbeiningar
- Rafmagnsöryggi: Gakktu úr skugga um að aflgjafinn passi við voltage requirements (AC100V, DC12V/24V). Do not operate with damaged cords or plugs. Avoid exposing the unit to rain or moisture.
- Loftræsting: Always ensure adequate ventilation around the unit. Do not block air vents.
- Staðsetning: Setjið ísskápinn á stöðugan, sléttan flöt. Forðist beint sólarljós eða hitagjafa.
- Meðhöndlun: Ekki reyna að taka tækið í sundur eða gera við það sjálfur. Hafðu samband við hæft þjónustufólk til að fá aðstoð.
- Þrif: Aftengdu rafmagnið áður en þú þrífur. Notið mjúkan, þurran klút.amp klút. Forðist slípiefni.
3. Innihald pakka
Vinsamlegast athugið hvort allir hlutir séu í pakkanum:
- Alpicool P8 8L Portable Refrigerator
- Straumbreytir
- Rafmagns kapall
- DC Power Cable (for 12V/24V car use)
- Notendahandbók (þetta skjal)
4. Vöru lokiðview
The Alpicool P8 8L Portable Refrigerator is equipped with advanced features for optimal performance and convenience.
Helstu eiginleikar:
- Excellent Cooling Performance: Utilizes German compressor technology, achieving -20°C in just 45 minutes when unloaded.
- Breitt hitastig: Capable of both freezing and refrigeration, with a temperature range from -20°C to 20°C.
- Compact Vertical Design: Space-saving body, ideal for placement in compact car footwells or trunks.
- Útdraganlegt handfang: Equipped with a sturdy retractable handle and high-density foam rubber casters for easy portability.
- App Control: Monitor and adjust settings remotely via a dedicated smartphone app (Bluetooth 5.0).
- Orkusparandi: Features urethane foam insulation for high thermal efficiency, ensuring energy savings and maintaining cold temperatures for over 24 hours. Annual energy consumption is approximately 1 kWh.
Stærðir og rúmtak:

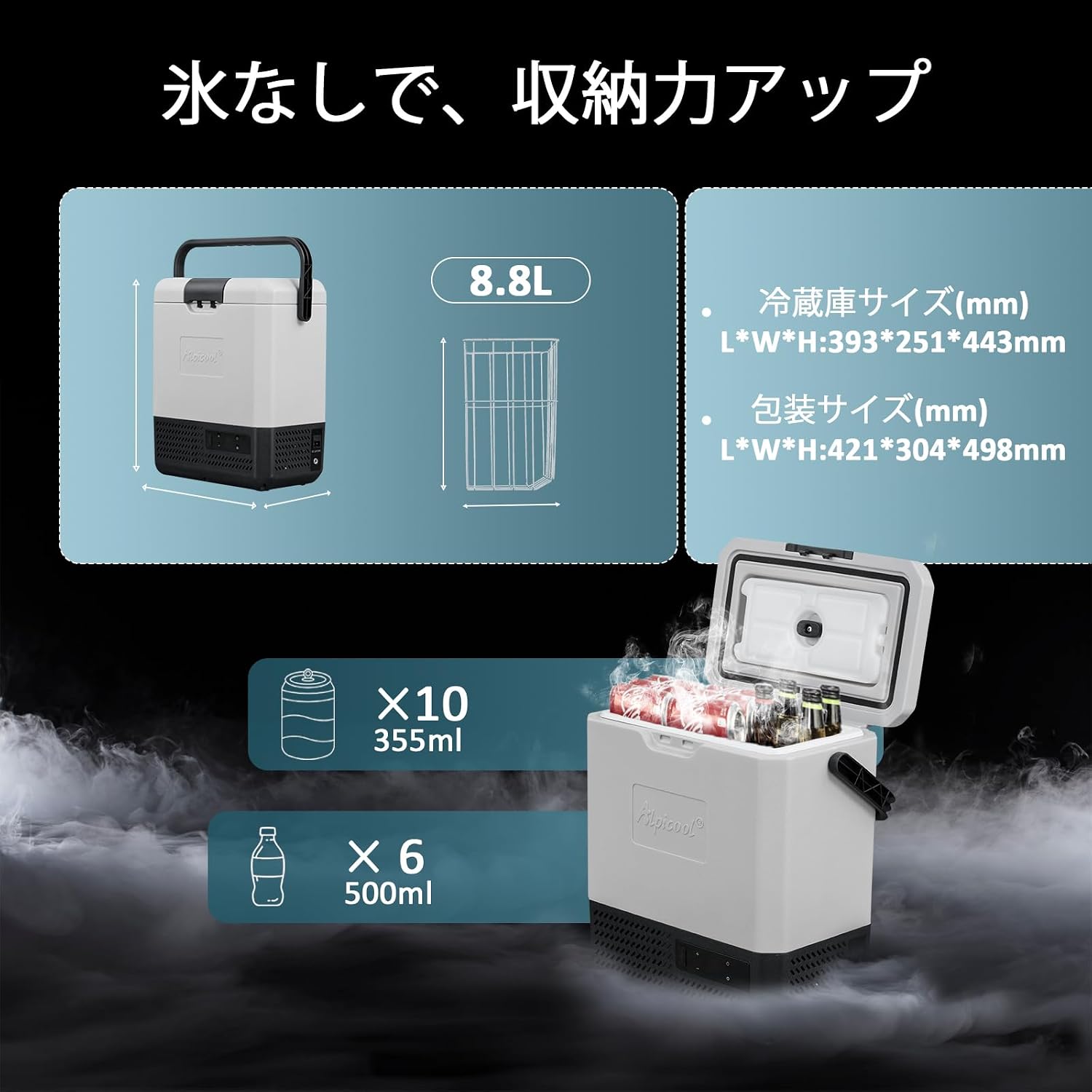

Image: The Alpicool P8 8L Portable Refrigerator, illustrating its internal capacity to hold approximately 10 x 350ml cans or 6 x 500ml PET bottles. External dimensions are L393mm x W251mm x H443mm.
Image: The Alpicool P8 8L Portable Refrigerator in an outdoor setting, highlighting its retractable handle for easy transport and its ability to operate continuously for up to 13 hours with an optional 173Wh 15600mAh internal battery.
5. Uppsetning
- Upptaka: Takið ísskápinn varlega úr umbúðunum. Geymið umbúðirnar til síðari flutnings eða geymslu.
- Upphafleg staðsetning: Place the unit on a firm, level surface. Ensure there is at least 10 cm of space around all sides for proper ventilation.
- Rafmagnstenging:
- Rafmagn (heimilisnotkun): Connect the AC adapter to the refrigerator's AC input port, then plug the AC power cable into the adapter and a standard 100V wall outlet.
- DC Power (Car Use): Tengdu jafnstraumssnúruna við jafnstraumsinntak ísskápsins og stingdu síðan hinum endanum í 12V eða 24V sígarettukveikjarann í ökutækinu.
- Fyrsta ræsing: After connecting to power, press the power button on the control panel to turn on the unit. Allow it to run for at least 30 minutes to reach the desired temperature before loading items.
6. Notkunarleiðbeiningar
Aðgerð stjórnborðs:
- Aflhnappur: Ýttu á til að kveikja eða slökkva á tækinu.
- Hitastilling: Use the '+' and '-' buttons to set the desired temperature between -20°C and 20°C.
- Hnappur fyrir ham: Cycle through different operating modes (e.g., MAX for rapid cooling, ECO for energy saving).
- Rafhlöðuverndarstilling: Adjust battery protection settings (High, Medium, Low) to prevent your vehicle's battery from draining.

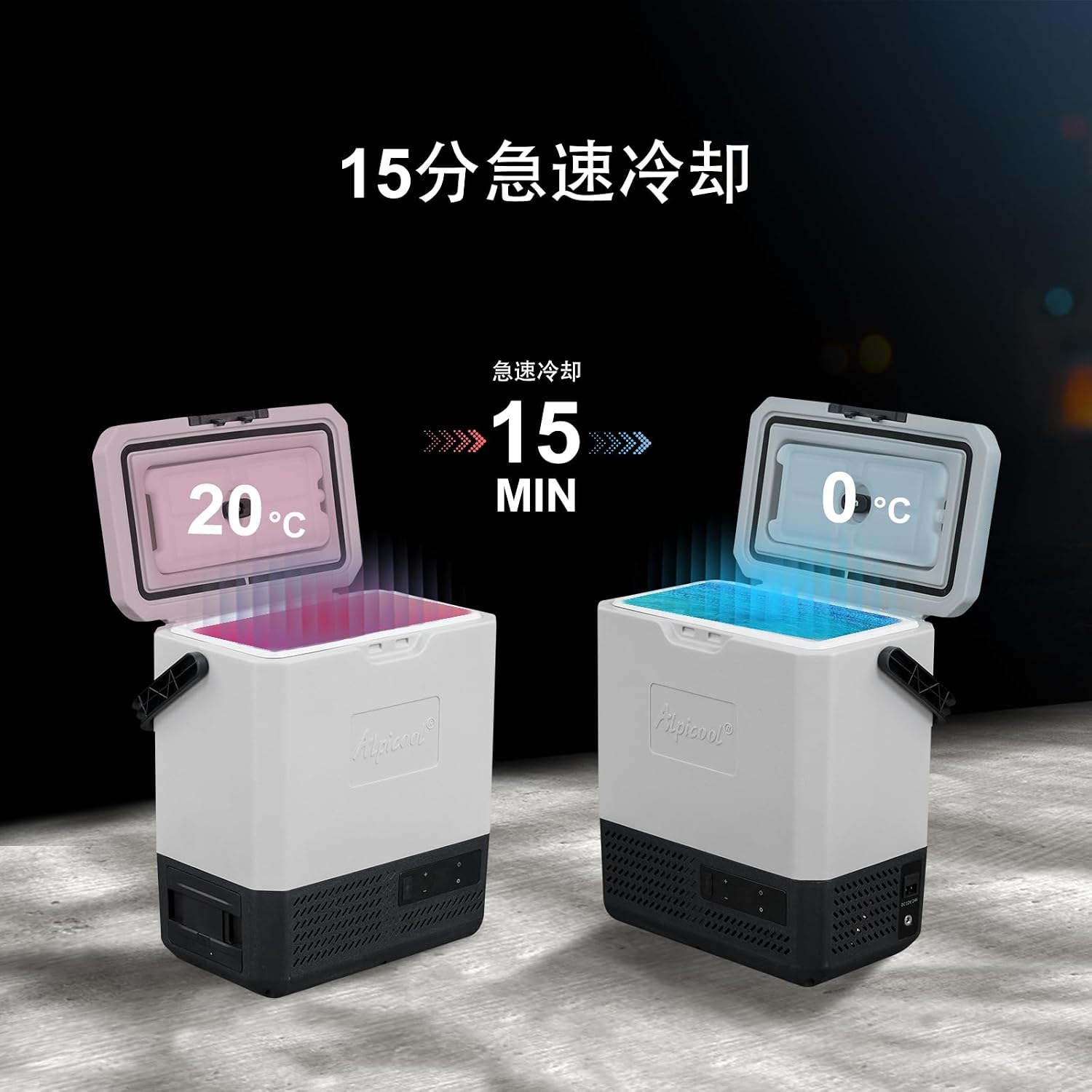

Image: Visual representation of the Alpicool P8 8L Portable Refrigerator's rapid cooling capability, showing a temperature drop from 20°C to 0°C in approximately 15 minutes.
Image: The Alpicool P8 8L Portable Refrigerator illustrating its versatile temperature range, allowing for both refrigeration (32°F to 50°F / 0°C to 10°C) and freezing (-8°F to 32°F / -20°C to 0°C).

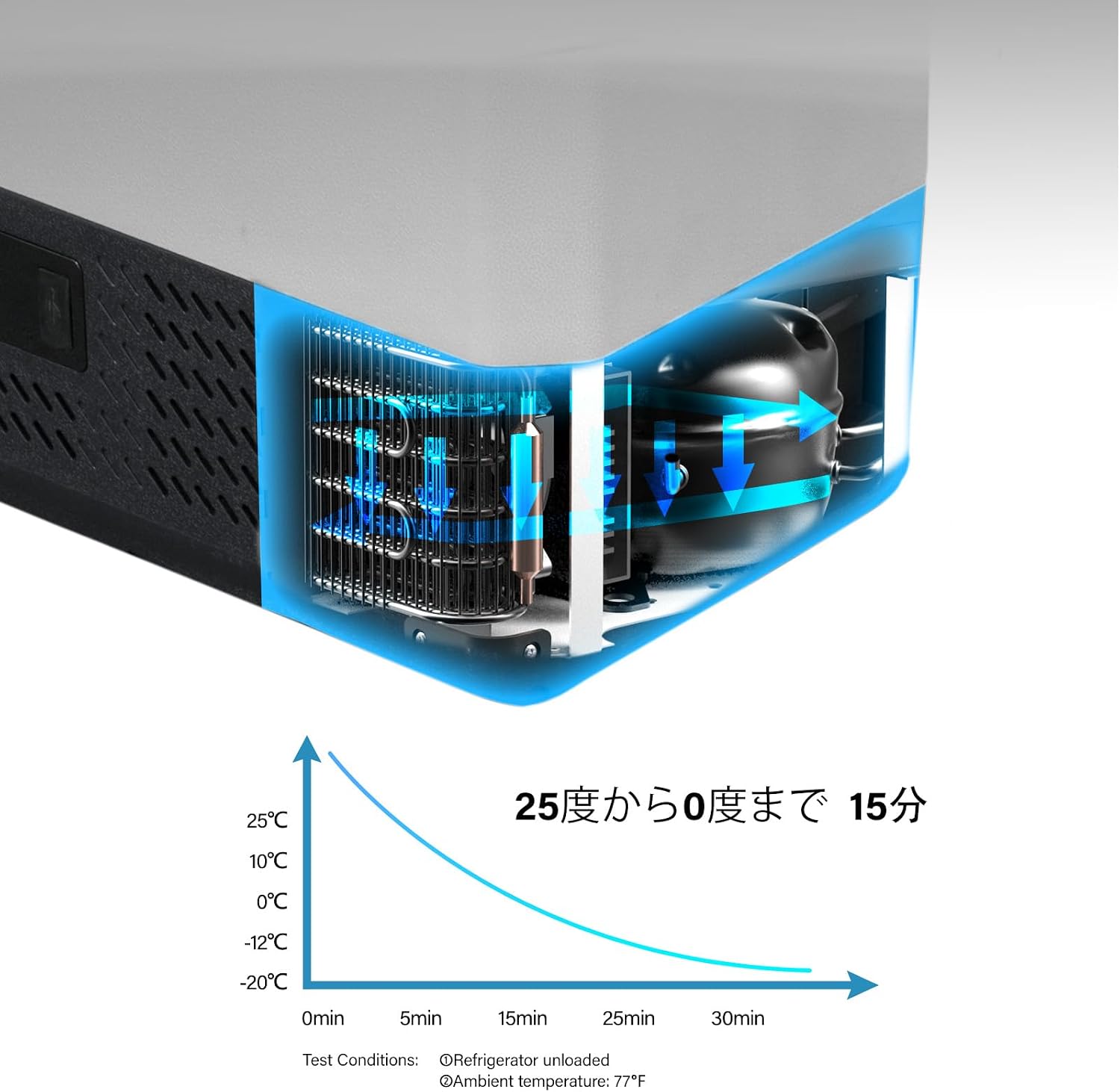

Image: A diagram detailing the internal compressor cooling mechanism and a graph showing the temperature decrease from 25°C to 0°C in 15 minutes under unloaded test conditions (ambient temperature 77°F).
Stjórnun snjallsímaforrita:
The Alpicool P8 can be controlled remotely via a dedicated smartphone app using Bluetooth 5.0, with a connection range of 3-5 meters.
- Sækja forrit: Leitaðu að "CAR FRIDGE FREEZER" in Google Play Store (Android) or App Store (iOS) and download the app.
- Virkja Bluetooth: Kveiktu á Bluetooth á snjallsímanum þínum.
- Pörun: Open the app and click "Search" to find your refrigerator. Press the setting button on the refrigerator's control panel to initiate pairing.
- Aðgerðir: Once connected, you can check the internal temperature, adjust temperature settings, switch between ECO/MAX modes, and set battery protection levels. The app also features a lock function for the refrigerator's control panel.
Image: A visual guide to connecting and controlling the Alpicool P8 8L Portable Refrigerator via its smartphone app, showing the Bluetooth pairing process and the app's temperature display and control options.
7. Viðhald
- Þrif: Regularly clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.
- Upptining: The unit features an automatic defrost system. If ice buildup occurs, turn off the unit and allow the ice to melt naturally. Wipe away any water with a clean cloth.
- Geymsla: Þegar tækið er ekki í notkun í langan tíma skal ganga úr skugga um að það sé hreint og þurrt. Geymið það á köldum, þurrum stað með lokið örlítið opið til að koma í veg fyrir lykt.
8. Bilanagreining
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Ísskápurinn kveiknar ekki á. | No power supply; power cable loose; battery protection mode activated. | Check power connection; ensure power outlet is working; adjust battery protection mode. |
| Tækið kælir ekki á skilvirkan hátt. | Temperature setting too high; vents blocked; excessive items inside; ambient temperature too high. | Lower temperature setting; clear vents; do not overfill; move to a cooler environment. |
| App cannot connect to the refrigerator. | Bluetooth off; app not open; refrigerator not in pairing mode; out of range. | Ensure Bluetooth is on; open app; press setting button on refrigerator; move closer to unit. |
| Óvenjulegur hávaði frá einingunni. | Einingin er ekki lárétt; vifta er stífluð. | Setjið á slétt yfirborð; athugið hvort einhverjar hindranir séu í kringum viftuna. |
Ef vandamálið heldur áfram eftir að þessar lausnir hafa verið prófaðar, vinsamlegast hafið samband við þjónustuver.
9. Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Fyrirmynd | P8 |
| Getu | 8L (approx. 8.8L internal volume) |
| Mál (L x B x H) | 393mm x 251mm x 443mm |
| Þyngd | Approximately 8.4 kg (18.5 lbs, estimated from feature bullets) |
| Hitastig | -20°C til 20°C |
| Málkraftur | 45W |
| Árleg orkunotkun | Approx. 1 kWh |
| Voltage | AC100V (via adapter), DC12V/24V |
| Kæliaðferð | Gerð þjöppu |
| Upptímakerfi | Sjálfvirk |
| Upprunaland | Kína |
10. Ábyrgð og stuðningur
Ábyrgð: The Alpicool P8 8L Portable Refrigerator comes with a 24 mánaða ábyrgð á vörunni frá kaupdegi. Þessi ábyrgð nær yfir framleiðslugalla og bilanir við eðlilega notkun.
Stuðningur: For any questions, issues, or warranty claims, please contact Alpicool customer support. When contacting support, please provide your order number for prompt assistance. Our team is dedicated to providing quick and effective solutions.
For further assistance, please refer to the contact information provided with your purchase or visit the official Alpicool websíða.
