Hon&Guan 8-Inch Inline Duct Fan with Damper notendahandbók

1. Inngangur

Thank you for choosing the Hon&Guan 8-inch Inline Duct Fan with Damper. This manual provides essential information for the safe and efficient operation of your new ventilation system. Please read these instructions thoroughly before installation and use, and retain them for future reference.

This inline duct fan is designed for various ventilation applications, including grow tents, bathrooms, kitchens, hydroponics, and general HVAC systems, ensuring optimal airflow and air quality.

2. Öryggisleiðbeiningar

VIÐVÖRUN: Ef þessum öryggisleiðbeiningum er ekki fylgt getur það valdið raflosti, eldsvoða eða alvarlegum meiðslum.

• Aftengdu alltaf rafmagnið áður en þú þjónustar eða þrífur tækið.
• Gakktu úr skugga um að allar rafmagnstengingar séu í samræmi við gildandi reglugerðir og reglugerðir á hverjum stað.
• Ekki nota viftuna með skemmda snúru eða kló.
• Avoid installing the fan in areas with excessive moisture or direct water exposure unless specifically rated for such conditions. The junction box has an IP44 protection class.
• Haldið fingrum og aðskotahlutum frá viftublöðunum meðan á notkun stendur.
• Þetta tæki er ekki ætlað til notkunar af einstaklingum (þar á meðal börnum) með skerta líkamlega, skynræna eða andlega getu, eða skort á reynslu og þekkingu, nema þeir hafi fengið eftirlit eða leiðbeiningar um notkun tækisins af einstaklingi sem ber ábyrgð á öryggi þeirra. .
• Do not use this fan with any solid-state speed control device unless specifically designed for this purpose.
• The fan is suitable for air temperatures from -4°F to 140°F (-20°C to 60°C).

3. Vörueiginleikar

• Enhanced DampHönnun: Features two inwardly recessed ribs, 0.6mm thickness, and 3 springs for increased robustness and reduced deformation.
• Varanlegur smíði: 8-inch backdraft damper and flap leaves made of galvanized steel, aluminum axis, and carbon steel springs, capable of withstanding temperatures up to 140°F.
• Powerful & Quiet Operation: Mixed flow design with an EC motor ensures quiet and energy-efficient performance.
• Orkunýtni: EC motor can save up to 50% on energy costs compared to traditional motors.
• Breytileg hraðastýring: Includes a speed controller for precise optimization of fan speed and energy consumption.
• Hágæða efni: Booster duct fan with durable plastic housing, ideal for long duct runs.
• IP44 vernd: Junction box with built-in sealing ring for protection against splashing water.

4. Tæknilýsing

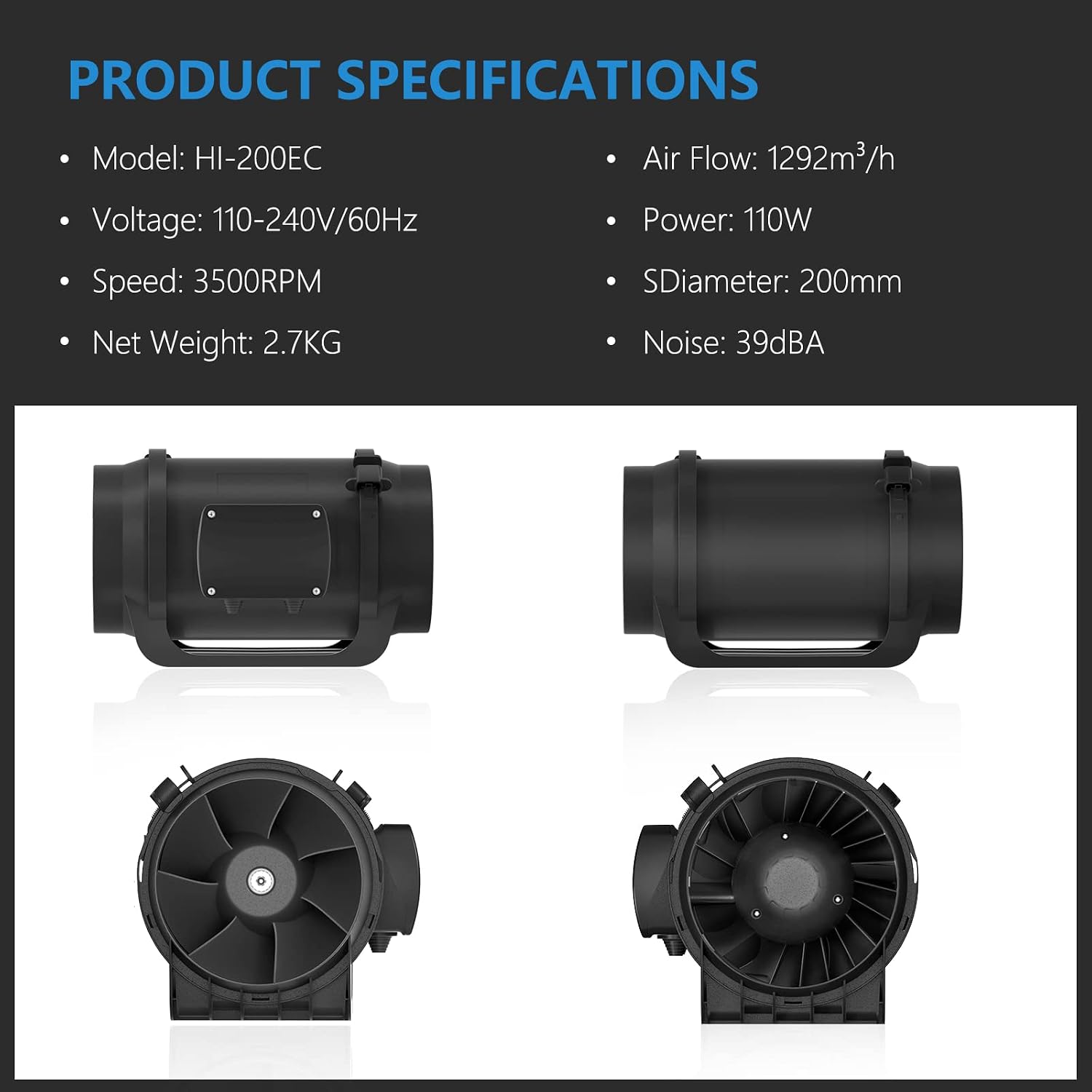

Image: Detailed product specifications including model number, voltage, speed, net weight, airflow, power, diameter, and noise level.

5. Uppsetning og uppsetning

Proper installation is crucial for the performance and longevity of your inline duct fan. Follow these steps carefully.

5.1 Upptaka og skoðun

• Fjarlægðu alla íhluti varlega úr umbúðunum.
• Inspect the fan and damper for any signs of shipping damage. Do not install if damaged.
• Gakktu úr skugga um að allir skráðir íhlutir séu til staðar.

5.2 Damper Uppsetning

Mynd: Nærmynd view of the spring-loaded backdraft damper, highlighting its construction and mechanism.

Image: Illustration detailing the upgraded design of the damper, showing 0.6mm thickness, inwardly recessed ribs, and baffle edge optimization.

• The 8-inch duct damper has an opening of 200 mm and a length of 88 mm.
• Við uppsetningu damper horizontally, ensure the springs are positioned horizontally. This allows for optimal opening and closing of the damper flaps.
• Tengdu damper to your ducting system using appropriate clamps or fasteners (not included). Ensure a tight seal to prevent air leakage.

5.3 Fan Placement and Ducting Connection

Mynd: Dæmiample installation showing the inline duct fan connected to a flexible duct, illustrating its use in an exhaust system, possibly for a washing machine or similar appliance.

Image: The inline duct fan integrated into a grow tent setup, demonstrating its role in optimizing ventilation for plants by managing hot and humid conditions.

• Position the fan in a location that allows for efficient airflow through your ducting system. The fan can be suspended using appropriate hangers (not included).
• Connect the fan to your 8-inch ductwork. Ensure all connections are sealed tightly to prevent air leaks and maximize efficiency.
• The fan is designed for long duct runs and can be used in various applications such as grow tents, bathrooms, kitchens, and HVAC systems.

5.4 Rafmagnstenging

• Gangið úr skugga um að rafmagnið sé aftengt áður en rafmagnstengingar eru gerðar.
• Connect the fan to a compatible power source (110-240V/60Hz) according to local electrical codes.
• The junction box has an IP44 protection class, offering protection against splashing water. Ensure the wiring within the junction box is secure and properly sealed.

6. Notkunarleiðbeiningar

The Hon&Guan inline duct fan is equipped with a variable speed controller for precise airflow management.

6.1 Kveikt/slökkt

• Once installation is complete and all connections are secure, connect the fan to the main power supply.
• Use the integrated speed controller to turn the fan on or off.

6.2 Stilling viftuhraða

Image: The external speed controller with a rotary knob, indicating adjustable settings from 0 to 100, and a switch for power.

• The fan comes with a variable speed controller. Rotate the knob to adjust the fan speed from minimum to maximum.
• Turning the knob to the maximum position allows the fan speed to exceed 3500 RPM, providing maximum airflow.
• Adjust the speed as needed to optimize ventilation for your specific application, balancing airflow with noise levels and energy consumption.

6.3 Damper Virkni

Image: Diagram illustrating the high-effective airflow of the inline duct fan, showing air moving through the fan and highlighting features like low noise, air circulation, and easy installation.

• The integrated backdraft damper automatically opens under the pressure created by the airflow when the fan is operating.
• When the fan is turned off, the springs in the damper automatically close the flaps, preventing backdraft and unwanted air intrusion.

7. Viðhald

Reglulegt viðhald tryggir bestu mögulegu afköst og lengir líftíma viftunnar.

• Aftengdu rafmagn: Always ensure the fan is disconnected from the power supply before performing any maintenance.
• Þrif á viftublöðum: Periodically inspect the fan blades for dust and debris buildup. Use a soft brush or cloth to gently clean the blades. Avoid using harsh chemicals or abrasive materials.
• Cleaning Damper: Athugaðu damper flaps and springs for any obstructions or dirt that might prevent them from opening or closing properly. Clean as needed.
• Ducting Inspection: Inspect the ductwork for any blockages, leaks, or damage. Ensure all connections remain secure.
• Mótor: The EC motor is designed for long-term, maintenance-free operation. No lubrication is required.

8. Bilanagreining

If you encounter issues with your Hon&Guan inline duct fan, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Hon&Guan customer support.

9. Ábyrgð og stuðningur

Hon&Guan products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, replacement parts, or warranty claims, please contact Hon&Guan customer support through the retailer where the product was purchased or visit the official Hon&Guan websíða fyrir upplýsingar um tengiliði.

When contacting support, please have your product model number (HI-200EC) and purchase date available.
