DELLA 36K BTU Dual Zone Mini Split Air Conditioner Heat Pump User Manual
Model: 1D4-TL+D1818
Vara lokiðview
The DELLA 36K BTU Dual Zone Mini Split Air Conditioner Heat Pump is an energy-efficient system designed for cooling and heating multiple rooms. This unit features two indoor air handlers (18,000 BTU each) and one outdoor condenser, providing individual temperature control for up to 2000 sq. ft. It utilizes environmentally friendly R454B refrigerant and incorporates DC Inverter technology for power savings.

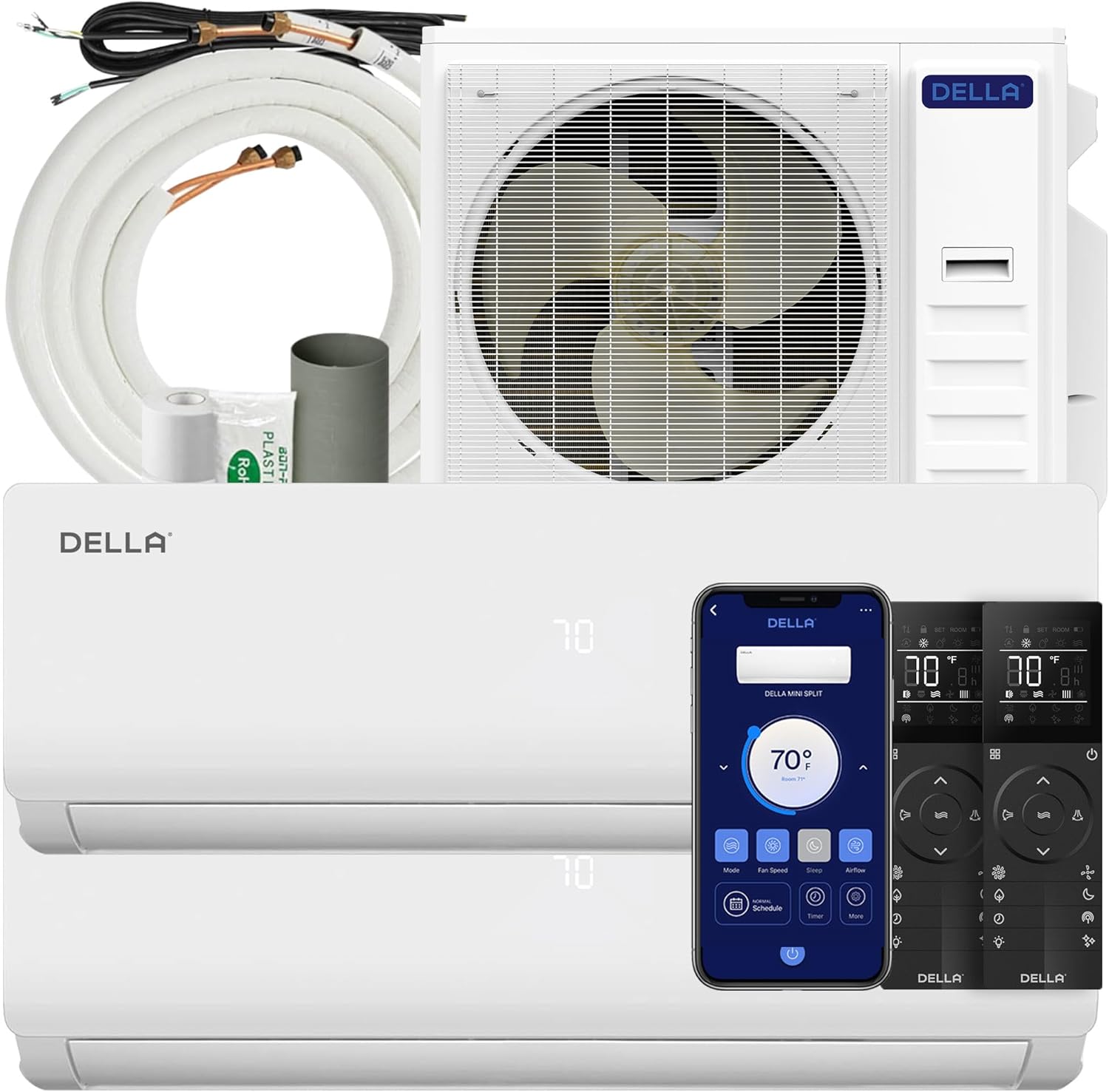

Image: The complete DELLA 36K BTU Dual Zone Mini Split system, showing the outdoor unit, two indoor units, remote controls, and installation kits.
Öryggisupplýsingar
Mikilvægar öryggisleiðbeiningar:
- Always ensure all power sources are turned off before performing any installation, maintenance, or wiring.
- Installation of this system mandates professional installation. It is not a DIY mini split AC.
- Line-set vacuuming is required during installation. Any alteration of line-set length requires adjusting freon levels.
- Refer to local electrical codes and regulations for proper wiring and grounding procedures.
- Do not attempt to repair or service the unit yourself. Contact qualified service personnel.
Þessi vara inniheldur efni sem vitað er að valda krabbameini og fæðingargöllum eða öðrum skaða á æxlunarfærum í Kaliforníuríki (viðvörun samkvæmt tillögu 65).
Íhlutir og varahlutir
The DELLA 36K BTU Dual Zone Mini Split system includes the following main components and accessories:
- Útiþéttieining
- Two Indoor Air Handler Units (18,000 BTU each)
- Remote Controls (one for each indoor unit)
- 16ft Copper Pipes (Standard size 1/4" & 3/8" outer dimension)
- Installation Kits (2 pcs)
- Drain Pipes (Length: 78.7")
- Multi-zone Air Conditioner
- Notendahandbók
Image: Detailed diagram illustrating the various components included with the DELLA Mini Split system, such as indoor unit, outdoor unit, refrigerant pipe, remote control, and installation accessories.
Uppsetning og uppsetning
Professional installation is required for this unit. The following steps provide a general overview of the wiring process. Always consult a qualified HVAC professional for installation.
Raflagnir yfirview:
- Slökktu á rafmagni: Before connecting any wires, ensure all power sources are turned off at the main breaker.
- Remove Electrical Compartment Cover: Carefully remove the cover of the electrical compartment on the outdoor unit.
- Connect Unit to Condenser: Begin by connecting the numbered wires from the indoor unit to their corresponding numbered terminals in the outdoor condenser's electrical compartment.
- Connect Grounding Wire (Green to Green): Connect the green grounding wire to the designated green grounding terminal.
- Tengdu rafmagnssnúrur: Connect the main power cables to the condenser. The black wire typically connects to the 'N' (Neutral) terminal and the red wire to the 'L' (Live) terminal.
- Öruggar tengingar: Ensure all wire connections are secure and tightened properly.
- Skiptu um hlíf: Carefully replace the electrical compartment cover.
Video: An instructional video demonstrating how to correctly wire your DELLA mini split unit. This video provides general guidance on electrical connections for the outdoor condenser. Always ensure power is off before handling electrical components.
Athugið: This video is for general guidance. Installation should be carried out by qualified professionals. DELLA is not responsible for any accident, damages, or issues that may arise from attempting to install an air conditioner using these videos.
Notkunarleiðbeiningar
The DELLA Mini Split system offers various modes and features for optimal comfort and energy efficiency.
Aðgerðir fjarstýringar:
Image: The remote control for the DELLA Mini Split system, highlighting various buttons and their functions for easy operation.
- Kveikt/slökkt: Kveikir eða slekkur á tækinu.
- Stillingarval: Cycle through modes: Cool, Heat, Dry (Dehumidify), Fan Only, Auto Mode.
- Hitastilling: Increase or decrease the set temperature (60-90 degrees Fahrenheit range).
- Viftuhraði: Adjust fan speed (multiple speeds available).
- Sveifluaðgerð: Control vertical and horizontal airflow direction (4D airflow).
- Tímamælir: Set a 24-hour timer for automatic on/off.
- Svefnhamur: Stillir hitastigið sjálfkrafa fyrir þægilegan svefn og orkusparnað.
- ECO Mode: Energy-saving operation mode.
- Turbo virka: Veitir hraða kælingu eða upphitun.
- Ég finn fyrir ham: Stillir hitastig út frá skynjara fjarstýringarinnar fyrir staðbundna þægindi.
Snjallstýring (Wi-Fi og app):
The unit is Wi-Fi enabled and can be controlled via the free Della+ app. This allows for remote control, scheduling, and integration with smart home systems like Alexa and Google Assistant.
Image: A smartphone displaying the DELLA+ app interface, showing temperature control and various operational settings.
- Fjarstýring: Control your unit from anywhere using the app.
- Áætlun: Set custom schedules and timers for operation.
- Smart Geo Location: Automatically adjusts AC based on your location (Della+ exclusive feature).
- Raddstýring: Samhæft við Alexa og Google Assistant fyrir handfrjálsa notkun.
Viðhald
Regular maintenance ensures optimal performance and longevity of your DELLA Mini Split system.
- Síuhreinsun: Clean the air filters in the indoor units regularly (e.g., every 2-4 weeks depending on usage). Refer to the indoor unit manual for specific instructions on filter removal and cleaning.
- Þrif á útieiningu: Haldið útikælieiningunni lausri við rusl, lauf og aðrar hindranir til að tryggja rétta loftflæði.
- Þrif á spólu: Periodically inspect and clean the indoor and outdoor coils. This may require professional assistance.
- Afrennsliseftirlit: Gakktu úr skugga um að frárennslislögn þéttivatnsins sé hrein og laus við stíflur til að koma í veg fyrir vatnsleka.
Athugið: This model does not support the Self-Cleaning Function, even if the option appears on the display.
Úrræðaleit
If you encounter issues with your DELLA Mini Split system, refer to the following common troubleshooting tips. For complex problems, contact professional service.
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Eining kviknar ekki. | Enginn rafmagn, rofi slokknaður, rafhlaða fjarstýringarinnar lág. | Athugaðu aflgjafann, endurstilltu rofann, skiptu um rafhlöður í fjarstýringunni. |
| Ónóg kæling/hitun. | Dirty air filters, blocked outdoor unit, low refrigerant, incorrect mode setting. | Clean filters, clear obstructions, check refrigerant levels (professional), verify mode. |
| Óvenjulegur hávaði frá tækinu. | Lausir hlutar, stífla í viftu, hávaði frá kælimiðilsflæði. | Inspect for loose parts or obstructions. Some noises (e.g., gurgling) are normal. |
| Vatn lekur úr innieiningunni. | Stífluð frárennslislögn, óviðeigandi uppsetning. | Clear drain line. If problem persists, contact professional installer. |
| Vandamál með Wi-Fi tengingu. | Vandamál með beini, rangar Wi-Fi stillingar, vandamál með forrit. | Restart router, reconfigure Wi-Fi settings in app, ensure app is updated. |
Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Gerðarnúmer | 1D4-TL+D1818 |
| Kæli/hitunargeta | 36,000 BTU/h (2 x 18,000 BTU indoor units) |
| SEER2 einkunn | 19 SEER2 |
| Voltage | 208-230V |
| Hvaðtage | 2930 vött |
| Umfangssvæði | Up to 2000 Sq. Ft (each indoor unit recommended for 1000 Sq. Ft) |
| Kælivökvategund | R454B (Pre-charged) |
| Rekstrarhitasvið | Heating down to -13°F (-25°C) |
| Hávaðastig | 49 dBa (Ultra silent) |
| Dimensions (Outdoor Unit) | 39.75 x 8.69 x 12.38 tommur |
| Þyngd (hlutur) | 27.6 pund |
| Sérstakir eiginleikar | Remote Control, WiFi Enabled, Fast Cooling, Dehumidifier, 4D Air Flow, I Feel Mode, 24 Hour Timer, Sleep Mode, Eco Energy Saving Mode, Multiple Fan Speeds, Turbo Function. |
Image: The outdoor condenser unit of the DELLA Mini Split system, showcasing nett hönnun þess.
Ábyrgð og stuðningur
DELLA offers comprehensive support for its products.
- Lifetime Coverage: Unmatched warranty for peace of mind.
- Þjónustudeild: 24/7 live chat support available. Phone support is available from 6 AM to 4 PM PST.
- Notendahandbók: Ítarleg notendahandbók í PDF-skjali er til niðurhals hér.
Image: Information regarding DELLA's customer support, including phone and live chat availability.
