TaskStar PS043 Cordless Electric Pruning Shears User Manual

1. Öryggisleiðbeiningar

Lesið allar öryggisviðvaranir og leiðbeiningar áður en þessi vara er notuð. Ef ekki er farið eftir viðvörunum og leiðbeiningunum getur það valdið raflosti, eldsvoða og/eða alvarlegum meiðslum.

Almennt öryggi

• Always wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and sturdy footwear.
• Keep children and bystanders away while operating the pruning shears.
• Ekki nota rafmagnsverkfæri í sprengifimu lofti, svo sem í návist eldfimra vökva, lofttegunda eða ryks.
• Forðist óviljandi ræsingu. Gangið úr skugga um að rofinn sé í slökktri stöðu áður en tækið er tengt við rafhlöðuna, tekið upp eða borið.

Rafmagnsöryggi

• Ekki útsetja rafmagnsverkfæri fyrir rigningu eða blautum aðstæðum. Vatn sem kemst inn í rafmagnsverkfæri eykur hættuna á raflosti.
• Use only with specified battery packs and chargers.
• Do not modify the battery pack or charger.

Pruning Shears Specific Safety

• Keep hands away from the cutting blades.
• Ensure the safety lock is engaged when the tool is not in use or during maintenance.
• Do not attempt to cut branches larger than the specified maximum cutting diameter (40mm / 1.6 inches).
• When using the telescopic pole, ensure it is securely assembled and the strap is properly adjusted for balance.

2. Íhlutir innifalinn

Your TaskStar PS043 package includes the following items:

• 1 x TaskStar Electric Pruning Shears
• 1 x Telescopic Pole (extendable from 1.5m to 2.7m)
• 2 x 4.0 Ah litíum-jón rafhlöður
• 1 x hraðhleðslutæki
• 1 x Replacement SK5 Blade
• 1 x axlaról
• 1 x Sharpening Stone
• 2 x Hex Screwdrivers
• 1 x skrúfjárn
• 1 x hex skiptilykill
• 1 x par hanskar
• 1 x Notendahandbók

Image: All components of the TaskStar PS043 electric pruning shears set, including the main shears, telescopic pole, two batteries, charger, replacement blade, shoulder strap, sharpening stone, and tools, laid out on green grass in front of a white fence and house.

3. Uppsetning og samsetning

3.1 Hleðsla rafgeyma

1. Connect the fast charger to a power outlet.
2. Insert a 4.0Ah battery into the charger. The indicator light on the charger will show the charging status.
3. Þegar hún er fullhlaðin skaltu fjarlægja rafhlöðuna úr hleðslutækinu.

Image: Two 4000mAh lithium-ion batteries and their charger are placed on a wooden table. In the background, a person is seen using the pruning shears with the telescopic pole to trim high branches.

3.2 Rafhlaðan fest

1. Ensure the pruning shears are switched off and the safety lock is engaged.
2. Slide a charged battery into the battery slot at the base of the pruning shears until it clicks into place.

3.3 Assembling the Telescopic Pole (Optional)

1. Insert the electric pruning shears into the designated slot on the telescopic pole.
2. Secure the shears to the pole using the safety latch.
3. Adjust the pole length by loosening the locking mechanism, extending to the desired length (1.5m to 2.7m), and then tightening the lock.
4. Attach the shoulder strap to the pole for balanced support during extended use.

Image: A man is using the TaskStar PS043 electric pruning shears with the telescopic pole to prune high branches. A smaller inset image shows a close-up of the shears being used in handheld mode to cut a branch.

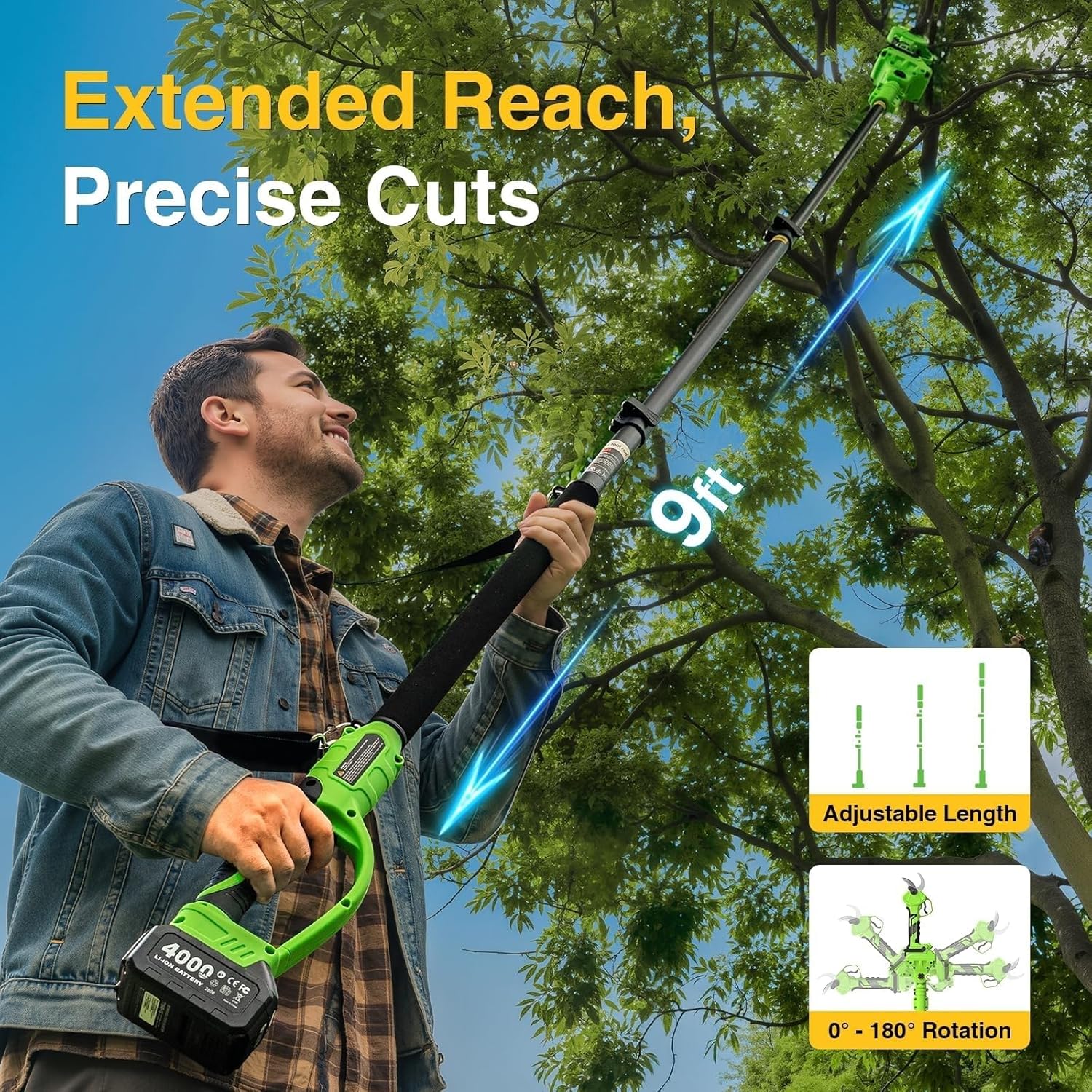

Image: A man is using the TaskStar PS043 electric pruning shears with the telescopic pole to reach high branches. The image highlights the adjustable length of the pole and the 180-degree rotating head feature for precise cuts.

Image: A person wearing overalls is using the TaskStar PS043 electric pruning shears with the telescopic pole and shoulder strap to prune high branches, demonstrating the use of the strap for support.

4. Notkunarleiðbeiningar

4.1 Kveikt/slökkt

1. To power on, press and hold the power button until the LED display illuminates.
2. Til að slökkva á tækinu skaltu halda inni rofanum aftur.

4.2 Adjusting Cutting Modes

The shears offer 4 cutting modes to suit different branch thicknesses:

• Mode 1 (15mm / 0.59"): Ideal for flowers and delicate stems.
• Mode 2 (20mm / 0.79"): Suitable for vines and small shrubs.
• Mode 3 (25mm / 0.98"): For fruit trees and medium branches.
• Mode 4 (40mm / 1.6"): For thick branches and dry wood.

Press the mode selection button to cycle through the available cutting modes. The LED display will indicate the selected mode.

Image: A hand holds the TaskStar PS043 electric pruning shears, with an overlay illustrating the four distinct cutting modes (15mm, 20mm, 25mm, 40mm) suitable for various branch thicknesses, from flowers to thick wood.

4.3 Að gera niðurskurð

1. Position the open blades around the branch to be cut.
2. Ensure the branch is within the maximum cutting capacity for the selected mode.
3. Press the trigger to close the blades and make the cut. Release the trigger to open the blades.
4. For optimal performance and blade longevity, avoid twisting the shears during a cut.

Image: A close-up shot of the TaskStar PS043 electric pruning shears in action, cleanly cutting a thick branch. The image emphasizes the maximum cutting capacity of 1.6 inches (40mm).

4.4 Using the Telescopic Pole

When using the telescopic pole, ensure the shoulder strap is properly adjusted to distribute the weight and reduce fatigue. The 180-degree rotating head allows for versatile cutting angles on high branches.

5. Viðhald

Regular maintenance ensures the longevity and optimal performance of your pruning shears.

5.1 Þrif

• Eftir hverja notkun skal hreinsa blöðin með auglýsinguamp cloth to remove sap and debris.
• Apply a light coat of oil to the blades to prevent rust.
• Ensure the battery contacts are clean and dry.

5.2 Blade Sharpening and Replacement

• Use the provided sharpening stone to keep the blades sharp. Follow the original blade angle.
• If the blade becomes dull or damaged beyond sharpening, replace it with the provided SK5 replacement blade. Refer to the diagram in the manual for replacement instructions.

5.3 Geymsla

• Store the pruning shears in a dry, secure place, out of reach of children.
• Fjarlægið rafhlöður áður en geymt er í langan tíma.

6. Bilanagreining

7. Vörulýsing

Image: A close-up of the TaskStar PS043 electric pruning shears, with an internal view of the brushless motor. Text highlights its advantages: stronger power, longer lifespan, and quieter operation.

8. Ábyrgð og stuðningur

TaskStar products are designed for durability and performance. For warranty information, technical support, or service inquiries, please contact TaskStar customer service.

Vinsamlegast geymdu sönnunina þína fyrir kaupum fyrir ábyrgðarkröfur.

For further assistance, visit the official TaskStar store on Amazon: TaskStar Store
