Henkion LT-600S Multi-function Network Cable Tester User Manual

Model: LT-600S

1. Inngangur

The Henkion LT-600S is a versatile network cable tester designed for comprehensive network diagnostics. It integrates multiple functions including UTP cable testing, cable tracing, optical power measurement (OPM), visual fault locator (VFL), Power over Ethernet (PoE) detection, RJ45 Time Domain Reflectometer (TDR) for cable length measurement, and various network tools. This manual provides detailed instructions for the safe and effective use of your device.

2. Öryggisupplýsingar

  • Lesið allar leiðbeiningar vandlega fyrir notkun.
  • Ekki reyna að taka í sundur eða breyta tækinu.
  • Notið aðeins tilgreindan straumbreyti til hleðslu.
  • Forðastu að útsetja tækið fyrir miklum hita, raka eða beinu sólarljósi.
  • Haltu tækinu í burtu frá vatni og öðrum vökva.
  • Handle optical fiber connections with care; avoid direct eye exposure to VFL light.

3. Innihald pakka

Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum þínum:

  • Main Tester Unit (Host) x1
  • Remote Receiver Unit x1
  • Type-C hleðslusnúra x1
  • RJ45 to BNC Connector x1
  • Skrúfjárn x1
  • Snúra x1
  • Tool Bag x1
  • RJ45 Cable x1
  • RJ11 Cable x1
  • BNC Alligator Clip x1
  • Packing Box x1

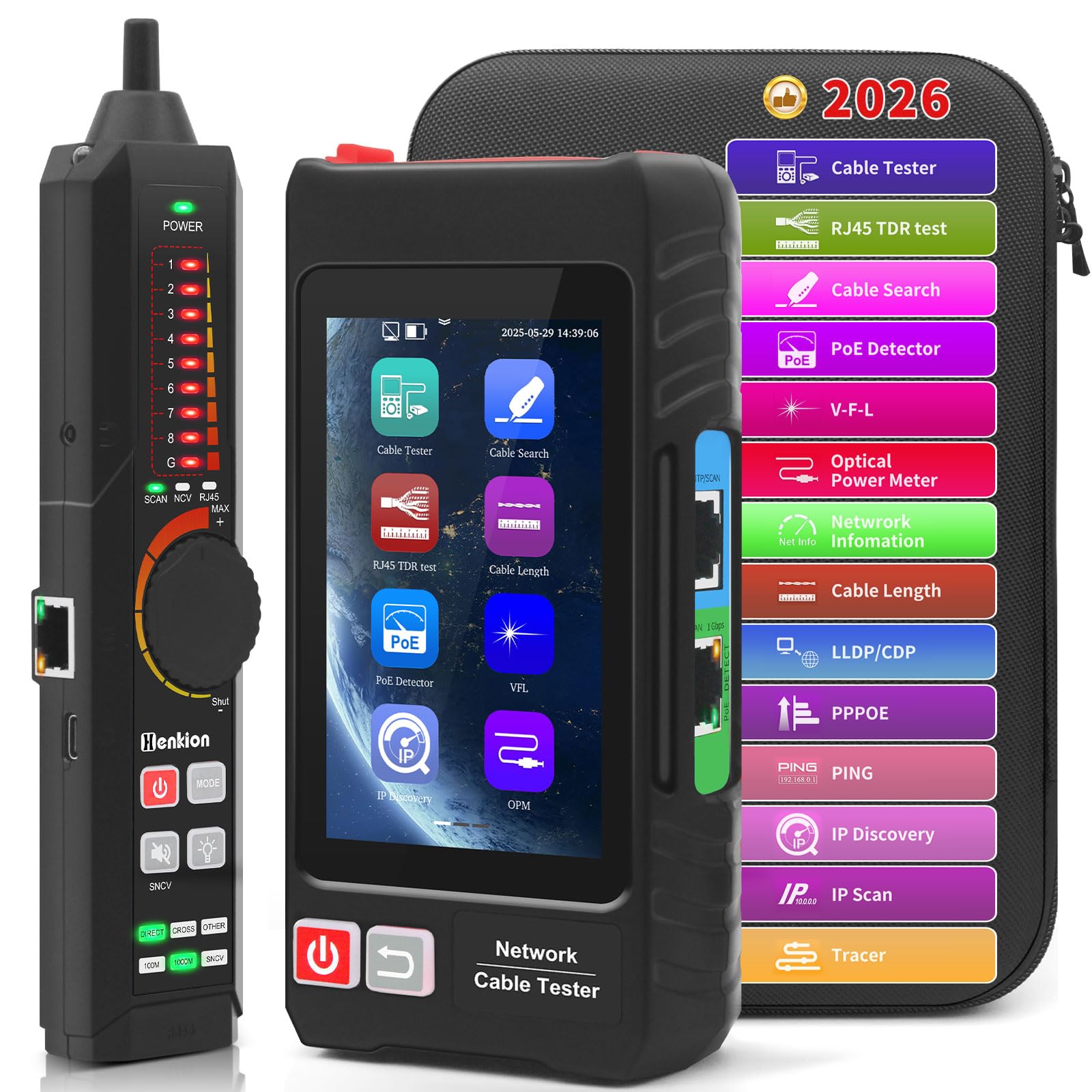

Henkion LT-600S Network Cable Tester and accessories in a carrying case
Image: Henkion LT-600S Network Cable Tester and included accessories.

4. Tæki lokiðview

The Henkion LT-600S consists of a main tester unit with a 4-inch IPS touch screen and a remote receiver unit. Key components and interfaces are detailed below:

Detailed diagram of the Henkion LT-600S Multi-function Network Cable Tester showing all ports, buttons, and screen interface.
Mynd: Ítarleg view of the LT-600S main unit and remote, highlighting ports and controls.

Main Tester Unit:

  • 4 tommu IPS snertiskjár: Displays test results and navigation menus.
  • RJ45 nettengi: For connecting network cables for various tests.
  • PD Power Tested Port: For PoE detection.
  • Optical Power Meter (OPM) Port: For optical signal power and insertion loss tests.
  • Visual Fault Locator (VFL) Port: For identifying fiber optic fault points.
  • Tegund C hleðslutengi: Til að hlaða aðaleininguna.
  • Gátt fyrir heyrnartól: For audio feedback during cable tracing.
  • Leiðsöguhnappar: Fyrir valmyndaleiðsögn og val.

Remote Receiver Unit:

  • UTP Cable Test Port: For connecting the other end of the UTP cable during testing.
  • UTP Cable Sequence Indicator: LEDs display the cable wire sequence.
  • Næmnihnappur: Adjusts the sensitivity for cable tracing.
  • Stillingarvísir: Shows the current operating mode (SCAN, NCV, MAX).
  • Cable Type Indicator: Displays detected cable type (OPEN, CROSS, OTHER).
  • Tegund C hleðslutengi: For charging the remote unit.

5. Uppsetning

5.1 Hleðsla tækisins

Both the main tester unit and the remote receiver unit are equipped with rechargeable lithium-ion batteries. Use the provided Type-C cable to charge both units. A full charge ensures extended operation.

5.2 Kveikt/slökkt

Press and hold the power button on each unit to turn it on or off. The main unit's IPS screen will illuminate upon startup.

6. Notkunarleiðbeiningar

6.1 UTP Cable Test

This function tests the connection sequence, type, and remote kit of UTP cables, quickly detecting near-end, mid-end, and far-end fault points of RJ45 cable connectors.

  1. Connect one end of the RJ45 cable to the RJ45 Network Port on the main unit.
  2. Connect the other end of the RJ45 cable to the UTP Cable Test Port on the remote receiver unit.
  3. On the main unit's touch screen, navigate to the "Cable Test" function.
  4. Initiate the test. The screen will display the connection status, wiremap, and any detected faults.
Diagram showing UTP Cable Test results on the Henkion LT-600S screen, indicating wire sequence and fault types.
Image: UTP Cable Test interface displaying wire sequence and fault detection.

6.2 Cable Tracer

The digital signal Ethernet cable tracer helps quickly locate target cables (BNC, network, telephone, and other metal cables) from bundles, effectively rejecting noise and false signals.

  1. Connect the cable to be traced to the main unit.
  2. Select the "Cable Search" function on the main unit.
  3. Use the remote receiver unit to scan the cable bundle. The receiver will emit an audible tone, increasing in volume as it approaches the target cable.
  4. Adjust the sensitivity knob on the remote unit for precise tracking.
Image showing the Henkion LT-600S main unit and remote receiver being used for cable tracing in a messy cable environment.
Image: Cable Tracer function in use, demonstrating how to locate a specific cable.

Video: Demonstration of cable testing, PoE test, and port flashing using a similar network cable tester (NOYAFA NF-8508).

Myndband: Yfirview of a multifunctional network detector (NOYAFA NF-810) showing wiremap, cable scanning, PoE switch detection, and phone line polarity judgment.

6.3 RJ45 TDR Cable Test & Length Measurement

The TDR function allows testing of cable pair status, length, attenuation, reflectivity, impedance, skew, and other parameters. It can measure opens in network cables up to 3000 meters.

  1. Connect the RJ45 cable to the main unit.
  2. Select the "RJ45 TDR Test" or "Cable Length" function.
  3. Start the test. The screen will display detailed parameters and the measured cable length.
  4. Reports can be created and saved via the FTP function.
Screenshots of the Henkion LT-600S displaying RJ45 TDR test results and cable length measurements.
Image: RJ45 TDR test and cable length measurement results on the device screen.

6.4 Optical Power Meter (OPM) and Visual Fault Locator (VFL)

The built-in OPM is used for signal power and insertion loss testing of optical equipment. The VFL helps easily and accurately determine the position of optical fiber fault points.

  1. For OPM: Connect the optical fiber to the OPM port. Select the OPM function to measure optical power.
  2. For VFL: Connect the optical fiber to the VFL port. Activate the VFL function to emit a red laser light, which helps locate breaks or bends in the fiber.
Close-up images of the Henkion LT-600S showing the Optical Power Meter (OPM) and Visual Fault Locator (VFL) ports in use.
Image: OPM and VFL functions in operation.

6.5 PoE greining

The RJ45 PoE Tester supports IEEE802.3BT/AT/AF and non-standard protocol detection. It displays power supply voltage, power supply pins, and pin polarity.

  1. Connect the network cable from the PoE source to the PD Power Tested Port.
  2. Select the "PoE Detect" function.
  3. The screen will display PoE protocol, voltage, and active pins.
Screenshots of the Henkion LT-600S showing PoE detection results, including protocol and voltage.
Image: PoE detection interface showing power details.

Video: Demonstration of a PoE cable tester in action.

6.6 Netverkfæri

The device includes a suite of network tools such as IP discovery, IP address scan, PING test, LLDP/CDP detection, Port flashing, and PPPOE dial-up.

  1. Connect the main unit to the network via the RJ45 Network Port.
  2. Select the desired network tool from the menu.
  3. Follow the on-screen prompts to perform the test (e.g., enter an IP address for PING test).
  4. Flassandi tengi: This feature helps quickly identify the physical port on a switch or other network device connected to the tester by making its LED flash.
Screenshots of the Henkion LT-600S displaying various network tool interfaces, including IP discovery, PING, and Port Flashing.
Image: Network Tools interface showing various diagnostic options.

Video: Demonstration of port flashing, PING test, PoE test, cable tracing, and length measurement using a similar network cable tester (NOYAFA NF-8601S).

6.7 PD Power Detection & NCV Detection & FTP

  • PD Power Test: Detects if the power output of a PoE switch is normal and identifies the pins used for power supply.
  • NCV Scan Function: Snertilaus binditage detection with sound and light alarms, supporting the distinction between live and neutral wires.
  • FTP Function: Enables users to copy test reports and data via network FTP for easy record keeping and analysis.

7. Viðhald

  • Þrífið tækið reglulega með mjúkum, þurrum klút. Notið ekki slípiefni eða leysiefni.
  • Store the device in its protective tool bag when not in use to prevent damage.
  • Gakktu úr skugga um að hleðslutengin séu laus við ryk og rusl.
  • Charge the batteries periodically if the device is stored for a long time to maintain battery health.

8. Bilanagreining

VandamálMöguleg orsökLausn
Ekki kveikir á tækinu.Low battery or faulty power button.Charge the device fully. Ensure the power button is pressed correctly.
Inaccurate cable test results.Poor cable connection, damaged cable, or incorrect test mode.Ensure cables are securely connected. Check cable for physical damage. Verify correct test mode is selected.
Cable tracing signal is weak or noisy.Low sensitivity setting, external interference, or long cable length.Increase the sensitivity on the remote unit. Move away from strong electromagnetic sources.
Screen freezes during firmware update.Hugbúnaðarvilla.Use a paperclip to press the reset button (if available) or power cycle the device. Avoid interrupting firmware updates.

9. Tæknilýsing

  • Gerð: LT-600S
  • Skjár: 4-inch IPS Touch Screen, 800*480 resolution
  • Kapaltegundir prófaðar: RJ45 UTP, BNC, Telephone, various metal cables
  • Cable Test Functions: Wiremap, sequence, type, fault location (near-end, mid-end, far-end)
  • TDR Measurement Range: Up to 3000 meters for opens
  • PoE Detection: IEEE802.3BT/AT/AF and non-standard protocols (voltage, pins, polarity)
  • Optical Power Meter (OPM): Signal power and insertion loss test
  • Visual Fault Locator (VFL): Fiber optic fault point determination
  • Network Tools: IP discovery, IP address scan, PING, LLDP/CDP, Port flashing, PPPOE dial-up
  • Aðrar aðgerðir: NCV detection, FTP data transfer
  • Rafhlaða: Main Unit: 3.7V 4000mAh Li-ion; Remote Unit: 3.7V 2000mAh Li-ion
  • Hleðsla: Tegund-C
  • Þyngd hlutar: 620 g
  • Stærðir: 24.89 x 18.8 x 4.83 cm (Stærð pakkans)
  • Fylgni: UL 61010-1, IEC 61010-2-030, CE Marked, RoHS Compliant

10. Ábyrgð og stuðningur

Henkion products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official Henkion websíða. Vinsamlegast geymið kaupkvittunina vegna ábyrgðarkröfu.
