1. Inngangur
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the Generic 70218208 Furnace Exhaust Inducer Motor. Please read this manual thoroughly before attempting any procedures. Proper understanding and adherence to these instructions are crucial for optimal performance and safety.
2. Öryggisupplýsingar
VIÐVÖRUN: Installation and servicing of this furnace exhaust inducer motor must be performed by a qualified service technician. Failure to follow these instructions could result in property damage, personal injury, or death.
- Always disconnect power to the furnace before installing, servicing, or cleaning the inducer motor.
- Notið viðeigandi persónuhlífar (PPE), þar á meðal hanska og augnhlífar.
- Gakktu úr skugga um að allar rafmagnstengingar séu öruggar og í samræmi við gildandi rafmagnsreglugerðir.
- Do not operate the furnace if the inducer motor is damaged or malfunctioning.
- Keep children and pets away from the furnace area during installation and operation.
3. Vöru lokiðview
The 70218208 Furnace Exhaust Inducer Motor is a critical component designed to facilitate the safe and efficient expulsion of exhaust gases from your furnace. Modern high-efficiency furnaces have restrictive heat exchangers, requiring an inducer motor to pull flue gases through the system and out of the unit. This motor typically initiates operation when the furnace calls for heat.

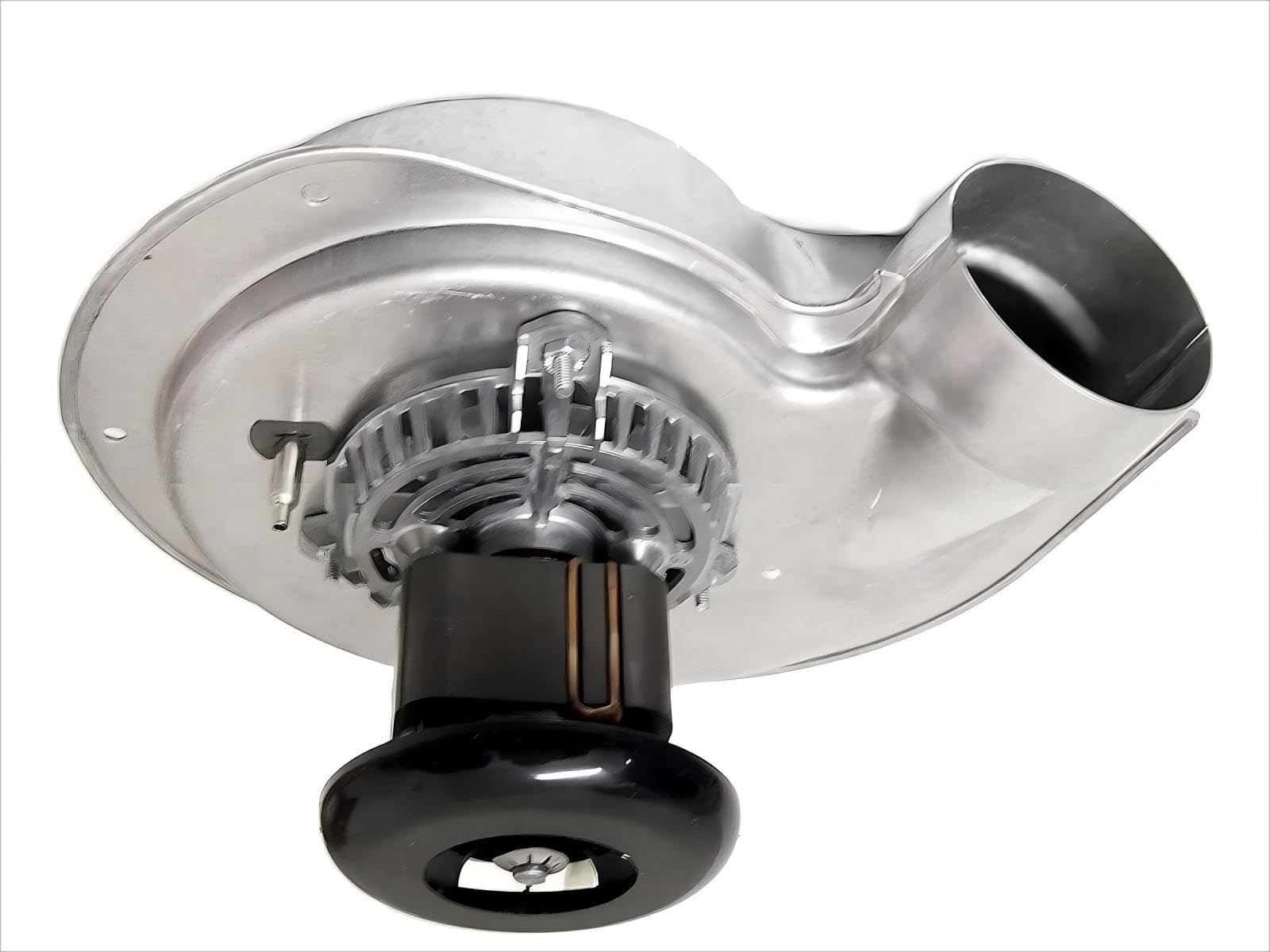

Figure 1: Generic 70218208 Furnace Exhaust Inducer Motor. This image shows the complete inducer motor assembly, including the motor housing, fan, and mounting plate.
This motor is constructed for heavy-duty use, ensuring reliable operation in demanding industrial environments. Its design allows for seamless integration and precise compatibility with existing furnace systems, making it suitable for straightforward replacements. The unit is engineered for enhanced energy efficiency, reducing power consumption while maintaining consistent torque and output. Furthermore, its simplified maintenance design provides quick access to critical components, aiming to minimize operational downtime.
4. Uppsetning og uppsetning
MIKILVÆGT: Installation should only be performed by a certified HVAC technician. Incorrect installation can lead to system malfunction, safety hazards, and voiding of warranties.
- Rafmagnstenging: Slökkvið á öllu rafmagni til ofnsins á aðalviðgerðartöflunni. Staðfestið að rafmagnið sé slökkt með hljóðnema.tage prófari.
- Aðgangur að gömlum mótor: Locate and access the existing inducer motor within the furnace. This may require removing access panels.
- Disconnect Wiring and Ductwork: Carefully disconnect the electrical wiring from the old motor. Note the wiring configuration for reinstallation. Disconnect any attached exhaust ductwork or hoses.
- Fjarlægðu gamla mótorinn: Unbolt and remove the old inducer motor from its mounting.
- Skoðaðu festingarsvæði: Hreinsið festingarflötinn og athugið hvort einhverjar skemmdir eða óhreinindi séu til staðar.
- Setja upp nýjan mótor: Position the new 70218208 inducer motor and secure it with the appropriate bolts. Ensure a tight and stable fit.
- Reconnect Ductwork: Reattach the exhaust ductwork and hoses, ensuring all connections are sealed to prevent leaks.
- Tengdu raflögnina aftur: Connect the electrical wiring to the new motor, matching the configuration noted during removal. Double-check all connections for security.
- Prófunaraðgerð: Restore power to the furnace. Initiate a call for heat and observe the inducer motor's operation. Ensure it starts smoothly, runs quietly, and effectively expels exhaust gases. Check for any unusual noises or vibrations.
- Lokaskoðun: Replace all access panels.
5. Rekstrarreglur
The 70218208 Furnace Exhaust Inducer Motor operates in conjunction with your furnace's control system. When the thermostat calls for heat, the furnace control board first activates the inducer motor. The motor creates a negative pressure (draft) within the heat exchanger, pulling combustion byproducts through the system and out of the exhaust vent. A pressure switch monitors this draft; if sufficient draft is established, the pressure switch closes, signaling the control board to proceed with ignition. This sequence ensures that combustion gases are safely vented before the main burner ignites, preventing dangerous conditions.
6. Viðhald
Regular maintenance helps ensure the longevity and efficient operation of your inducer motor and furnace system. It is recommended that a qualified technician perform annual furnace inspections and maintenance.
- Árleg skoðun: Have a qualified technician inspect the inducer motor annually for signs of wear, corrosion, or damage.
- Þrif: Over time, the fan blades and housing may accumulate dust or debris. With power disconnected, a technician can carefully clean these components to ensure unrestricted airflow.
- Titringsprófun: During operation, listen for any unusual noises or excessive vibrations, which could indicate a problem with the motor bearings or fan.
- Exhaust Vent Check: Ensure the exhaust vent pipe connected to the inducer motor is clear of obstructions (e.g., bird nests, ice, debris).
7. Bilanagreining
If your furnace is not operating correctly, the inducer motor may be a contributing factor. Always consult a qualified technician for diagnosis and repair.
| Vandamál | Möguleg orsök | Suggested Action (for qualified technician) |
|---|---|---|
| Örvunarmótorinn ræsist ekki. | No power, faulty wiring, seized motor, faulty control board. | Check power supply, inspect wiring connections, test motor for continuity, check control board output. |
| Inducer motor starts but furnace does not ignite. | Faulty pressure switch, obstructed exhaust vent, faulty igniter, low gas pressure. | Verify pressure switch operation, clear vent, test igniter, check gas supply. |
| Loud noises or vibrations from motor. | Worn bearings, unbalanced fan, debris in housing, loose mounting. | Inspect bearings, clean fan, tighten mounting bolts. Replacement may be necessary. |
| Mótorinn gengur stöðugt. | Faulty pressure switch, faulty control board. | Test pressure switch, diagnose control board. |
8. Tæknilýsing
The following specifications are provided for the Generic 70218208 Furnace Exhaust Inducer Motor:
- Gerðarnúmer: 70218208
- Vörumerki: Almennt
- Framleiðandi: Almennt
- ASIN: B0G4R7RTGT
- Samhæfni: Replaces 7021-8208, 7002-2290, 70022290, 1013833, and various Heil FASCO furnace models (refer to product description for partial list).
- Virkni: Furnace Draft Inducer / Exhaust Vent Venter Motor
9. Ábyrgð og stuðningur
For specific warranty information regarding your 70218208 Furnace Exhaust Inducer Motor, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms typically cover manufacturing defects for a specified period.
For technical support, installation assistance, or troubleshooting beyond the scope of this manual, it is highly recommended to contact a qualified HVAC professional. They possess the necessary expertise and tools to safely diagnose and resolve issues related to furnace components.
