Delupet Dog Training Collar DT11OG User Manual

Inngangur

This manual provides detailed instructions for the safe and effective use of your Delupet Dog Training Collar, model DT11OG. Please read this manual thoroughly before operating the device to ensure proper function and the well-being of your dog.

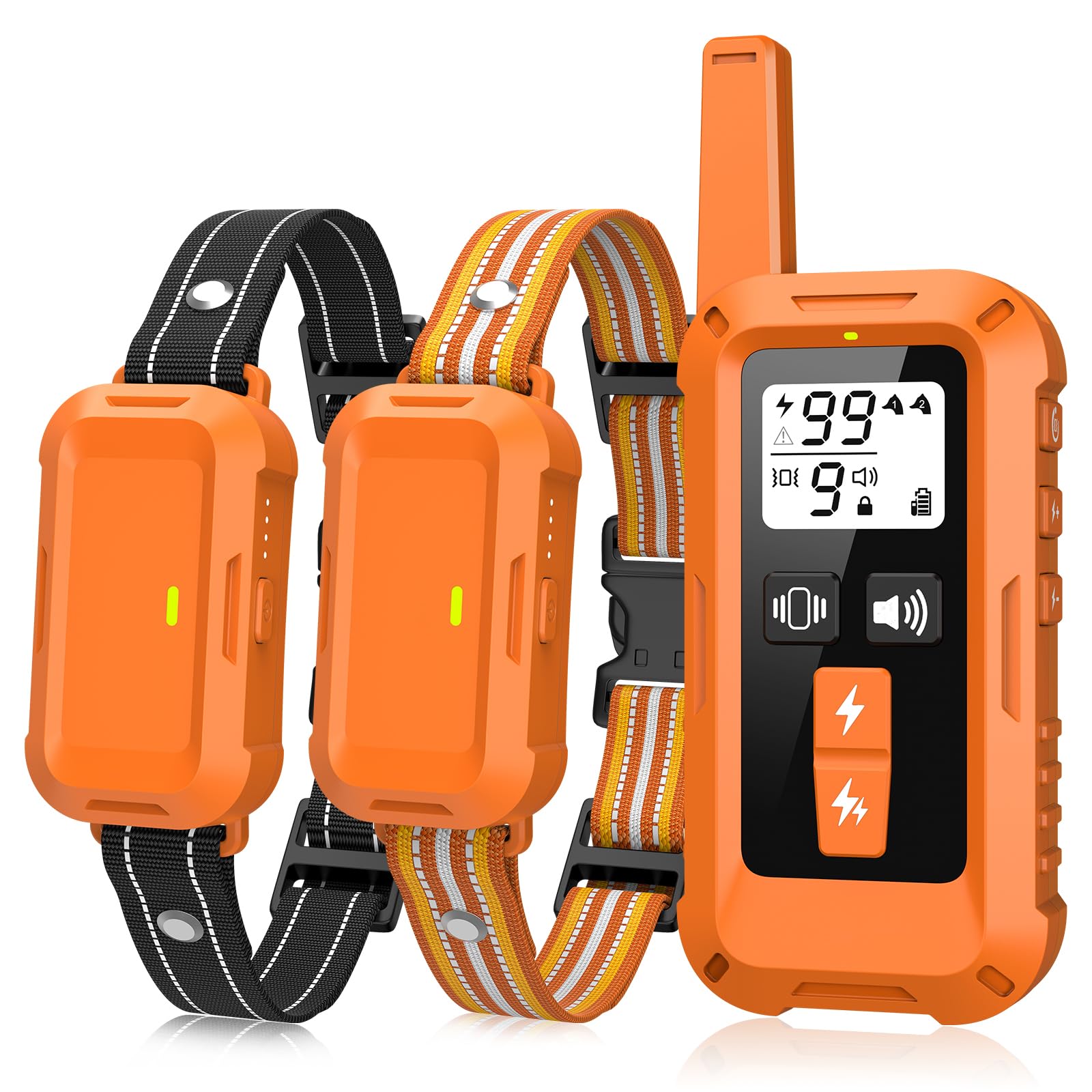

Image: Delupet Dog Training Collar with remote control and receiver collar.

Öryggisupplýsingar

• Mikilvæg athugasemd:

  Electronic collars should not be worn continuously for more than 12 hours. Prolonged wear can lead to skin irritation.
• Ensure the collar fits properly, not too tight or too loose, to prevent discomfort or ineffective operation.
• This training collar is designed for dogs weighing between 10-120 lbs.
• The remote control is not waterproof; protect it from water exposure.
• Hafðu alltaf eftirlit með hundinum þínum á meðan á þjálfun stendur.
• The static correction feature should be used responsibly and only after other modes (beep, vibration) have been attempted.

Innihald pakka

• Fjarstýring
• Receiver Collar (with adjustable nylon strap)
• USB hleðslusnúra
• Prófa ljósverkfæri
• Stuttir og langir snertipunktar
• Silicone Protective Covers
• Notendahandbók (þetta skjal)

Eiginleikar vöru

• Þjálfunarstillingar: Beep, Vibration (1-9 levels), Static (0-99 levels), Boost Static (10% higher).
• Ytra svið: Allt að 4500 fet (um það bil 1370 metrar).
• Vatnsheldur móttakari: IPX8 rated, suitable for rain, splashes, and swimming.
• Tvöföld rás: Capable of training two dogs simultaneously with one remote.
• Stillanlegur kraga: Fits neck sizes 7.8" to 24.4", suitable for dogs 10-120 lbs.
• Öryggislás: Kemur í veg fyrir óvart virkjun á leiðréttingu á stöðurafmagni.
• Langur rafhlöðuending: Up to 15 days of use on a 2-hour charge.

Mynd: Yfirview of the four effective training modes.

Image: Remote control range up to 4500 feet.

Image: IPX8 waterproof receiver collar in use during water activities.

Image: User-friendly and safe design features, including security lock and protective rubber covers.

Uppsetning

1. Hleðsla tækjanna

Charge both the remote control and the receiver collar for approximately 2 hours before first use. The indicator lights will show charging status.

Image: Charging the remote and receiver collar.

2. Að festa viðtakandahálsbandið

Place the receiver collar around your dog's neck. Ensure the contact points touch the skin. The collar should be snug enough for the contact points to make reliable contact, but loose enough to allow one finger to fit comfortably between the strap and your dog's neck. Trim excess strap if necessary.

For dogs with thick coats, use the longer contact points. For dogs with thin hair, use the shorter contact points. Always use the silicone protective covers to prevent skin abrasions.

Image: Proper fitting and adjustment of the receiver collar.

3. Að para fjarstýringuna og móttakarann

1. Kveiktu á móttakaranum: Press and hold the power button on the receiver collar for 3 seconds until the red light turns on. Release the button. Then, long press the power button again until the green light flashes.



   Image: Steps to power on the receiver collar for pairing.

2. Veldu rásina: On the remote control, press the "CH" button to select the desired channel (Channel 1 for the black strap collar, Channel 2 for the orange strap collar). The remote and receiver must be on matching channels.



   Image: Selecting the correct channel on the remote control.

3. Staðfestu pörun: While the receiver's green light is flashing, press any training mode button (Beep, Vibration, or Static) on the remote control. A "beep" sound from the receiver indicates successful pairing.



   Image: Confirming successful pairing between remote and receiver.

4. Testing the Static Function

To ensure the static function is working correctly, use the provided test light tool.

1. Place the test tool over the contact points of the receiver collar.
2. Press the static button on the remote control.
3. If the test light flashes, the static function is operating normally.

Image: Using the test light tool to verify static function.

Notkunarleiðbeiningar

The Delupet Dog Training Collar offers three primary training modes: Beep, Vibration, and Static. Always start with the lowest effective setting and progress gradually.

1. Beep Mode

• Press the Beep button on the remote control to emit an audible tone from the receiver collar. This mode is useful for attracting your dog's attention or as a warning signal.

2. Titringsstilling

• Press the Vibration button to activate the vibration.
• Adjust the vibration intensity from level 1 to 9 using the remote's adjustment buttons. Start with a low level and increase only if necessary.

3. Static Mode

• Press the Static button to deliver a static correction.
• Adjust the static intensity from level 0 to 99 using the remote's adjustment buttons.
• The "Boost Static" option provides a 10% higher static level for situations requiring a stronger correction.
• Öryggislás: The remote features a safety lock to prevent accidental static activation. Ensure the lock is disengaged before use and re-engaged when not actively training.

4. Tvöföld rásaraðgerð

If training two dogs, ensure each receiver collar is paired to its respective channel (Channel 1 or Channel 2) on the remote. Use the "CH" button to switch between channels to control each dog individually.

Viðhald

• Þrif: Wipe the receiver collar and remote control with a damp klút. Ekki nota sterk efni.
• Umhirða rafhlöðu: Recharge the devices when the battery indicator is low. Avoid overcharging. For long-term storage, charge the devices fully every 3 months.
• Tengiliður: Regularly check the contact points for cleanliness and ensure they are free of debris.
• Kragaól: Athugið hvort nylonólin sé slitin. Skiptið um hana ef hún er skemmd.

Úrræðaleit

Tæknilýsing

Ábyrgð og stuðningur

Delupet offers a 30-day money-back guarantee. For any questions, concerns, or technical assistance, please contact Delupet customer service. Support channels may include email, phone, and live chat, as detailed in the original product packaging or on the official Delupet websíða.

Image: Delupet after-sales service information.
