Retevis RM01P Handheld Marine Radio User Manual

1. Inngangur

The Retevis RM01P is a handheld marine radio designed for reliable communication in marine environments. Its lightweight and compact design ensures ease of portability and use, even during demanding operations. Key features include IP67 waterproofing, a floating design for easy retrieval, and vibration water draining functionality, enhancing its durability and performance on the water.

Image 1.1: The Retevis RM01P radio, highlighting its lightweight (136g) and portable design with dimensions (4.69in height, 2.48in width, 1.38in depth).

2. Innihald pakka

Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum:

• RM01P Marine Walkie Talkie (1)
• Rafhlaða (1)
• Bíll hleðslutæki (1)
• Beltisklemma (1)
• Notendahandbók (1)
• Rafmagnsbreytir (1)
• Type-C hleðslusnúra (1)
• Snúra (1)
• Speaker Microphone (1)

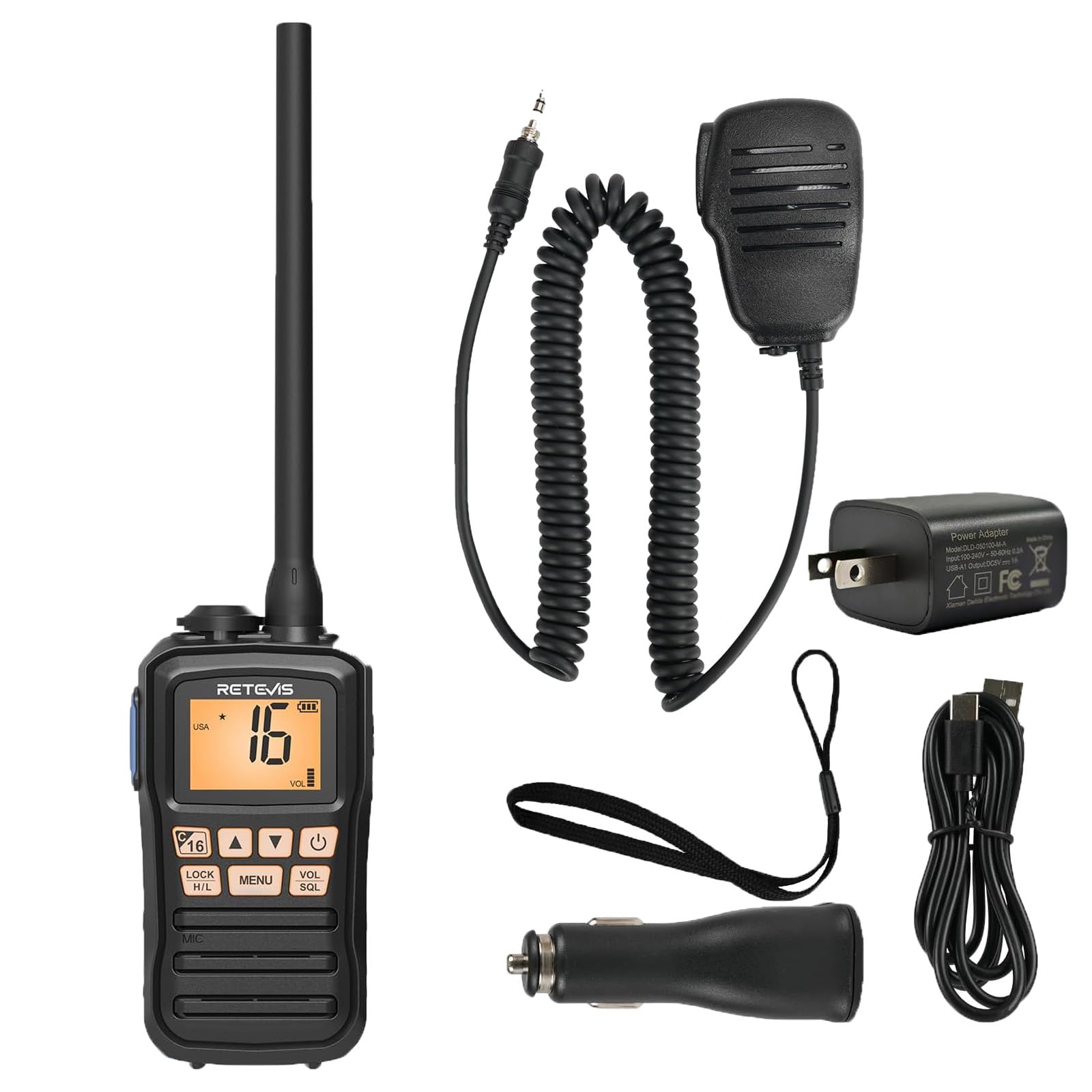

Image 2.1: Visual representation of the complete package contents.

3. Öryggisupplýsingar

• IP67 vatnsheldur einkunn: The RM01P is designed to withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. Ensure all covers and ports are securely sealed before exposure to water.
• Fljótandi hönnun: If the radio is accidentally dropped into water, its design allows it to float on the surface, making it easier to locate and retrieve.
• Vibration Water Draining: After exposure to water, utilize the vibration water draining function to expel water from the speaker and microphone for optimal performance.
• Do not attempt to disassemble or modify the radio. This can void the warranty and cause damage.
• Use only Retevis-approved accessories and charging equipment.

Image 3.1: The RM01P demonstrating its floating capability and IP67 waterproof rating.

4. Uppsetning

4.1 Uppsetning rafhlöðu

1. Stilltu rafhlöðunni saman við hólfið aftan á útvarpinu.
2. Ýttu rafhlöðunni varlega á sinn stað þar til hún smellur örugglega.
3. Ensure the battery cover is properly sealed to maintain the IP67 rating.

4.2 Hleðsla rafhlöðunnar

The RM01P features a Type-C charging port for convenience.

1. Tengdu hleðslusnúruna af gerðinni C við hleðslutengi útvarpsins.
2. Connect the other end of the cable to the provided power adapter, car charger, or a compatible power bank/USB interface.
3. Hleðsluvísirinn á útvarpinu sýnir hleðslustöðuna. Full hleðsla tekur venjulega nokkrar klukkustundir.
4. The 1750mAh battery provides approximately 15 hours of continuous use and 66 hours on standby.

Image 4.1: Charging options for the RM01P, featuring Type-C connectivity.

4.3 Að festa hátalarann ​​á hljóðnemann

The included speaker microphone connects via a 3.5mm 1-pin jack.

1. Locate the 3.5mm audio jack on the side of the radio.
2. Insert the 3.5mm 1-pin connector of the speaker microphone firmly into the jack.
3. The speaker microphone features a 360° rotatable collar clip for convenient attachment to clothing.

Image 4.2: Details of the 3.5mm 1-pin speaker microphone.

Image 4.3: Durability features of the speaker microphone, including PU material.

Image 4.4: High-quality speaker design for clear audio.

5. Notkunarleiðbeiningar

5.1 Kveikt/slökkt

Ýttu á og haltu inni Kraftur button (usually marked with a power symbol) to turn the radio on or off.

5.2 Hljóðstyrksstilling

Notaðu VOL (Volume) up/down buttons or knob to adjust the listening volume.

5.3 Rásarval

Notaðu UPP/NIÐUR arrow buttons to navigate through available marine channels. The current channel number will be displayed on the screen.

5.4 Sending og móttaka

• Til að senda, ýttu á og haltu inni PTT (Push-To-Talk) button on the side of the radio or speaker microphone. Speak clearly into the microphone.
• Slepptu PTT hnappinn til að hætta sendingu og fara aftur í móttökuham.
• Ensure you are on an appropriate channel for communication.

5.5 Squelch Adjustment (SQL)

The SQL (Squelch) function filters out weak signals and background noise. Adjust it to a level where only clear signals are heard, minimizing static.

5.6 Lock Function (LOCK)

Ýttu á LÁS button to prevent accidental changes to settings or channels. Press it again to unlock.

5.7 NOAA veðurrásir

The RM01P supports 10 NOAA Weather Channels, providing real-time weather alerts to help avoid storms and hazards.

• Access NOAA channels through the menu or a dedicated button (refer to the radio's display for specific indicators).
• Monitor these channels for critical weather information relevant to your location.

Image 5.1: Radio display indicating NOAA Weather Channel functionality.

6. Viðhald

• Þrif: Þurrkaðu útvarpið með mjúku, damp klút. Ekki nota sterk efni eða slípiefni.
• Vatnsrennsli: After exposure to water, activate the vibration water draining function to clear water from the speaker and microphone grille. This helps maintain audio clarity.
• Geymsla: Geymið útvarpið á köldum og þurrum stað þegar það er ekki í notkun. Fjarlægið rafhlöðuna ef það er geymt í langan tíma.
• Umhirða rafhlöðu: Avoid fully discharging the battery frequently. Charge the battery regularly to prolong its lifespan.

7. Bilanagreining

8. Tæknilýsing

• Gerð: Retevis RM01P
• Vatnsheld einkunn: IP67 (Submersible up to 1m for 30 minutes)
• Rafhlaða rúmtak: 1750mAh
• Rafhlöðuending: Approx. 15 hours (continuous use), 66 hours (standby)
• Hleðsluport: Type-C (5V input voltage)
• Úttaksstyrkur hátalara: 1.5W
• Næmi hljóðnema: -38dB ± 3dB
• Næmi hátalara: 88dB±3dB
• Speaker Microphone Pin: 3.5 mm 1-pinna
• Speaker Microphone Material: PU
• Speaker Microphone Operating Temperature: -10 °C til 90 °C (14 °F til 194 °F)
• NOAA veðurrásir: 10

9. Ábyrgð og stuðningur

Fyrir upplýsingar um ábyrgð og tæknilega aðstoð, vinsamlegast vísið til opinberu Retevis webeða hafið samband við næsta söluaðila. Geymið kaupkvittunina vegna ábyrgðarkröfu.

Seljandi: Retevis Direct

Skilareglur: 30 dagar (endurgreiðsla/skipti)

Fyrir frekari aðstoð, heimsækja Retevis verslun á Amazon.
