Seagate Technology 200 GB USB 2.0 and FireWire External Drive User Manual

2. Uppsetning

2.1 Unpacking the Drive

Fjarlægið alla íhluti varlega úr umbúðunum. Gakktu úr skugga um að eftirfarandi hlutir séu innifaldir:

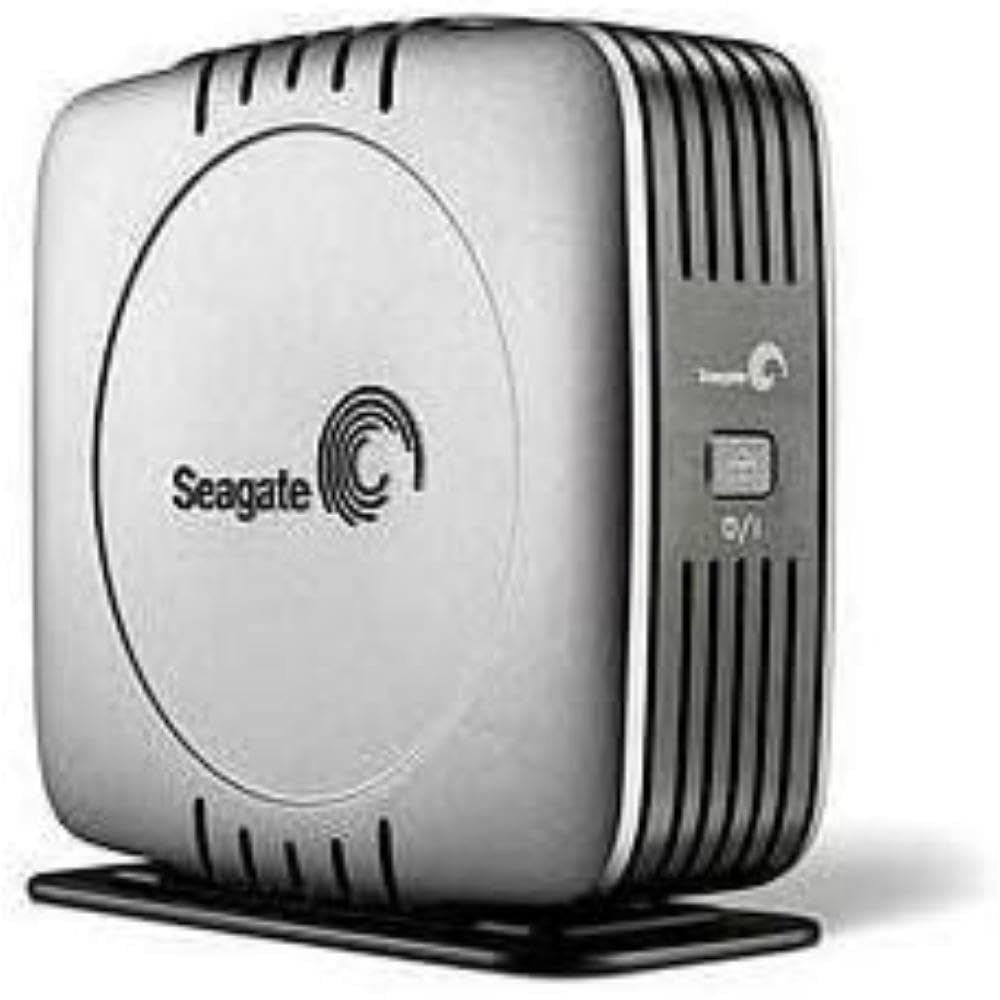

• Seagate External Drive (ST3200823A-RK)
• USB 2.0 snúru
• FireWire 1394a cable
• AC millistykki og rafmagnssnúra
• Quick installation guide (refer to this manual for detailed instructions)
• Backup software CD (for optional installation)

2.2 Tenging við tölvuna þína

The drive supports both USB 2.0 and FireWire (IEEE 1394a) connectivity. Choose the connection type compatible with your computer.

1. Connect the Data Cable:
   • For USB 2.0: Connect one end of the USB 2.0 cable to the USB port on the external drive and the other end to an available USB 2.0 port on your computer.
   • For FireWire: Connect one end of the FireWire 1394a cable to the FireWire port on the external drive and the other end to an available FireWire port on your computer.
2. Tengdu straumbreytinn: Plug the AC adapter into the power input on the external drive. Then, plug the power cord into a standard electrical outlet.
3. Kveikt á: The drive should power on automatically or have a power button to activate it. Refer to the drive's physical indicators for power status.
4. Upphafleg viðurkenning: Your operating system (Windows or macOS) should detect the new hardware and install necessary drivers automatically. This process may take a few moments. The drive will appear as a new storage device in "My Computer" (Windows) or on the Desktop/Finder (macOS).

Athugið: For optimal performance, ensure your computer has the latest drivers for its USB or FireWire ports.

3. Notkun drifsins

3.1 Gagnaflutningur

Once the drive is recognized by your computer, you can transfer files to and from it using standard operating system functions:

• Dragðu og slepptu: Smelltu og dragðu files or folders from your computer's internal drive to the external drive icon, or vice versa.
• Afrita og líma: Hægrismelltu á files/folders, select "Copy," then navigate to the destination on the external drive, right-click, and select "Paste."
• Hugbúnaður fyrir afritun: Use the included backup software CD for automated backup solutions, if desired. Follow the on-screen instructions for installation and configuration.

3.2 Árangurs einkenni

The Seagate external drive features a 7200 RPM hard disk with an average seek time of 8.5 milliseconds, providing fast data access and transfer speeds, especially when connected via FireWire or USB 2.0.

3.3 Samhæfni

This drive is compatible with both PC (Windows) and Macintosh (macOS) computers. Ensure your operating system is up-to-date for best compatibility and performance.

4. Viðhald

4.1 Almenn umönnun

• Keep the drive in a clean, dry environment, away from direct sunlight, extreme temperatures, and humidity.
• Avoid placing heavy objects on the drive.
• Þrífið ytra byrði með mjúkum, þurrum klút. Notið ekki fljótandi hreinsiefni eða leysiefni.
• Tryggið næga loftræstingu í kringum drifið til að koma í veg fyrir ofhitnun.

4.2 Örugg aftenging

Always safely eject or unmount the drive from your operating system before disconnecting the data cable or power. This prevents data corruption.

• Windows: Click the "Safely Remove Hardware and Eject Media" icon in the system tray, then select the Seagate drive.
• macOS: Drag the drive icon from the Desktop to the Trash, or click the Eject icon next to the drive name in Finder.

5. Bilanagreining

If you encounter issues with your Seagate external drive, try the following steps:

1. Drif ekki greint:
   • Ensure all cables (power and data) are securely connected to both the drive and the computer.
   • Prófaðu að tengja drifið við aðra USB- eða FireWire-tengi á tölvunni þinni.
   • If using a USB hub, connect the drive directly to the computer.
   • Verify the drive's power indicator light is on.
   • Endurræstu tölvuna þína.
2. Hæg gagnaflutningur:
   • Ensure you are using USB 2.0 or FireWire 1394a ports on your computer, not older USB 1.1 ports.
   • Lokaðu öllum óþarfa forritum sem keyra í bakgrunni.
   • Check your computer's system resources; high CPU or memory usage can affect transfer speeds.
3. Drifið gefur frá sér óvenjuleg hljóð:

   If the drive emits grinding, clicking, or repetitive unusual noises, immediately back up any critical data if possible, and discontinue use. Contact Seagate support for further assistance.

4. Gögn spilling:

   Always safely eject the drive before disconnecting. If data corruption occurs, try running disk utility tools provided by your operating system (e.g., Check Disk on Windows, Disk Utility on macOS).

For persistent issues, refer to the Seagate support websíðuna eða hafðu samband við þjónustuver þeirra.

6. Tæknilýsing

7. Ábyrgð og stuðningur

7.1 Vöruábyrgð

This Seagate product is covered by a limited warranty. Please refer to the warranty information included with your product packaging or visit the official Seagate webvefsíðu fyrir ítarlegar skilmála varðandi ábyrgðartíma, gildistíma og málsmeðferð vegna krafna.

7.2 Tæknileg aðstoð

For technical assistance, troubleshooting, or further inquiries, please visit the Seagate support webÞar er að finna algengar spurningar, niðurhal á rekla og upplýsingar um þjónustuver.

Seagate stuðningur Websíða: www.seagate.com/support
