Equip CEE 7/7 (SCHUKO) to C13 Power Cable Instruction Manual

1. Vöru lokiðview

This manual provides essential information for the safe and proper use of your Equip CEE 7/7 (SCHUKO) to C13 Power Cable. This cable is designed to connect electronic devices requiring a C13 power input to a standard CEE 7/7 (SCHUKO) wall outlet.

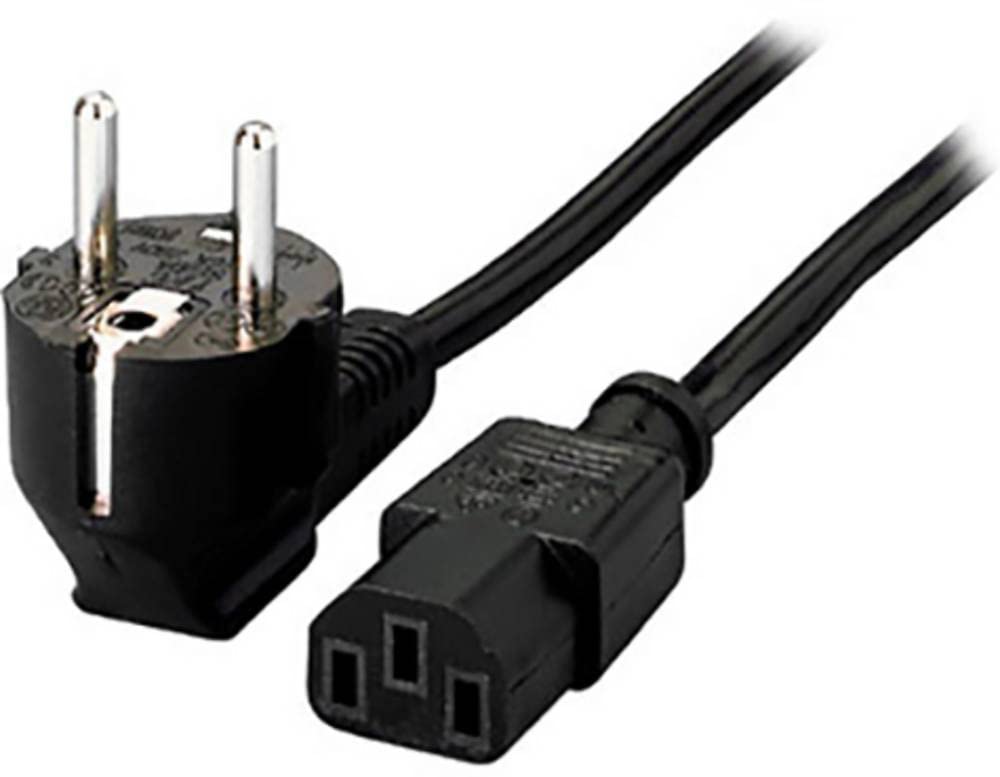

Figure 1: Equip CEE 7/7 (SCHUKO) to C13 Power Cable. The image shows the male CEE 7/7 (Schuko) plug with two round pins and grounding clips, and the female C13 connector, commonly used for computers and monitors.

Helstu eiginleikar:

• C13 socket x 1
• 1 x Schuko (CEE 7/7) plug
• Conductor: 0.75 mm² (24/0.19 mm)
• Lengd snúru: 1.1 m

2. Öryggisleiðbeiningar

Please read and understand these safety instructions before using the power cable. Failure to follow these instructions may result in electric shock, fire, or damage to equipment.

• Ekki nota snúruna ef hún er skemmd, slitin eða ef vírarnir eru berskjaldaðir.
• Gakktu úr skugga um að binditage and current ratings of the connected device are compatible with the power supply and cable.
• Ekki ofhlaða rafmagnsinnstungum.
• Keep the cable away from water, heat sources, and sharp objects.
• Do not attempt to modify or repair the cable. Contact qualified personnel for assistance.
• Always grasp the plug, not the cable, when disconnecting from an outlet or device.

3. Uppsetning og tenging

Follow these steps to properly connect your device using the Equip power cable:

1. Skoðaðu snúruna: Before connecting, visually inspect the power cable for any signs of damage, such as cuts, abrasions, or bent pins. Do not use a damaged cable.
2. Tengjast tæki: Insert the C13 connector (female end) firmly into the corresponding C14 inlet on your electronic device (e.g., computer, monitor, printer). Ensure a snug fit.
3. Tengdu við rafmagnsinnstungu: Insert the CEE 7/7 (SCHUKO) plug (male end) into a standard, grounded CEE 7/7 wall power outlet. Ensure the plug is fully inserted.
4. Kveikt á: Once both ends are securely connected, you may power on your device.

Figure 2: C13 Connector. This image shows the C13 female connector, which plugs into the C14 inlet of electronic devices.

4. Notkunarleiðbeiningar

This power cable is designed for simple plug-and-play operation. Once connected as described in the "Setup and Connection" section, it provides power to your device.

• Ensure the cable is not kinked, pinched, or run under heavy objects that could damage it.
• Avoid pulling on the cable to disconnect it. Always use the molded plug to remove it from the outlet or device.
• Do not use the cable in wet or damp skilyrði.

5. Viðhald og umönnun

Proper maintenance ensures the longevity and safe operation of your power cable.

• Þrif: Disconnect the cable from all power sources before cleaning. Wipe the cable and plugs with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Geymsla: When not in use, coil the cable loosely. Avoid tight coiling or bending, which can damage the internal wires. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• Skoðun: Periodically inspect the cable for any signs of wear, damage, or discoloration. Replace the cable immediately if any damage is observed.

6. Bilanagreining

If you encounter issues with your power cable, refer to the following common troubleshooting steps:

If troubleshooting steps do not resolve the issue, discontinue use and contact customer support.

7. Tæknilýsing

8. Ábyrgð og stuðningur

For warranty information or technical support, please refer to the official Equip websíðuna eða hafið samband við söluaðila. Geymið kaupkvittunina sem sönnun fyrir kaupunum.

Framleiðandi: Stafræn gagnasamskipti

Vörumerki: Búa til

Samskiptaupplýsingar: Vinsamlegast heimsóttu Equip official websíða for support and contact details.
