Schonbek 1250-26BD Rondelle Semi Flush Mount Lighting Fixture

Inngangur

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Schonbek 1250-26BD Rondelle Semi Flush Mount Lighting Fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The Schonbek 1250-26BD is a semi-flush mount lighting fixture featuring Swarovski crystals and a French Gold finish, designed to provide elegant illumination.

Image: The Schonbek 1250-26BD Rondelle Semi Flush Mount Lighting Fixture in French Gold.

Öryggisupplýsingar

VIÐVÖRUN: Hætta á raflosti. Aftengdu rafmagnið við öryggiskassann eða rofann áður en uppsetning eða viðhald fer fram.

• Allar rafmagnstengingar verða að vera í samræmi við gildandi reglugerðir, reglugerðir eða NEC (National Electric Code).
• Ráðfærðu þig við löggiltan rafvirkja ef þú ert óviss um raflögnunaraðferðir.
• Notið aðeins UL/ETL-skráða vírtengi.
• Ekki fara yfir hámarkswatttage sem tilgreint er fyrir perurnar.
• Handle crystal components with care to prevent breakage or injury.
• Gakktu úr skugga um að festingarflöturinn geti borið þyngd festingarbúnaðarins.

Innihald pakka

Carefully unpack your fixture and identify all parts. Keep all packaging materials until you are sure all parts are accounted for and in good condition. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer service for assistance.

• Fixture Body (Canopy and Frame)
• Crystal Components (various shapes and sizes)
• Mounting Hardware (crossbar, mounting screws, wire nuts)
• Leiðbeiningarhandbók

Note: Bulbs are not included. This fixture requires A19-1 type bulbs, 60 Watts maximum.

Uppsetning og uppsetning

Verkfæri sem þarf (ekki innifalið):

• Phillips höfuð skrúfjárn
• Flat höfuð skrúfjárn
• Vírahreinsarar
• Rafmagns borði
• Öryggisgleraugu
• Stiga

Skref 1: Undirbúðu þig fyrir uppsetningu

1. Turn off power at the main fuse box or circuit breaker to prevent electrical shock.
2. Remove the old fixture, if applicable.
3. Carefully unpack the new fixture and lay out all parts on a clean, soft surface.

Step 2: Mount the Crossbar

1. Attach the mounting crossbar to the outlet box using the provided mounting screws. Ensure the crossbar is securely fastened.

Skref 3: Tengja búnaðinn

1. Connect the fixture's bare copper ground wire to the green or bare copper ground wire from the outlet box using a wire nut. If no ground wire is present, attach it to the green grounding screw on the crossbar.
2. Connect the fixture's ribbed (or white) wire to the white (neutral) wire from the outlet box using a wire nut.
3. Connect the fixture's smooth (or black) wire to the black (hot) wire from the outlet box using a wire nut.
4. Settu alla víra varlega inn í úttaksboxið.

Step 4: Secure the Fixture Body

1. Align the fixture's canopy with the mounting screws on the crossbar.
2. Secure the fixture to the crossbar using the decorative nuts or screws provided, ensuring it is flush against the ceiling.

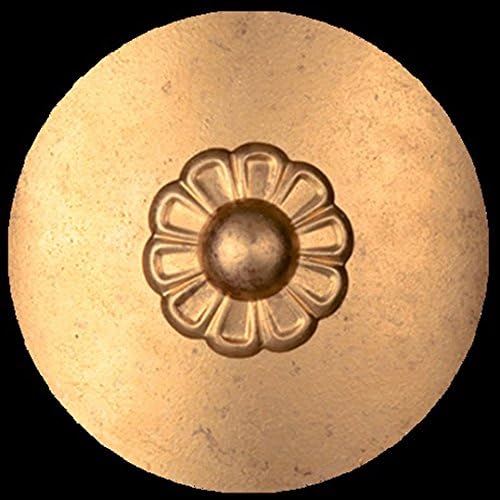

Image: Detail of the fixture's canopy or a mounting component.

Step 5: Attach Crystal Components

1. Refer to the included crystal diagram (if provided) for the correct placement of each crystal strand.
2. Carefully attach each crystal component to the designated hooks or loops on the fixture frame.
3. Handle crystals by their metal pins or strings to avoid fingerprints.

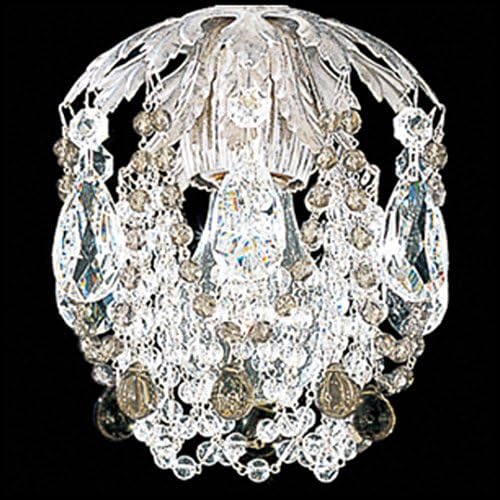

Image: The intricate crystal assembly of the fixture, showing various crystal shapes and their arrangement.

Skref 6: Settu upp perur

1. Screw the recommended A19-1 type bulbs (60 Watts maximum) into the sockets. Do not overtighten.

Skref 7: Endurheimtu orku

1. Turn on power at the main fuse box or circuit breaker.
2. Prófaðu innréttinguna til að tryggja að hún virki rétt.

Notkunarleiðbeiningar

The Schonbek 1250-26BD fixture operates like any standard lighting fixture. Once properly installed and powered, it can be controlled via a wall switch connected to the circuit. This fixture is designed for use with A19-1 incandescent or compatible LED bulbs, up to 60 watts maximum per socket.

• Ensure bulbs are securely screwed into their sockets.
• Use only bulbs that meet the specified wattage and type requirements.

Viðhald

Þrif á festingunni:

• Slökkvið alltaf á rafmagninu á tækinu áður en það er þrifið.
• For the metal finish (French Gold), wipe with a soft, dry cloth. Do not use abrasive cleaners or polishes, as they may damage the finish.
• For the Swarovski crystals, use a soft, lint-free cloth dampened with distilled water or a specialized crystal cleaner. Gently wipe each crystal. Avoid spraying cleaner directly onto the fixture to prevent damage to electrical components.
• Regular dusting with a feather duster or soft brush will help maintain the luster of the crystals.

Skipt um peru:

• Slökkvið á rafmagninu á ljósastæðinu við rofann.
• Leyfið perunum að kólna alveg áður en þið snertið þær.
• Unscrew the old bulb and replace it with a new A19-1 type bulb, 60 Watts maximum.
• Endurheimtu rafmagn og prófaðu innréttinguna.

Úrræðaleit

Tæknilýsing

• Gerð: 1250-26BD
• Vörumerki: Schonbek
• Efni: Kristall
• Litur: French Gold
• Gerð festingar: Hálf innfelld festing
• Aflgjafi: Rafmagn með snúru
• Voltage: 110 volt
• Gerð peru: A19-1 (Not Included)
• Max Wattage: 60 Watt
• Vörumál: 5.5 x 5.5 x 7.5 tommur
• Þyngd hlutar: 2 pund
• UPC: 771857096101

Ábyrgð og stuðningur

For warranty information or technical support, please contact Schonbek customer service directly. Details can typically be found on the manufacturer's official websíðunni eða í gegnum söluaðila þinn.

Schonbek Official Websíða: www.schonbek.com

Please have your model number (1250-26BD) and purchase date available when contacting support.
