Schonbek 1250-82SJ Rondelle Semi Flush Mount Lighting Fixture User Manual

1. Inngangur

This manual provides essential instructions for the safe installation, operation, and maintenance of your Schonbek 1250-82SJ Rondelle Semi Flush Mount Lighting Fixture. Please read this manual thoroughly before beginning installation and retain it for future reference. This fixture is designed to provide elegant illumination and is crafted with high-quality crystal components.

2. Öryggisupplýsingar

WARNING: Risk of electric shock. Disconnect power at the circuit breaker before installation or servicing.

• Allar rafmagnstengingar verða að vera í samræmi við gildandi reglugerðir, reglugerðir eða NEC (National Electric Code). Hafðu samband við löggiltan rafvirkja ef þú ert ekki kunnugur réttri rafmagnstengingu.
• Gakktu úr skugga um að festingarflöturinn geti borið þyngd festingarbúnaðarins.
• Setjið ekki upp þennan festibúnað í blautum eða þurrumamp staðsetningar.
• Handle crystal components with care to prevent breakage or injury. Wear gloves to avoid fingerprints.
• Notaðu aðeins tilgreinda perutegund og hvaðtage til að forðast ofhitnun og hugsanlega eldhættu.
• Haldið eldfimum efnum frá ljósastæðinu.

3. Innihald pakka

Carefully unpack your fixture and inspect all components for damage. Keep all packaging materials until you are certain all parts are present and in good condition. Refer to the diagram below for identification of parts.

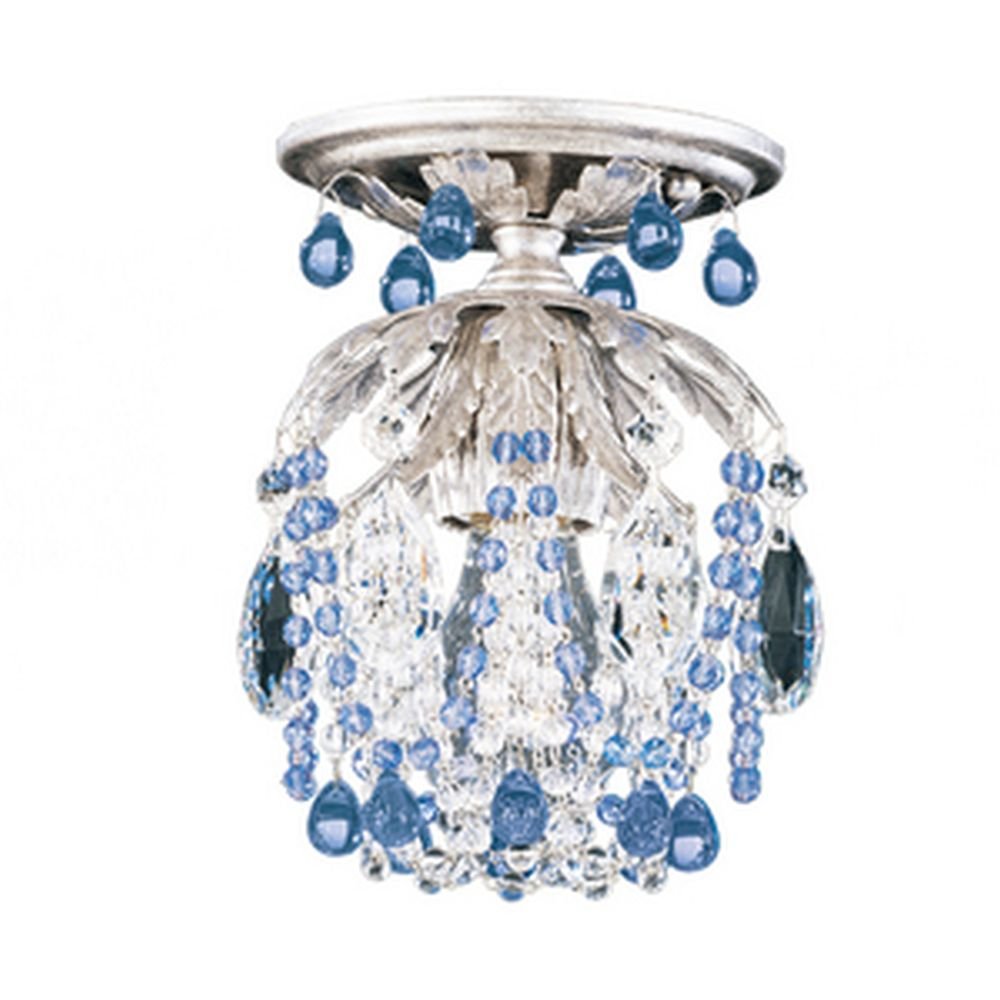

Image: The Schonbek 1250-82SJ Rondelle Semi Flush Mount Lighting Fixture, showcasing its crystal design and semi-flush mounting. This image represents the complete product as it appears when installed.

Pakkinn þinn ætti að innihalda:

• Fixture body with mounting hardware
• Crystal components (various shapes and sizes, depending on design)
• Leiðbeiningarhandbók

Athugið: Perur fylgja ekki með og þarf að kaupa þær sérstaklega.

4. Uppsetning og uppsetning

4.1. Verkfæri sem þarf

• Phillips höfuðskrúfjárn
• Flathaus skrúfjárn
• Vír Strippers
• Rafmagnsband
• Töng
• Öryggisgleraugu
• Vinnuhanskar

4.2. Uppsetningarskref

1. Slökktu á rafmagni: Locate the circuit breaker that supplies power to the light fixture outlet box. Turn off the power at the circuit breaker. Verify the power is off using a voltage prófari.
2. Undirbúa uppsetningu: Remove the existing fixture (if any). Attach the mounting bracket to the outlet box using the screws provided. Ensure the bracket is securely fastened.
3. Vírtengingar: Carefully connect the fixture's wires to the house wires. Match the black wire (live) from the fixture to the black wire from the outlet box, the white wire (neutral) from the fixture to the white wire from the outlet box, and the ground wire (bare copper or green) from the fixture to the ground wire from the outlet box. Secure connections with wire nuts and electrical tape.
4. Festingarbúnaður: Carefully lift the fixture body and align it with the mounting bracket. Secure the fixture body to the mounting bracket using the provided screws. Ensure the fixture is flush against the ceiling and stable.
5. Attach Crystal Components: Refer to the specific crystal diagram (if provided separately or on packaging) for your model. Carefully attach each crystal component to the fixture body using the provided hooks or pins. Handle crystals by their edges to avoid smudges.
6. Settu upp perur: Insert the recommended A19-1, 60 Watt maximum bulbs (not included) into the sockets. Do not exceed the maximum wattage.
7. Endurheimta kraft: Þegar uppsetningu er lokið og allir íhlutir eru örugglega á sínum stað skal kveikja aftur á straumnum við rofann.

5. Notkunarleiðbeiningar

5.1. Kveikja / slökkva á

The Schonbek 1250-82SJ fixture operates via a standard wall switch connected to the electrical circuit. Simply toggle the wall switch to turn the light fixture on or off.

5.2. Bulb Information

This fixture requires A19-1 type bulbs, with a maximum wattage of 60 watts per bulb. Ensure bulbs are fully seated in their sockets for proper operation. Using bulbs with higher wattage than specified can lead to overheating and damage to the fixture or create a fire hazard.

6. Viðhald

6.1. Þrif

Always turn off power at the circuit breaker before cleaning the fixture.

• Crystal Components: Gently wipe crystals with a soft, lint-free cloth dampened with a mild glass cleaner or distilled water. Avoid abrasive cleaners or harsh chemicals, as these can damage the crystal finish.
• Málmhlutir: Wipe metal surfaces with a soft, dry cloth. Do not use abrasive pads, powders, or creams, as they may scratch the finish.
• Gakktu úr skugga um að tækið sé alveg þurrt áður en rafmagnið er sett aftur á.

6.2. Skipt um peru

Always turn off power at the circuit breaker and allow bulbs to cool before replacing them.

• Carefully unscrew the old bulb from its socket.
• Screw in a new A19-1 bulb, ensuring it does not exceed 60 watts.
• Ekki herða peruna of mikið.
• Komdu aftur á rafmagn á aflrofanum.

7. Bilanagreining

If you experience issues with your fixture, consult the table below for common problems and solutions.

If the problem persists after attempting these solutions, please contact a qualified electrician or Schonbek customer support.

8. Tæknilýsing

9. Ábyrgð og stuðningur

Schonbek products are manufactured to the highest standards and are backed by a limited warranty against defects in materials and workmanship. The specific terms and duration of your warranty may vary. Please retain your proof of purchase for warranty claims.

For detailed warranty information, technical support, or to inquire about replacement parts, please visit the official Schonbek webvefsíðu eða hafið samband við þjónustuver þeirra. Upplýsingar um tengilið er yfirleitt að finna á vefsíðu framleiðandans. webumbúðir á síðunni eða vörunni.

Please note that improper installation, misuse, or unauthorized modifications may void your warranty.
