1. Inngangur
This instruction manual provides essential information for the proper and safe operation of your JVC AP-V14U AC Power Adapter. Please read this manual thoroughly before using the product and retain it for future reference. This adapter is designed to supply power to compatible JVC camcorders and charge their batteries.
2. Öryggisráðstafanir
- Do not expose the adapter to rain or moisture.
- Do not disassemble the adapter. Refer servicing to qualified personnel.
- Gakktu úr skugga um að hljóðstyrkur rafmagnsinnstungunnar sétage matches the adapter's input specifications (110V-240V AC).
- Forðastu að setja þunga hluti á rafmagnssnúruna.
- Aftengdu millistykkið úr innstungunni þegar það er ekki í notkun í langan tíma.
- Use only with specified JVC camcorder models.
3. Vöru lokiðview
The JVC AP-V14U is a compact AC power adapter designed for portability and efficient power delivery to your JVC camcorder. It features a standard US-style plug and a barrel connector for device compatibility.
Mynd 1: Efst view of the JVC AP-V14U AC Power Adapter, showing the main unit with attached power cord and connector.

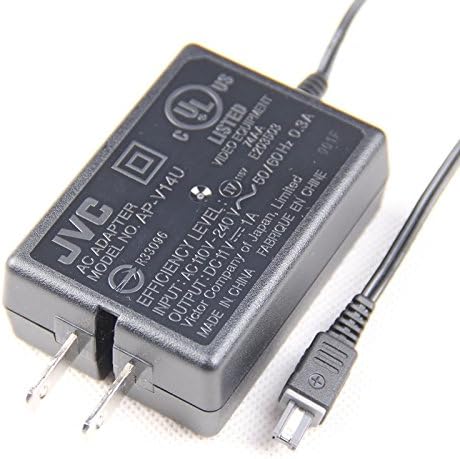

Mynd 2: Nærmynd view of the adapter's label, displaying the model number (AP-V14U), input voltage (AC 110V-240V), and output specifications (DC 11V, 1A).
Mynd 3: Ítarlegt view of the barrel connector, which plugs into the compatible JVC camcorder.
4. Uppsetning og tenging
- Staðfestu eindrægni: Before connecting, ensure your JVC camcorder model is listed as compatible with the AP-V14U adapter. Refer to Section 7 for a list of compatible models.
- Connect to Camcorder: Insert the barrel connector end of the adapter cable firmly into the DC input jack on your JVC camcorder. The DC input jack is typically located on the side or rear of the camcorder.
- Tengdu við rafmagnsinnstungu: Plug the AC power adapter into a standard electrical wall outlet (110V-240V AC).
- Kveikt á: Once connected, your camcorder should receive power, and if applicable, its battery will begin charging.
5. Notkunarleiðbeiningar
The JVC AP-V14U AC Power Adapter serves two primary functions:
- Bein aflgjafi: When connected, the adapter provides continuous power to your camcorder, allowing for extended recording or playback without relying on battery power.
- Rafhlaða hleðsla: If a rechargeable battery is inserted into the camcorder, the adapter will automatically charge the battery while simultaneously powering the device. The charging indicator on your camcorder will typically illuminate during this process. Refer to your camcorder's manual for specific charging indicators and times.
6. Viðhald og umönnun
- Þrif: Notið mjúkan, þurran klút til að þrífa millistykkið. Notið ekki fljótandi hreinsiefni eða leysiefni.
- Geymsla: Store the adapter in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly winding the cable to prevent damage.
- Skoðun: Periodically inspect the adapter and cable for any signs of damage, such as frayed wires or cracked casing. Discontinue use if damage is observed.
7. Bilanagreining
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Camcorder does not power on or charge. | Millistykkið er ekki rétt tengt. | Ensure both ends of the adapter are securely plugged in. |
| Rafmagnsinnstungan er ekki virk. | Prófaðu innstungu með öðru tæki. | |
| Camcorder model is incompatible. | Verify your camcorder model against the compatibility list in Section 8. | |
| Skemmdur millistykki eða snúra. | Inspect for visible damage. Discontinue use if damaged. | |
| Millistykkið er heitt við notkun. | Venjulegur rekstur. | A slight warmth is normal. If it becomes excessively hot or emits smoke/odor, disconnect immediately. |
8. Tæknilýsing
- Gerð: JVC AP-V14U
- Inntak: AC 110V-240V, 50/60Hz, 0.3A
- Framleiðsla: DC 11V, 1A
- Hvaðtage: 5 Watt
- Gerð tengis: Tunnutengi
- Efni: Plast
- Stærðir: Approximately 4.1 x 2.5 x 1.1 inches (main unit)
- Þyngd: Um það bil 3.2 aura
9. Compatible JVC Camcorder Models
The JVC AP-V14U AC Power Adapter is compatible with a wide range of JVC camcorder models, including but not limited to:
- JVC GR-AXM17U
- JVC GR-AXM18U
- JVC GR-D230U
- JVC GR-D244
- JVC GR-D244U
- JVC GR-D250
- JVC GR-D250U
- JVC GR-D270
- JVC GR-D270U
- JVC GR-D271
- JVC GR-D271U
- JVC GR-D275
- JVC GR-D275U
- JVC GR-D290
- JVC GR-D290U
- JVC GR-D295
- JVC GR-D32U
- JVC GR-D33
- JVC GR-D33U
- JVC GR-D347U
- JVC GR-D350
- JVC GR-D350U
- JVC GR-D370U
- JVC GR-D371U
- JVC GR-D375U
- JVC GR-D395
- JVC GR-D395U
- JVC GR-D396U
- JVC GR-D53
- JVC GR-D650
- JVC GR-D71U
- JVC GR-D72
- JVC GR-D72U
- JVC GR-D72US
- JVC GR-D73
- JVC GR-D73U
- JVC GR-D750
- JVC GR-D770
- JVC GR-D775
- JVC GR-D796
- JVC GR-D850
- JVC GR-D93
- JVC GR-D93U
- JVC GR-D94U
- JVC GR-DA30U
- JVC GR-DA30US
- JVC GR-DF450
- JVC GR-DF450U
- JVC GR-DF550
- JVC GR-DF550U
- JVC GR-Dx77
- JVC GR-DX77U
- JVC GR-Dx97
- JVC GR-DX97U
- JVC GR-SXM260
- JVC GR-SXM260U
- JVC GR-SXM37
- JVC GR-SXM37U
- JVC GR-SXM38U
- JVC GR-X5
- JVC GR-X5U
- JVC GZ-HD
- JVC GZ-HD10
- JVC GZ-HD3
- JVC GZ-HD30
- JVC GZ-HD300
- JVC GZ-HD40
- JVC GZ-HD5
- JVC GZ-HD6
- JVC GZ-HM1
- JVC GZ-HM200
- JVC GZ-HM400
- JVC GZ-MC500
- JVC GZ-MC500U
- JVC GZ-MG155
- JVC GZ-MG20
- JVC GZ-MG20U
- JVC GZ-MG21
- JVC GZ-MG21U
- JVC GZ-MG230
- JVC GZ-MG255
- JVC GZ-MG27
- JVC GZ-MG27U
- JVC GZ-MG30
- JVC GZ-MG30U
- JVC GZ-MG35U
- JVC GZ-MG37
- JVC GZ-MG37U
- JVC GZ-MG50
- JVC GZ-MG50U
- JVC GZ-MG70U
- JVC GZ-MG77
- JVC GZ-MG77U
- JVC GZ-MS120
- JVC GZ-MS130
- JVC GZ-X900
- JVC AP-V13KR
- JVC AP-V14
- JVC AP-V18
- JVC AP-V18U
- JVC AP-V14A
- JVC AP-V14E
- JVC AP-V15E
- JVC AP-V15U
- JVC AP-16U
- JVC AP-V14KR
- JVC AP-V20U
- JVC AP-V20
- JVC AP-V21U
- JVC AP-V21
- JVC AP-V21M
Always refer to your camcorder's specific manual to confirm power adapter compatibility.
