Patton PUF2010C-BM 20-Inch High Velocity Fan Instruction Manual

Inngangur

The Patton High Velocity Fan is engineered to move air effectively in various environments, including homes and work areas. This heavy-duty fan is designed with a powerful motor and a large blade diameter to ensure efficient air movement. It features three speed settings for optimizing air intake, exhaust, and circulation, along with a tilt-adjustable head for precise airflow direction. Its durable powder-coated metal construction ensures reliable and long-lasting use, even in demanding work areas, making it suitable for cooling, ventilation, and drying tasks.

Image: The Patton PUF2010C-BM 20-Inch High Velocity Fan, showcasing traust hönnun þess.

Uppsetningarleiðbeiningar

1. Taktu upp: Fjarlægið viftuna og allt umbúðaefni varlega úr kassanum. Skoðið viftuna til að sjá hvort einhver merki um skemmdir séu á henni.
2. Staðsetning: Place the fan on a stable, level surface. Ensure there is adequate space around the fan for proper airflow and to prevent obstruction of the intake or exhaust.
3. Rafmagnstenging: Ensure the fan's power cord is not kinked or obstructed. Plug the fan into a standard 120-volt AC electrical outlet.

Notkunarleiðbeiningar

• Kveikt/slökkt: The fan is operated using a rotary switch located on the motor housing. Turn the switch to one of the speed settings (I, II, III) to turn the fan on. Turn the switch to '0' to turn the fan off.
• Hraðastillingar: Viftan býður upp á þrjár hraðastillingar:
  • Ég (Lágt): Fyrir mjúka loftflæði.
  • II (Miðlungs): Fyrir miðlungs loftflæði
  • III (Hátt): For maximum air movement and ventilation.
• Stilla halla: The fan head can be tilted to direct airflow vertically. Loosen the adjustment knobs on either side of the fan, adjust the head to the desired angle, and then securely tighten the knobs.

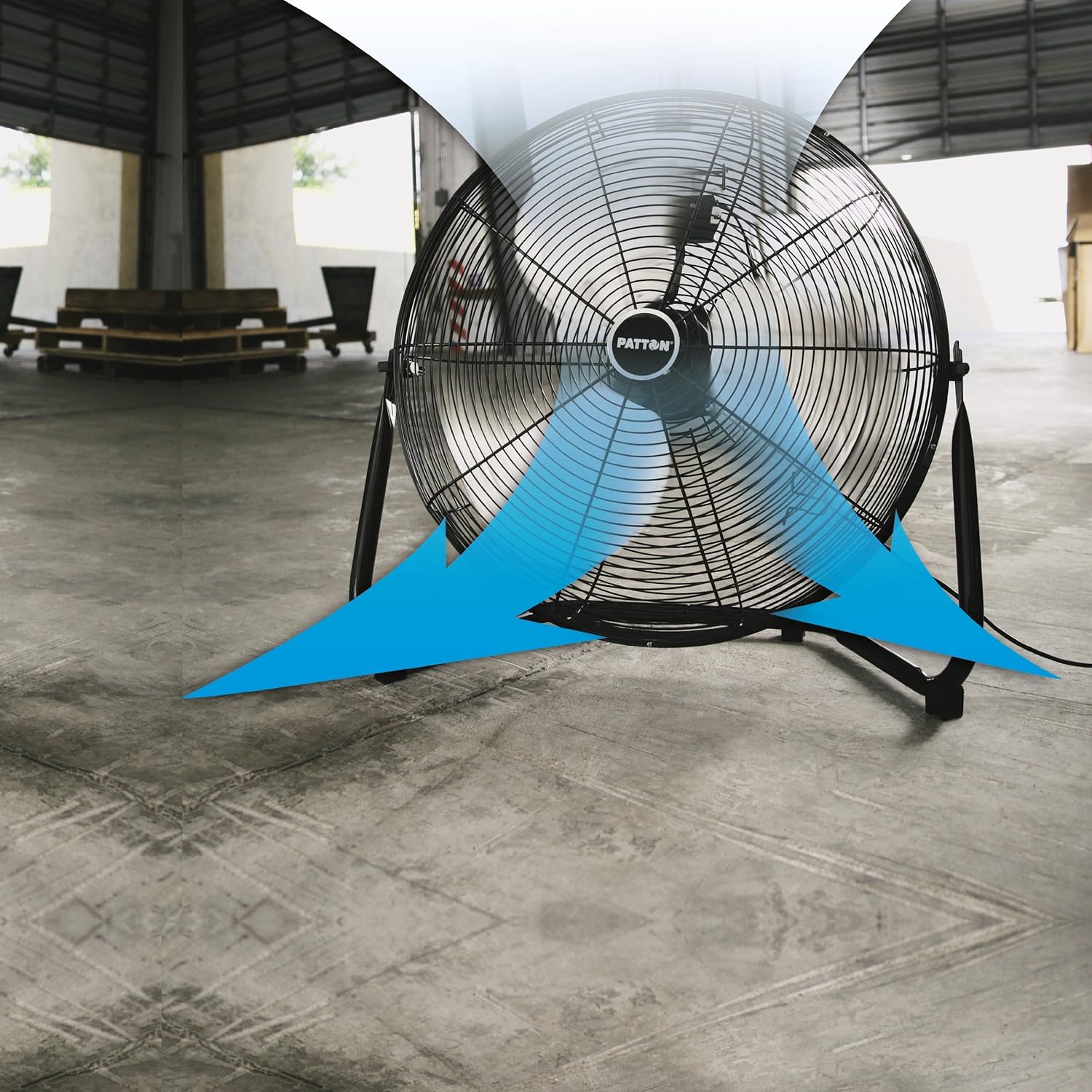

Image: Diagram illustrating the high-velocity airflow pattern of the fan.

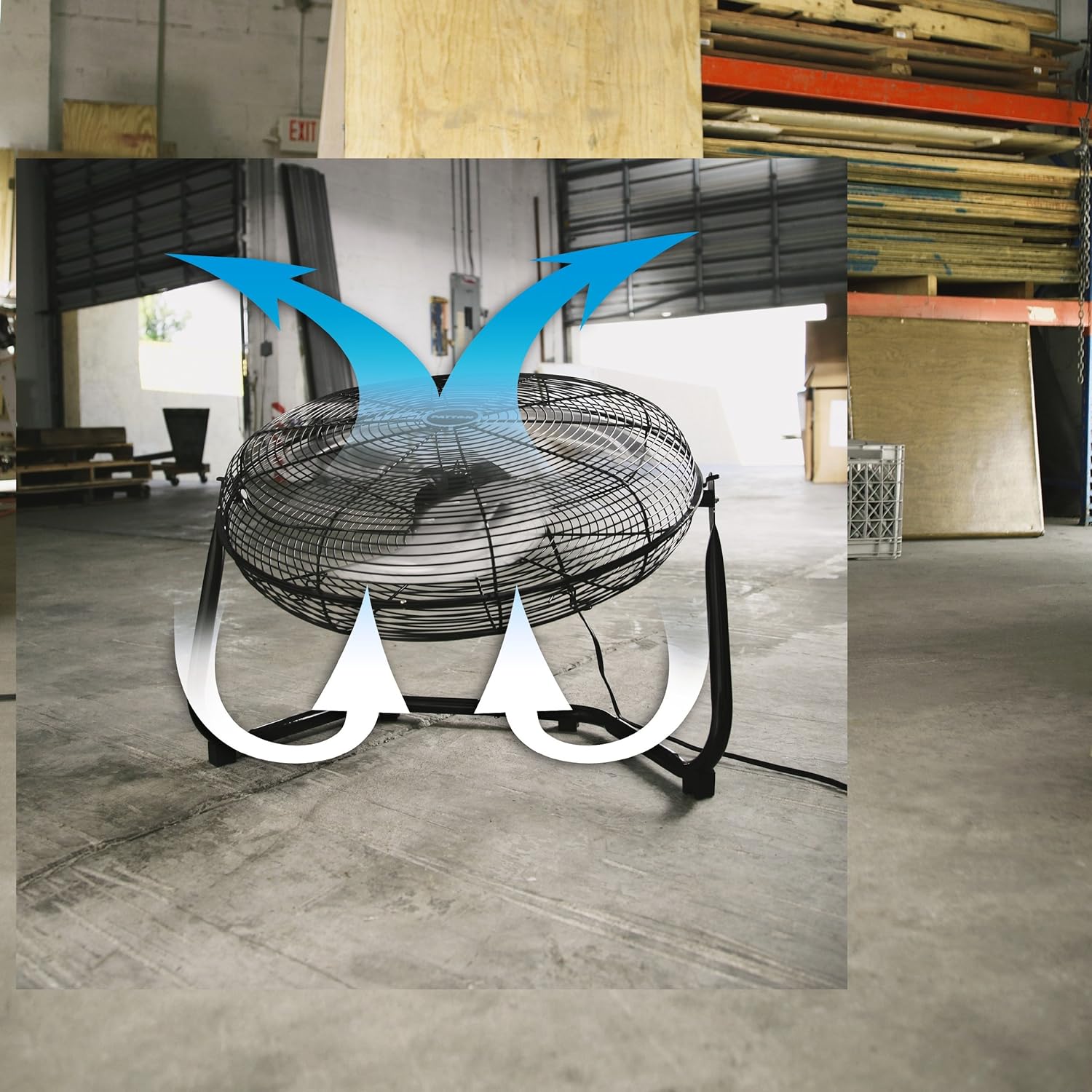

Image: Illustration of the fan's ability to circulate air effectively in a space.

Viðhald

Reglulegt viðhald hjálpar til við að tryggja langlífi og hámarksafköst viftunnar.

• Þrif: Always disconnect the fan from the power outlet before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces, blades, and grilles. Do not use abrasive cleaners or immerse the fan in water.
• Geymsla: Þegar viftan er ekki í notkun skal geyma hana á köldum og þurrum stað, helst í upprunalegum umbúðum eða lokuðum til að vernda hana fyrir ryki.

Úrræðaleit

Vifta kveikir ekki á:

Ensure the fan is securely plugged into a working electrical outlet. Check the power switch to ensure it is set to an 'On' position (I, II, or III).

Minni loftstreymi:

Check if the grilles or blades are obstructed by dust or debris. Clean the fan as described in the Maintenance section.

Óvenjulegur hávaði eða titringur:

Ensure the fan is placed on a stable, level surface. Check for any loose parts or foreign objects that may be interfering with the blades. If the noise persists, discontinue use and contact customer support.

Tæknilýsing

Upplýsingar um ábyrgð

This Patton High Velocity Fan (Model PUF2010C-BM) comes with a 3 ára takmörkuð ábyrgð. For complete details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product purchase. Keep your proof of purchase for warranty claims.

Vörumiðlar

Mynd: Framan view of the Patton High Velocity Fan, highlighting its protective grille.

Mynd: Hlið view of the fan, showing its sturdy stand and tilt mechanism.

Image: The fan positioned to provide cooling in a room setting.

Image: The fan operating in a workshop environment, demonstrating its utility in demanding spaces.
