Donner Yellow Fall Analog Delay Guitar Effect Pedal Instruction Manual

1. Inngangur

The Donner Yellow Fall is a compact analog delay guitar effect pedal designed to deliver warm, natural vintage delay sounds. Its mini size makes it pedalboard-friendly, while its durable aluminum-alloy casing ensures reliability. This manual provides essential information for setting up, operating, and maintaining your pedal.

2. Vöru lokiðview

The Yellow Fall pedal features a straightforward design with three control knobs and a footswitch. Its true bypass circuitry ensures your guitar's tone remains unaffected when the pedal is disengaged. The bright yellow finish and compact form factor make it a distinctive addition to any setup.

Mynd 1: Ofan frá og niður view of the Donner Yellow Fall Delay Pedal, highlighting its compact design and control layout.

3. Eiginleikar

• Analog seinkun: Reproduces the warm and natural classic vintage analog delay sound.
• Flexible Delay Time: Offers a delay time range from 20ms to 620ms.
• Stillanleg stjórntæki: Features adjustable delay level (Echo) and feedback (F.Back).
• Varanlegur smíði: Housed in a robust aluminum-alloy casing for stability and strength.
• Fyrirferðarlítil stærð: Mini design is ideal for pedalboards with limited space.
• True Bypass: Provides transparent tone when the effect is disengaged.
• LED vísir: Clearly shows the working state of the pedal.
• Aflþörf: Operates on 9V DC power (power supply not included).

4. Uppsetning

1. Rafmagnstenging: Connect a standard 9V DC power adapter (center negative, not included) to the DC 9V input jack on the top of the pedal.
2. Inntakstenging: Connect your guitar or the output of a preceding effect pedal to the INPUT jack on the right side of the pedal.
3. Úttakstenging: Tengdu OUTPUT tengið vinstra megin á pedalanum við þinn amplifier or the input of a subsequent effect pedal.
4. Kveikt á: Ensure all connections are secure before powering on your amplifier and pedal.

5. Notkunarleiðbeiningar

The Donner Yellow Fall pedal features intuitive controls for shaping your delay sound. Experiment with each knob to find your desired effect.

Mynd 2: Ítarleg view of the control knobs on the Donner Yellow Fall Delay Pedal.

Stýringar:

• TIME hnappur: Adjusts the delay time, ranging from 20ms (fully counter-clockwise) to 620ms (fully clockwise). This controls the interval between the original signal and its repeats.
• ECHO hnappur: Adjusts the delay level or mix. This controls the volume of the delayed signal relative to your dry signal.
• F.BACK Knob: Adjusts the amount of feedback. This controls how many times the delayed signal repeats. Higher settings result in more repeats.
• Fótrofi: Engages or disengages the effect. The LED indicator illuminates when the effect is active.
• True Bypass: When the effect is disengaged, the signal passes directly through the pedal without any electronic processing, preserving your original tone.

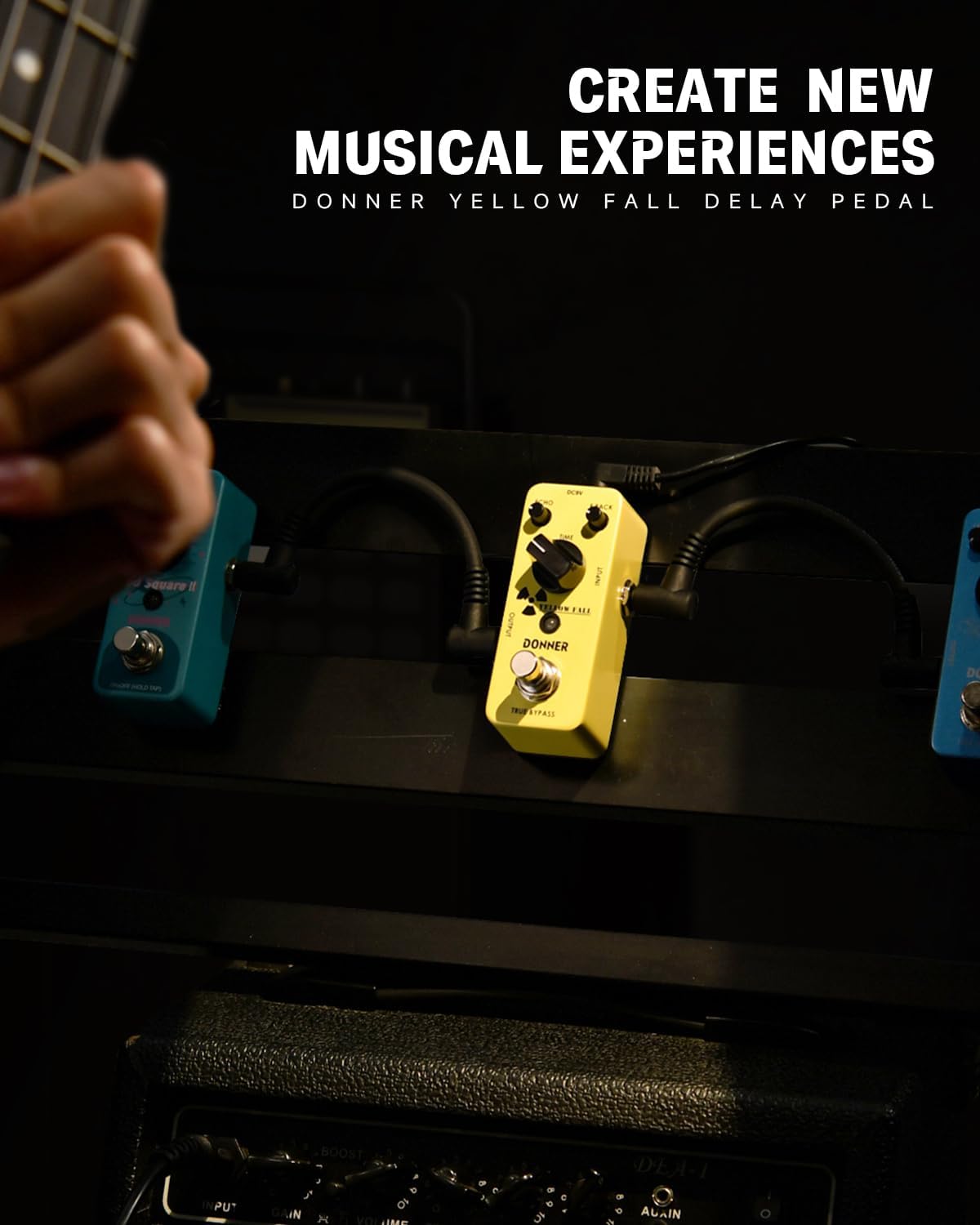

Figure 3: The Donner Yellow Fall Delay Pedal integrated into a guitar setup.

6. Viðhald

• Haldið pedalinu hreinu með því að þurrka það með mjúkum, þurrum klút.
• Forðist að láta pedalinn verða fyrir miklum hita, raka eða beinu sólarljósi.
• Do not attempt to disassemble or modify the pedal, as this may void the warranty and cause damage.
• Aftengdu rafmagnið þegar pedalinn er ekki í notkun í langan tíma.

7. Bilanagreining

• Ekkert hljóð: Check all cable connections (input, output, power). Ensure the power supply is correctly connected and functioning. Verify that your guitar and amplyftara virka rétt.
• Weak or Distorted Signal: Check cable integrity. Ensure the ECHO knob is not set too low. Test with a different power supply if possible.
• Óæskilegur hávaði: Ensure you are using a regulated 9V DC power supply. Unplug other pedals to isolate the source of noise. Check for faulty cables.

8. Tæknilýsing

9. Hvað er í kassanum

• 1 x Donner Yellow Fall Delay Guitar Effect Pedal
• 1 x notendahandbók

10. Ábyrgð og stuðningur

Fyrir upplýsingar um ábyrgð eða tæknilega aðstoð, vinsamlegast vísið til opinberu Donner websíðuna eða hafið samband við söluaðila. Geymið kaupkvittunina sem sönnun fyrir kaupunum.
