Notendahandbók fyrir IDEAL 2445 pappírsrifara með krossskurði fyrir borð

1. Inngangur

The IDEAL 2445 is a high-quality cross-cut deskside paper shredder designed for efficient and secure document destruction in home or office environments. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your shredder.

Key features include continuous operation, P-4 security level for cross-cut shredding, and the ability to shred paper, staples, paper clips, and credit cards. Its robust design and German engineering ensure reliable performance.

Mynd 1: The IDEAL 2445 Cross-Cut Deskside Paper Shredder. This image shows the overall design of the shredder, featuring its compact and professional appearance suitable for office environments.

2. Öryggisleiðbeiningar

Please read all safety instructions before operating the shredder to prevent injury or damage to the unit.

• Keep hands, loose clothing, hair, and jewelry away from the feed opening.
• Do not insert more than the recommended number of sheets (11-13 sheets) at one time.
• Haltu börnum og gæludýrum í burtu frá tætaranum.
• Unplug the shredder when not in use or before cleaning, moving, or emptying the waste bin.
• Do not spray aerosols or flammable products into or around the shredder.
• Do not shred adhesive labels, continuous forms, or plastic film.
• Gakktu úr skugga um að tætarinn sé staðsettur á stöðugu og sléttu yfirborði.
• The patented, electronically-controlled, transparent safety shield in the feed opening is designed to protect fingers and hands. Do not bypass or tamper með þessa öryggisaðgerð.

3. Uppsetning

1. Upptaka: Takið rifvélina varlega úr umbúðunum. Geymið umbúðirnar til síðari flutnings eða geymslu.
2. Staðsetning: Position the shredder on a flat, stable surface. The unit is equipped with casters for easy mobility. Ensure adequate space around the unit for ventilation.
3. Ruslatunna: Ensure the 9-gallon waste bin is correctly inserted into the cabinet. The shredder will not operate if the bin is not properly seated.
4. Rafmagnstenging: Stingdu rafmagnssnúrunni í venjulega rafmagnsinnstungu.

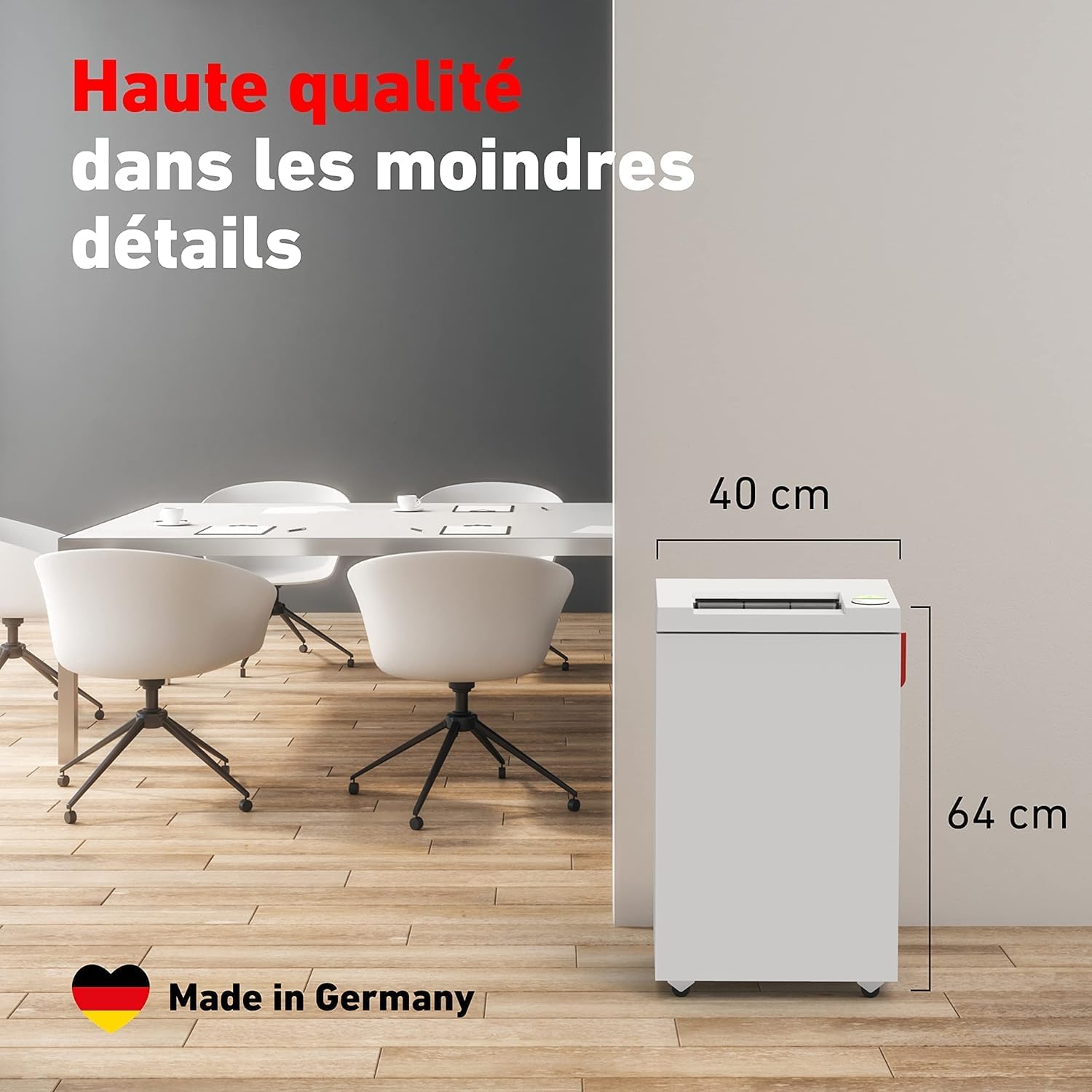

Mynd 2: Approximate dimensions of the IDEAL 2445 shredder. The unit measures approximately 40 cm (15.7 inches) in width and 64 cm (25.2 inches) in height, indicating its compact deskside design.

4. Notkunarleiðbeiningar

The IDEAL 2445 shredder features a user-friendly control panel for easy operation.

1. Kveikt á: Locate the main power switch, typically on the control panel. Press the power button to turn on the shredder. The indicator light will illuminate.
2. Fóðrunarskjöl: Insert paper into the feed opening. The shredder will automatically detect the paper and begin shredding. Do not exceed the maximum capacity of 11-13 sheets of paper at a time.
3. Shredding Other Materials: The shredder can also process staples, small paper clips, and credit cards. Insert these items into the feed opening one at a time.
4. Stöðug aðgerð: The IDEAL 2445 is designed for continuous operation, minimizing downtime during shredding tasks.
5. Jam Prevention: The shredder features manual reverse and automatic reverse functions. If an overfeed occurs, the shredder will automatically stop and reverse to clear the jam. You can also manually activate the reverse function if needed.
6. Bin Full Sensor: The shredder will automatically stop when the waste bin is full, indicated by a specific light on the control panel.
7. Slökkva á: After use, press the power button to turn off the shredder. For extended periods of non-use, unplug the unit from the power outlet.

Mynd 3: The IDEAL 2445 shredder actively processing documents. This illustrates the paper feed mechanism and the shredding process.

Mynd 4: Visual representation of the shredder's capacity. The IDEAL 2445 can shred up to 13 sheets of paper at once and has a 35-liter (9-gallon) waste bin capacity.

Mynd 5: The control panel of the IDEAL 2445 shredder. It features a single switch for multiple functions, including power on/off, forward, and reverse ('R') operations, along with status indicators.

Mynd 6: Indication of the P-4 security level for the IDEAL 2445 shredder. This cross-cut security level is compliant with HIPAA and FACTA, ensuring protection against identity theft by shredding documents into small, unreadable particles.

5. Viðhald

Reglulegt viðhald tryggir langlífi og bestu mögulegu afköst rifvélarinnar.

• Að tæma ruslatunnuna: When the 'bin full' indicator illuminates, or when the bin is visibly full, slide out the waste bin and empty the shredded material. Reinsert the bin securely.
• Oiling the Cutting Heads: To maintain shredding performance and extend the life of the cutting heads, regularly oil the shredder. Apply shredder oil across the paper entry slot while the shredder is running in reverse for a few seconds. Refer to the oil manufacturer's instructions for frequency.
• Þrif: Þurrkið ytra byrði rifvélarinnar með mjúkum, þurrum klút. Notið ekki slípiefni eða leysiefni. Gangið úr skugga um að rifvélin sé úr sambandi áður en hún er þrifin.

Mynd 7: A hand removing the waste bin from the IDEAL 2445 shredder. This demonstrates the process of emptying the shredded paper from the 9-gallon bin.

6. Bilanagreining

If you encounter issues with your IDEAL 2445 shredder, refer to the following common problems and solutions:

• Tætari kveikir ekki á sér:
  • Gakktu úr skugga um að rafmagnssnúran sé tryggilega tengd í virka innstungu.
  • Check if the waste bin is correctly inserted. The shredder has a safety interlock.
  • Verify the main power switch is in the 'ON' position.
• Pappírsstopp:
  • If the shredder stops and reverses automatically, allow it to clear the jam.
  • If the jam persists, use the manual reverse function (often marked 'R' on the control panel) to attempt to clear the paper.
  • Reduce the number of sheets fed at one time.
  • Unplug the shredder and carefully remove any visible paper from the feed opening.
• Shredder Stops During Operation (Overheat):
  • Although designed for continuous operation, prolonged heavy use can cause the motor to overheat. If this occurs, the shredder will automatically shut off.
  • Unplug the unit and allow it to cool down for approximately 30-60 minutes before resuming operation.
• 'Bin Full' Indicator Remains On After Emptying:
  • Ensure the waste bin is fully and correctly reinserted.
  • Check the bin full sensor for any obstructions or debris.

7. Tæknilýsing

Detailed technical specifications for the IDEAL 2445 Cross-Cut Deskside Paper Shredder:

8. Upplýsingar um ábyrgð

The IDEAL 2445 shredder is backed by a comprehensive warranty:

• Lífstíma ábyrgð: On cutting shafts and wheels.
• 3 ára takmörkuð ábyrgð: On all other parts, excluding wearables.
• 90 daga takmörkuð ábyrgð: On labor or exchange, at IDEAL's discretion.

Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact IDEAL customer support.

Mynd 8: Illustration of the shredder's cutting cylinders and the lifetime warranty. This highlights the durability and quality of the shredding mechanism.

9. Stuðningur

For further assistance, technical support, or to inquire about replacement parts, please contact IDEAL customer service. Refer to the contact information provided in your product packaging or visit the official IDEAL websíða.
