Eva Punto Fuoco Pellet Stove User Manual

1. Vöru lokiðview

The Eva Punto Fuoco Pellet Stove is a compact and efficient heating appliance designed for residential use. It features varnished steel panels, a programmable thermostat, and is capable of heating spaces up to 83 m². This freestanding unit provides reliable and controlled warmth using wood pellets as fuel.

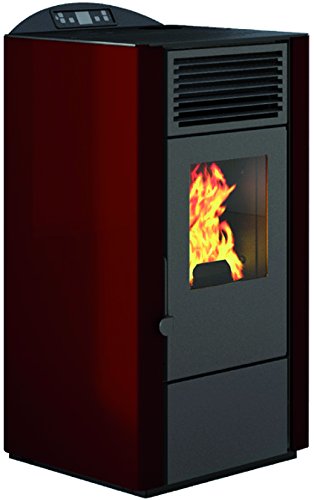

This image displays the Eva Punto Fuoco Pellet Stove, showcasing its compact design and varnished steel panels.

Helstu eiginleikar:

• Varnished steel panels for durability and aesthetics.
• Heated volume capacity: 140-200 m³.
• Integrated programmer and thermostat for precise temperature control.
• Compact dimensions: 46 cm (width) x 52 cm (depth) x 96 cm (height).
• Efficient heating performance.

2. Öryggisupplýsingar

Read all instructions carefully before installation and operation. Failure to follow safety guidelines can result in property damage, injury, or death.

• Uppsetning: Ensure the stove is installed by a qualified professional according to local building codes and regulations. Maintain proper clearances from combustible materials as specified in the installation manual (not provided here, refer to product-specific documentation).
• Loftræsting: Ensure adequate ventilation for proper combustion and to prevent carbon monoxide buildup. This stove is designed as a vent-free type, but proper air circulation in the room is still crucial.
• Eldsneyti: Use only high-quality wood pellets as fuel. Do not use other materials such as trash, cardboard, or liquid fuels.
• Aðgerð: Never leave the stove unattended while operating. Keep children and pets away from the hot surfaces of the stove.
• Viðhald: Regularly clean the stove and chimney system to prevent creosote buildup and ensure efficient operation.
• Neyðartilvik: In case of a fire, evacuate the area and call emergency services. Do not use water on a pellet stove fire.

3. Uppsetning

Proper setup is crucial for the safe and efficient operation of your pellet stove.

3.1 Staðsetning

• Place the stove on a non-combustible surface. If placing on a combustible floor, ensure a suitable floor protector is used.
• Maintain minimum clearances from walls and other combustible materials as specified in the full installation guide.
• Ensure the location allows for easy access for loading pellets and performing maintenance.

3.2 Rafmagnstenging

• Connect the stove to a dedicated, grounded electrical outlet.
• Notið ekki framlengingarsnúrur eða rafmagnsrönd.

3.3 Upphafsathuganir

• Verify that all packaging materials have been removed from inside and around the stove.
• Ensure the burn pot is correctly seated.
• Check that the pellet hopper is empty and clean before first use.

4. Notkunarleiðbeiningar

Follow these steps for safe and efficient operation of your Eva Punto Fuoco Pellet Stove.

4.1 Loading Pellets

1. Open the pellet hopper lid located on top of the stove.
2. Pour high-quality wood pellets into the hopper, ensuring not to overfill.
3. Lokaðu lokinu á ílátinu örugglega.

4.2 Starting the Stove

1. Ensure the stove is plugged into a grounded electrical outlet.
2. Locate the control panel, typically on the front or top of the stove.
3. Press the 'ON' or 'START' button. The igniter will activate, and pellets will begin to feed into the burn pot.
4. Monitor the stove during the initial ignition phase to ensure proper flame establishment. This may take several minutes.

4.3 Using the Programmer and Thermostat

• Hitastilling: Use the '+' and '-' buttons on the control panel to set your desired room temperature. The stove's thermostat will automatically adjust pellet feed rates to maintain this temperature.
• Forritun: Refer to the detailed programming section in your complete manual for setting daily or weekly operating schedules. This allows the stove to turn on/off or adjust temperature at specific times.
• Aflstig: Some models allow manual adjustment of power levels (pellet feed rate and fan speed) for faster heating or more economical operation.

4.4 Shutting Down the Stove

1. Press the 'OFF' or 'STOP' button on the control panel.
2. The stove will enter a cool-down cycle, during which the fan will continue to operate to dissipate residual heat. Do not unplug the stove during this cycle.
3. Once the cool-down cycle is complete, the stove will power off.

5. Viðhald

Regular maintenance ensures the longevity and efficient performance of your pellet stove. Always ensure the stove is completely cool and unplugged before performing any maintenance.

5.1 Dagleg/vikuleg þrif

• Burn Pot: Remove and clean the burn pot to clear any ash or clinkers (hardened ash). Ensure all air holes are clear.
• Ash Pan: Empty the ash pan. Dispose of ash in a metal container with a tight-fitting lid, away from combustible materials.
• Gler: Clean the ceramic glass with a specialized stove glass cleaner when cool.

5.2 Monthly/Seasonal Cleaning

• Hitaskipti: Clean the heat exchanger tubes or fins to remove ash buildup, which can reduce efficiency.
• Hopper: Inspect the pellet hopper for any dust or debris.
• Loftræstikerfi: Inspect and clean the exhaust vent pipe and chimney system. This should be done by a qualified technician annually.

5.3 Fuel Quality

Using high-quality, low-ash wood pellets is essential for optimal performance and reduced maintenance. Poor quality pellets can lead to excessive ash, clinker formation, and reduced heating efficiency.

6. Bilanagreining

This section addresses common issues you might encounter with your pellet stove. For complex problems, contact a qualified service technician.

6.1 Stove Not Igniting

• Check Pellets: Ensure the hopper has enough pellets and they are feeding correctly.
• Burn Pot: Verify the burn pot is clean and free of obstructions.
• Kveikja: The igniter may be faulty. This requires professional inspection.
• Kraftur: Ensure the stove is plugged in and receiving power.

6.2 Poor Heat Output

• Pellet gæði: Use high-quality pellets.
• Þrif: Clean the burn pot, ash pan, and heat exchanger. Ash buildup reduces efficiency.
• Stilling hitastilli: Ensure the thermostat is set to a sufficiently high temperature.
• Loftræsting: Check for proper airflow and ensure the exhaust system is not blocked.

6.3 Excessive Smoke

• Loftræsting: Inspect the exhaust system for blockages or leaks.
• Pellet Feed Rate: The pellet feed rate might be too high for the air intake. Adjust settings if possible.
• Loftinntak: Ensure the stove's air intake is not obstructed.

7. Tæknilýsing

8. Ábyrgð og stuðningur

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms and conditions may vary.

For technical support, service, or spare parts inquiries, please contact the retailer or an authorized service center. Keep your purchase receipt and product model information readily available when seeking support.
