Waveshare 7-inch DPI Display for Raspberry Pi

Notendahandbók

1. Inngangur

This manual provides detailed instructions for setting up, operating, and maintaining your Waveshare 7-inch IPS Display. Designed for seamless integration with various Raspberry Pi models, this display offers a 1024x600 resolution via a DPI interface, ensuring a clear visual experience for your projects.

2. Innihald pakka

Verify that all items listed below are included in your package. If any components are missing or damaged, please contact customer support.

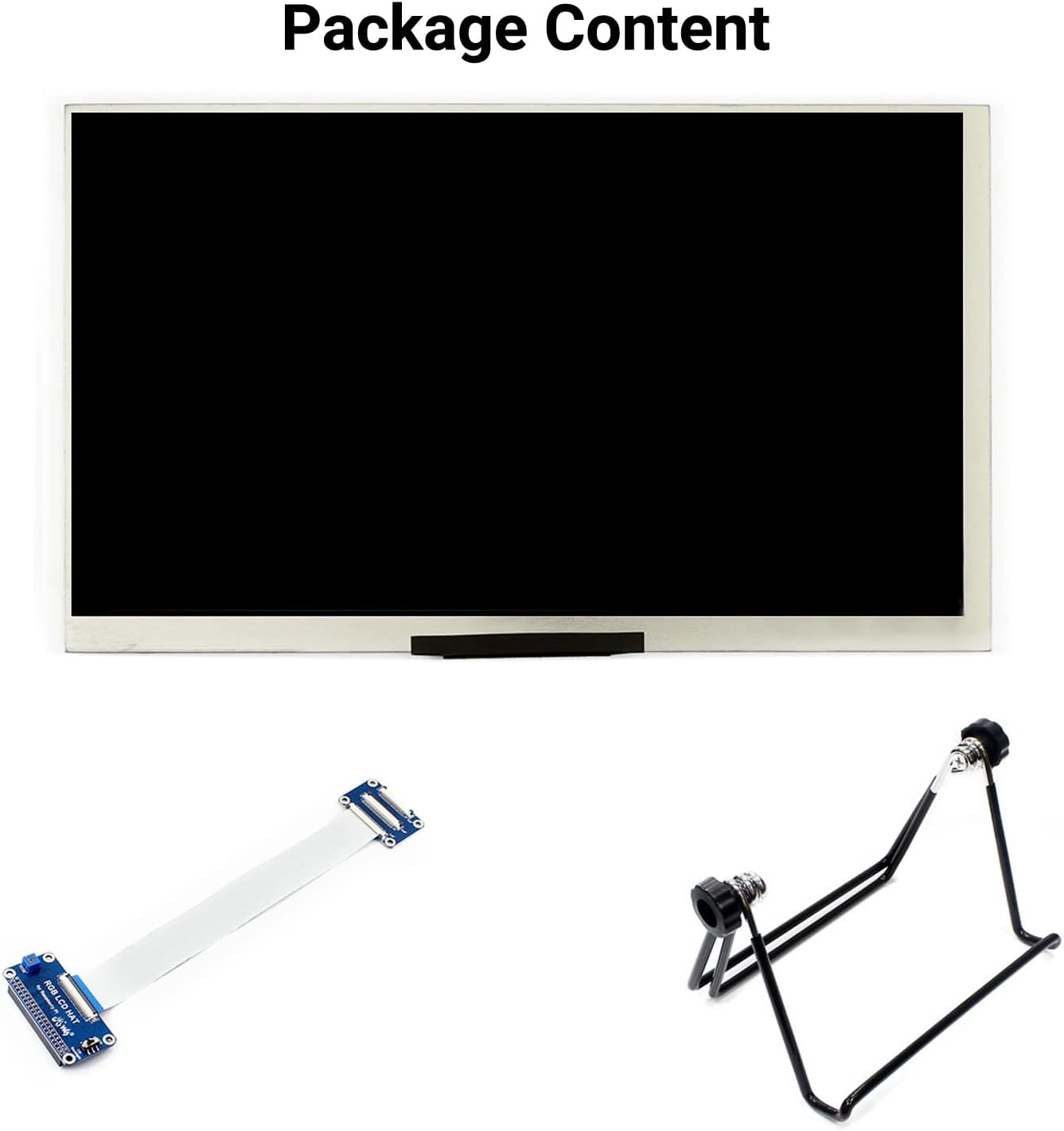

Image showing the Waveshare 7-inch DPI Display, an FFC cable, and a metal stand.

Mynd 2.1: Innihald pakka

  • Waveshare 7-inch IPS Display (1024x600)
  • FFC (Flexible Flat Cable)
  • Adjustable Metal Stand

3. Vörueiginleikar og upplýsingar

The Waveshare 7-inch DPI Display is engineered for optimal performance and compatibility with Raspberry Pi boards.

Diagram illustrating the 7-inch DPI Display's features including 1024x600 resolution, IPS panel, 170-degree viewing angle, low power consumption, and compatible Raspberry Pi models.

Figure 3.1: Display Features and Supported Devices

3.1 Helstu eiginleikar

  • Skjárstærð: 7 tommur
  • Upplausn: 1024x600 pixlar
  • Tegund pallborðs: IPS (In-Plane Switching) for wide viewing horn
  • Tengi: DPI (Display Parallel Interface)
  • Viewí horn: 170°
  • Baklýsing: Controllable for lower power consumption
  • Samhæfni: Designed for Raspberry Pi 40-pin GPIO interface

3.2 Supported Raspberry Pi Models

The display is compatible with the following Raspberry Pi series boards:

  • Raspberry Pi 4B
  • Raspberry Pi 3B+ / 3B
  • Raspberry Pi 2B / B+ / A+
  • Raspberry Pi Zero / Zero W / WH / Zero 2W

Supports future versions that maintain backward compatibility with the 40-pin GPIO interface.

3.3 Styður stýrikerfi

The display supports operating systems such as Raspberry Pi OS (formerly Raspbian) and Ubuntu.

4. Uppsetningarleiðbeiningar

Follow these steps carefully to connect and configure your Waveshare 7-inch DPI Display with your Raspberry Pi.

4.1 Líkamleg tenging

  1. Prepare the FFC Cable: Gently insert one end of the 50-pin FFC cable into the JP2 connector (drawer socket) on the display's small adapter board. Ensure the cable is fully seated and then close the drawer socket to secure it.
    2. Detailed image showing how to insert the 50-pin FFC cable into the drawer socket connector on the display's adapter board.

    Figure 4.1: FFC Cable Insertion

  2. Connect to RGB LCD HAT: Insert the other end of the 50-pin FFC cable into the connector on the RGB LCD HAT. This is typically a turn-cover socket; lift the cover, insert the cable, and then press the cover down to lock it.
  3. Attach RGB LCD HAT to Raspberry Pi: Carefully align the 40-pin GPIO header of the RGB LCD HAT with the GPIO pins on your Raspberry Pi board. Press down gently but firmly to ensure a secure connection.

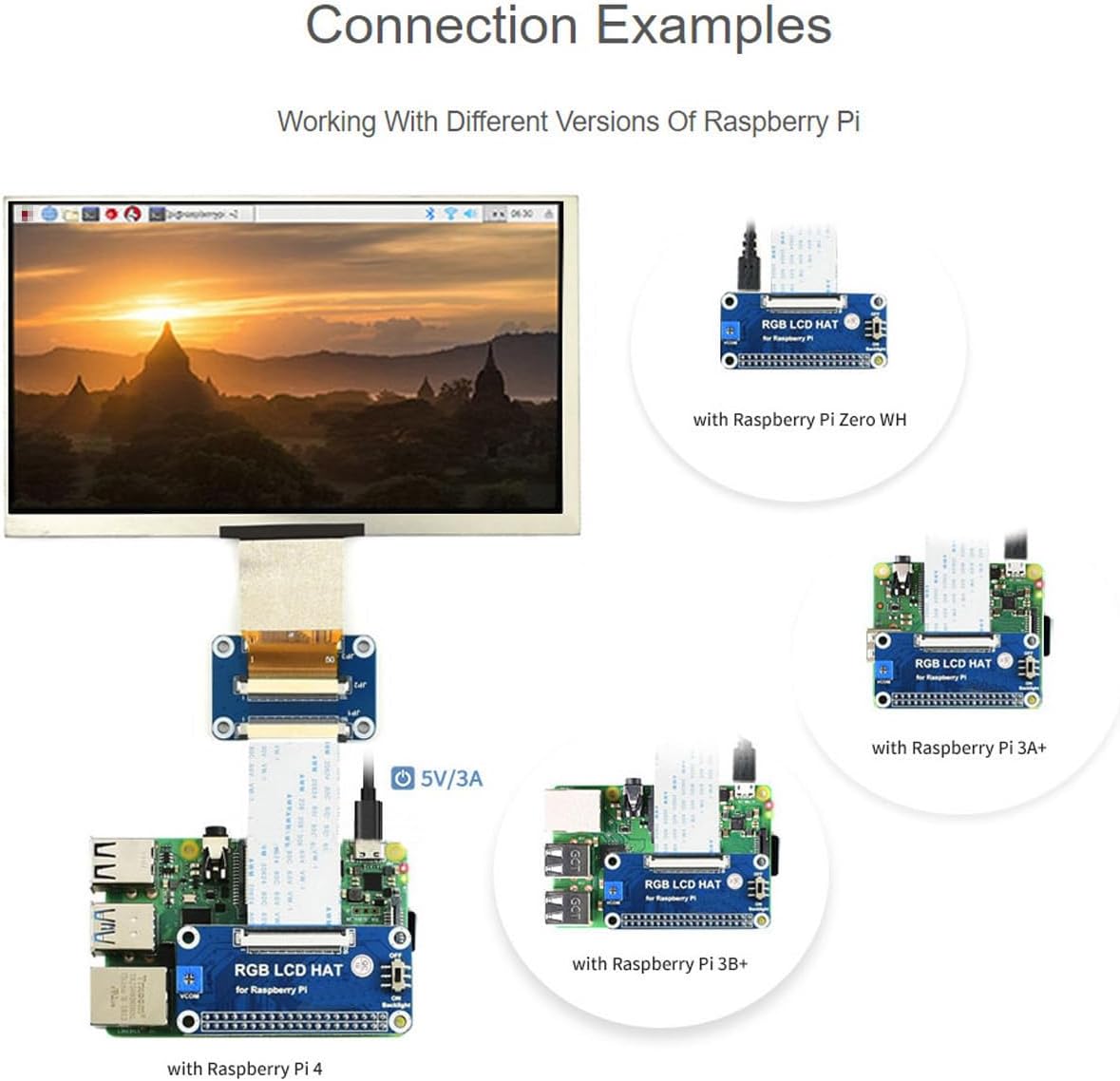

    4. Diagram showing connection examples of the 7-inch DPI Display with various Raspberry Pi models (Pi 4, Pi Zero WH, Pi 3A+, Pi 3B+).

    Mynd 4.2: Tenging Examples with Raspberry Pi

  4. Mount the Display (Optional): If using the adjustable metal stand, attach the display to the stand as shown in the product images. This provides a stable viewing horn.
    5. Image of the 7-inch DPI Display assembled with the RGB LCD HAT and Raspberry Pi, mounted on the adjustable metal stand.

    Figure 4.3: Assembled Display with Stand and Raspberry Pi

  5. Kveikt á: Connect a 5V/3A power supply to your Raspberry Pi. The display will draw power directly from the Pi's GPIO pins.

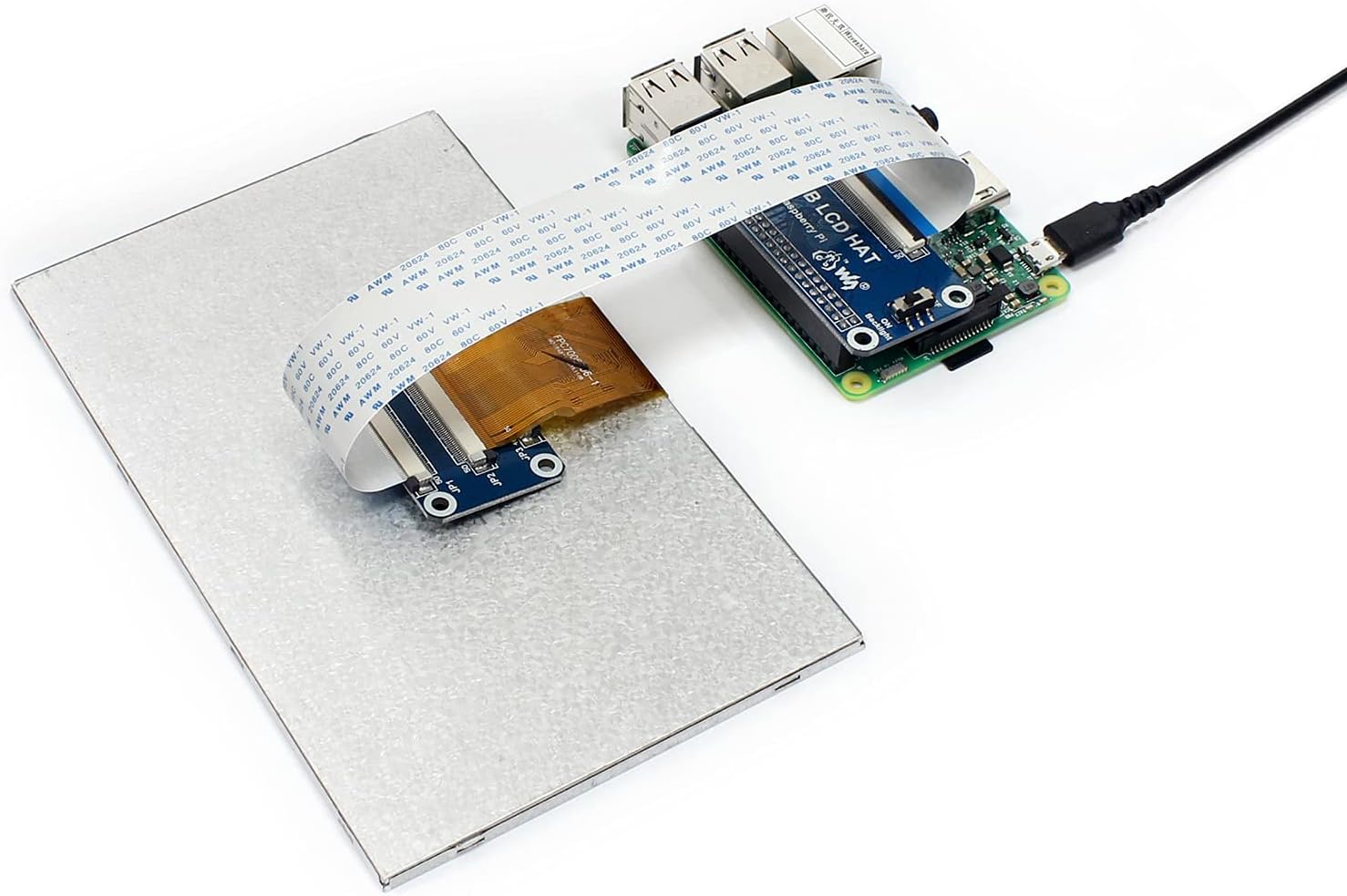

    6. Image of the 7-inch DPI Display connected to a Raspberry Pi via the RGB LCD HAT, with a power cable attached to the Pi.

    Figure 4.4: Display Connected to Raspberry Pi

4.2 Hugbúnaðarstilling

For the display to function correctly, you may need to modify the config.txt file on your Raspberry Pi's boot partition. This typically involves setting the correct resolution and DPI interface parameters. Refer to the official Waveshare online user manual for specific configuration lines for your Raspberry Pi model and OS version.

Athugið: Incorrect configuration in config.txt is a common cause for display issues such as a black screen or no image. Always back up your config.txt before making changes.

5. Notkunarleiðbeiningar

5.1 Baklýsingastýring

The display features backlight control to manage power consumption. Specific methods for controlling the backlight (e.g., via software commands or physical jumpers) may vary. Consult the Waveshare online documentation for detailed instructions relevant to your setup.

6. Viðhald

Til að tryggja endingu og bestu mögulegu virkni skjásins skaltu fylgja þessum viðhaldsleiðbeiningum:

  • Þrif: Use a soft, lint-free cloth to gently wipe the screen surface. For stubborn smudges, slightly dampÞurrkið klútinn með vatni eða skjáþolnu hreinsiefni. Forðist sterk efni eða slípiefni.
  • Meðhöndlun: Handle the display by its edges. Avoid applying pressure directly to the screen surface or the FFC cable.
  • Umhverfi: Operate and store the display in a dry environment, away from extreme temperatures, direct sunlight, and excessive dust.

7. Bilanagreining

If you encounter issues with your Waveshare 7-inch DPI Display, refer to the following common problems and solutions:

  • Enginn skjár / svartur skjár:
    • Ensure all FFC cables and the RGB LCD HAT are securely connected to both the display and the Raspberry Pi.
    • Verify that the Raspberry Pi is receiving adequate power (a stable 5V/3A supply is recommended).
    • Athugaðu þitt config.txt file for correct DPI settings and resolution. Incorrect settings are a frequent cause of this issue.
    • If the backlight is on but no image appears, double-check the FFC cable insertion and the config.txt stillingar.
  • Flikrandi skjár:
    • Ensure your power supply is stable and sufficient for both the Raspberry Pi and the display.
    • Check for any loose connections in the FFC cable or the HAT.
  • Display Not Recognized:
    • Confirm that your Raspberry Pi OS is up to date and that the necessary drivers or configuration files are correctly applied as per Waveshare's online documentation.

Mikilvægt: Many issues stem from incorrect software configuration. Always consult the official Waveshare online user manual for the most up-to-date and specific configuration instructions for your Raspberry Pi model and operating system.

8. Víddarstærðir

The physical dimensions of the Waveshare 7-inch DPI Display are provided below for integration into your projects.

Technical drawing showing the dimensions of the 7-inch DPI Display in millimeters, including length, width, and screen area.

Figure 8.1: Appearance and Dimensions (Unit: mm)

  • Heildarlengd: 163.64 mm
  • Heildarbreidd: 96.84 mm
  • Display Area Length: 154.21 mm
  • Display Area Width: 85.92 mm

9. Vottanir

The Waveshare 7-inch DPI Display holds relevant industry certifications, ensuring quality and compliance.

Image of an HDMI Certified Adopter certificate issued to Shenzhen Weixue Electronics Co., Ltd. by HDMI Licensing Administrator, Inc.

Figure 9.1: HDMI Certification

This product is an official authorized HDMI Adopter. For verification, please visit the official HDMI websíða: https://hdmi.org/qr/alic/FVP01SGM0CI

10. Ábyrgð og stuðningur

For warranty information, technical support, or further assistance, please refer to the official Waveshare website or contact their customer service directly. Online user manuals and resources are typically available to provide comprehensive guidance.
