Whirlpool W11024089 Evaporator Fan Motor Instruction Manual

1. Inngangur

This manual provides essential information for the Whirlpool W11024089 Evaporator Fan Motor. This component is a genuine Original Equipment Manufacturer (OEM) authorized replacement part designed for use in various Whirlpool, KitchenAid, Maytag, and Amana refrigerators. Its primary function is to circulate air over the evaporator coils, facilitating the cooling process within the appliance.

Mynd 1.1: OEM Parts branding for Whirlpool, Maytag, KitchenAid, and Amana. This indicates the part is designed by the original manufacturer for their products.

2. Uppsetning og uppsetning

Installation of the W11024089 Evaporator Fan Motor requires technical knowledge and should only be performed by qualified individuals. Always prioritize safety by disconnecting power to the appliance before beginning any repair work.

2.1 Öryggisráðstafanir

• Aftengdu rafmagn: Unplug the refrigerator from the electrical outlet or turn off the circuit breaker before attempting any installation or repair.
• Notið hlífðarbúnað: Notið hanska til að vernda hendur fyrir beittum brúnum og öryggisgleraugu til að vernda augun.
• Skoðið handbók tækisins: Refer to your specific refrigerator's service manual for detailed disassembly and reassembly instructions.
• Fagleg aðstoð: If you are unsure about any step, contact a certified appliance technician.

2.2 Uppsetningarskref (almennar leiðbeiningar)

While specific steps vary by refrigerator model, the general process involves:

1. Access the freezer compartment and locate the evaporator cover.
2. Remove any shelves, ice maker components, or panels obstructing access to the evaporator fan motor.
3. Carefully disconnect the wiring harness from the old motor. Note the orientation of the wires.
4. Remove the mounting screws or clips securing the old motor.
5. Install the new W11024089 motor, ensuring it is securely mounted. The new motor may appear physically different from the original but is designed for proper function.
6. Connect the new wiring harness. Pay attention to the wire lengths; one wire may be shorter, which will align correctly during installation. The ground wire may require attaching to a central screw.
7. Reassemble all removed components in reverse order.
8. Restore power to the refrigerator and verify proper operation.

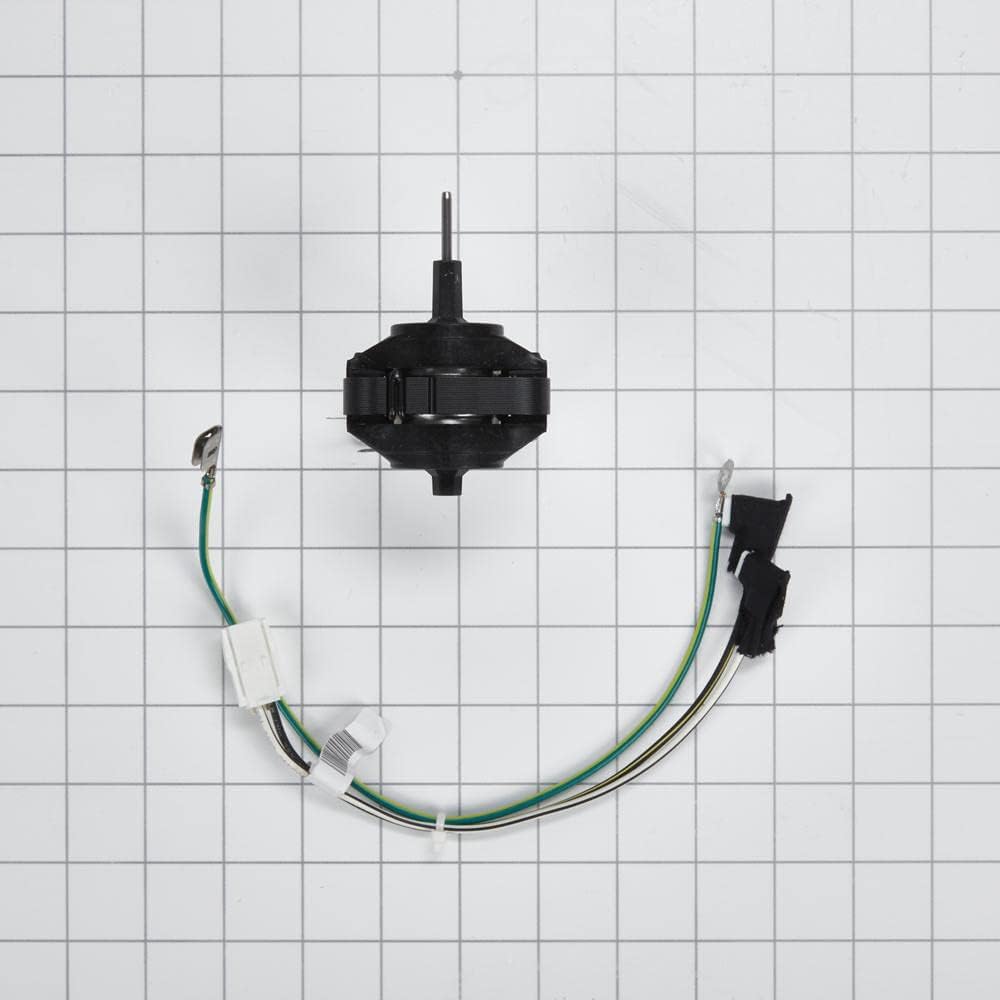

Mynd 2.1: Framan view of the Whirlpool W11024089 Evaporator Fan Motor with its accompanying wiring harness. This shows the motor and its electrical connections.

Mynd 2.2: Hlið view of the Whirlpool W11024089 Evaporator Fan Motor, illustrating its compact design.

Mynd 2.3: Til baka view of the Whirlpool W11024089 Evaporator Fan Motor, showing the motor casing and shaft.

Mynd 2.4: Að ofan view of the Whirlpool W11024089 Evaporator Fan Motor, highlighting the motor's overall structure.

3. Rekstur

The Whirlpool W11024089 Evaporator Fan Motor operates automatically as part of your refrigerator's cooling system. Once installed and power is restored, the motor will engage to spin the evaporator fan blade (not included with this part). This action draws air over the cold evaporator coils, which removes heat and humidity from the refrigerator and freezer compartments. The cooled air is then circulated throughout the appliance to maintain desired temperatures.

Proper operation is indicated by consistent cooling in both the refrigerator and freezer sections, and the absence of unusual noises emanating from the fan area.

4. Viðhald

The W11024089 Evaporator Fan Motor is a sealed unit and does not require routine user maintenance or lubrication. Its lifespan is typically determined by operational hours and environmental factors within the appliance.

4.1 General Refrigerator Maintenance

• Haltu loftopum hreinum: Ensure that air vents inside the refrigerator and freezer are not blocked by food items, allowing for proper air circulation.
• Hreinsa þéttispírala: Periodically clean the condenser coils (usually located at the back or underneath the refrigerator) to ensure efficient cooling and reduce strain on the entire system, including the evaporator fan motor.
• Athugaðu hurðarþéttingar: Verify that refrigerator and freezer door seals are intact and sealing properly to prevent warm air from entering, which can overwork the cooling system.

5. Bilanagreining

If your refrigerator is experiencing cooling issues, the evaporator fan motor may be a contributing factor. Here are common symptoms and potential solutions:

• Symptom: Refrigerator not cooling, but freezer is cold.

  Hugsanleg orsök: The evaporator fan motor is not circulating cold air from the freezer to the fresh food compartment. The motor may be faulty, or the fan blade could be obstructed by ice buildup.

  Lausn: Disconnect power and inspect the evaporator fan area for ice buildup. If ice is present, defrost the freezer. If no ice, test the motor for continuity or replace if faulty. Ensure the fan blade spins freely.
• Symptom: Unusual noises (grinding, buzzing, squealing) from the freezer.

  Hugsanleg orsök: The evaporator fan motor bearings are worn, or the fan blade is hitting an obstruction.

  Lausn: Disconnect power and inspect the fan blade for obstructions. If clear, the motor likely needs replacement.

• Symptom: No air movement from freezer vents.

  Hugsanleg orsök: The evaporator fan motor is not running.

  Lausn: Verify power to the refrigerator. If other components are working, the motor may be faulty or its wiring disconnected. Professional diagnosis is recommended.

Note: The W11024089 replacement motor may look different from your original part. This is normal, and it is designed to function correctly despite visual differences.

6. Tæknilýsing

7. Ábyrgð og stuðningur

Specific warranty information for the Whirlpool W11024089 Evaporator Fan Motor is not provided in this document. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact Whirlpool customer support directly.

For technical support or further assistance, please visit the official Whirlpool websíðuna eða hafðu samband við þjónustuver þeirra. Þú getur líka heimsótt Whirlpool verslun á Amazon fyrir frekari upplýsingar um vöruna.
