1. Uppsetning og uppsetning
Proper installation is crucial for the optimal performance and safety of your Zephyr Roma range hood. Please follow these guidelines carefully.
1.1 Upptaka og skoðun
Carefully remove all packaging materials. Inspect the range hood for any shipping damage. Report any damage immediately to your retailer.
1.2 Important Pre-Installation Notes
- Ensure the installation area is clear of obstructions.
- Verify that the electrical supply meets the requirements (120V, 60Hz, 4A).
- The range hood can be converted for ductless (recirculating) ventilation.
- The surface of the chimney received will be covered with a layer of white protective film. Please tear it off before use. If the protective film is difficult to remove, it is recommended to try heating it with a hair dryer before peeling it off.
Figure 1: Zephyr Roma ZRM-E36F Island Range Hood, front view.
1.3 Mounting Height Recommendation
Measure the distance between the stovetop and the bottom of the range hood. A distance of 24" to 34" above the cooktop is recommended for optimal performance and safety. The minimum height is 30 inches, but it can be extended to 47.4 inches.
Figure 2: Product dimensions showing 35.88" width, 26.94" depth, and 36" height.
1.4 Loftræsting og rafmagnstengingar
- Ensure proper 6-inch round ducting is in place for ducted installations.
- Connect the range hood to a grounded 120V, 60Hz electrical outlet.
1.5 Installation Video (General Guide)
Eftirfarandi myndband gefur almenna yfirsýnview of a wall mount range hood installation process. While not specific to the Zephyr Roma, it demonstrates common steps and tools involved. Always refer to the specific instructions provided with your product for precise details.
Video 1: BRANO Wall Mount Range Hood Installation Guide. This video illustrates the general steps for installing a wall mount range hood, including mounting and ducting connections.
2. Notkunarleiðbeiningar
Your Zephyr Roma range hood features intuitive controls for efficient ventilation and lighting.
2.1 Stjórnborð yfirview
The range hood is equipped with ICON Touch® controls, allowing easy adjustment of settings. These controls are seamlessly integrated into the stainless steel canopy.
- Aflhnappur: Kveikir eða slekkur á tækinu.
- Viftuhraðahnappar: Adjusts the fan speed. The unit offers 5 available speeds.
- Ljóshnappur: Controls the LumiLight LED lighting.

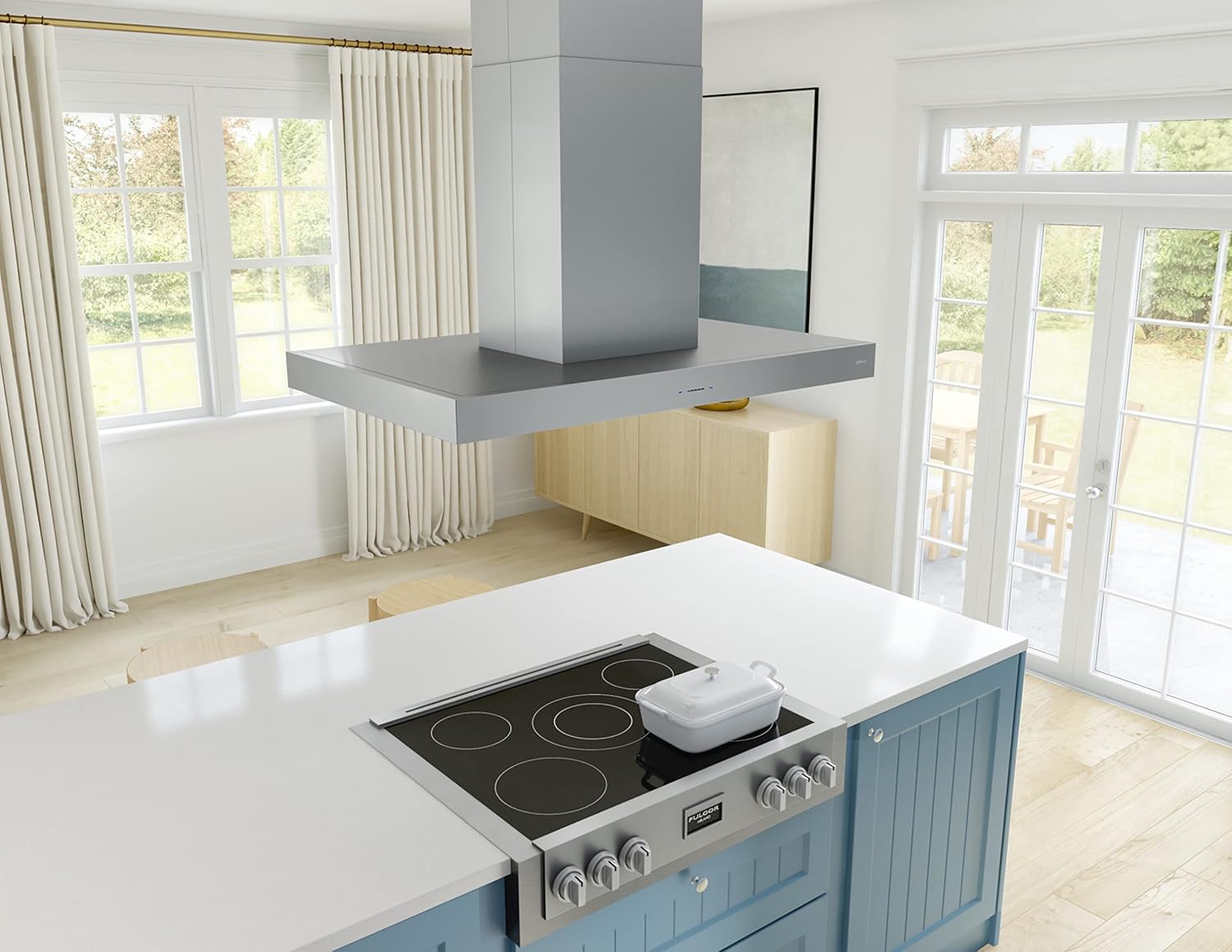

Figure 3: Zephyr Roma ZRM-E36F Island Range Hood installed above a cooktop in a modern kitchen.
2.2 Viftuaðgerð
The Airflow Control Technology (ACT™) allows for precise control over ventilation. Select the appropriate fan speed based on your cooking needs to effectively remove cooking fumes and odors. The fan operates quietly, even at higher speeds.
- Press the fan speed buttons to cycle through the 5 available speeds.
- The fan effectively removes vapors and smoke, as demonstrated in the video below.
2.3 Lýsing
The LumiLight LED lights provide bright and energy-efficient illumination for your cooking surface. The dual-level lighting can be adjusted for different ambient needs.
- Press the light button to turn the lights on/off or adjust brightness if applicable.
2.4 Sýningarmyndband um aðgerð
This video demonstrates the fan and light operation of a similar range hood, showcasing how it effectively clears cooking vapors and the brightness of the lights. Note that the specific model and controls may vary slightly.
Video 2: Range Hood Operation Review. This video shows the lights and fan speeds in action, demonstrating the hood's effectiveness in clearing steam.
3. Viðhald
Regular maintenance ensures the longevity and efficient performance of your range hood.
3.1 Þrif á síunum
The aluminum mesh filters effectively trap grease and odors. For optimal performance, clean the filters regularly.
- Remove the mesh filters by pulling the release tabs.
- Þvoið síurnar í heitu sápuvatni eða í uppþvottavél.
- Leyfðu síunum að þorna alveg áður en þær eru settar aftur á sinn stað.
- Frequency: It is recommended to clean the filters at least once a week, or more frequently depending on cooking habits.
Mynd 4: Nærmynd view of the aluminum mesh filters and LED lights on the Zephyr Roma range hood.
3.2 Hreinsun að utan
Wipe down the stainless steel and glass surfaces with a soft cloth and a non-abrasive cleaner. Avoid harsh chemicals or scouring pads that can scratch the finish.
- For glass surfaces, use a glass cleaner to maintain clarity.
- For stainless steel, wipe in the direction of the grain to prevent streaks.
4. Bilanagreining
If you encounter any issues with your range hood, refer to the following common troubleshooting steps:
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Hood not turning on | No power supply, tripped circuit breaker, loose connection. | Check power cord, reset circuit breaker, ensure connections are secure. |
| Lélegt sog | Clogged filters, improper ducting, incorrect mounting height. | Clean or replace filters, check ductwork for obstructions or leaks, verify mounting height is within recommended range. |
| Óhóflegur hávaði | Loose fan components, motor issue, ducting obstruction. | Inspect fan for loose parts, check ducting for blockages. If noise persists, contact customer support. |
| Ljós virka ekki | Burnt-out LED, loose wiring. | Check light connections. If LED is burnt out, contact customer support for replacement. |
5. Tæknilýsing
Detailed technical specifications for the Zephyr Roma ZRM-E36F Island Range Hood.
| Eiginleiki | Smáatriði |
|---|---|
| Vörumerki | Zephyr |
| Gerðarnúmer | ZRM-E36FS |
| Nafnbreidd | 36 tommur |
| Mál (D x B x H) | 26.94" x 35.88" x 36" (adjustable height) |
| Efni | Ryðfrítt stál |
| Loftflæðisgeta (CFM) | 290, 390, 600 (Adjustable with ACT™) |
| Hávaðastig (hljóð) | 1 - 6 Sónar |
| Gerð uppsetningar | Eyjafjall |
| Stjórntæki | ICON Touch® Controls |
| Fjöldi hraða | 5 |
| Tegund ljósgjafa | LumiLight LED (Dual-Level) |
| Voltage | 120V |
| Tíðni | 60 Hz |
| AmpAldur | 4A |
| Hvaðtage | 480W |
| Síugerð | Netsíur úr áli |
| Tegund loftræstingar | Ducted / Ductless (Recirculating) Convertible |
| Innifalið íhlutir | Fjarstýring |
| Sérstakir eiginleikar | LumiLight LED Lighting, ICON Touch® Controls, Airflow Control Technology (ACT™), Quick-Lock Installation System, Optional ADA-compliant remote control. |
6. Upplýsingar um ábyrgð
Your Zephyr Roma ZRM-E36F Island Range Hood is covered by a manufacturer's warranty:
- Vinnuafl: 1 ár
- Hlutar: 3 ár
Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Zephyr warranty documentation or contact customer support.
7. Þjónustudeild
For technical assistance, parts, or service inquiries, please contact Zephyr customer support. Have your model number (ZRM-E36FS) and purchase date ready when contacting support.
Tengiliðaupplýsingar (t.d. símanúmer, websíða) væri venjulega veitt hér af framleiðandanum.
