Vandlion Keychain Voice Recorder V8 Instruction Manual

1. Inngangur

Thank you for choosing the Vandlion V8 Keychain Voice Recorder. This compact and versatile device is designed for high-quality audio recording in various environments, offering ease of use and portability. It also functions as an MP3 player and a USB storage device. Please read this manual thoroughly to understand the features and proper operation of your new device.

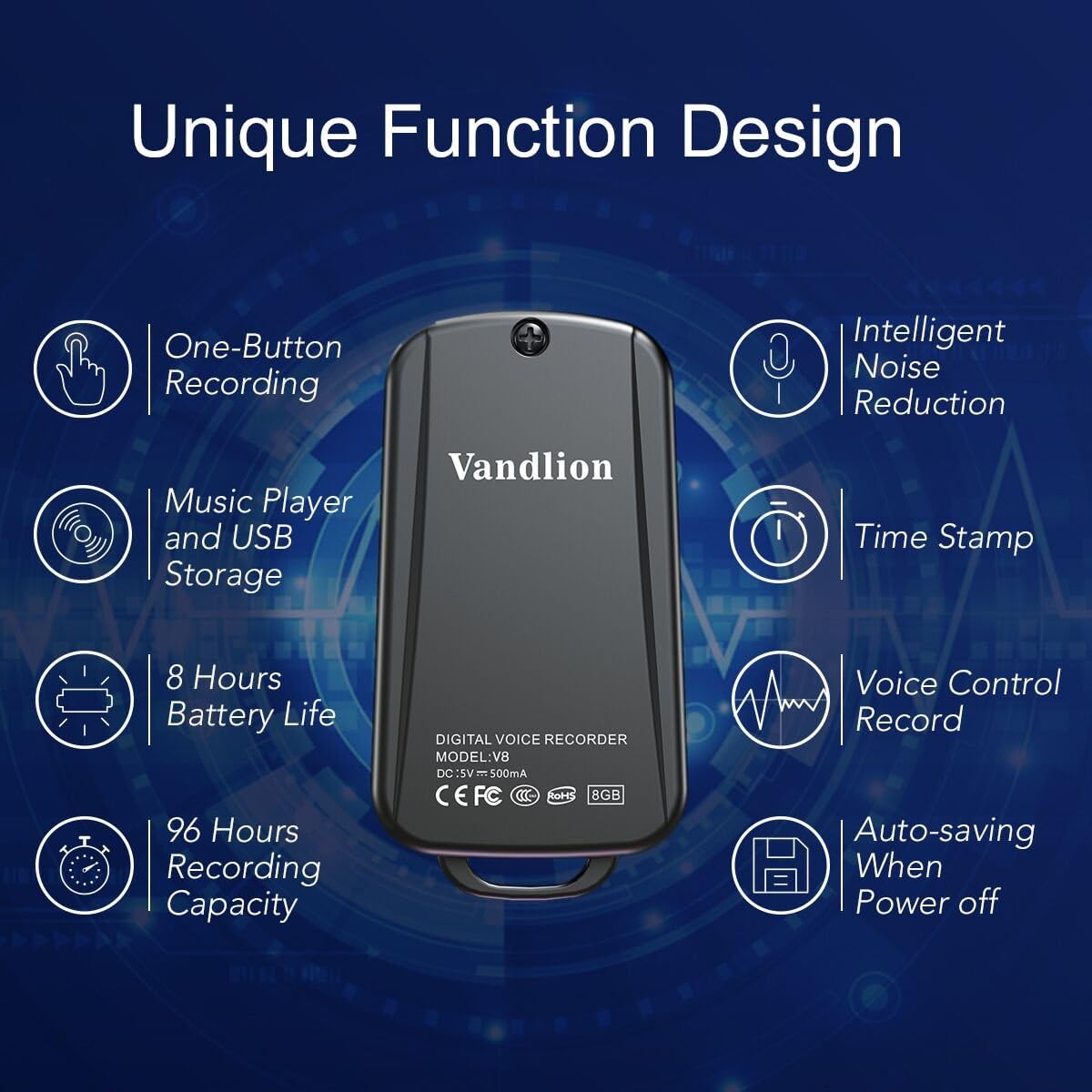

Image 1: Vandlion V8 Keychain Voice Recorder highlighting features like one-button recording, intelligent noise reduction, time stamp, voice control record, auto-saving, music player, USB storage, 8 hours battery life, and 96 hours recording capacity.

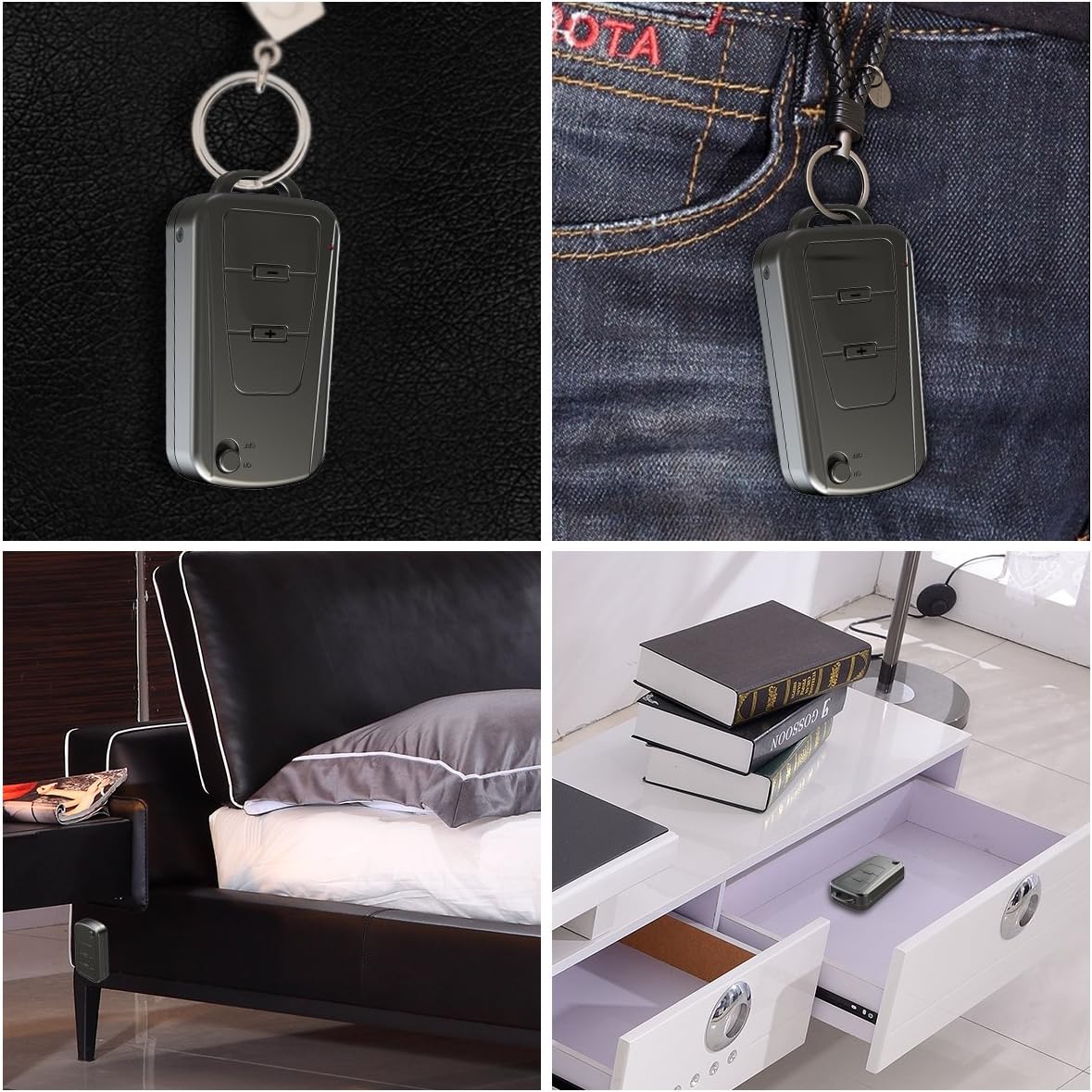

Image 2: The Vandlion V8 recorder shown in various discreet usage scenarios, including attached to a keychain, clipped to trousers, placed beside a bed, and hidden in a drawer.

Image 3: The Vandlion V8 recorder depicted in various application scenarios such as classes, meetings, speeches, concerts, interviews, and for forensic purposes.

2. Innihald pakka

• 1 x Vandlion V8 Voice Recorder
• 1 x USB snúru
• 1 x Notendahandbók (þetta skjal)

3. Tæki lokiðview

Familiarize yourself with the physical components of your voice recorder.

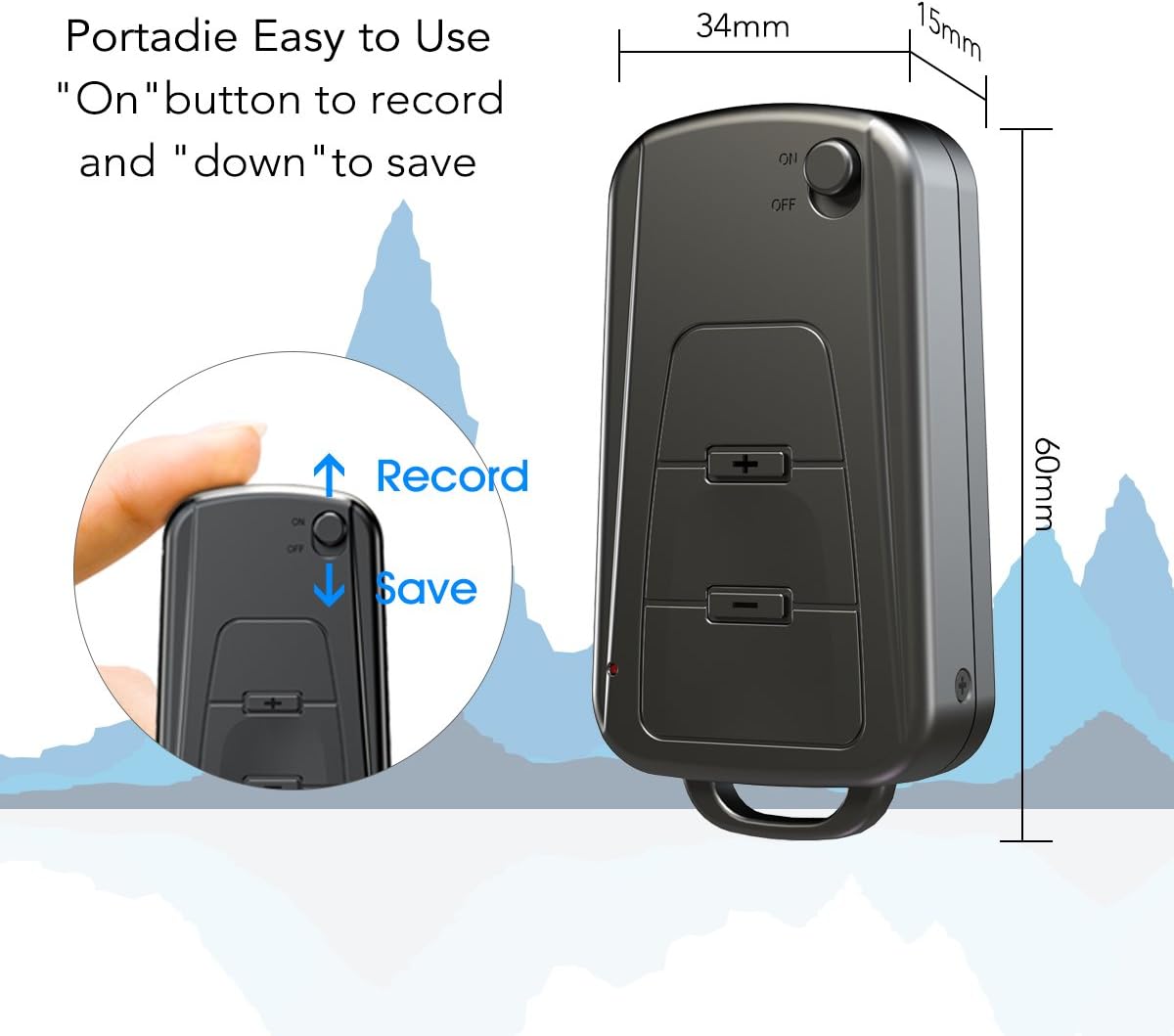

Mynd 4: Hlið view of the Vandlion V8 recorder, illustrating the ON/OFF switch for recording and saving, along with volume control buttons. Dimensions are also shown: 60mm length, 34mm width, 15mm thickness.

• ON/OFF rofi: Used to start and stop recording, and to power the device.
• USB tengi: Til að hlaða og tengja við tölvu.
• Heyrnartól tjakkur: Fyrir hljóðspilun.
• Hljóðnemi: Innbyggt fyrir hljóðupptöku.
• Gaumljós: Gefur stöðuviðbrögð (t.d. upptaka, hleðsla).

4. Uppsetning

4.1. Hleður tækið

Before first use, fully charge the voice recorder. Connect the device to a computer's USB port or a USB wall adapter using the provided USB cable. The indicator light will typically show a specific color (e.g., red) during charging and change (e.g., blue or off) when fully charged. A full charge provides approximately 20 hours of operation.

4.2. Fyrsta ræsing

Slide the ON/OFF switch to the "ON" position to power on the device. The indicator light will briefly illuminate.

5. Notkunarleiðbeiningar

5.1. One-Button Recording

1. Til að hefja upptöku skaltu renna ON/OFF rofanum að "KVEIKT" position. The device will automatically begin recording. The indicator light will not flicker during recording to ensure discreet operation.
2. Til að vista upptökuna skaltu renna ON/OFF rofanum að "SLÖKKT" position. The device will save the current recording and power off.

Image 5: Close-up of the Vandlion V8 recorder demonstrating the simple "ON" to record and "OFF" to save operation.

5.2. Raddstýrð upptaka (VOR)

The device features a smart voice-activated system. When enabled, the recorder will only record when sound is detected, conserving storage space and battery life. Refer to the full user guide (if available from manufacturer) for detailed instructions on enabling/disabling VOR, as this feature may require specific button presses or software settings not covered by the basic one-button operation.

5.3. Að spila upptökur

1. Connect headphones to the headphone jack on the device.
2. Power on the device by sliding the ON/OFF switch to "ON".
3. Use the volume buttons (if present) to navigate through recordings and adjust playback volume.

Alternatively, connect the device to a computer to play back recordings.

5.4. Flutningur Files í tölvu

1. Ensure the recorder is powered off.
2. Connect the recorder to your computer using the supplied USB cable. The device will be recognized as a removable storage drive.
3. Open the drive, locate the recording files (typically in WAV format), and drag them to your computer.
4. Note for Mac users: You may need to use VLC Media Player or similar software to play WAV files recorded by this device.

5.5. Using as an MP3 Player

The device supports WAV, WMA, and MP3 audio formats. You can transfer music files to the device's storage via USB connection, similar to transferring recordings. Once music files are on the device, connect headphones and power on the device to listen to your music.

Image 6: The Vandlion V8 recorder connected to earphones, demonstrating its capability as an MP3 player for enjoying music.

6. Viðhald

• Haldið tækinu þurru. Forðist að það komist í snertingu við raka eða vökva.
• Þrífið tækið með mjúkum, þurrum klút. Notið ekki sterk efni eða slípiefni.
• Geymið tækið á köldum, þurrum stað fjarri beinu sólarljósi og miklum hita.
• Hlaðið rafhlöðuna reglulega, jafnvel þótt hún sé ekki í notkun, til að viðhalda heilbrigði hennar. Forðist að tæma rafhlöðuna alveg í langan tíma.

7. Bilanagreining

Kveikir ekki á tækinu:

Gakktu úr skugga um að rafhlaðan sé hlaðin. Tengdu við aflgjafa og reyndu aftur.

Get ekki tekið upp:

Check if the device has sufficient storage space. Ensure the ON/OFF switch is in the "ON" position.

Léleg upptökugæði:

Ensure the microphone is not obstructed. Record in a quiet environment. The device features DSP noise reduction for clear audio.

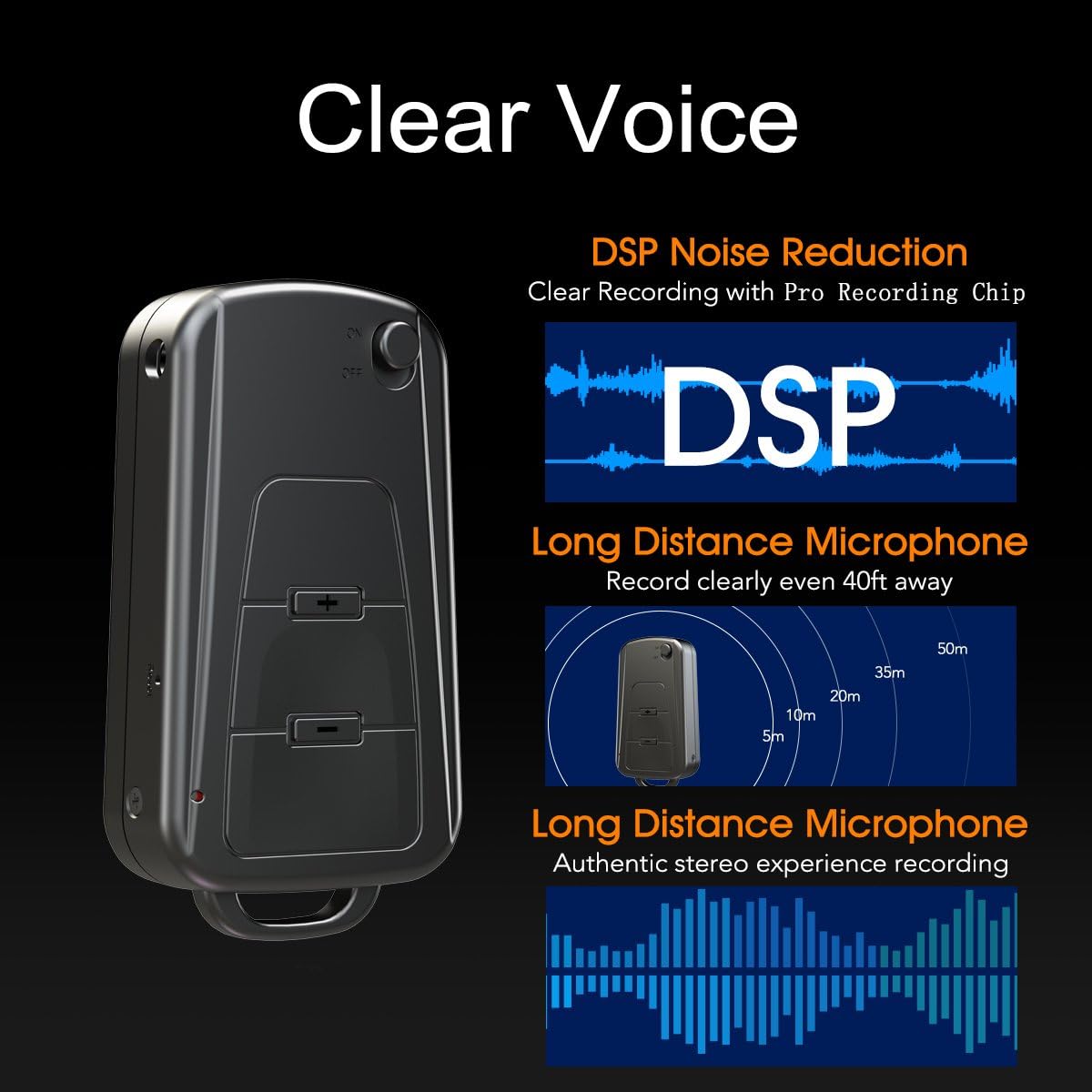

Image 7: Diagram illustrating the Vandlion V8's DSP noise reduction technology for clear recording and its long-distance microphone, capable of capturing sound clearly from up to 40 feet away, providing an authentic stereo experience.

Tölvan þekkir ekki tækið:

Try a different USB port or cable. Ensure the device is powered off before connecting. Restart your computer.

Get ekki spilað files on Mac:

Mac users are advised to use VLC Media Player for optimal playback of recorded WAV files.

8. Tæknilýsing

9. Ábyrgð og stuðningur

9.1. Ábyrgð framleiðanda

This Vandlion V8 Keychain Voice Recorder comes with a Six Months Manufacturer's Warranty frá kaupdegi. Þessi ábyrgð nær til galla í efni og framleiðslu við eðlilega notkun. Hún nær ekki til tjóns sem orsakast af misnotkun, slysum, óheimilum breytingum eða eðlilegu sliti.

9.2. Þjónustudeild

For further assistance, technical support, or warranty claims, please contact Vandlion customer service through the retailer where the product was purchased or refer to the official Vandlion website for contact information. Additional resources, such as a PDF version of the user manual and updated user guides, may be available for download from the manufacturer's support page.

10. Mikilvægar öryggisupplýsingar

• Ekki reyna að taka í sundur eða breyta tækinu.
• Geymið þar sem börn ná ekki til.
• Fargið tækinu og rafhlöðu þess á ábyrgan hátt í samræmi við gildandi reglur.
• Forðastu mikinn hita og beint sólarljós.
