Whirlpool WSIC 3M17 C Dishwasher User Manual

Inngangur og öryggisupplýsingar

This manual provides essential information for the safe and efficient use of your Whirlpool WSIC 3M17 C dishwasher. Please read it thoroughly before installation and operation, and keep it for future reference.

Almennar öryggisviðvaranir

• Ensure the dishwasher is installed by a qualified technician according to local regulations.
• Leyfið ekki börnum að stjórna eða leika sér með uppþvottavélina.
• Taktu heimilistækið alltaf úr sambandi við rafmagn áður en þú framkvæmir viðhald eða þrif.
• Snertið ekki hitunarelementið á meðan þvottavélinni stendur eða strax eftir hana.
• Notið aðeins þvottaefni og gljáaefni sem eru sérstaklega hönnuð fyrir sjálfvirkar uppþvottavélar.
• Beittum hlutum ætti að hlaða með oddana niður til að koma í veg fyrir meiðsli.

Uppsetning og uppsetning

Proper installation is crucial for the performance and safety of your dishwasher. It is recommended that installation be performed by a professional.

Upptaka og staðsetning

Remove all packaging materials. Position the dishwasher in the desired location, ensuring it is level. The appliance is designed for full integration into kitchen cabinetry.

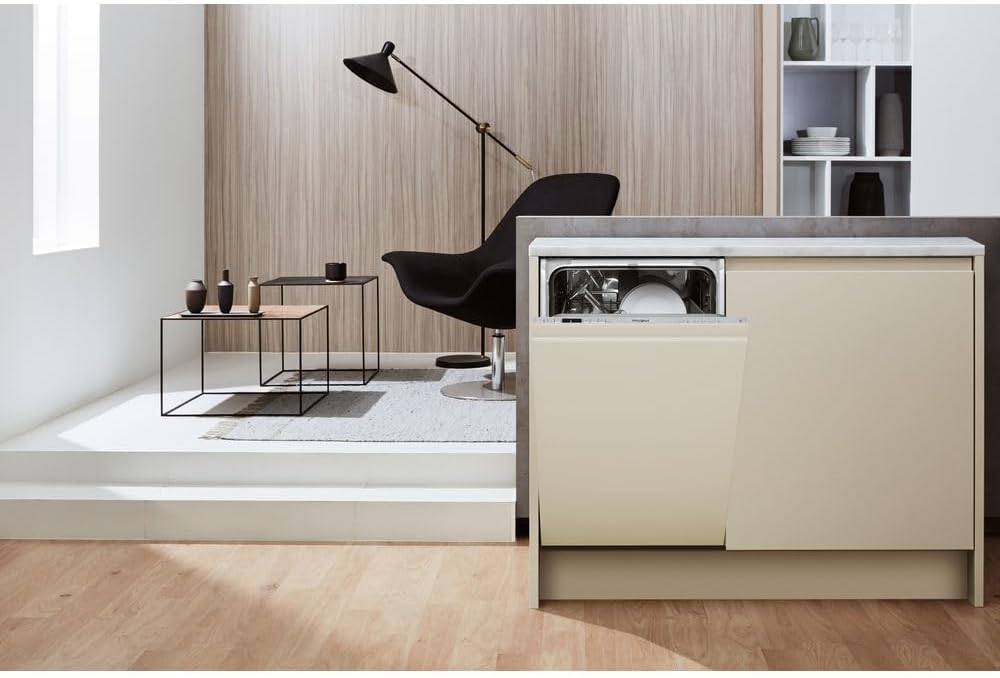

Image: The Whirlpool WSIC 3M17 C dishwasher seamlessly integrated into a modern kitchen cabinet, showing its compact 45 cm design when closed.

Vatns- og rafmagnstengi

• Connect the water inlet hose to a cold water supply with a 3/4" threaded connector.
• Ensure the drain hose is properly connected to the household drainage system.
• Connect the appliance to a grounded electrical outlet. Refer to the rating plate for voltage og tíðnikröfur.

Að hlaða uppþvottavélinni

Load dishes carefully to ensure optimal washing and drying performance. Scrape off large food particles before loading.

Image: The lower rack of the dishwasher, fully loaded with dinner plates and a cutlery basket, demonstrating efficient space utilization.

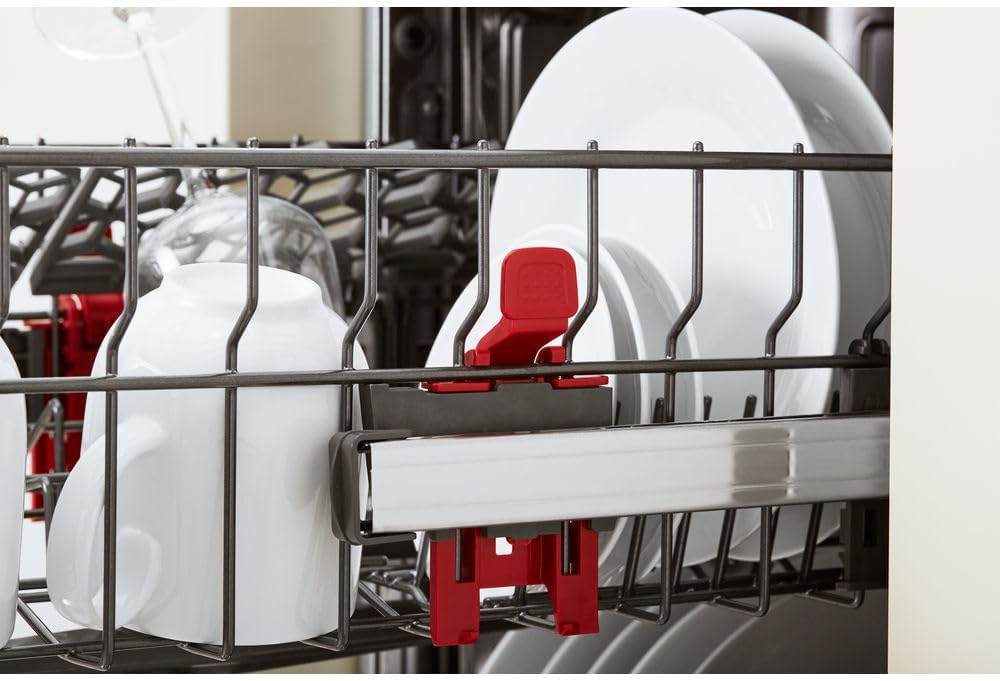

Image: A close-up of the upper rack, showing cups and glasses, with red adjustable elements for flexible loading.

• Place larger items and pots in the lower rack.
• Place glasses, cups, and smaller plates in the upper rack.
• Gakktu úr skugga um að úðaramar geti snúist frjálslega.
• Load cutlery in the dedicated basket, handles down for forks and spoons, points down for knives.

Bæta við þvottaefni og gljáaefni

Use only automatic dishwasher detergent. Fill the detergent dispenser according to the program selected and the soil level of the dishes. Fill the rinse aid dispenser when the indicator light illuminates.

Image: The interior of the dishwasher with the door fully open, highlighting the detergent dispenser on the inner door panel and the general layout of the racks.

Notkunarleiðbeiningar

Stjórnborði lokiðview

The control panel is located on the top edge of the dishwasher door. It typically includes a power button, program selection buttons, and indicator lights for rinse aid and salt.

Byrjar þvottahring

1. Ensure the dishwasher is loaded correctly and detergent/rinse aid are added.
2. Lokaðu hurð uppþvottavélarinnar vel.
3. Ýttu á Power hnappinn til að kveikja á heimilistækinu.
4. Select the desired wash program using the program selection button.
5. The program will start automatically after a short delay, or immediately depending on the model.

Interrupting or Canceling a Program

• To interrupt: Open the door slightly to pause the cycle. Close the door to resume.
• To cancel: Press and hold the program selection button for a few seconds until the program indicator lights reset.
• Varúð: Hot steam may escape when opening the door during a cycle.

Lok hringrásar

At the end of the wash cycle, an audible signal may sound, and the program indicator light will turn off. Wait a few minutes before opening the door to allow dishes to cool and dry properly.

Viðhald og þrif

Reglulegt viðhald tryggir bestu mögulegu virkni og lengir líftíma uppþvottavélarinnar.

Að þrífa síurnar

The filter system prevents larger food particles from reaching the pump. Clean the filters regularly to avoid blockages and ensure efficient washing.

Mynd: Ítarleg view of the dishwasher's bottom, showing the removable filter assembly and the lower spray arm.

1. Slökktu á og taktu uppþvottavélina úr sambandi.
2. Snúðu sívalningslaga síunni rangsælis og lyftu henni út.
3. Fjarlægið fínu síuna og grófu síuna.
4. Rinse all filters under running water, removing any food debris.
5. Setjið síurnar saman aftur í öfugri röð og gætið þess að þær séu örugglega á sínum stað.

Hreinsun úðaarmanna

Check the spray arm nozzles periodically for blockages. If necessary, remove the spray arms and clean the holes with a fine brush or toothpick.

Þrif að utan og innan

• Þurrkaðu að utan með auglýsinguamp klút og milt þvottaefni.
• Hreinsið hurðarþéttinguna reglulega til að fjarlægja matarleifar.
• Keyrið reglulega hreinsunarferli uppþvottavélarinnar með sérstöku uppþvottavélahreinsiefni.

Úrræðaleit

Áður en þú hefur samband við þjónustuver skaltu skoða eftirfarandi töflu fyrir algeng vandamál og lausnir á þeim.

Tæknilýsing

Ábyrgð og þjónustuver

Your Whirlpool dishwasher is covered by a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions.

For technical assistance, spare parts, or to schedule a service appointment, please contact Whirlpool Customer Service. Contact details can typically be found on the Whirlpool official websíðunni eða í ábyrgðarskjölunum þínum.

When contacting support, please have your appliance's model number (WSIC 3M17 C) and serial number ready. The serial number is usually located on a sticker inside the dishwasher door.
