ProSeal PS-VS005

ProSeal Vacuum Food Sealer Machine User Manual

Model: PS-VS005

Inngangur

Thank you for choosing the ProSeal Vacuum Food Sealer Machine. This appliance is designed to help you preserve food up to 5 times longer than traditional storage methods, reducing food waste and saving you money. By removing oxygen, it prevents freezer burn, spoilage, and mold, keeping your food fresh and flavorful. Please read this manual thoroughly before operating the machine to ensure safe and efficient use.

Mikilvægar öryggisleiðbeiningar

Innihald pakka

Your ProSeal Vacuum Food Sealer Machine package includes:

Eiginleikar vöru

Uppsetning

  1. Unpack the ProSeal Vacuum Food Sealer Machine and all accessories.
  2. Place the machine on a flat, stable, and dry surface.
  3. Ensure the power cord is easily accessible and plug the machine into a standard electrical outlet (120V).
  4. Open the lid by pressing the release buttons on the sides (if applicable) or lifting the top cover.
  5. If using vacuum rolls, you can store them in the integrated roll storage compartment and use the built-in cutter.

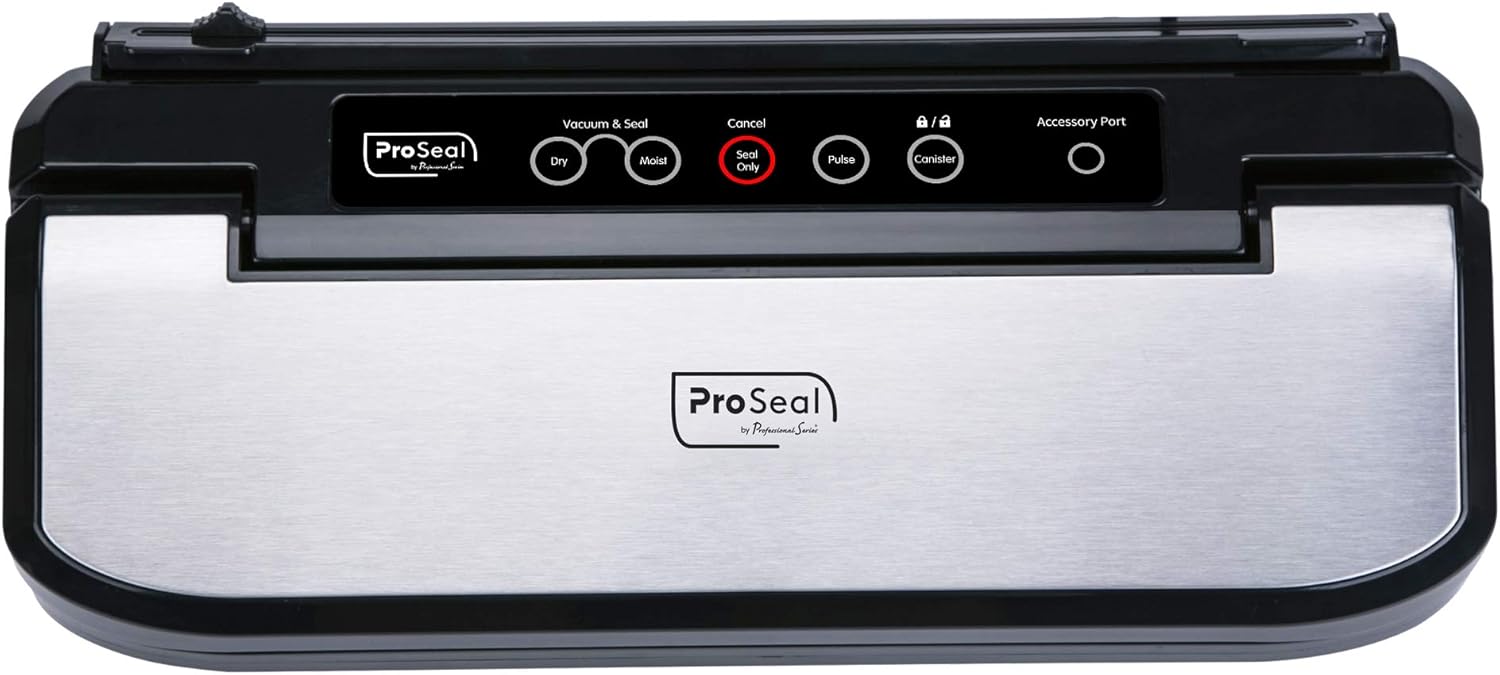

Efst view of the ProSeal Vacuum Sealer Machine with control panel visible.
Mynd 1: Efst view of the ProSeal Vacuum Sealer Machine, showing the control panel and sleek design.
Inni view of the ProSeal Vacuum Sealer showing the integrated bag roll storage.
Figure 2: The internal compartment of the vacuum sealer, designed to hold and dispense vacuum sealer rolls.

Notkunarleiðbeiningar

1. Sealing with Vacuum Bags

  1. Prepare your food and place it inside a vacuum sealer bag, leaving at least 3 inches of space from the top edge.
  2. Gakktu úr skugga um að opni endi pokans sé hreinn, þurr og flatur.
  3. Open the lid of the vacuum sealer. Place the open end of the bag into the vacuum channel, ensuring it lies flat across the sealing strip.
  4. Close the lid firmly until you hear both sides click into place, indicating it is latched.
  5. Veldu viðeigandi stillingu:
    • Þurrstilling: For dry food items like nuts, grains, or dried fruits.
    • Rakur stilling: For moist or juicy foods such as fresh meats, fruits, or marinated items. This mode provides a stronger seal.
  6. Press the "Vacuum & Seal" button. The machine will automatically remove air from the bag and then create an airtight seal.
  7. Once the process is complete, the indicator light will turn off. Press the release buttons to open the lid and remove your sealed bag.
ProSeal Vacuum Sealer in use, sealing a bag of salmon with a lemon slice.
Figure 3: The ProSeal Vacuum Sealer actively sealing a bag containing salmon, demonstrating its primary function.

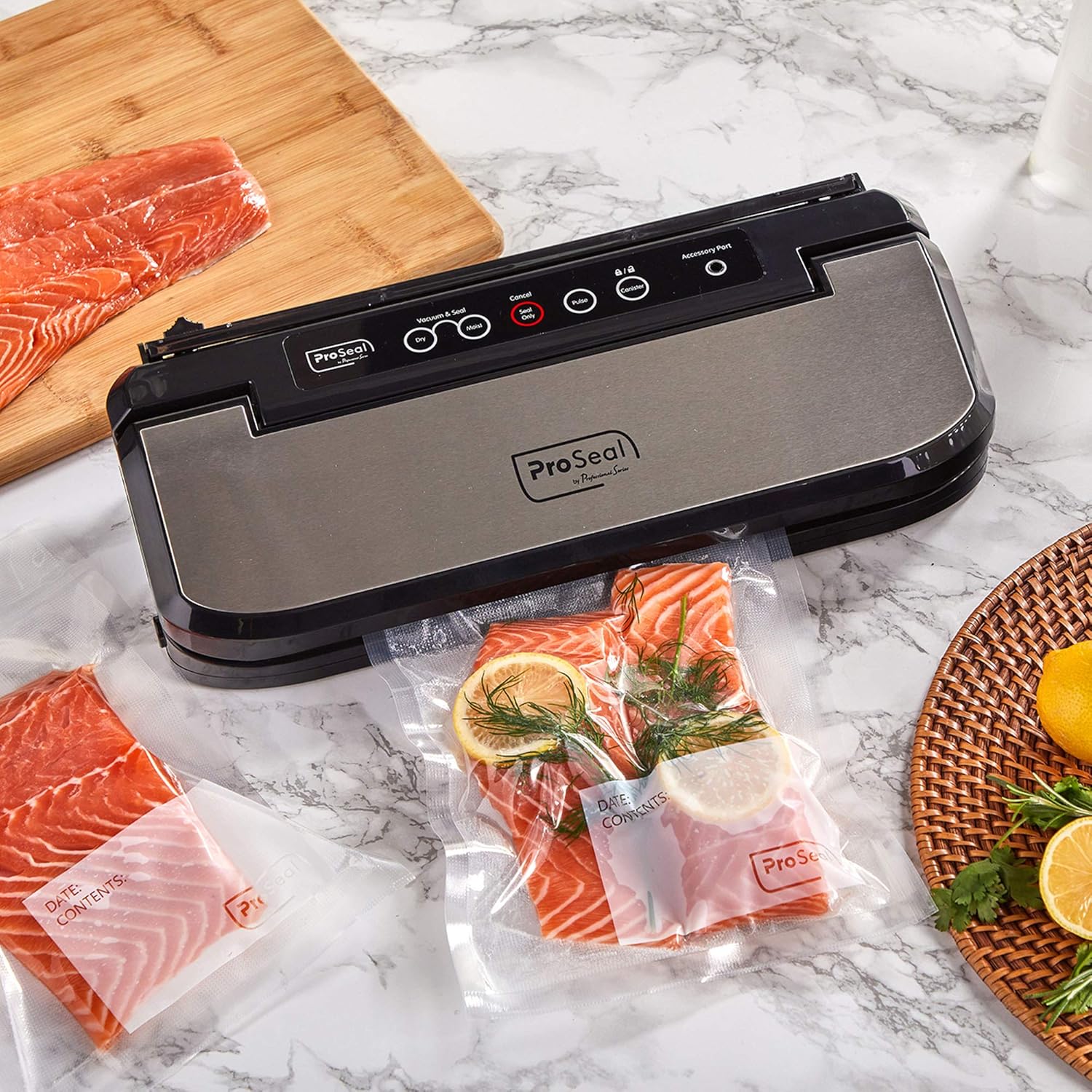

ProSeal Vacuum Sealer on a kitchen counter with sealed and unsealed salmon portions.
Figure 4: The vacuum sealer shown with both unsealed and perfectly sealed portions of salmon, highlighting the effectiveness of the sealing process.

2. Using the Built-in Cutter

The built-in cutter allows you to create custom-sized bags from vacuum sealer rolls, minimizing waste.

  1. Pull out the desired length of vacuum sealer roll from the storage compartment.
  2. Place the roll across the cutting bar.
  3. Slide the cutter blade across the roll to create a clean, straight cut.
  4. You can then seal one end of the newly cut bag using the "Seal Only" function before filling it with food.

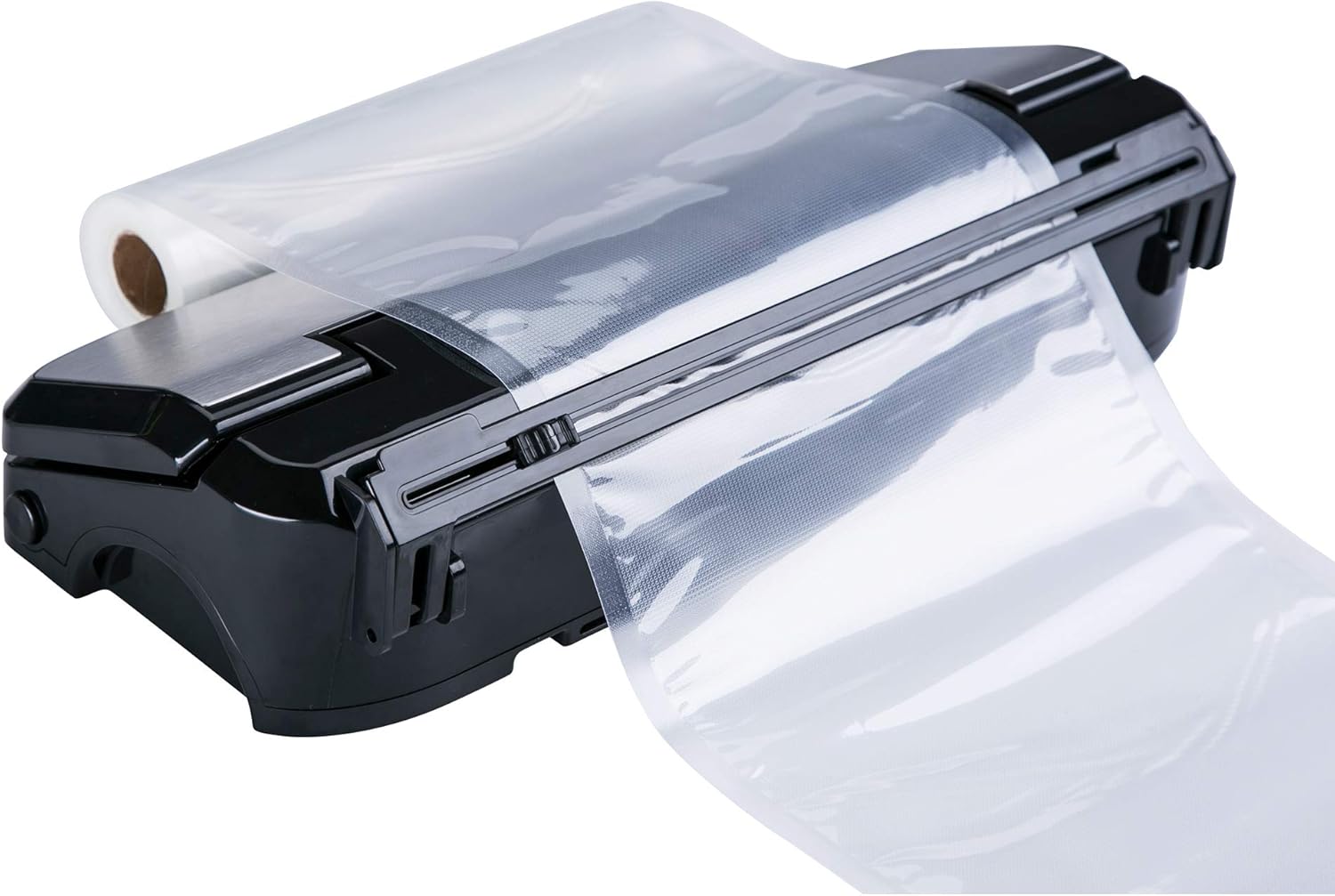

ProSeal Vacuum Sealer showing the built-in cutter in action, cutting a vacuum sealer roll.
Figure 5: Demonstrating the integrated bag cutter, allowing users to customize bag sizes from a roll.

3. Using the Vacuum Hose (External Vacuuming)

The included vacuum hose allows you to vacuum seal external containers, jars, and wine stoppers designed for vacuum sealing.

  1. Connect one end of the vacuum hose to the Accessory Port on the vacuum sealer.
  2. Connect the other end of the hose to the port on your vacuum-sealable container or accessory.
  3. Press the "Canister" button (or equivalent for external vacuuming). The machine will begin to remove air.
  4. The machine will stop automatically once the desired vacuum level is reached.
  5. Fjarlægið slönguna bæði af vélinni og ílátinu.

4. Sous Vide Cooking Preparation

The ProSeal Vacuum Sealer is an excellent tool for preparing food for sous vide cooking. By vacuum sealing, you ensure maximum flavor infusion and even cooking.

ProSeal Vacuum Sealer with vacuum-sealed steaks and fresh ingredients.
Figure 6: Vacuum-sealed steaks prepared for cooking, demonstrating the machine's utility for meal preparation and sous vide.

Viðhald og þrif

Regular cleaning and maintenance will ensure the longevity and optimal performance of your ProSeal Vacuum Food Sealer.

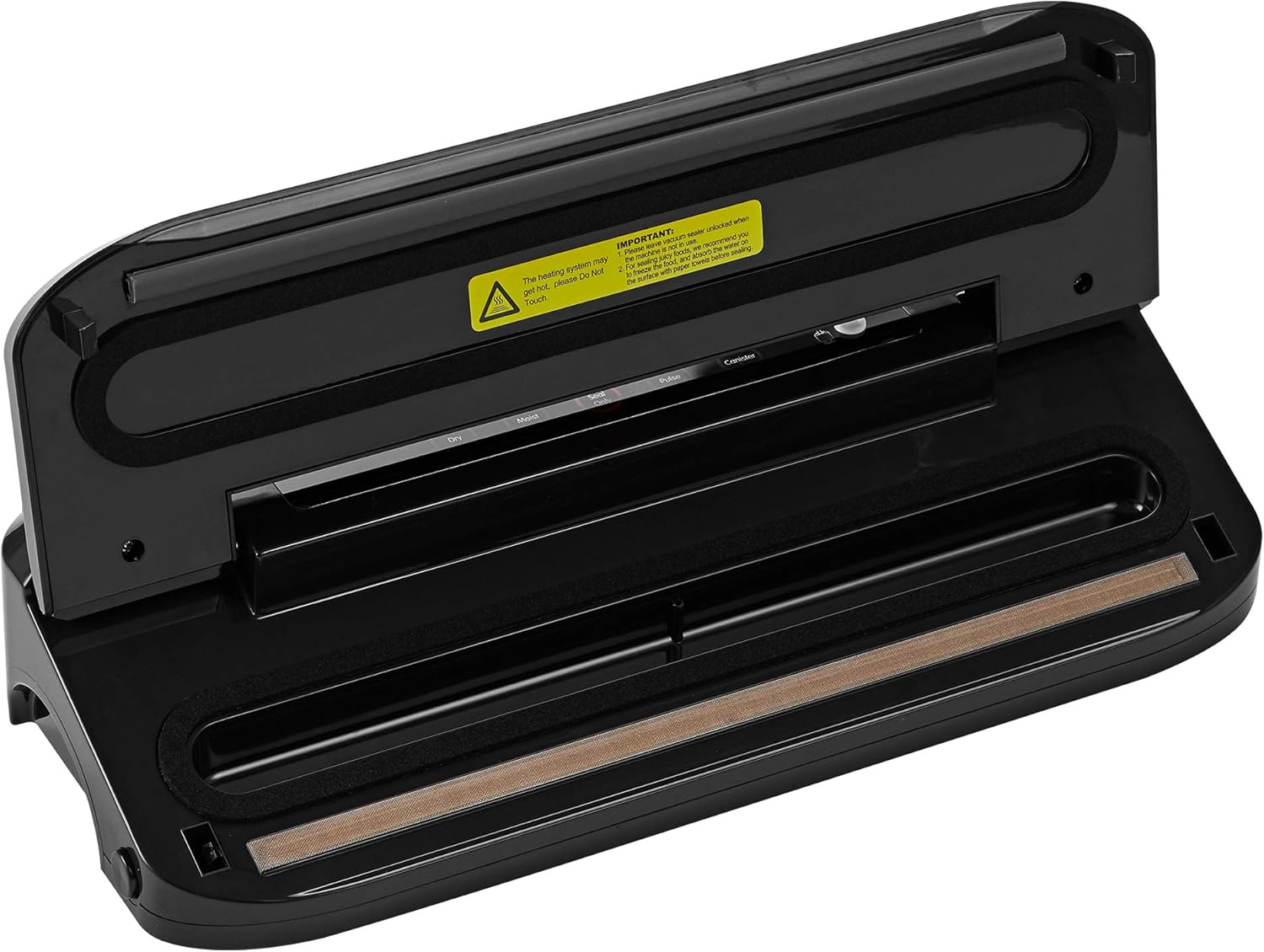

Open ProSeal Vacuum Sealer showing the internal vacuum channel and sealing bar.
Mynd 7: Opið view of the vacuum sealer, revealing the vacuum channel and sealing strip, which should be kept clean for optimal performance.

Úrræðaleit

If you encounter issues with your ProSeal Vacuum Food Sealer, please refer to the following common problems and solutions:

VandamálMöguleg orsökLausn
Vélin kviknar ekki.Ekki tengt við rafmagn; vandamál með rafmagnsinnstungu.Gakktu úr skugga um að rafmagnssnúran sé örugglega tengd í virkan rafmagnsinnstungu.
Vélin ryksuga en þéttir ekki.Sealing strip or gasket dirty/damaged; bag not positioned correctly; too much moisture.Clean the sealing strip and gaskets. Ensure the bag is flat and extends fully across the sealing strip. Use "Moist" mode for wet foods, or pre-freeze very wet items.
Machine seals but does not vacuum properly (air remains in bag).Lid not latched properly; bag not fully in vacuum channel; bag material issue; food blocking vacuum channel.Press down firmly on both sides of the lid until it clicks. Ensure the bag opening is fully inside the vacuum channel. Use only recommended vacuum sealer bags. Reposition food to ensure it does not block the vacuum port.
Seal is weak or uneven.Sealing strip dirty/worn; bag wrinkled; too much liquid near seal area.Clean the sealing strip. Ensure the bag is flat and smooth. Wipe excess moisture from the inside of the bag near the seal area.
Machine overheats or stops during multiple uses.Continuous operation without cooling.Allow the machine to cool down for 20-30 seconds between sealing cycles, especially after 3-5 consecutive seals.

Vörulýsing

EiginleikiSmáatriði
VörumerkiProSeal
GerðarnúmerPS-VS005
EfniMálmur
LiturSvartur
AflgjafiAC/DC
NotkunarhamurSjálfvirk
Hvaðtage150 vött
Voltage120V
Vörumál15 x 7 x 4 tommur
Þyngd hlutar4.13 pund
UPC765167407726

Ábyrgð og stuðningur

ProSeal products are manufactured to the highest quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official ProSeal website. If you have any questions, require technical support, or need to claim warranty service, please contact ProSeal customer service directly.

For the most up-to-date contact information, please visit the official ProSeal websíðuna eða vísa til umbúða vörunnar.
