Mikilvægar öryggisupplýsingar
Read all instructions carefully before beginning installation. Failure to follow these instructions could result in electric shock, fire, or personal injury. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Aftengdu alltaf rafmagnið við aðalrofa fyrir uppsetningu eða viðhald.
- Gakktu úr skugga um að allar rafmagnstengingar séu gerðar í samræmi við gildandi reglugerðir og reglugerðir á hverjum stað.
- Mounting structure must be capable of supporting the fan's weight (approximately 19.4 lbs).
- Ekki nota viftuna ef blöðin eða hlífin eru skemmd.
- Þessi vifta er eingöngu hönnuð til notkunar innanhúss.
Innihald pakka
Gakktu úr skugga um að allir íhlutir séu til staðar áður en uppsetning hefst.
- Loftviftumótorhús
- 5 Reversible Fan Blades
- Blade Arms with Captive Screws
- Light Kit Assembly (4 Frosted Polypropylene Shades)
- 4 Dimmable ENERGY STAR LED Light Bulbs (8.5W, 3000K, 90CRI)
- Niðurstöng og tjaldhiminn
- Uppsetningarbúnaður
- Uppsetningarblað
Image: Cover of the AirPro Ceiling Fan Installation Manual, showing an illustration of the fan.
Uppsetning og uppsetning
Þessi hluti veitir yfirview of the installation process. Refer to the included detailed installation sheet for complete step-by-step instructions.
Uppsetningarvalkostir
The fan can be installed on either a flat ceiling or a sloped ceiling. Ensure the electrical box is securely mounted and rated for ceiling fan support.
Blaðasamkoma
The fan features 5 reversible blades, offering a choice between a smooth black finish and a rustic charcoal finish. Attach the blades to the blade arms using the provided captive screws, which simplify the assembly process.
Mynd: Nærmynd view of a fan blade, showing Side A with a black finish and Side B with a rustic charcoal finish, highlighting the reversible design.
Uppsetning ljósabúnaðar
The light kit includes four frosted polypropylene shades and four LED bulbs. Install the light kit to the fan motor housing according to the detailed instructions in the manual. Ensure bulbs are securely seated.
Image: A collage of four close-up images showing different angles of the fan's motor housing, light kit, and pull chains, illustrating component details.
Image: A collage of four detailed images showing the fan blades in both black and rustic charcoal finishes, along with close-ups of the light kit and motor housing.
Notkunarleiðbeiningar
Viftuhraðastýring
The fan speed is controlled by a pull chain. Pull the chain repeatedly to cycle through the three available fan speed settings (High, Medium, Low) and Off.
Létt aðgerð
The integrated light kit is operated by a separate pull chain. Pull the chain to turn the lights On or Off. The included LED bulbs are dimmable; however, an accessory wall or remote control (sold separately) is required for dimming functionality.
Reversible Blade Function
To change the direction of airflow for seasonal comfort, locate the reverse switch on the fan motor housing. In warm weather, set the switch to circulate air downward, creating a cooling effect. In cool weather, set the switch to circulate air upward, redistributing warm air without creating a draft.
Viðhald
Þrif
Til að þrífa viftuna skal þurrka hana með mjúkum klút.amp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components. Ensure power is disconnected before cleaning.
Skipti um peru
The fan uses 8.5-Watt LED bulbs. When replacing bulbs, ensure the power is off and allow bulbs to cool. Use only LED bulbs of the same wattage and base type to maintain optimal performance and energy efficiency.
Úrræðaleit
If you experience issues with your ceiling fan, consult the following common troubleshooting steps:
- Viftan fer ekki í gang: Athugið rofann og veggrofann. Gangið úr skugga um að allar víratengingar séu öruggar.
- Lights Do Not Work: Verify bulbs are correctly installed and not loose. Check the light pull chain. Ensure power is supplied to the light kit.
- Of mikið vaggar: Ensure all blade screws are tightened. Check that the fan is securely mounted to the ceiling junction box. Balance kit may be required (not included).
- Hávær aðgerð: Confirm all screws are tight. Check for any loose parts or obstructions.
Ef vandamálin halda áfram eftir að þessi skref hafa verið reynd skaltu hafa samband við þjónustuver.
Tæknilýsing
| Eiginleiki | Smáatriði |
|---|---|
| Gerðarnúmer | P250081-31M-WB |
| Vörumerki | Framfararljós |
| Vörumál | 52" D x 52" B x 18.7" H |
| Þyngd hlutar | 19.4 pund |
| Litur | Matte Black / Frosted |
| Rafmagns viftu hönnun | Vifta |
| Aflgjafi | Rafmagn með snúru |
| Voltage | 120 volt |
| Skiptategund | Dragðu keðju |
| Eftirlitsaðferð | Remote (accessory, sold separately) |
| Fjöldi blaða | 5 |
| Blade Finish Options | Black, Rustic Charcoal (Reversible) |
| Ljósbúnaður | 4 Frosted Polypropylene Shades |
| Tegund peru | LED (4 x 8.5W, 3000K, 90CRI) |
| Loftstreymisgeta | 3330 rúmfet á mínútu |
| Skilvirkni | ENERGY STAR rated, maximum efficiency |
| Inni/úti notkun | Innandyra |
| Vottanir | UL Listed, Title 24 JA8 rated |
Image: Diagram illustrating the dimensions of the ceiling fan, showing a 52-inch diameter and 18.7-inch height.

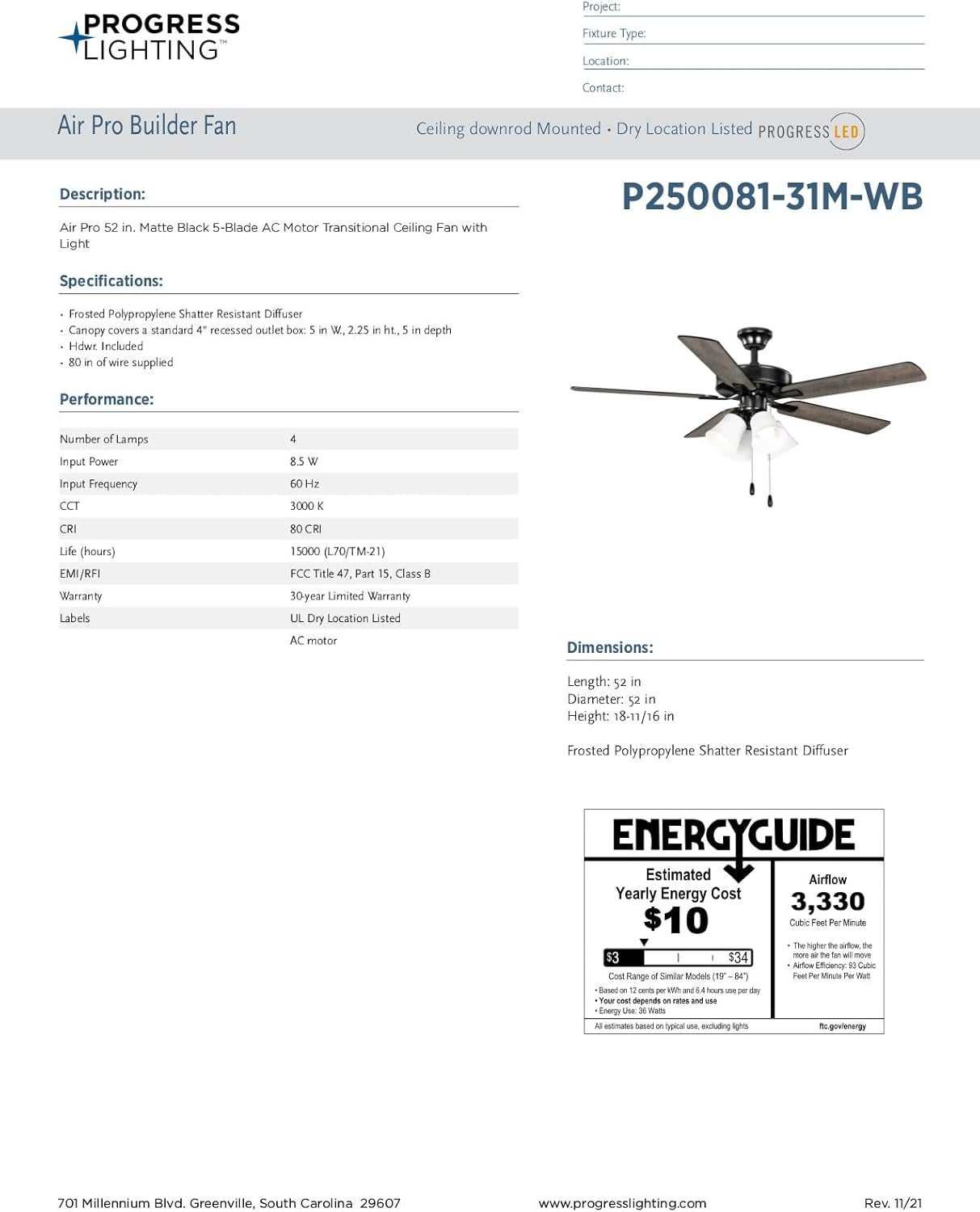

Image: A detailed product specification sheet for the AirPro Builder Fan, model P250081-31M-WB, listing performance data, dimensions, and certifications.
Upplýsingar um ábyrgð
This Progress Lighting AirPro ceiling fan is covered by a 30 ára takmörkuð ábyrgð. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official Progress Lighting websíða.
Þjónustudeild
For technical assistance, replacement parts, or warranty claims, please contact Progress Lighting customer support. Refer to the contact information provided in your product packaging or on the official Progress Lighting websíða.
