Diamond Audio M01T Motorsports Series High-Frequency Tweeter Drivers

Inngangur

Thank you for choosing Diamond Audio M01T Motorsports Series High-Frequency Tweeter Drivers. These 1-inch pro audio tweeters are designed to deliver crisp, detailed high-frequency sound with 100W maximum power handling. Their compact and durable construction makes them ideal for various motorsport and custom audio applications, ensuring reliable performance and outstanding sound quality.

Image: Diamond Audio M01T Tweeters highlighting key features such as swivel capability, high sensitivity, and a radial slit phase plug.

Öryggisupplýsingar

• Always disconnect the vehicle's battery before beginning any electrical installation to prevent short circuits and electrical shock.
• Gakktu úr skugga um að allar raflagnir séu rétt einangraðar og festar til að koma í veg fyrir skemmdir af völdum titrings eða hvassra brúna.
• Do not expose the tweeters to water or excessive moisture, as they are ekki vatnsheldur.
• Mælt er með faglegri uppsetningu til að hámarka afköst og öryggi.
• Avoid mounting in locations that obstruct driver visibility or interfere with vehicle safety features.
• Notið viðeigandi persónuhlífar (PPE) við uppsetningu.

Innihald pakka

Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum áður en haldið er áfram með uppsetningu:

• Diamond Audio M01T High-Frequency Tweeter Drivers (2 units)
• Wiring Harness (including passive crossovers)
• Mounting hardware (gaskets, rings, etc.)

Image: A pair of Diamond Audio M01T tweeters shown with included mounting accessories.

Uppsetning og uppsetning

The M01T tweeters feature flexible mounting options for integration into various car audio systems. Follow these general steps for installation:

1. Skipulag: Determine the optimal mounting location for the tweeters. Consider sound staging, off-axis response, and physical clearance.
2. Uppsetning: Securely mount the tweeters using the provided hardware. Ensure a stable and vibration-free installation. The flexible mounting design allows for various custom placements.
3. Raflögn: Connect the tweeters to your amplifier or head unit using the supplied wiring harness, which includes passive crossovers. The crossovers are essential for filtering out low frequencies that can damage the tweeters.
• Connect the positive (+) terminal of the tweeter to the positive output of the crossover.
• Connect the negative (-) terminal of the tweeter to the negative output of the crossover.
• Connect the input of the crossover to the appropriate high-pass filtered output from your amplyftara eða höfuðeiningu.
4. Próf: Before reassembling interior panels, perform a low-volume test to ensure proper functionality and sound quality. Gradually increase volume to check for distortion.

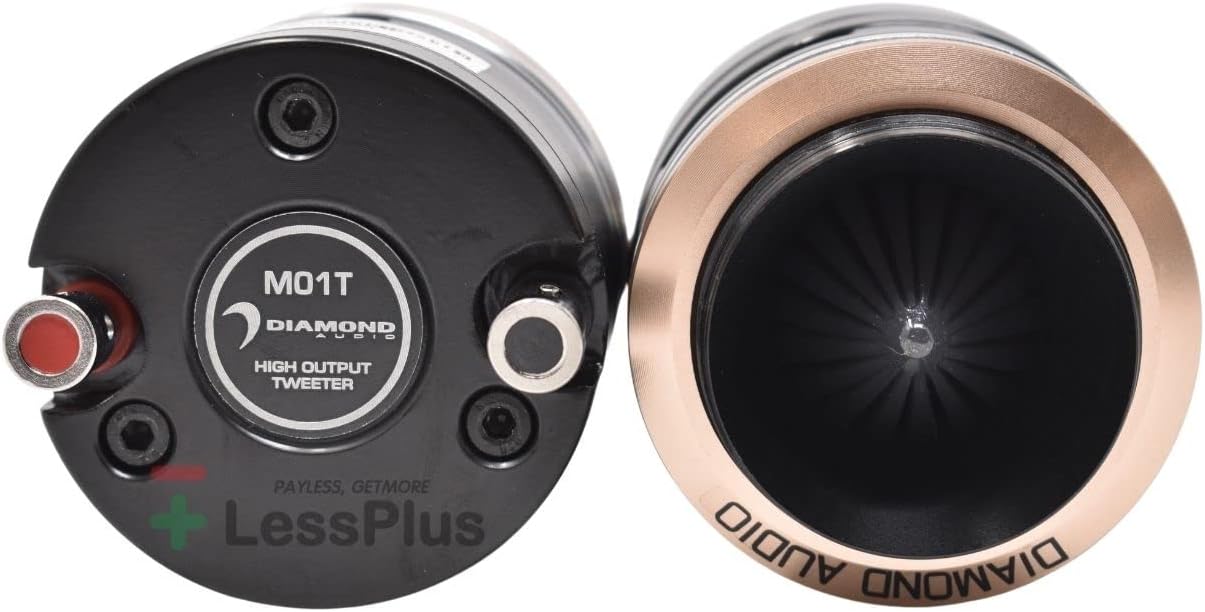

Mynd: Efst og neðst view of an M01T tweeter, illustrating the positive (red) and negative (black) terminals for wiring connections, along with the model number label.

Notkunarleiðbeiningar

Once properly installed and connected to an appropriate audio system with a high-pass filter (via the included passive crossovers or an active crossover), the Diamond Audio M01T tweeters will operate automatically as part of your car audio setup. Ensure your amplifier's gain settings are correctly adjusted to prevent overdriving the tweeters, which can lead to distortion or damage.

• Always start with low volume and gradually increase it to a comfortable listening level.
• Avoid prolonged listening at extremely high volumes to protect your hearing and the longevity of the tweeters.
• Ensure the audio source (head unit, media player) is set to a neutral equalization before making adjustments on the amplifier or external processor.

Viðhald

The Diamond Audio M01T tweeters require minimal maintenance to ensure long-lasting performance:

• Þrif: Gently wipe the tweeter's surface with a soft, dry cloth to remove dust. Do not use harsh chemicals or abrasive cleaners.
• Skoðun: Periodically check wiring connections for tightness and ensure no wires are frayed or exposed.
• Umhverfi: As these tweeters are not waterproof, avoid exposing them to direct water spray or extreme humidity.

Úrræðaleit

If you encounter issues with your M01T tweeters, refer to the following common troubleshooting steps:

Tæknilýsing

Ábyrgð og stuðningur

The Diamond Audio M01T Tweeter Drivers come with a Takmörkuð ábyrgð. Please refer to the warranty card included with your product for specific terms and conditions, or visit the official Diamond Audio webvefsíðu fyrir nákvæmar upplýsingar um ábyrgð.

For technical support, installation assistance, or warranty claims, please contact Diamond Audio customer service through their official website or authorized dealers. Keep your purchase receipt as proof of purchase for warranty services.
