Vamav Nova12

Vamav Nova12 12-inch Professional Amplified Speaker with DSP User Manual

Model: Nova12

1. Inngangur

Thank you for choosing the Vamav Nova12 12-inch Professional Amplified Speaker with DSP. This manual provides essential information for the safe and efficient operation of your new audio equipment. Please read this manual thoroughly before use and retain it for future reference.

2. Öryggisleiðbeiningar

Til að tryggja örugga notkun og koma í veg fyrir skemmdir skal fylgja eftirfarandi varúðarráðstöfunum:

  • Aflgjafi: Connect the speaker only to a power supply specified in the specifications section. Ensure the power cable is not damaged or pinched.
  • Loftræsting: Ekki loka loftræstiopum. Tryggið nægilegt loftflæði í kringum tækið til að koma í veg fyrir ofhitnun.
  • Raki: Do not expose the speaker to rain, moisture, or excessive humidity. This product is not waterproof.
  • Staðsetning: Place the speaker on a stable, level surface. Avoid placing it near heat sources or in direct sunlight.
  • Þrif: Disconnect from power before cleaning. Use a dry, soft cloth. Do not use liquid cleaners or aerosols.
  • Þjónusta: Ekki reyna að þjónusta þessa vöru sjálfur. Vísaðu allri þjónustu til viðurkennds þjónustufólks.

3. Innihald pakka

Gakktu úr skugga um að allir hlutir séu til staðar í pakkanum:

  • Vamav Nova12 12-inch Professional Amplified Speaker with DSP
  • Rafmagnssnúra
  • Notendahandbók (þetta skjal)

4. Vöru lokiðview

The Vamav Nova12 is a professional amplified speaker featuring a 12-inch woofer and integrated Digital Signal Processing (DSP) for optimized audio performance. It is designed for various applications, including home theater systems, televisions, and game consoles.

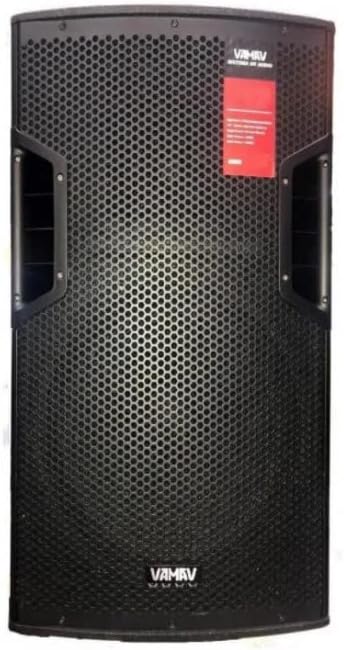

Framan view of the Vamav Nova12 12-inch Professional Amplified Speaker with DSP, showing the protective grille and Vamav logo.

Mynd 4.1: Framan View
This image displays the front of the Vamav Nova12 speaker, featuring a robust metal grille protecting the 12-inch woofer and tweeters. The Vamav logo is visible at the bottom, and handles are integrated on the sides for portability.

Aftan view of the Vamav Nova12 12-inch Professional Amplified Speaker with DSP, showing the control panel and input/output ports.

Mynd 4.2: Aftan View
This image shows the rear panel of the Vamav Nova12 speaker, which houses the DSP control interface, various input and output connections (including RCA), and the power input. The cooling vents are also visible.

5. Uppsetning

Follow these steps to set up your Vamav Nova12 speaker:

  1. Staðsetning: Position the speaker on a stable, flat surface. Ensure there is sufficient space around the unit for proper ventilation. The speaker is designed for floor mounting.
  2. Rafmagnstenging: Connect the provided power cable to the power input on the rear panel of the speaker, then plug the other end into a suitable electrical outlet.
  3. Hljóðinntak: Connect your audio source (e.g., home theater system, television, game console) to the RCA input ports on the rear panel of the speaker using an RCA cable (not included). Ensure correct left/right channel connections if applicable.

6. Notkunarleiðbeiningar

Once the speaker is set up, follow these instructions for operation:

  1. Kveikt á: Locate the power switch on the rear panel and switch it to the 'ON' position. The DSP display should illuminate.
  2. Hljóðstyrksstilling: Use the master volume control knob on the rear panel to adjust the overall output level of the speaker. Start with a low volume and gradually increase it to a comfortable listening level.
  3. DSP Controls: The integrated DSP (Digital Signal Processor) allows for fine-tuning of the audio characteristics. Refer to the DSP interface on the rear panel to navigate menus and adjust settings such as equalization, crossover points, and other audio parameters. Specific DSP functions are controlled via the tactile interface.
  4. Hljóðspilun: Begin playing audio from your connected source. Adjust the source volume and speaker volume as needed.
  5. Slökkva á: When finished, switch the power button on the rear panel to the 'OFF' position.

7. Viðhald

Proper maintenance ensures the longevity and optimal performance of your speaker:

  • Þrif: Regularly wipe the exterior of the speaker with a soft, dry, lint-free cloth. Do not use abrasive cleaners, waxes, or solvents.
  • Loftræsting: Periodically check that the ventilation openings are free from dust and debris. Use a soft brush or compressed air to clear any blockages.
  • Geymsla: If storing the speaker for an extended period, disconnect it from power, clean it, and store it in a cool, dry place, preferably in its original packaging.

8. Bilanagreining

If you encounter issues with your Vamav Nova12 speaker, refer to the following common problems and solutions:

VandamálMöguleg orsökLausn
Enginn krafturRafmagnssnúra ekki tengd; Rafmagnsinnstunga ekki virk; Slökkt á rafmagnsslökkvanumEnsure power cable is securely connected; Check power outlet with another device; Turn power switch to 'ON'
Ekkert hljóðAudio cable not connected; Source device not playing; Speaker volume too low; DSP settings incorrectCheck RCA cable connections; Verify audio playback on source device; Increase speaker volume; Reset DSP settings if necessary
Bjagað hljóðVolume too high (speaker or source); Damaged audio cable; DSP settings incorrectReduce volume on both speaker and source; Try a different audio cable; Adjust DSP settings

9. Tæknilýsing

Detailed technical specifications for the Vamav Nova12 speaker:

EiginleikiForskrift
FyrirmyndNova12
Tegund hátalaraWoofer
Sérstakur eiginleikiTweeters, DSP
Mælt er með notkunGame Consoles, Home Theater Systems, Televisions
Samhæf tækiHome Theater, Television, Game Console
Subwoofer þvermál12 tommur
LiturSvartur
VatnsheldurRangt
EftirlitsaðferðÁþreifanleg
Stærð hátalara12 tommur
AflgjafiRafmagn með snúru
Meðal rafhlöðuending5 Hours (if applicable, for internal components)
Vöruþyngd25 kg
TengitækniRCA
HljóðútgangsstillingMono
Gerð uppsetningarGólffesting

10. Ábyrgð og stuðningur

Vamav products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.

For technical support or service inquiries, please contact the retailer where you purchased the product or visit the official Vamav websíða fyrir upplýsingar um tengiliði.
