Notendahandbók fyrir Cosmic Byte ARES þráðlausa stjórnborðið

Inngangur

Thank you for choosing the Cosmic Byte ARES Wireless Controller. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new controller. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

The Cosmic Byte ARES Wireless Controller is designed for PC gaming, offering a reliable wireless connection, ergonomic design, and responsive controls for an enhanced gaming experience. It features pressure-sensitive analog triggers, LED-backlit buttons, and supports both Xinput and D Input modes.

Uppsetningarleiðbeiningar

1. Innihald pakka

• Cosmic Byte ARES Wireless Controller
• USB þráðlaus Dongle
• USB hleðslusnúra
• Notendahandbók

2. Hleðsla stjórntækisins

Before initial use, fully charge the controller. Connect the supplied USB charging cable to the USB port on the top of the controller and plug the other end into a powered USB port (e.g., PC, USB wall adapter). The LED indicator on the controller will show charging status and turn off or change color when fully charged.

Efst view of the Cosmic Byte ARES Wireless Controller showing the USB port for charging and connection, along with the V LED and ABXY button backlighting.

3. Tengist tölvu

1. Insert the USB wireless dongle into an available USB port on your PC.
2. Turn on the Cosmic Byte ARES Wireless Controller by pressing the central 'Home' button.
3. The controller will automatically pair with the dongle. The LED indicator on the controller will stabilize once connected.
4. Your PC should automatically detect and install the necessary drivers. If not, refer to the troubleshooting section.

The controller offers a wireless range of 8-10 meters, providing flexibility during gameplay.

The Cosmic Byte ARES Wireless Controller highlighting its reliable wireless connection and 700mAh battery, providing up to 12 hours of continuous gaming.

Notkunarleiðbeiningar

1. Grunnstýringar

The controller features standard gamepad buttons and joysticks:

• Vinstri hliðræni stýripinninn: Movement and navigation.
• Hægri hliðræni stýripinni: Stjórnun myndavélar og miðun.
• D-Pad: Directional input, menu navigation.
• ABXY hnappar: Action buttons, typically for jumping, interacting, attacking, etc. These buttons are LED-backlit.
• Shoulder Buttons (L1/R1): Quick actions.
• Triggers (L2/R2): Pressure-sensitive analog triggers for precise input, such as acceleration or shooting.
• START/BAKKA Hnappar: Menu access, map, inventory, etc.
• Heimahnappur: Powers on/off the controller, accesses system menus.

Framan view of the Cosmic Byte ARES Wireless Controller, showcasing the button layout, joysticks, D-pad, and central LED indicator.

2. Sérstakir eiginleikar

• Xinput and D Input Support: The controller automatically detects and supports both Xinput and D Input modes, ensuring compatibility with a wide range of PC games.
• Viðbrögð við titringi: Experience immersive gameplay with the built-in vibration feature, providing tactile feedback for in-game events.
• Turbo virka: The 'TURBO' button allows for rapid, repeated input of a selected action button. To activate, press and hold the 'TURBO' button, then press the desired action button (e.g., A, B, X, Y). To deactivate, repeat the process.
• Auto Function: The 'AUTO' button enables continuous, automatic input of a selected action button without holding it down. To activate, press and hold the 'AUTO' button, then press the desired action button. To deactivate, repeat the process.
• Hall-áhrif kveikjur: The controller is equipped with Hall Effect Triggers, providing precise and durable input for enhanced control.
• Vistvæn hönnun: The controller features ergonomic, rubberized textured sticks for improved grip and comfort during extended gaming sessions.

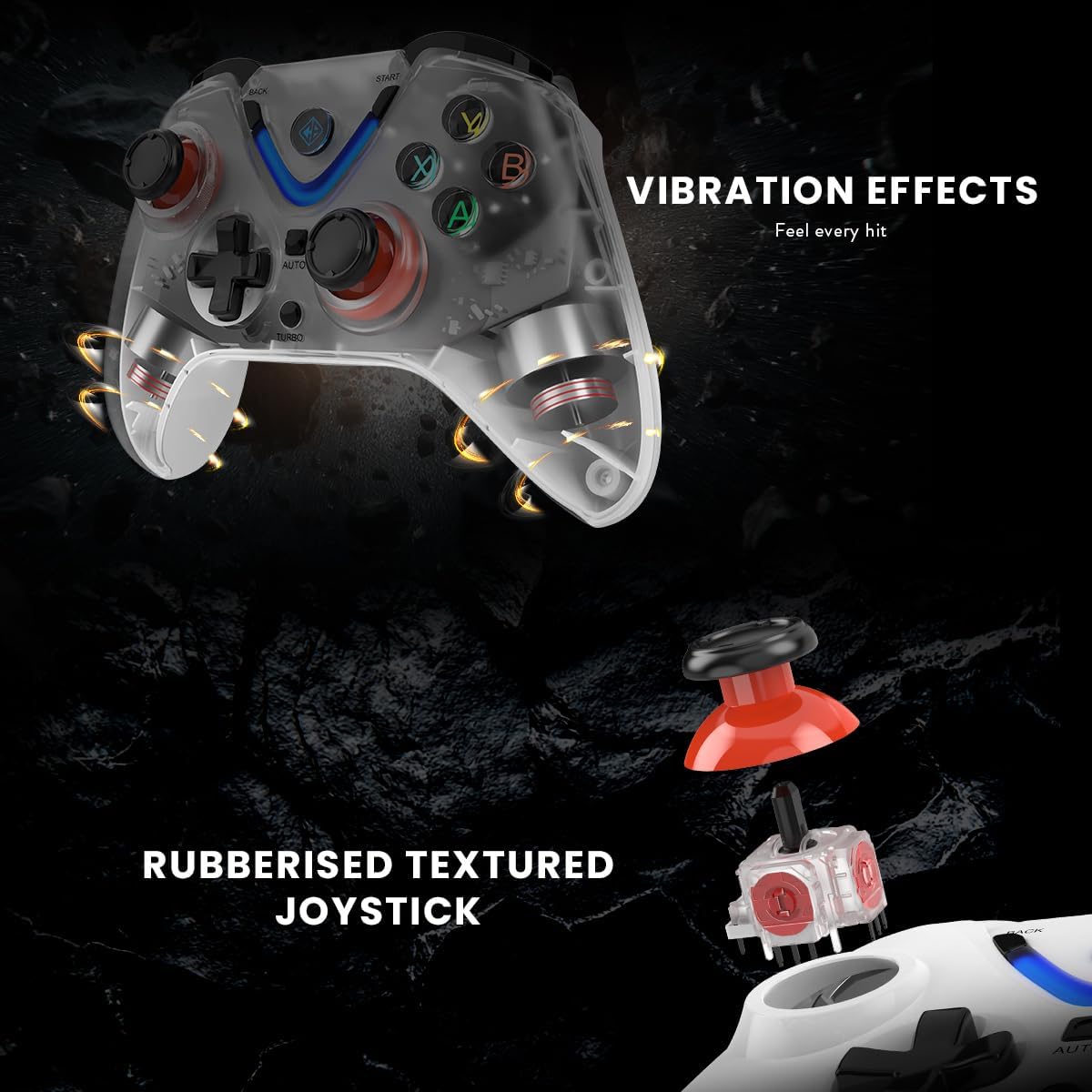

Illustration of the Cosmic Byte ARES Wireless Controller's vibration feedback feature and the design of its rubberized textured joysticks for enhanced grip.

Detail of the Cosmic Byte ARES Wireless Controller's Turbo and Auto function buttons, alongside an illustration of its Hall Effect Triggers for precise input.

Viðhald

1. Þrif

Til að þrífa stjórntækið skaltu nota mjúkan, þurran klút. Fyrir þrjósk óhreinindi skaltu þurrka örlítið.ampen the cloth with water. Do not use harsh chemicals, solvents, or abrasive cleaners, as these can damage the controller's surface and internal components.

2. Umhirða rafhlöðu

• Avoid exposing the controller to extreme temperatures (hot or cold).
• Do not leave the controller uncharged for extended periods. Charge it periodically if not in use.
• Do not attempt to replace the internal battery yourself. Contact support if battery issues arise.

Úrræðaleit

1. Stýring tengist ekki

• Ensure the USB wireless dongle is securely plugged into a working USB port on your PC.
• Make sure the controller is powered on and has sufficient battery charge.
• Try plugging the dongle into a different USB port on your PC.
• Restart your PC and try connecting again.
• If the issue persists, try re-pairing the controller by pressing the reset button (if available, usually a small pinhole on the back) on the controller and then the pairing button on the dongle (if applicable).

2. Buttons/Joysticks Unresponsive

• Check if the controller is properly connected to your PC.
• Ensure the game you are playing supports gamepad input.
• Test the controller with another game or a gamepad testing tool on your PC to rule out game-specific issues.
• Restart the controller and your PC.

3. Rafhlaða hleðst ekki

• Verify that the USB charging cable is correctly connected to both the controller and a powered USB port.
• Try using a different USB charging cable or a different USB port/power adapter.
• Ensure the charging port on the controller is free of debris.

Tæknilýsing

Upplýsingar um ábyrgð

The Cosmic Byte ARES Wireless Controller comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official Cosmic Byte webvefsíðunni til að fá ítarlegri ábyrgðarskilmála. Geymið kaupkvittunina sem sönnun fyrir kaupum ef um ábyrgðarkröfur er að ræða.

Þjónustudeild

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Cosmic Byte customer support. Contact details can typically be found on the official Cosmic Byte websíðunni eða á umbúðum vörunnar.
