SUPPLYZ 7109P084-60 Range Washer Fiber with Adhesive Instruction Manual

1. Inngangur

This manual provides instructions for the proper installation and care of the SUPPLYZ 7109P084-60 Range Washer Fiber with Adhesive. This component is designed as a direct replacement for the Whirlpool 7109P084-60 part, intended for use in various range appliances. It is crucial to read and understand all instructions before proceeding with installation.

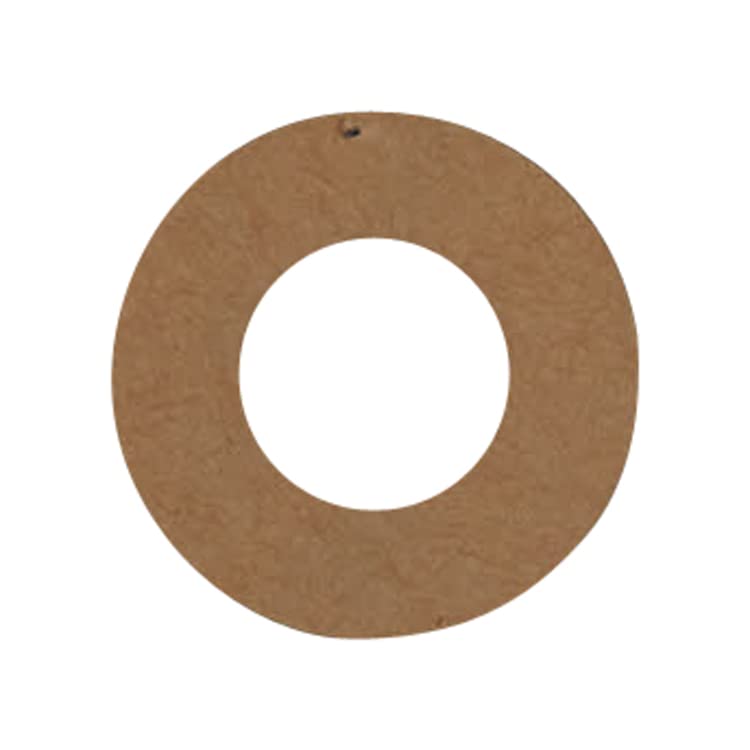

Image showing the SUPPLYZ 7109P084-60 Range Washer Fiber with Adhesive, a circular fiber washer with an adhesive backing.

2. Öryggisupplýsingar

Always prioritize safety when working with appliances. Failure to follow these safety guidelines may result in injury or damage to property.

• Aftengdu rafmagn: Before attempting any installation or repair, ensure the appliance is completely disconnected from its power source (unplugged or circuit breaker turned off).
• Notið hlífðarbúnað: Use appropriate personal protective equipment, such as gloves and eye protection, to prevent injury.
• Fagleg aðstoð: If you are unsure about any step of the installation process, consult a qualified appliance technician.
• Meðhöndlaðu með varúð: The washer fiber and adhesive should be handled carefully to avoid damage to the part or accidental adhesion to unintended surfaces.

3. Uppsetningarleiðbeiningar

This washer fiber with adhesive is a direct replacement part. The specific installation steps may vary slightly depending on your range model. Always refer to your appliance's service manual for detailed disassembly and reassembly instructions.

1. Undirbúið tækið: Ensure the range is completely cool and disconnected from power. Access the area where the washer fiber needs to be replaced according to your appliance's service manual.
2. Fjarlægja gamlan hluta: Carefully remove the old washer fiber and any remaining adhesive residue from the surface. Clean the area thoroughly to ensure a smooth, clean surface for the new adhesive.
3. Prepare New Part: Peel off the protective backing from the adhesive side of the SUPPLYZ 7109P084-60 washer fiber. Avoid touching the adhesive surface.
4. Staða og umsókn: Align the new washer fiber precisely with the intended mounting area. Once aligned, firmly press the washer fiber onto the surface, ensuring good contact with the adhesive. Apply even pressure for several seconds to secure it.
5. Setja tækið saman aftur: Reassemble the range components in reverse order of disassembly, ensuring all connections are secure and no tools or debris are left inside.

4. Staðfesting eftir uppsetningu

After installation, perform the following checks to ensure proper function and safety:

• Sjónræn skoðun: Confirm that the washer fiber is securely in place and properly seated.
• Endurheimta kraft: Reconnect the appliance to its power source.
• Prófunartæki: Operate the range briefly to ensure all functions are working correctly and there are no unusual noises or issues related to the replaced part.

5. Care and Inspection

The SUPPLYZ 7109P084-60 Range Washer Fiber with Adhesive is designed for durability. Once installed, it generally requires minimal maintenance. However, periodic inspection can help ensure its longevity.

• Reglubundin skoðun: During routine appliance cleaning or maintenance, visually inspect the washer fiber for any signs of wear, damage, or detachment.
• Þrif: If the washer fiber becomes dirty, gently wipe it with a damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the material or adhesive.
• Storage (if not installed immediately): Store the part in its original packaging in a cool, dry place away from direct sunlight and extreme temperatures to preserve the adhesive's integrity.

6. Bilanagreining

If you encounter issues after installing the SUPPLYZ 7109P084-60 Range Washer Fiber with Adhesive, consider the following:

• Part Not Seated Properly: If the washer fiber appears loose or misaligned, it may not have been pressed firmly enough during installation, or the surface was not adequately cleaned. Disconnect power, carefully remove, clean the surface, and reapply.
• Adhesive Failure: If the adhesive fails prematurely, ensure the surface was free of grease, dirt, and moisture before application. Extreme temperatures during or immediately after installation can also affect adhesion.
• Bilun í tæki: If the appliance is not functioning correctly after installation, and you suspect it's related to the washer fiber, re-verify the installation steps. If the issue persists, consult your appliance's service manual or a qualified technician, as the problem may be unrelated to this specific part.

7. Tæknilýsing

8. Ábyrgð og stuðningur

For information regarding product warranty, please refer to the terms and conditions provided by your retailer or contact SUPPLYZ directly. For technical support or further assistance, please reach out to the manufacturer or the point of purchase.
