Gree Flexx 48,000 BTU Central Air Conditioning Heat Pump System 230V

1. Inngangur og kerfisbreytingview

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Gree Flexx 48,000 BTU Central Air Conditioning Heat Pump System 230V. This system is designed to provide both heating and cooling for residential spaces, utilizing advanced inverter technology for optimal performance and energy efficiency.

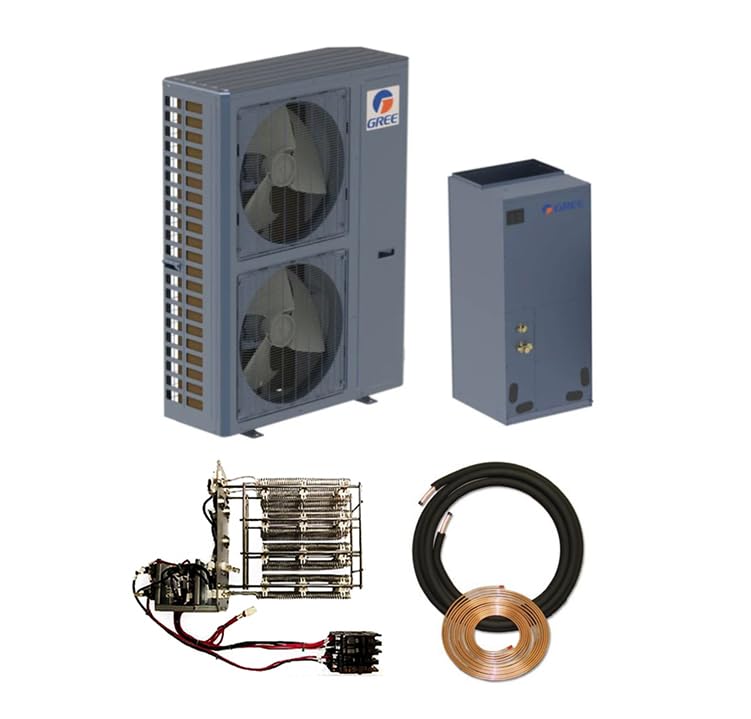

The Gree Flexx system includes an indoor unit (FLEXX48HP230V1AH) and an outdoor unit (FLEXX60HP230V1AO), along with a 25-foot line set and a heater kit. Its horizontal discharge design contributes to a smaller, quieter footprint and up to 20 SEER efficiency.

Figure 1: Gree Flexx Outdoor Heat Pump Unit

2. Uppsetning og uppsetning

Mikilvægt: Installation of this system must be performed by a State Licensed HVAC Contractor to ensure warranty eligibility and proper operation. Attempting self-installation may void the manufacturer's warranty and could lead to safety hazards.

2.1 Kröfur um línusett

This system requires a 3/8 inch and 3/4 inch line set for proper refrigerant flow between the indoor and outdoor units.

2.2 Indoor Unit Heater Kit Compatibility

The system is compatible with various electric heater kits. Refer to the table below for indoor unit models and corresponding electric heater options.

Figure 2: Indoor Unit and Electric Heater Kit Compatibility

Athugið: Optional Electric Heater is sold separately. When an optional Electric Heater is installed, the Indoor Unit power supply must be connected to circuit breakers provided with the Electric Heater. Refer to the Electric Heater Installation Instructions for all electrical requirements.

2.3 Flexible Positioning

The indoor air handler can be adapted vertically or horizontally to suit your existing ducting design, offering flexible installation options.

3. Notkunarleiðbeiningar

The Gree Flexx system provides efficient heating and cooling across a wide range of outdoor temperatures, ensuring comfort in various climates.

3.1 hitastig

• Hitasvið: -22°F til 75°F
• Kælisvið: 5°F til 129°F

3.2 Inverter Technology Benefits

GREE's EVI Inverter Technology allows the system to adjust its capacity precisely, maintaining a stable indoor temperature with minimal fluctuations. This results in higher energy efficiency and reduced noise levels compared to traditional systems.

4. Viðhald

Regular maintenance is crucial for the longevity and efficiency of your Gree Flexx system. It is recommended to have your system inspected and serviced by a qualified HVAC technician annually.

4.1 Coil Material

The system features aluminum coils, which are designed to resist corrosion more effectively than traditional copper coils, contributing to longer system life.

4.2 Ítarlegir eiginleikar

• Uppgötvun kælimiðilsleka: The system is equipped with technology to detect refrigerant leaks, helping to prevent damage and maintain efficiency.
• Sjálfvirk afþýðing: This feature automatically defrosts the outdoor unit in cold conditions, ensuring continuous heating performance.

5. Bilanagreining

For any operational issues or malfunctions, it is strongly recommended to contact a State Licensed HVAC Contractor. Do not attempt to repair the system yourself, as this may void the warranty and pose safety risks.

6. Tæknilýsing

7. Ábyrgð og stuðningur

7.1 Ábyrgð framleiðanda

The Gree Flexx system comes with a 5ja ára ábyrgð á hlutum og a 7 ára ábyrgð á þjöppunni. Please note that for warranty eligibility, the installation must be performed by a State Licensed HVAC Contractor.

7.2 Þjónustuver

For technical assistance, warranty claims, or service inquiries, please contact your licensed HVAC installer or the Gree customer support line. Ensure you have your product model and serial number available when contacting support.
